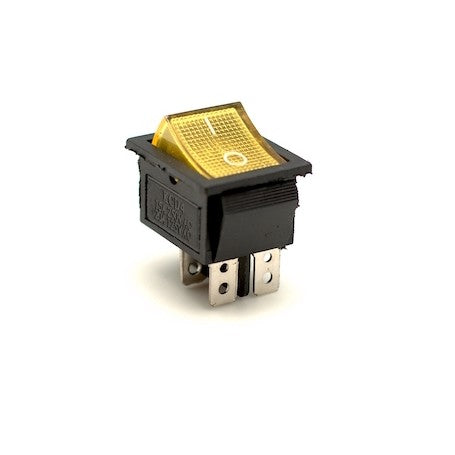

Yellow KCD4 250V/15A IRS ON-OFF Switch
Available in stock
Minimum order quantity: 3 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 3,99 lei | — |
| 10–15 pcs | 3,79 lei | 5% (−0,20 lei/unit) |
| 16–20 pcs | 3,59 lei | 10% (−0,40 lei/unit) |
| 21+ pcs | 3,39 lei | 15% (−0,60 lei/unit) |
Industrial switch with yellow LED for safe equipment control
The IRS KCD4 switch with 4 contacts and a yellow signaling LED provides precise control and immediate visibility of power status for industrial and domestic electrical equipment. Designed for currents up to 20A and 250V AC, it ensures reliable switching in medium and high intensity applications, from machine tools to water pumps and car headlights.
What you get with this product
- Immediate visibility of ON/OFF status via integrated yellow LED, eliminating uncertainty when operating equipment
- Industrial switching capacity up to 20A at 125V or 15A at 250V, suitable for power tools, pumps and production machines
- Quick mounting in a standard 31x25mm hole, no need to modify existing panels or casings
- Robust plastic and metal construction resistant to intensive use in workshops, garages and industrial environments
- 4-contact configuration allowing implementation in complex circuits with multiple control positions
- Simple push-button operation, ideal for integration in automotive equipment, boats, power tools and household appliances
How it works and how to install it
The switch operates by mechanical button action, switching between ON and OFF positions, maintaining the selected position. The yellow LED lights up automatically when the circuit is closed, signaling the presence of current. Installation requires connecting the 4 contacts according to the equipment's electrical diagram and clipping it into the 31x25mm mounting hole in the control panel or casing.
Frequently Asked Questions
Can I use this switch for a 1500W grinder or drill?
Yes, at 230V a 1500W motor consumes approximately 6.5A, and the switch supports up to 15A at 250V AC, providing a sufficient safety margin.
Does the LED require separate power or does it light up automatically?
The yellow LED is integrated and lights up automatically when the switch is in the ON position and the circuit is powered, without the need for additional connections.
Can it be mounted in the electrical panel of a production machine?
Yes, its standard dimensions and industrial switching capacity make it suitable for control panels of industrial equipment, provided the maximum current of 15A at 250V is observed.
Technical specifications
| Model | KCD4 Yellow |
| Contact type | ON/OFF (I-0) |
| Number of contacts | 4 |
| Rated voltage | 125V AC / 250V AC |
| Maximum current | 20A at 125V, 15A at 250V |
| Actuation type | Push button with position hold |
| Visual indication | Integrated yellow LED |
| Overall dimensions | 31 x 25 x 32 mm |
| Housing material | Plastic and metal |
| Weight | Approx. 20g |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian consumer protection legislation. We offer a 30-day return policy from receipt and fast delivery by courier throughout the country.
