Foot Pedal Switch TFS-1
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 16,99 lei | — |
| 3–4 pcs | 16,14 lei | 5% (−0,85 lei/unit) |
| 5–10 pcs | 15,29 lei | 10% (−1,70 lei/unit) |
| 11+ pcs | 14,44 lei | 15% (−2,55 lei/unit) |

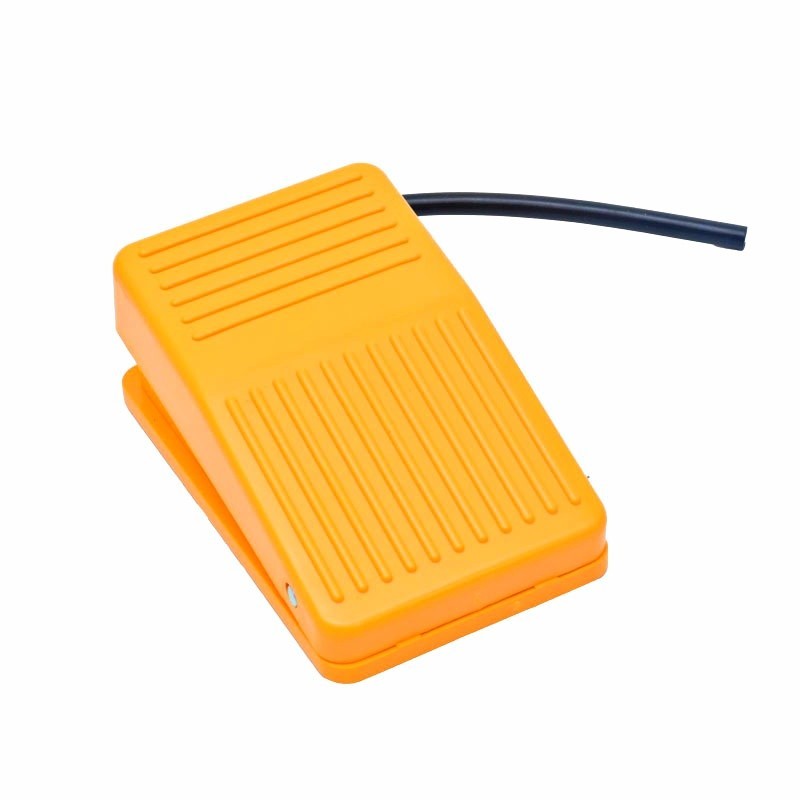

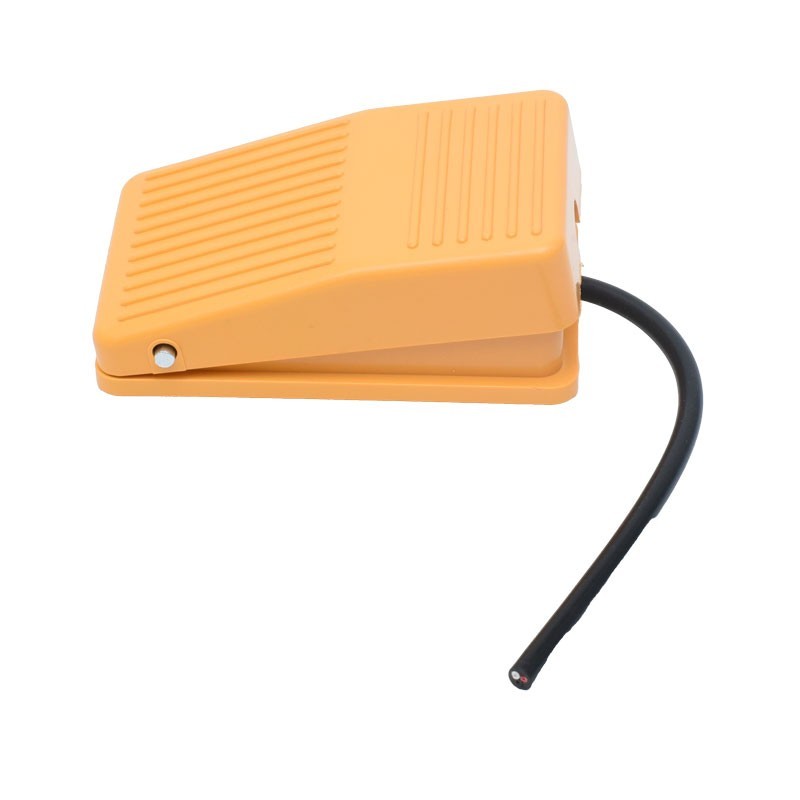

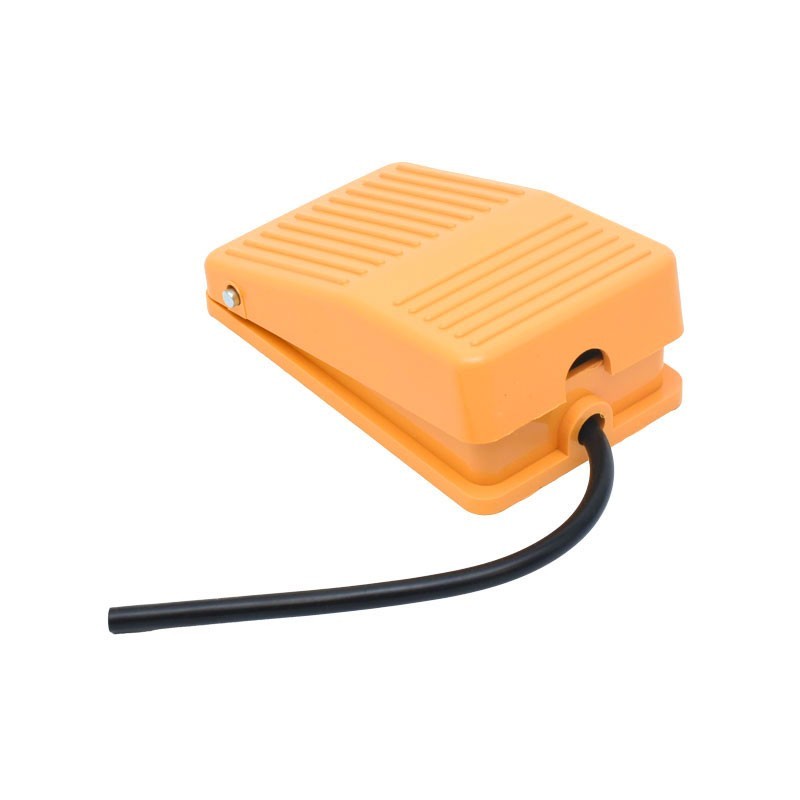

TFS-1 Industrial Foot Switch for Electric Equipment Control
This TFS-1 foot switch allows you to control electrical equipment without using your hands, ensuring increased safety and efficiency in your workshop or laboratory. Compact and robust, it supports loads of up to 2500W and operates by simply pressing it with your foot, completely freeing your hands for work.
What you get with this product
- Constantly free hands — operate equipment with your foot only, without interruptions to your work
- Instant emergency stop — lift your foot and the equipment stops immediately, significantly increasing safety
- Resistance to harsh environments — IP54 protection rating against dust and splashes in the workshop
- Compact dimensions — only 100x61x38 mm, easily mounts under the workbench or next to the machine
- Industrial capacity — supports 10A current and power up to 2500W, compatible with most small machinery

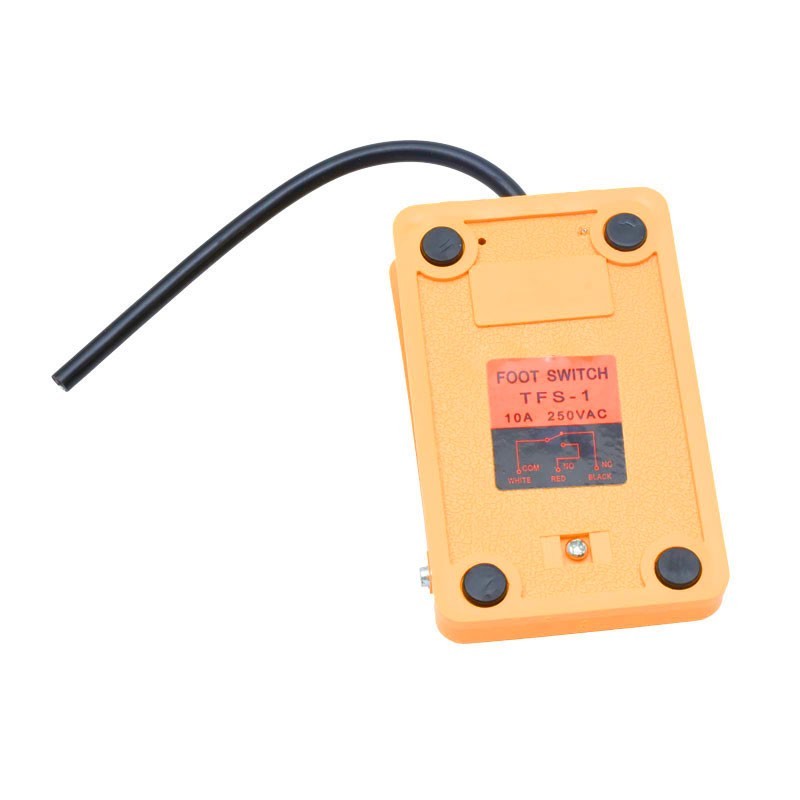

- Guaranteed stability — non-slip base with 4 contact points, stays firmly in place even with repeated presses
How it works and how to install
The TFS-1 switch operates on the principle of momentary contact: pressing the pedal closes the electrical circuit and starts the equipment, and lifting your foot automatically stops it. The internal spring mechanism ensures quick return to the OFF position. For installation, fix the pedal to the floor or under the workbench with the included screws, connect the cable to the mains and the equipment, then test its operation. No advanced technical knowledge is required — the connections are standard, and assembly takes less than 10 minutes.
Frequently asked questions
Does the pedal stay on if I keep it pressed, or does it turn off automatically?
It turns off automatically. It is a momentary type — the circuit remains active only as long as you keep your foot pressed on the pedal. When you lift your foot, the internal spring returns the pedal, and the equipment stops instantly.
Can it withstand blows and the weight of safety footwear?
Yes, the industrial ABS plastic casing resists impacts and repeated presses. It is designed for use in workshops with daily demands, including heavy safety boots.
Can I connect a bench grinder or a polisher to it?
Yes, as long as the equipment consumes a maximum of 10A at 250V AC (i.e., up to 2500W). Check the label on your equipment — if it does not exceed these values, connection is safe.
Technical specifications
| Model | TFS-1 |

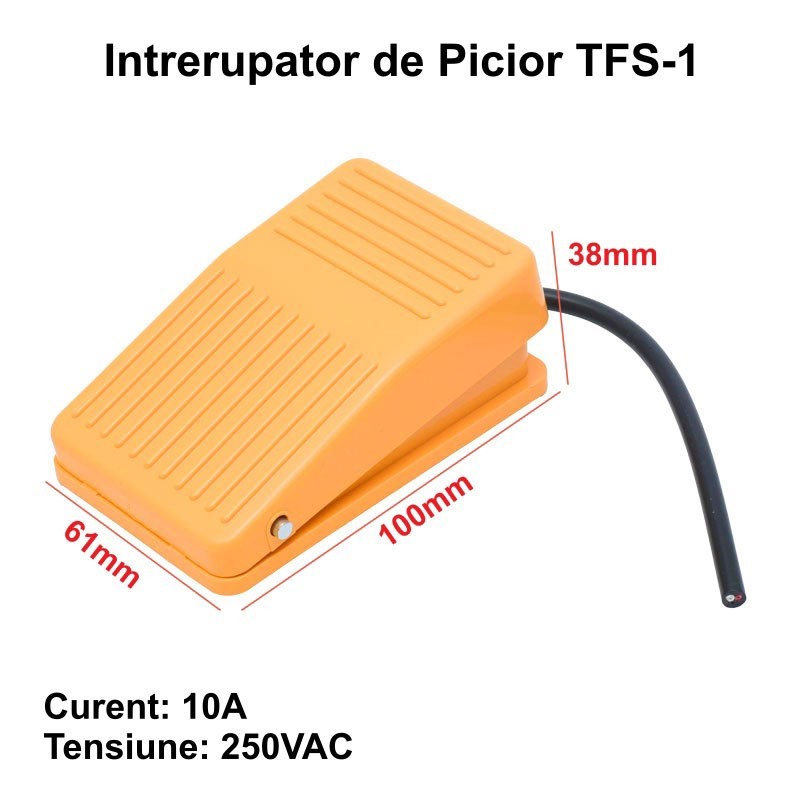

| Dimensions (L x W x H) | 100 x 61 x 38 mm |
| Rated voltage | 250V AC |
| Maximum current | 10A |
| Maximum power | 2500W |
| Actuation type | Momentary ON/OFF (works only when pressed) |
| Housing material | Impact-resistant ABS plastic |
| Protection rating | IP54 (dust and splash protection) |
| Contact type | Silver for increased durability |
| Weight | Approximately 350 g |
| Color | Industrial orange/yellow |
Warranty and support
The product comes with a 24-month warranty in accordance with current legislation and a 30-day return policy from the date of receipt. Delivery is fast via courier, with secure packaging for protection during transit.
