Magnetic Circuit Motor Breaker GV2-ME32C/24-32A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 212,99 lei | — |
| 3–4 pcs | 202,34 lei | 5% (−10,65 lei/unit) |
| 5–10 pcs | 191,69 lei | 10% (−21,30 lei/unit) |
| 11+ pcs | 181,04 lei | 15% (−31,95 lei/unit) |
Motor circuit breaker with thermal and magnetic protection 24-32A

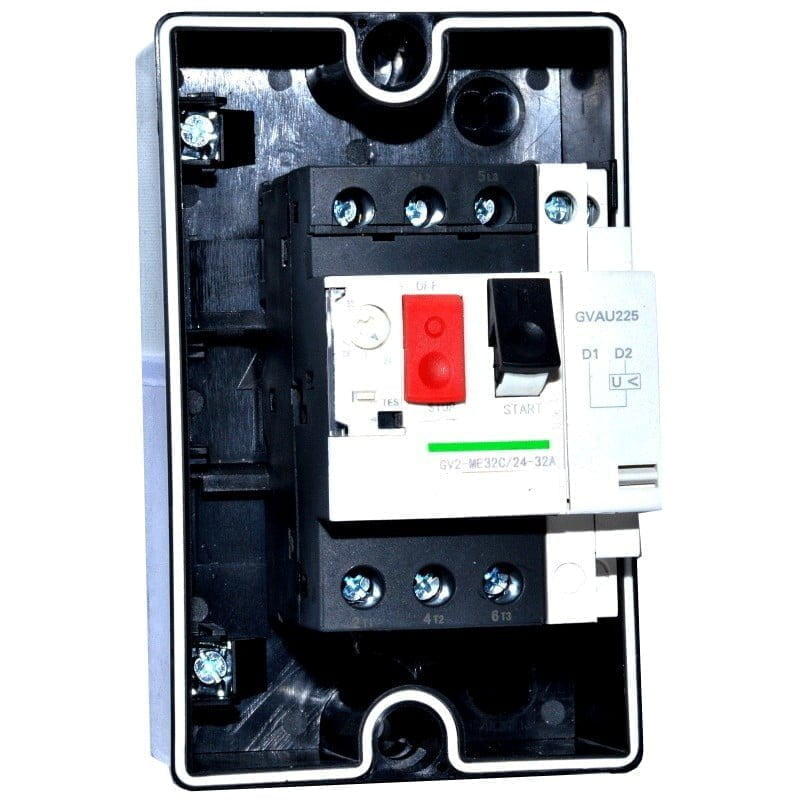

Protects electric motors from overload and short circuit with precise adjustment of the thermal threshold between 24-32A. GV2-ME32C magnetic circuit breaker delivered in an IP55 hermetic enclosure, ideal for industrial installations, workshops, and equipment requiring secure protection for three-phase motor controls up to 690V.
What you get with this product
- Dual thermal and magnetic protection — prevents motor damage from overload or short circuit, automatic tripping at 416A
- Flexible adjustment 24-32A — adapt the protection threshold precisely to your motor's consumption, without changing components
- IP55 hermetic enclosure with rubber gasket — resistant to dust and water jets, suitable for wet or dusty industrial environments
- Durability 100,000 cycles — tested for intensive use, resistant to repeated switching in industrial conditions
- Standard DIN rail mounting — quick installation without complex sculpting, compatible with existing electrical panels
- Safety up to 690V AC — operates in industrial three-phase networks, with insulation and impulse withstand voltage 6kV
How it works and how to install it
The circuit breaker continuously monitors the electric current through the motor. When the set threshold (24-32A) is exceeded, thermal tripping interrupts the circuit, and in case of a short circuit, magnetic protection acts instantly at 416A. Mounting is done on a DIN rail by screw fastening, electrical connections are made to the three-pole terminals. After installation, adjust the thermal threshold using the adjustment knob according to the nominal consumption of the protected motor.
Frequently Asked Questions
Can I adjust the protection current after installation?
Yes, the thermal threshold is continuously adjustable between 24-32A by rotating the setting knob, without removing the device from the panel.
Is it suitable for single-phase motors?
No, this model is designed for three-phase AC networks. The contacts are three-pole, and the AC-3 utilization category targets three-phase motors.
How often should it be checked or maintained?
Visual inspection is recommended semi-annually, and functionality check annually. The device does not require contact maintenance due to its sealed construction.
Technical Specifications
| Product type | Motor magnetic circuit breaker |
| Rated current | 32 A |
| Thermal protection adjustment range | 24-32 A |
| Magnetic trip current | 416 A |
| Number of poles | 3P (three-pole) |
| Operating voltage | 690 V AC 50/60 Hz |
| Insulation voltage | 690 V AC |
| Impulse withstand voltage | 6 kV |
| Utilization category | AC-3 according to IEC 60947-4-1 |
| Protection rating | IP55 (hermetic enclosure with gasket) |
| Mechanical durability | 100,000 cycles |
| Electrical durability | 100,000 cycles at AC-3 440V |
| Power dissipation/pole | 2.5 W |
| Mounting type | Screw (DIN rail) |
| Housing material | ABS, Metal |
| Control type | Resettable button |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation for industrial electrical equipment. 30-day return right for uninstalled products. Fast delivery by courier
