Green Push Button Switch 12V - 20A with LED
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 10,99 lei | — |
| 3–4 pcs | 10,44 lei | 5% (−0,55 lei/unit) |
| 5–10 pcs | 9,89 lei | 10% (−1,10 lei/unit) |
| 11+ pcs | 9,34 lei | 15% (−1,65 lei/unit) |

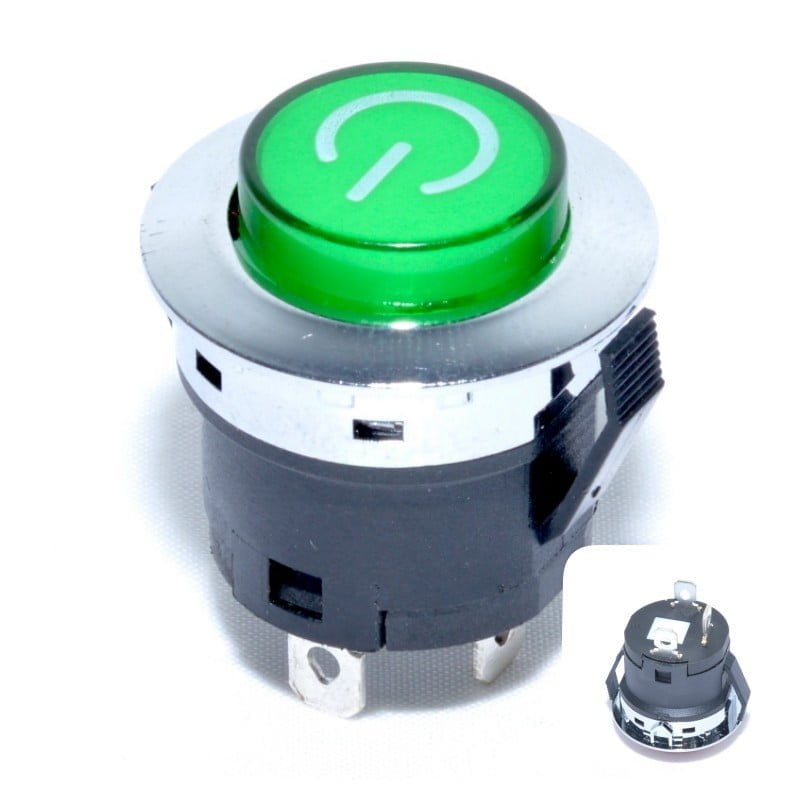

12V Green Push Button with LED for Automotive and Industrial Installations
The 12V 20A green push button switch with LED is a compact and reliable solution for controlling electrical equipment in automotive installations, control panels, or low-voltage industrial applications. The integrated green LED visually signals the presence of voltage, eliminating any ambiguity in circuit operation. With a 22mm dimension and 3 contact terminals, it quickly mounts into any standard perforated panel.
What you get with this product
- Immediate visual confirmation of circuit status — the illuminated green LED shows you if the equipment is on under any conditions
- 20A at 12V capacity — supports consistent electrical loads without overheating or contact loss
- Quick mounting in standard panels — the 22mm diameter fits into common-sized holes, without additional adapters
- Secure connection via 3 faston terminals — firm mechanical grip, vibration resistant, ideal for automotive or industrial environments
- Metal casing with chrome ring — superior mechanical resistance compared to full-plastic versions, neat appearance on the control panel
- Power symbol engraved on the cap — intuitive function identification without additional labels
How it works and how to install it
The push button works by momentarily closing the circuit when pressed, with the LED remaining lit as long as voltage is present on the circuit. Installation involves cutting a 22mm hole in the mounting panel, inserting the button, and securing it with the included nut on the back. The 3 faston terminals connect to the power and load wires without special tools — the operation takes less than 5 minutes for an electrician or a user with basic experience in 12V installations.
Frequently asked questions
Does this button stay pressed or does it return on its own after being pressed?
It is a momentary push button — it returns to its original position on its own after you release the press. It does not lock in the pressed position.
Does the LED require an external resistor or is it already integrated?
The LED is calibrated for direct operation at 12V DC, without additional external components required in the basic schematic.
Can it be used on a 12V automotive installation for a 15-20A accessory?
Yes, the button is rated for 12V and up to 20A, which makes it compatible with common automotive accessories such as compressors, auxiliary lights, or small inverters.
Technical specifications
| SKU | Q-6D012 |
| Nominal voltage | 12V DC |
| Maximum current | 20A |
| Mounting diameter | 22mm |
| Contact type | Momentary push (NO) |
| Number of contacts | 3 faston terminals |
| Light indication | Green LED — voltage present |
| Housing | Chrome metal ring, plastic body |
| Package contents | 1 x 12V 20A green push button with LED |
| Brand | OEM |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days from the date of receipt, without requiring justification. Delivery is fast by courier, with shipping confirmation and tracking included.
