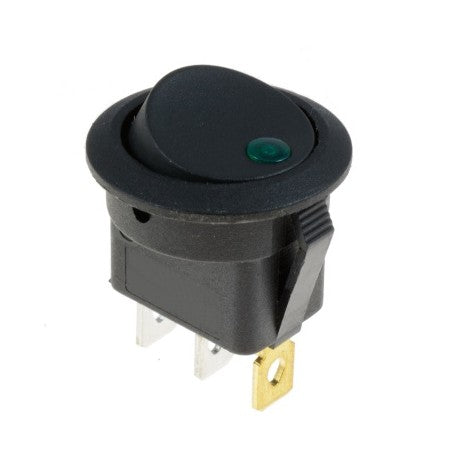

Green LED ON-OFF Push Button Switch 12V
Available in stock
Minimum order quantity: 4 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 2,99 lei | — |
| 10–15 pcs | 2,84 lei | 5% (−0,15 lei/unit) |
| 16–20 pcs | 2,69 lei | 10% (−0,30 lei/unit) |
| 21+ pcs | 2,54 lei | 15% (−0,45 lei/unit) |
12V Green LED Push Button Switch for Simple and Safe Control
This ON-OFF push button switch with integrated green LED offers instant and visible control for 12V electrical systems in cars, boats, machinery, or DIY installations. Compact design with quick panel mounting, ideal for home and industrial applications where you need safe switching and clear visual power status indication.
What you get with this product
- Integrated green LED that visually indicates when the circuit is powered — you always know if the equipment is on
- Simple 22mm hole panel or dashboard mounting — quick fastening without special tools
- Strong 20A contact for controlling 12V motors, lights, or electrical equipment
- Direct push action — instant ON/OFF switching without complicated mechanisms
- Robust plastic-metal construction resistant to wear and vibration for intensive use
- Compact dimensions of 22mm diameter and 23mm depth — fits in tight spaces
How it works and how to install it
The switch is mounted through a 22mm hole drilled in the desired panel, mechanically secured by pressing. The 3 metal terminals connect to the 12V electrical circuit according to the diagram (power, load, ground). When power is connected, the green LED automatically illuminates, confirming the presence of voltage. Pressing the button activates or deactivates the circuit, allowing instant control of the connected equipment. It requires no programming or settings — it works immediately after connection.
Frequently asked questions
Can it control LED lights or electric motors?
Yes, it supports loads up to 20A at 12V, sufficient for most LED lights, small motors, fans, or pumps in cars and boats.
Does the LED stay on all the time when connected to the battery?
Yes, the green LED indicates the presence of voltage on the power supply circuit and remains on as long as the button is connected to the 12V source, regardless of the ON or OFF position.
Can it be used at 24V or only at 12V?
The switch is designed specifically for 12V. Using it at higher voltages can damage the LED and internal components.
Technical specifications
| Contact type | ON/OFF |
| Supply voltage | 12V |
| Maximum current | 20A |
| Declared amperage | 6A |
| Actuation type | Push button |
| Signal LED | Green |
| Mounting diameter | 22mm |
| Panel depth | 23mm |
| Housing material | Plastic + metal |
| Number of contact terminals | 3 |
| Product type | Standard |
| EAN | 0781499723242 |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation, covering manufacturing defects. 30-day return policy for unused products in their original packaging. Fast delivery via national courier with telephone confirmation.
