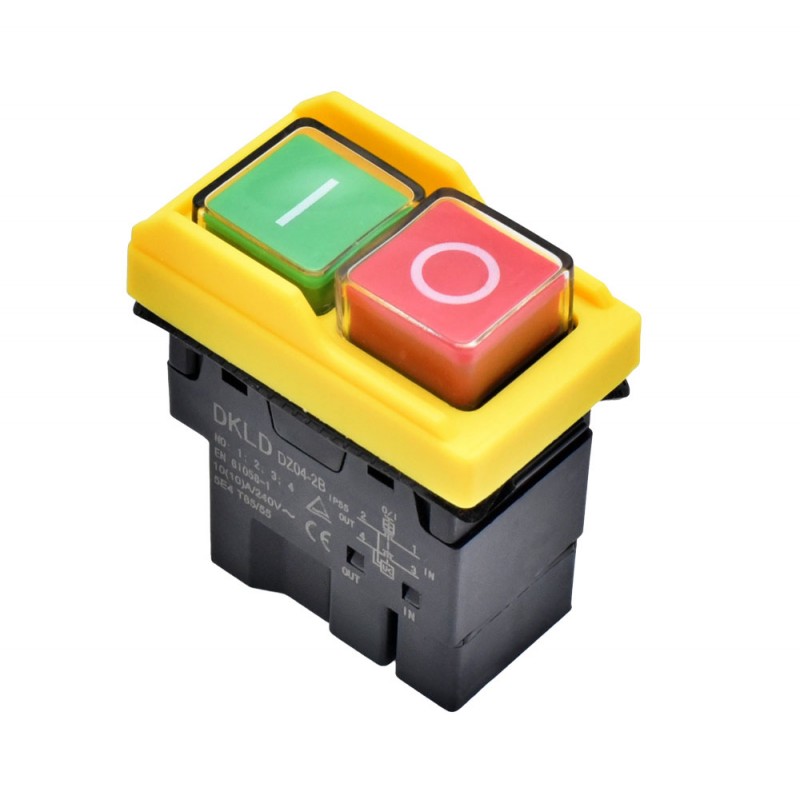

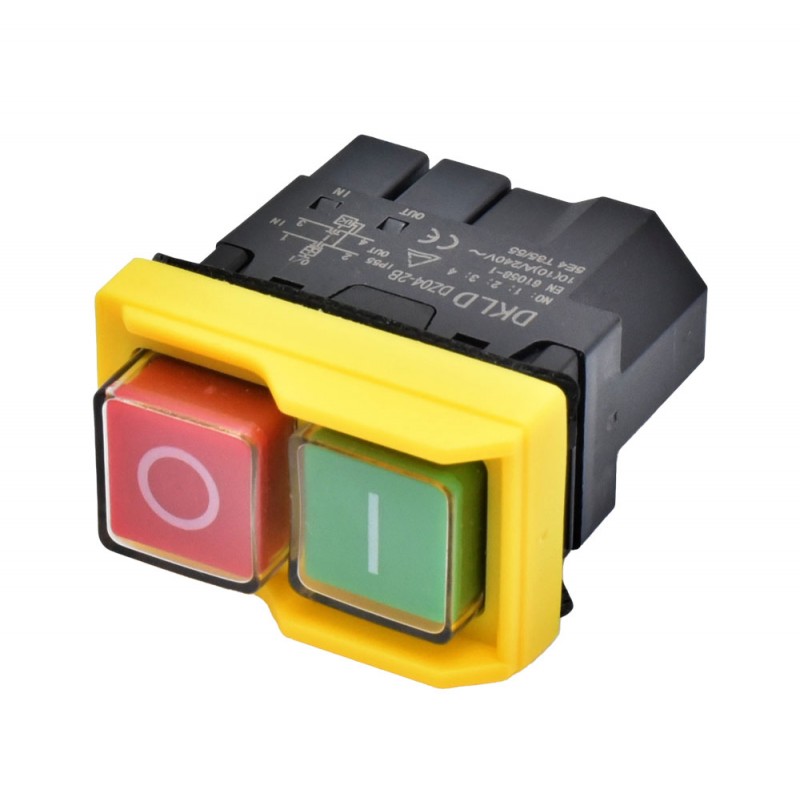

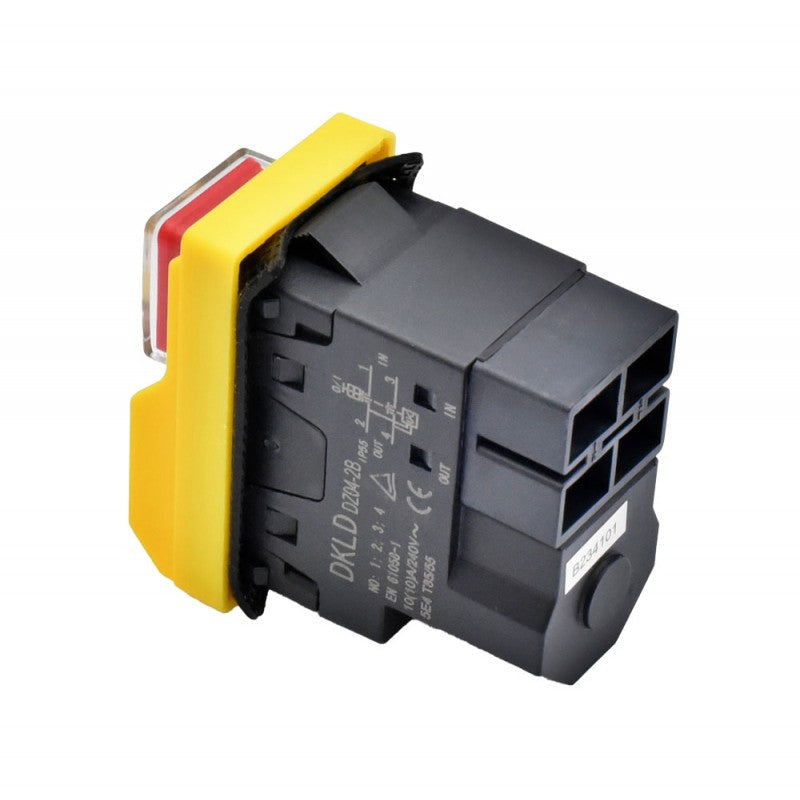

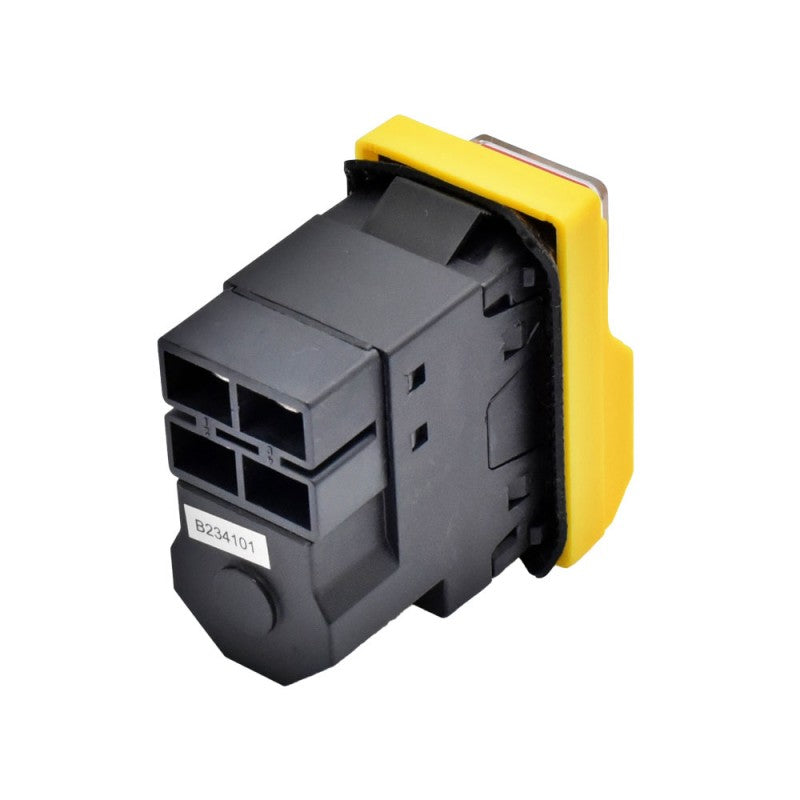

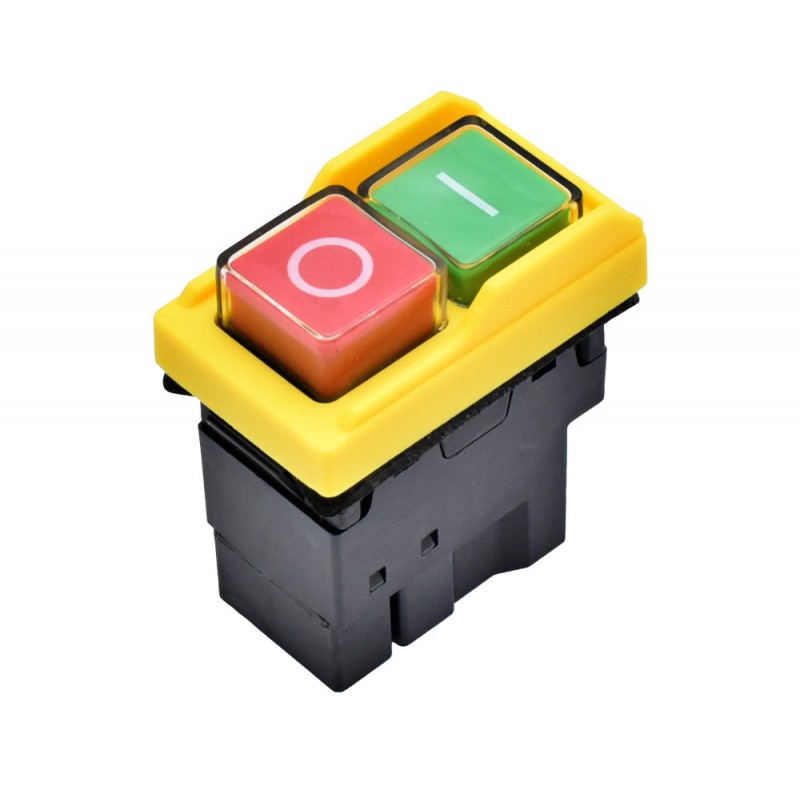

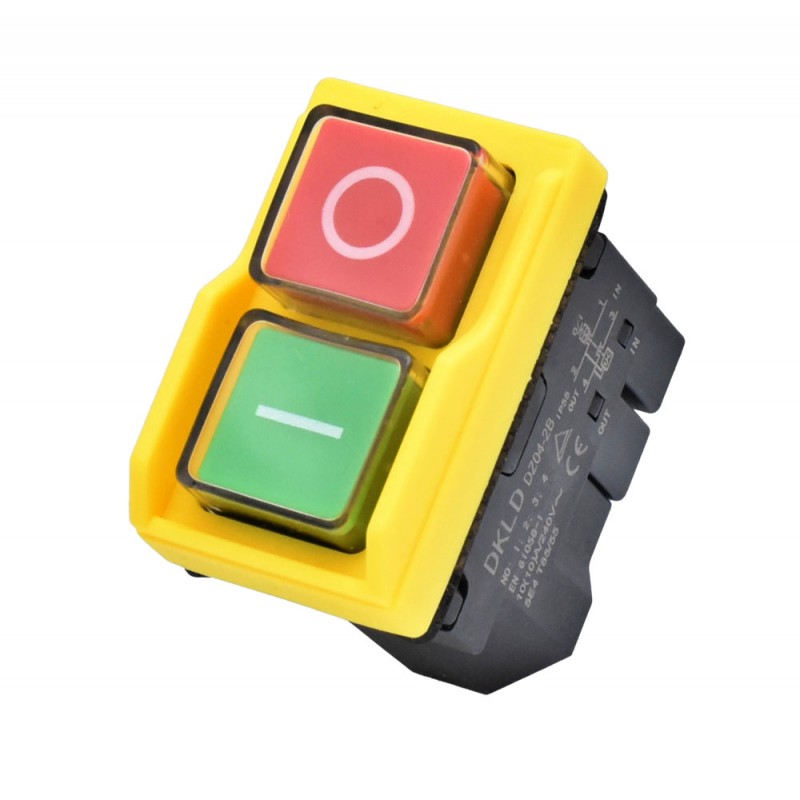

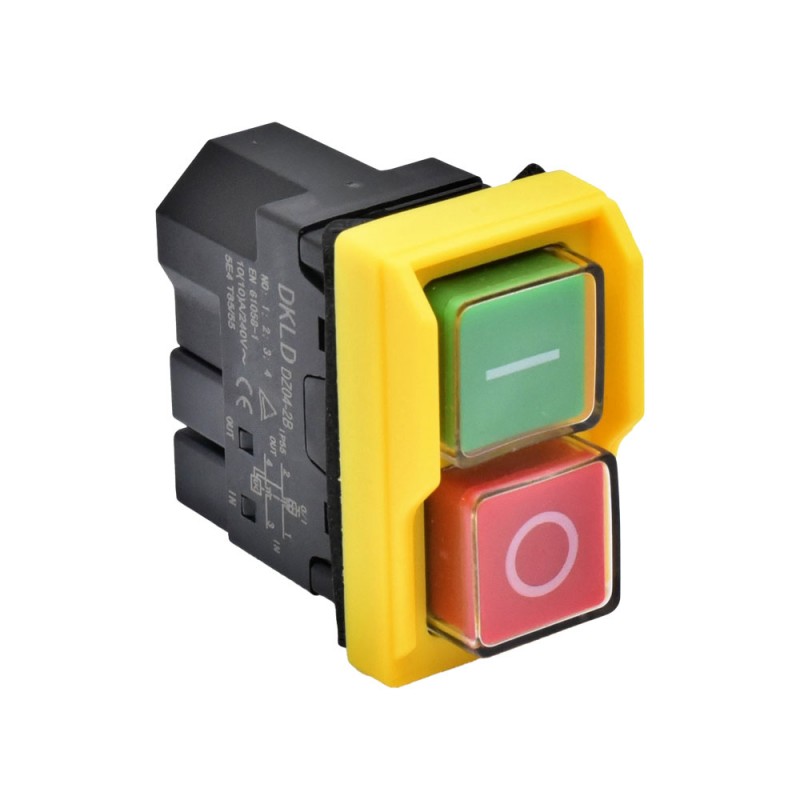

AC3 Electromagnetic 4P Switch with Protection / CK-2 DZ04-2B
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 49,99 lei | — |
| 3–4 pcs | 47,49 lei | 5% (−2,50 lei/unit) |
| 5–10 pcs | 44,99 lei | 10% (−5,00 lei/unit) |
| 11+ pcs | 42,49 lei | 15% (−7,50 lei/unit) |
4P Electromagnetic Switch with Overload Protection for Industrial Motors
The CK-2 DZ04-2B electromagnetic switch ensures safe control and protection of industrial and domestic electrical equipment against overload and overheating. Ideal for motors in water pumps, concrete mixers, wood and metal processing machines, refrigerating units, or hydrofoars, this ON/OFF switch saves you from costly interventions and production downtime.
What you get with this product
- Integrated overload and overheating protection — your motor and equipment remain safe even with intensive use
- Enhanced resistance to moisture and dust thanks to the IP54 casing — operates smoothly in workshops, factories, or damp spaces
- Clear ON/OFF switching with visible colored buttons — easily control equipment startup and shutdown without errors
- Quick screw mounting in panels or on flat surfaces — integrated in minutes without complex modifications
- Compatible with a wide range of machinery — from concrete mixers and slicers to cutting machines and industrial pumps
- Robust ABS and metal construction — withstands mechanical shocks and daily wear and tear in industrial environments
How it works and how to install it
The switch is mounted using screws in the electrical panel or directly on the equipment casing. You connect the power cables to the rear terminals according to the electrical diagram, then fix the switch in position. The red button stops the circuit, and the green one activates it — the integrated protection system automatically cuts off power upon detecting an overload, preventing motor failures.
Frequently asked questions
Can I use this switch for a 2 kW water pump?
Yes, the switch supports 250V/10A, which means approximately 2.5 kW. It is suitable for pumps, hydrofoars, and other motors in this power category.
What does IP54 protection mean and why is it important?
IP54 means the switch is protected against dust and water splashes from any direction. You can use it in workshops, basements, or industrial spaces without worrying that moisture or dirt will affect it.
How do I know the overload protection is working?
When the motor draws more than the safe limit, the switch's electromagnetic mechanism automatically disconnects the circuit, shutting it down before overheating can cause damage to the equipment.
Technical specifications
| Supply voltage | 250V AC |
| Maximum current | 10A |
| Number of poles | 4P |
| Protection class | IP54 |
| Casing material | ABS and metal |
| Mounting type | Screw |
| Dimensions | 53.2 x 52.8 x 29.5 mm |
| Integrated protection | Overload and overheating |
| Model | CK-2 DZ04-2B |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. You have the right to return within 30 days of receiving the order. Delivery is fast via national courier, so you can integrate the switch into your system without delays.
