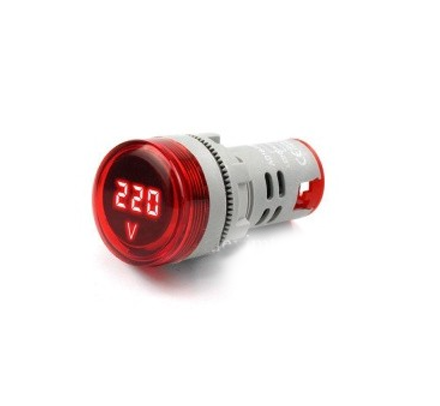

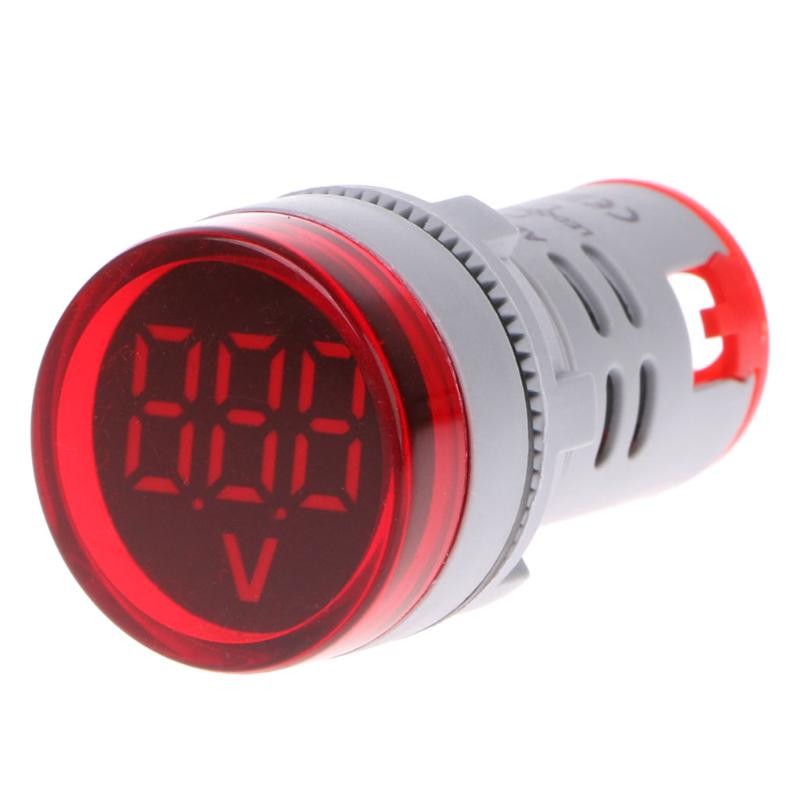

Digital Voltmeter Indicator, 250V/AC, 20-500V, IP65 Protection, Red
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 15,99 lei | — |
| 3–4 pcs | 15,19 lei | 5% (−0,80 lei/unit) |
| 5–10 pcs | 14,39 lei | 10% (−1,60 lei/unit) |
| 11+ pcs | 13,59 lei | 15% (−2,40 lei/unit) |
Digital Voltmeter Indicator for Real-Time Voltage Monitoring
This digital voltmeter with a red LED display helps you constantly monitor electrical voltage in control panels, electrical cabinets, or industrial installations. With a 20-500V AC measurement range and IP65 protection, it ensures accurate and reliable readings even in dusty or humid environments. Installation is quick in 22mm holes, without special tools.
What you get with this product
- Clear voltage reading via a red LED display, visible from a distance, even in low light conditions
- IP65 protection at the head - resistant to dust and water splashes, perfect for industrial environments
- Quick installation in standard 22mm holes, compatible with most panels and electrical cabinets
- Wide measurement range 20-500V AC - monitors both low and medium voltage circuits
- Robust construction with 2.5kV insulation for increased operational safety
- Compact dimensions 51mm length - fits in small spaces in crowded panels
How it works and how to install it
The voltmeter is installed by inserting it into the 22mm hole in the electrical panel, securing it with the included nut. After connecting to an AC voltage source according to the diagram, the digital LED display automatically shows the voltage value in volts. It does not require calibration or additional settings - it works immediately after connection.
Frequently asked questions
Does it also work with household 220V voltages?
Yes, the 20-500V AC measurement range fully covers the standard 220-230V mains voltage.
Is the display easily visible in bright light?
The red LED display is bright enough for clear reading in both natural light and dimly lit spaces.
Can it be installed outdoors?
IP65 protection only covers the head of the device. For outdoor use, additional protection for the body and connections is required.
Technical specifications
| Measurement range | 20-500V AC |
| Operating frequency | 50-60Hz |
| Display type | Red digital LED |
| Mounting diameter | 22mm |

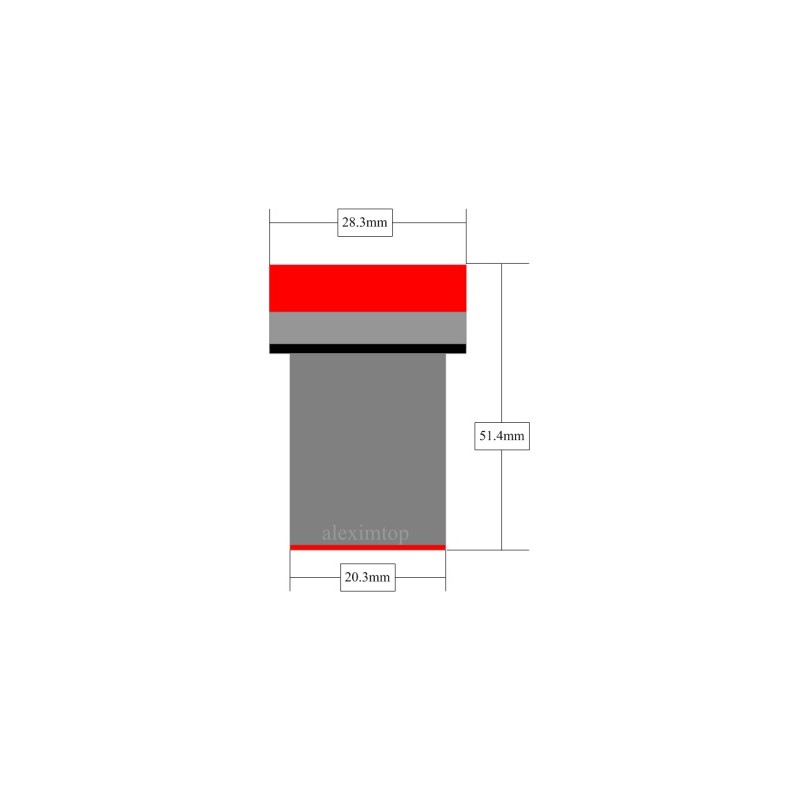

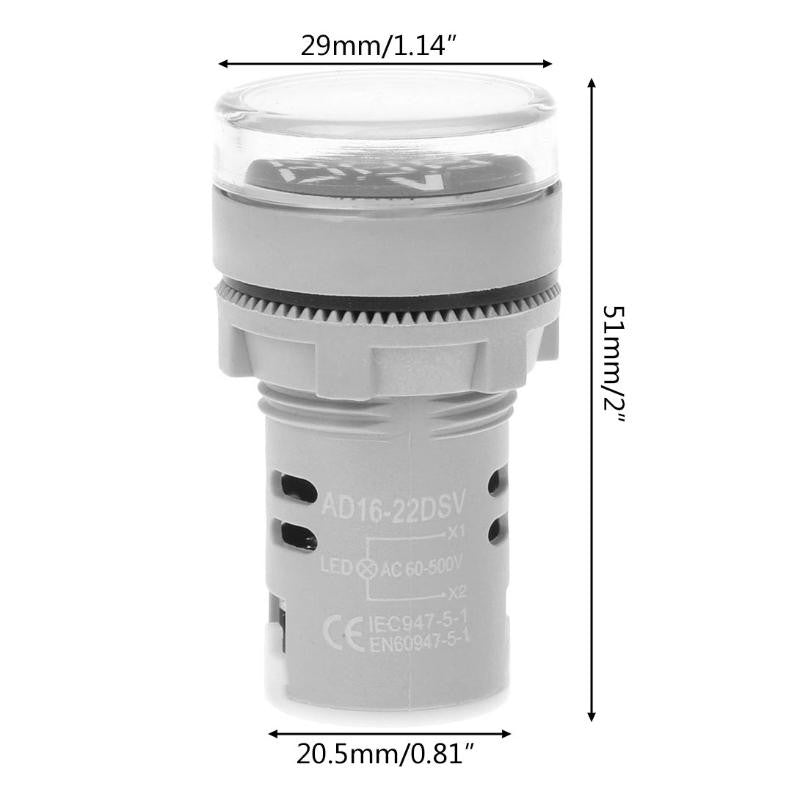

| Overall dimensions | 20.5mm x 51mm x 29mm |
| Protection rating | IP65 head |
| Nominal temperature | T90 |
| Insulation test voltage | 2.5kV AC (1 minute) |
| Vibration resistance | 2-80Hz, acceleration 0.7g |
| Creepage index | CTI 100 |
| Color | Red |
| EAN | 0781499721774 |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation. 30-day return right. Fast courier delivery throughout Romania.
