Single Color LED Dimmer 12-24V/30A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 50,99 lei | — |
| 3–4 pcs | 48,44 lei | 5% (−2,55 lei/unit) |
| 5–10 pcs | 45,89 lei | 10% (−5,10 lei/unit) |
| 11+ pcs | 43,34 lei | 15% (−7,65 lei/unit) |
Single-color dimmer for 12-24V LED strips with potentiometer
The 12-24V/30A single-color LED dimmer allows you to adjust the light intensity of single-color LED strips from 0 to 100% by simply rotating the potentiometer. Suitable for residential, commercial, or decorative installations, it is mounted between the power supply and the LED strip, without requiring additional components. With a maximum current capacity of 30A, it covers installations up to 360W at 12V or 720W at 24V.
What you get with this product
- Complete control over light intensity — fine adjustment from completely off to maximum brightness, without abrupt steps
- Compatible with high-power installations — supports up to 30A maximum current, ideal for considerably long LED strips
- Works with both 12V and 24V DC — a single dimmer for the most common LED strip operating voltages

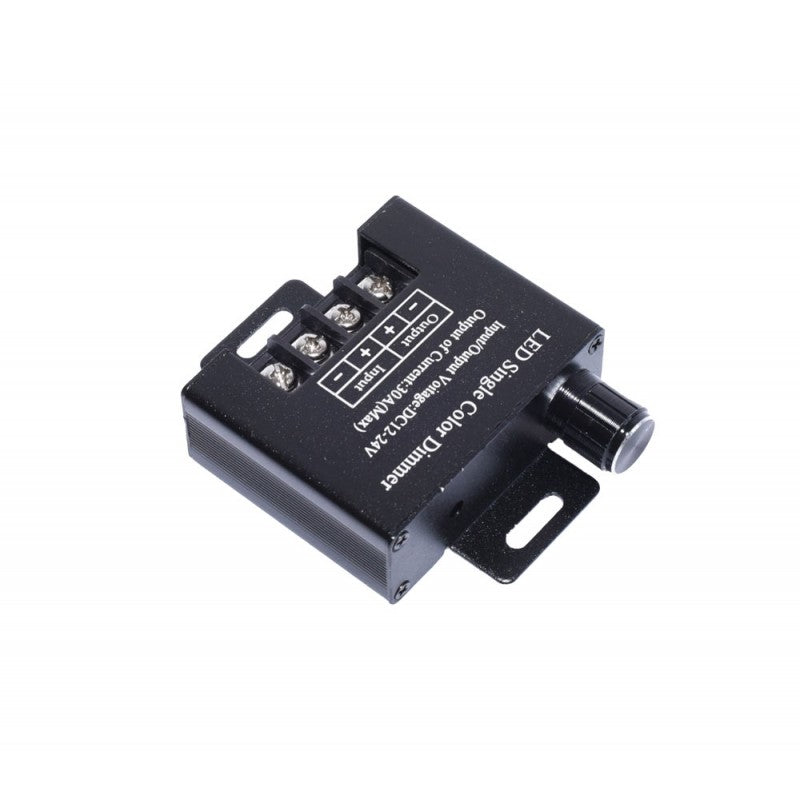

- Robust metal casing — protects internal circuits and ensures heat dissipation during continuous use

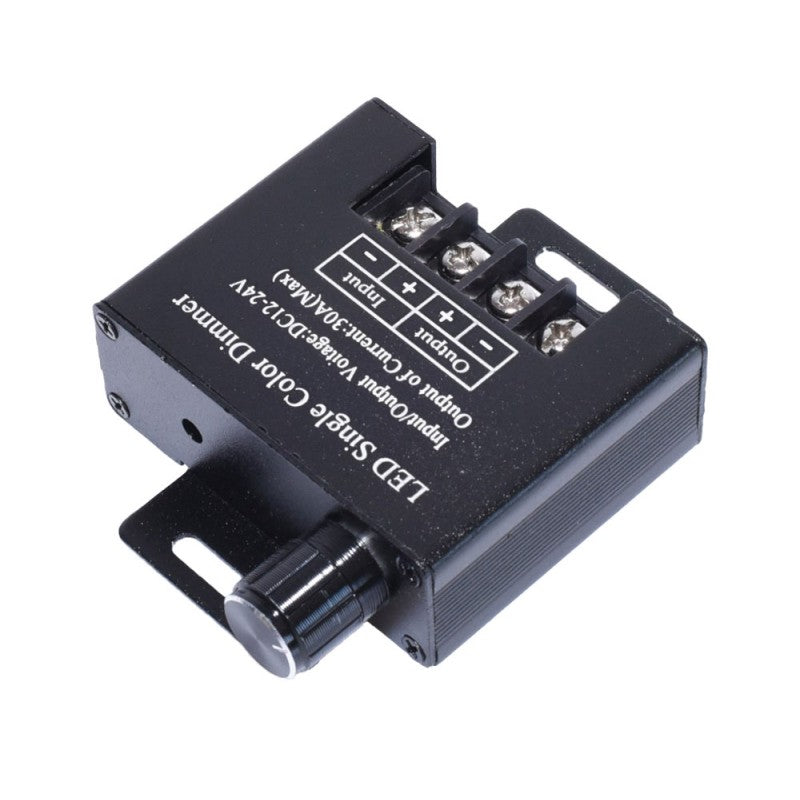

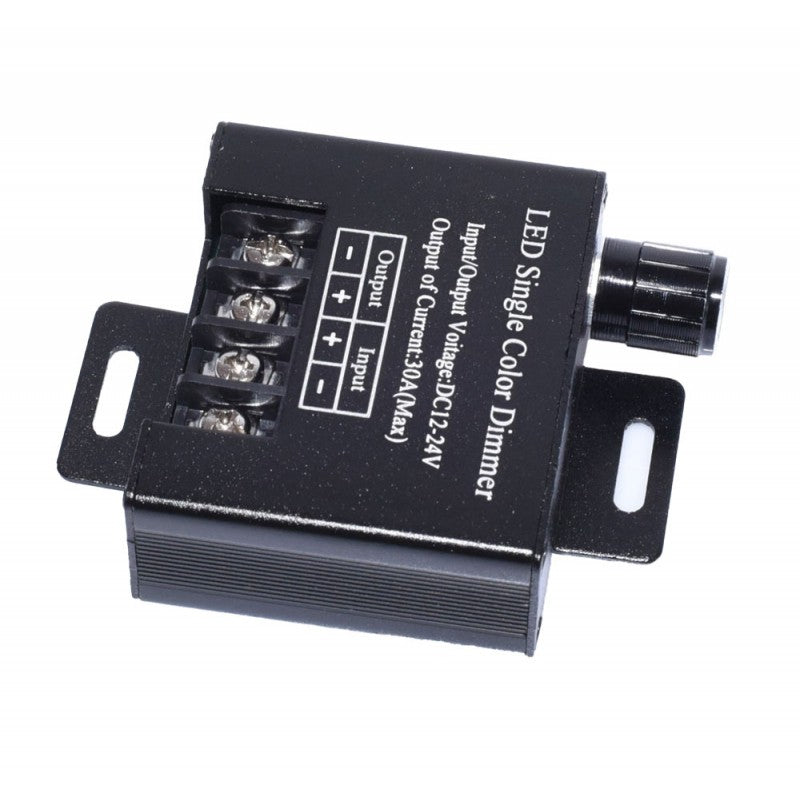

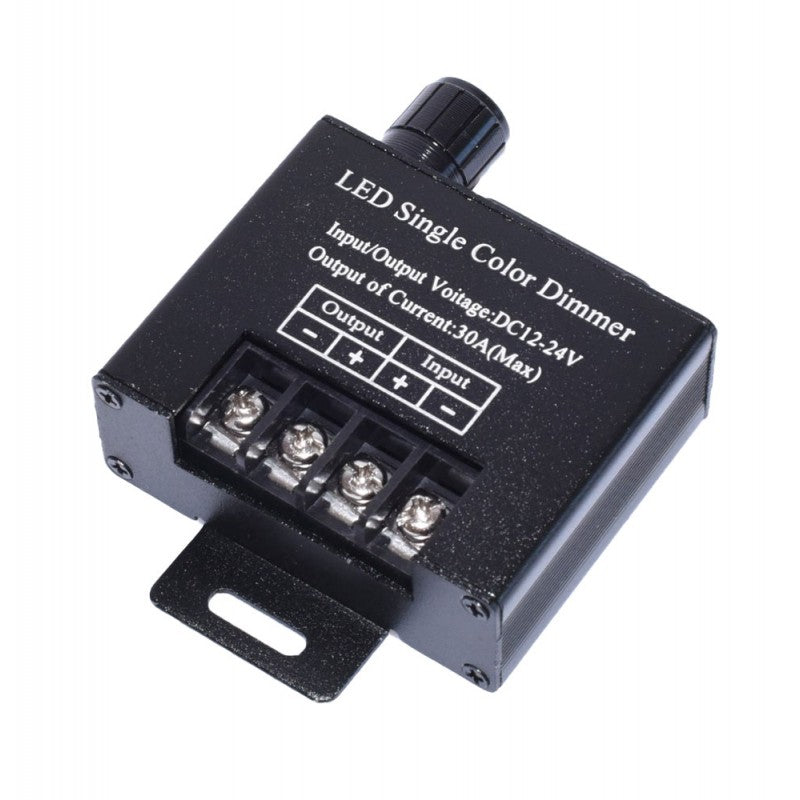

- Quick installation via screw terminals — connections are clearly marked (Input/Output), reducing the risk of installation errors
- Versatile use — suitable for bedrooms, living rooms, terraces, commercial spaces, events, or architectural decorations
How it works and how to install it
The dimmer is connected in series between the DC power supply and the single-color LED strip: the wires from the power supply are connected to the terminals marked Input, and the LED strip is connected to the Output terminals, observing the positive and negative polarity indicated on the casing. After connection, the rotary potentiometer adjusts the light intensity proportionally to the rotation angle. Installation is accessible and done with a screwdriver, but it is recommended to check the correct sizing of the power supply before commissioning.
Frequently asked questions
Does this dimmer work with any single-color LED strip?
Yes, it is compatible with any single-color LED strip with a DC 12V or 24V power supply voltage, provided that the total power of the strip does not exceed 360W at 12V or 720W at 24V.
Can the dimmer be used with RGB or RGBW LED strips?
No. This dimmer is exclusively intended for single-color LED strips. For RGB or RGBW strips, a dedicated multi-channel controller is required.
What temperature can this dimmer operate at outdoors?
The operating temperature range is between -20°C and +60°C, making it usable in semi-outdoor spaces, such as covered terraces, provided it is protected from direct moisture.

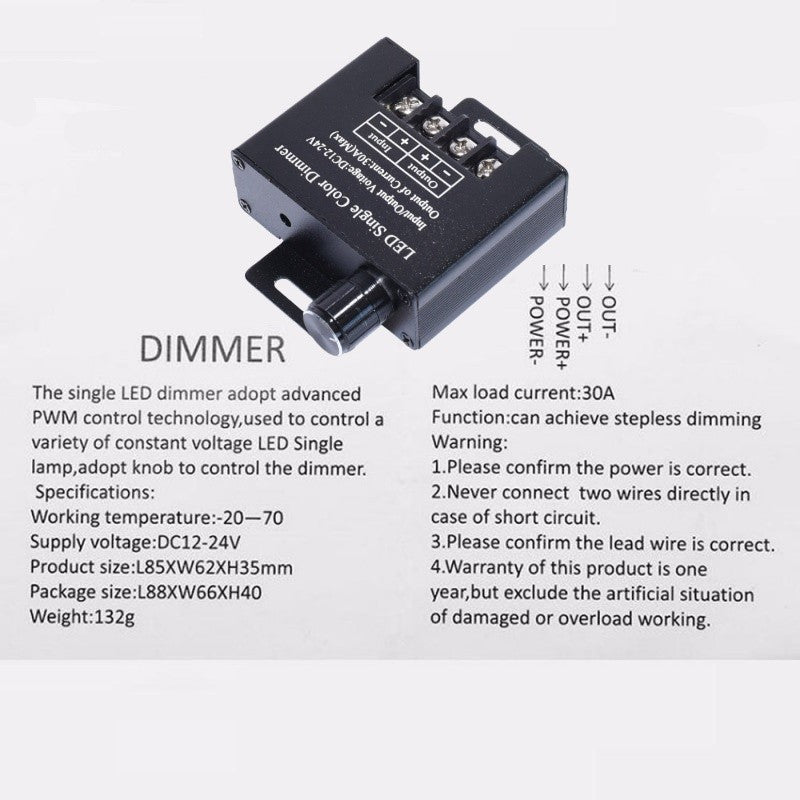

Technical specifications
| Supply voltage | DC 12V - 24V |
| Maximum current | 30A |
| Maximum power at 12V | 360W |
| Maximum power at 24V | 720W |
| Brightness adjustment | 0 - 100% |
| Static consumption | 1W |
| Operating temperature | -20°C / +60°C |
| Dimensions | 85 x 66 x 20 mm |
| Casing material | Metal (alloy) |
| Control type | Manual rotary potentiometer |
| Compatibility | Single-color LED strips |
| Package contents | 1x Single-color LED dimmer, 1x User manual (English) |
| SKU | Q-18A091 |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns accepted within 30 days from the delivery date, without requiring a reason. Fast courier delivery throughout Romania.
