Push Button Box ON/OFF 1 x 22mm IP54
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 7,99 lei | — |
| 3–4 pcs | 7,59 lei | 5% (−0,40 lei/unit) |
| 5–10 pcs | 7,19 lei | 10% (−0,80 lei/unit) |
| 11+ pcs | 6,79 lei | 15% (−1,20 lei/unit) |
IP54 Protection Box for 22mm Industrial Button

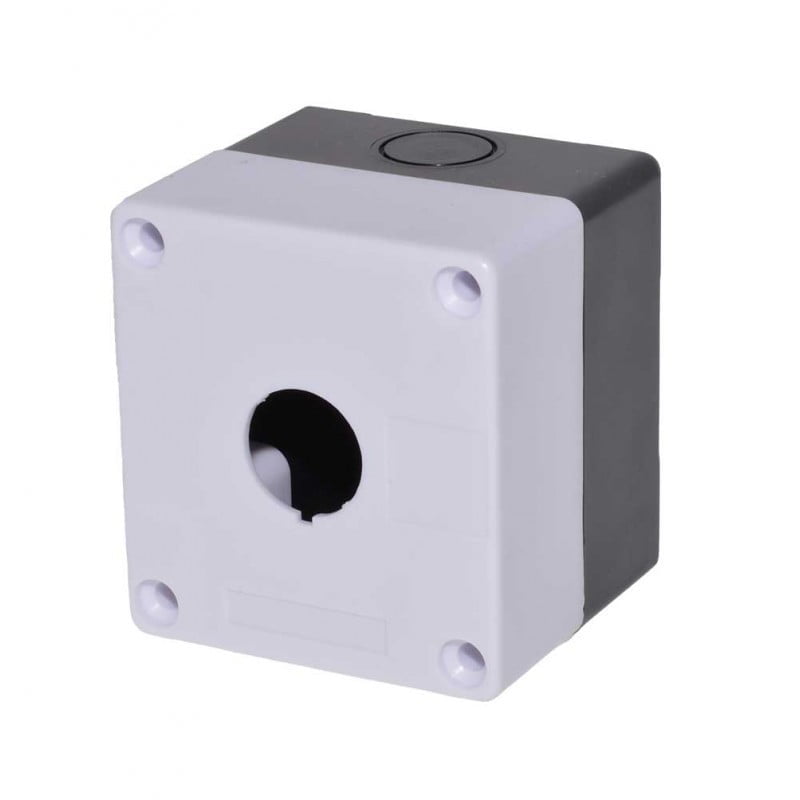

The IP54 1 x 22mm push ON/OFF button box is a compact and durable solution for safely mounting 22mm industrial buttons, switches, or toggle switches. The hard plastic construction with a rubber gasket ensures protection against dust and splashes of water, suitable for both industrial environments and domestic applications. The lid is securely fastened with 4 screws, eliminating the risk of accidental opening under conditions of vibration or mechanical stress.
What you get with this product
- Certified IP54 protection — integrated rubber gasket blocks dust and water splashes, extending the lifespan of the mounted button
- Compatible with standard 22mm buttons — fits most industrial push buttons, switches, and toggle switches on the market
- Secure 4-screw fastening — the white lid and gray body fasten firmly, without play, even in applications with frequent vibrations
- Compact dimensions for mounting in tight spaces — 72 x 78 x 65mm allow installation on panels, machinery, or metal structures with limited access

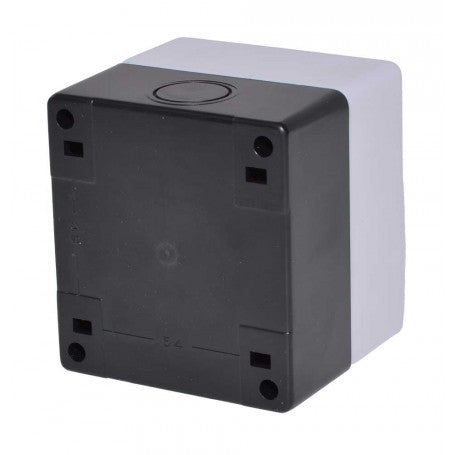

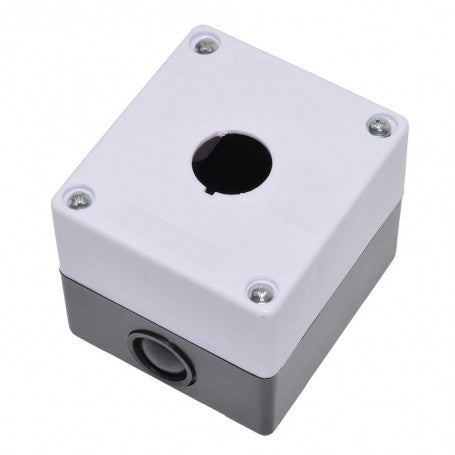

- Side cable entry included — the cable passage hole is already provided in the body, without additional cutting or modifications
- Versatile use — suitable for electric motors, cranes, water pumps, grinders, production machinery, and domestic applications
How it works and how to install

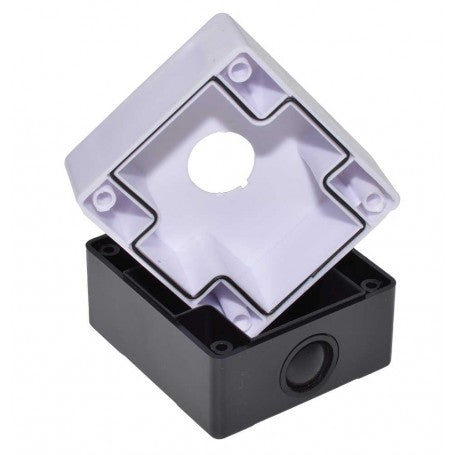

The box opens by unscrewing the 4 corner screws, the 22mm button is inserted through the front opening and secured with its specific nut, after which the cables are passed through the side entry. The lid is reassembled by uniformly tightening the 4 screws, ensuring the seal guaranteed by the rubber gasket. No special tools or advanced electrical knowledge are required for assembly.
Frequently Asked Questions
What size button fits in this box?
The front opening is designed for standard 22mm diameter buttons, the most common format in industrial and semi-industrial applications.
Can it be mounted outdoors or in wet environments?
Yes, IP54 protection ensures resistance to dust and water splashes from any direction, so the box can be installed in semi-exposed or wet areas, but not in direct immersion.
Does the box come with the button included or just the housing?
The package contains only the housing — the body of the box with the lid, rubber gasket, and mounting screws. The push button must be purchased separately.
Technical Specifications
| Model | BOX-1X22 |
| SKU | Q-6E051 |
| Contact type | Push, ON/OFF |
| Button mounting diameter | 22mm |
| Box dimensions | 72 x 78 x 65mm |
| Protection class | IP54 |
| Material | Plastic, rubber |
| Number of button positions | 1 |
| Lid fastening | 4 screws |
| Package contents | 1 x box (without button) |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the package, without the need for justification. Delivery is carried out quickly by courier, with shipping confirmation and tracking included.
