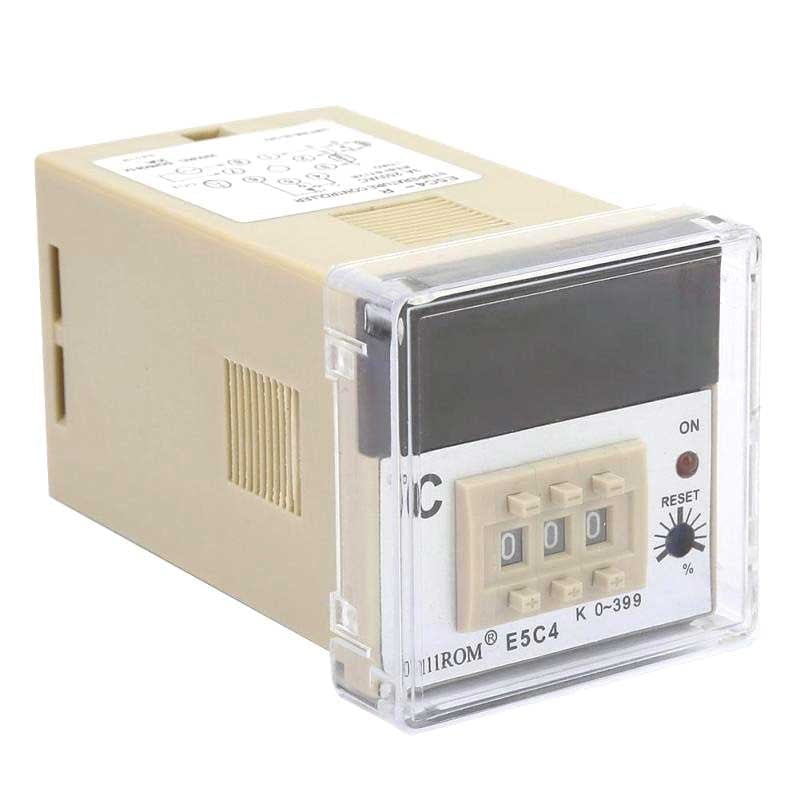

Digital Temperature Controller, Digital Display, E5C4 200/220V, K 0-399
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 169,99 lei | — |
| 3–4 pcs | 161,49 lei | 5% (−8,50 lei/unit) |
| 5–10 pcs | 152,99 lei | 10% (−17,00 lei/unit) |
| 11+ pcs | 144,49 lei | 15% (−25,50 lei/unit) |
E5C4 Digital Temperature Controller for Precise Automated Control
This E5C4 digital temperature controller ensures automatic monitoring and control in the 0-399°C range, ideal for industrial applications, laboratories, greenhouses, thermal processing, and medical equipment. The clear LCD display and simple button-based setting make configuration quick and intuitive.
What you get with this product
- 1°C measurement accuracy for reliable temperature control in critical processes

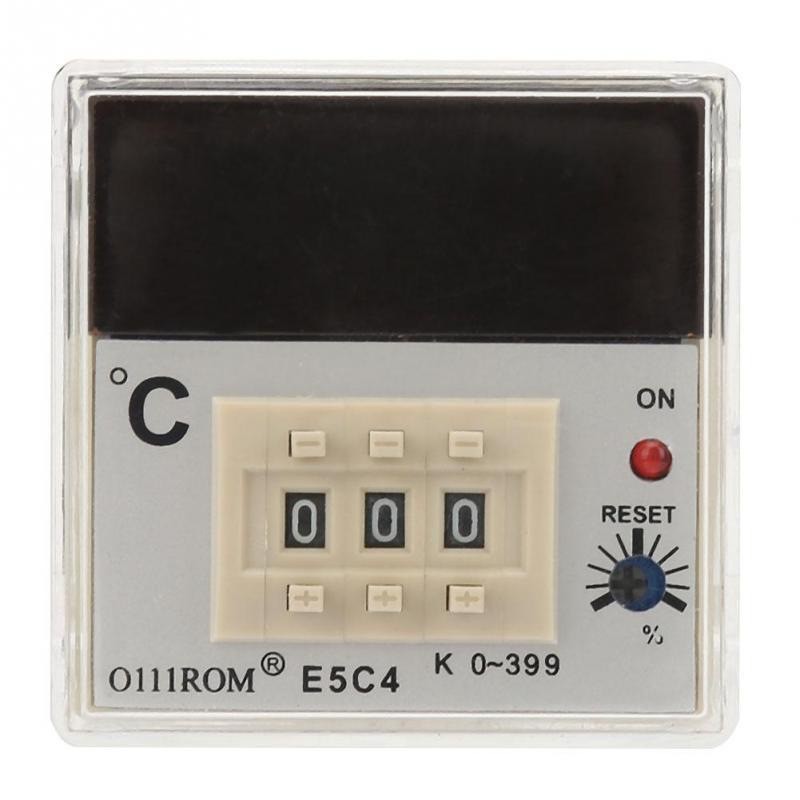

- Backlit LCD display allows clear reading of values even in low light conditions
- Quick setting via buttons and fine-tuning potentiometer — configuration in under 5 minutes

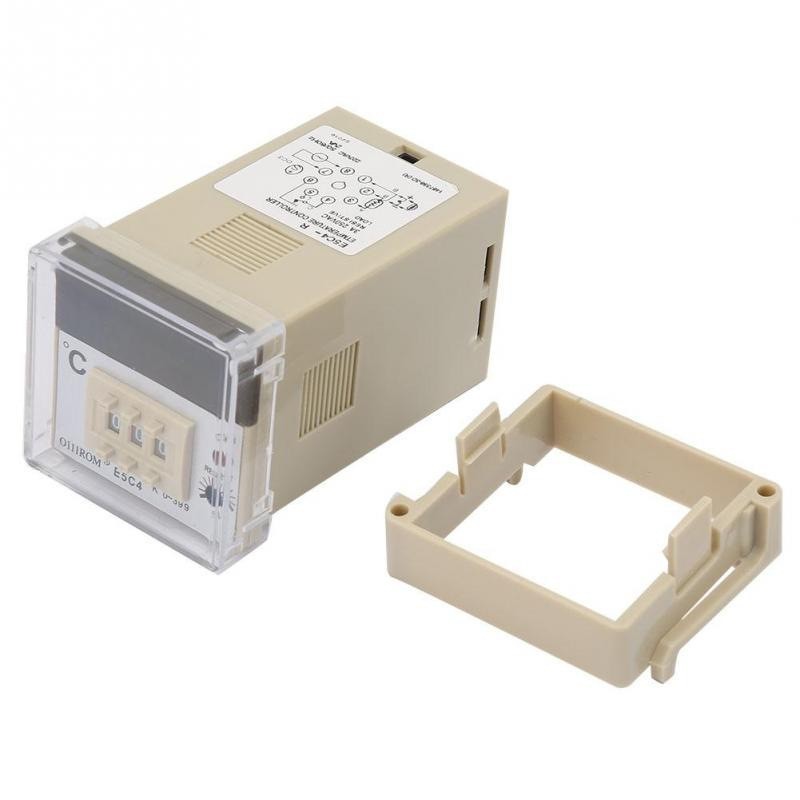

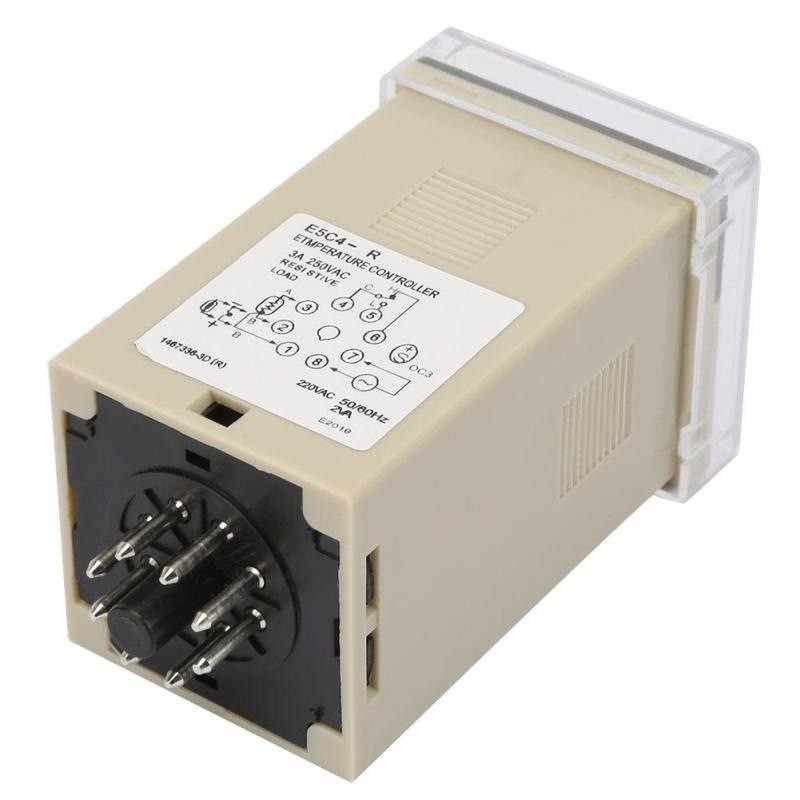

- 8-pin socket included in the package, ready for installation in the control panel
- Robust integrated circuit resistant to shocks and vibrations, suitable for demanding industrial environments
- Low power consumption under 3W — economical continuous operation without significant impact on costs
How it works and how to install it
The controller is mounted in the electrical panel using the included 8-pin socket, with a standard 48x48mm opening. You connect the type K temperature sensor to the indicated terminals and the 220V power supply to the marked input. You set the desired temperature using the front buttons, and the controller automatically activates the relay to maintain the programmed value. The ON LED signals the active status, the RESET button allows quick return to initial settings.
Frequently asked questions
What type of temperature sensor is compatible with this controller?
The controller works with a type K thermocouple in the 0-399°C range, the most common type of industrial sensor.
Can it be used for cooling control or only heating?
This model is designed for heating applications — it activates the load when the temperature drops below the set value.
Is it difficult to mount in an existing electrical panel?

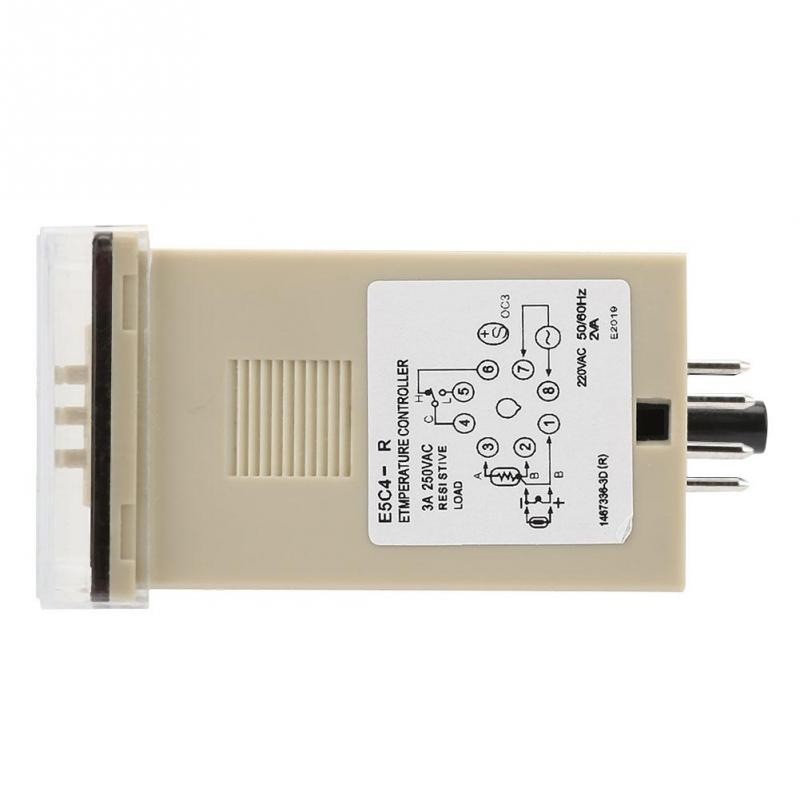

No, it installs quickly in a standard 48x48mm opening using the included socket and the connections clearly marked on the back diagram.
Technical specifications
| Model | E5C4 |
| Supply voltage | 200-220V AC |
| Frequency | 50/60Hz |
| Consumption | under 3W |
| Measurement range | 0-399°C |
| Sensor type | Type K Thermocouple |
| Measurement accuracy | ±1°C |
| Display | Backlit digital LCD |

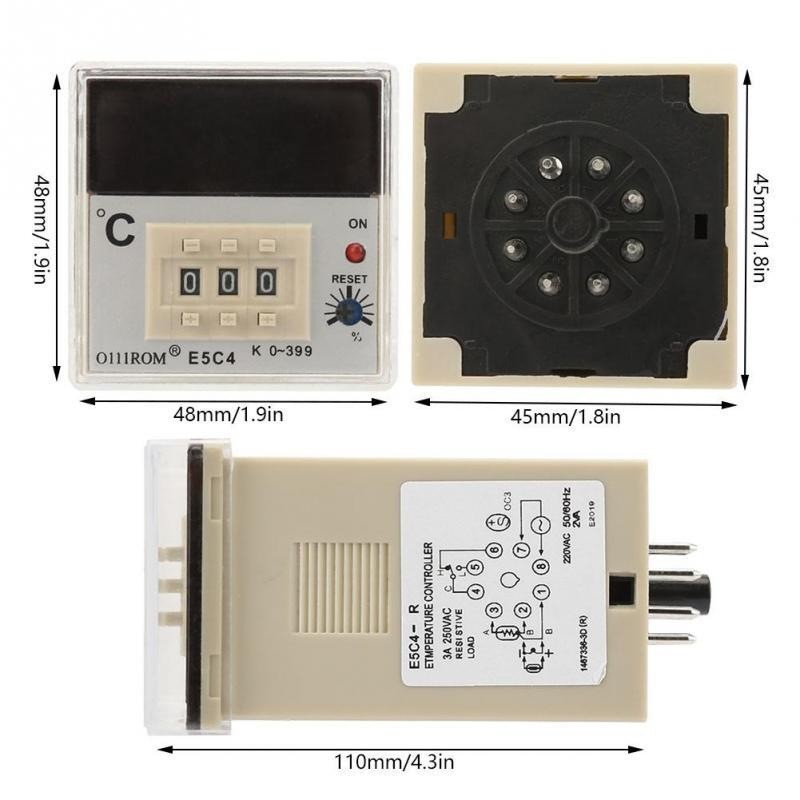

| Front dimensions | 48 x 48mm |
| Total depth | 110mm |
| Socket dimensions | 45 x 45mm |
| Mounting type | Panel, 48x48mm opening |
| Socket included | Yes, 8 pins |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation. You have the right to return within 30 days of delivery. Delivery is made quickly by national courier, with secure packaging for protection during transport.
