Male - Female Connectors 5 WIRE
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 50,99 lei | — |
| 3–4 pcs | 48,44 lei | 5% (−2,55 lei/unit) |
| 5–10 pcs | 45,89 lei | 10% (−5,10 lei/unit) |
| 11+ pcs | 43,34 lei | 15% (−7,65 lei/unit) |

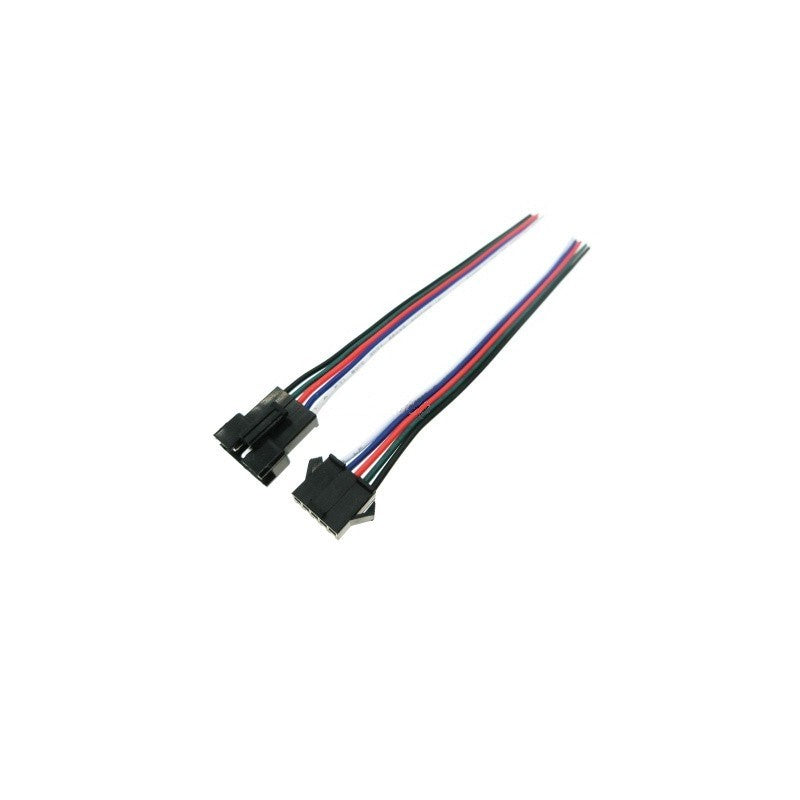

5-wire male-female connector for LED strips
The 5-wire male-female connector is the quick solution for interconnecting RGB+W or RGBW LED strips without soldering or special tools. With a cable length of 10 cm, it allows connecting LED strip segments in tight spaces or at the junction points of the installation. Compatible with most controllers and LED strips with 5-pin SM type connectors.
What you get with this product
- Secure connection between LED strip segments without soldering — the connectors couple firmly and do not accidentally detach
- Time-saving installation — connect two strip ends in seconds, without tools
- 10 cm cable offers flexibility in positioning, useful for corners or ends of LED profiles
- 5 wires with distinct color coding — quickly identify each channel and avoid connection errors
- Complete male + female set included — no separate purchase of connector ends required
How it works and how to install
The 5-wire male-female connector works by direct coupling: the plastic housings lock into each other without tools, ensuring stable electrical contact on all 5 channels. Installation involves inserting the male connector into the end of the LED strip and the female connector into the corresponding power source or controller, observing the wire color coding. No soldering is required, and no electrical knowledge is needed.
Frequently Asked Questions
What type of LED strip is this connector compatible with?
It is compatible with RGBW or RGB+W LED strips that use a 5-pin SM connector. Check the connector type on your strip before purchasing.
Can I extend the cable length between the two segments?
The cable has a fixed length of 10 cm. For longer distances, two or more sets connected in series can be used, or a dedicated extension cable.
Can the connector be reused after disconnection?
Yes, the plastic housing allows repeated coupling and uncoupling without degrading the contacts, provided it is not forced during assembly.
Technical Specifications
| SKU | Q-12C010 |
| Connector type | Male - Female (pair) |
| Number of wires | 5 |
| Cable length | 10 cm |
| Plug type | SM 5-pin |
| Application | RGBW / RGB+W LED strips |
| Brand | OEM |
| Package contents | 1 set male + female connector |
Warranty and Support
The product benefits from a 2-year warranty according to Romanian law. Returns accepted within 30 days of receipt, without justification. Fast delivery by courier, with shipping confirmation via e-mail.
