4 Pin Waterproof Auto Connectors
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 18,99 lei | — |
| 3–4 pcs | 18,04 lei | 5% (−0,95 lei/unit) |
| 5–10 pcs | 17,09 lei | 10% (−1,90 lei/unit) |
| 11+ pcs | 16,14 lei | 15% (−2,85 lei/unit) |

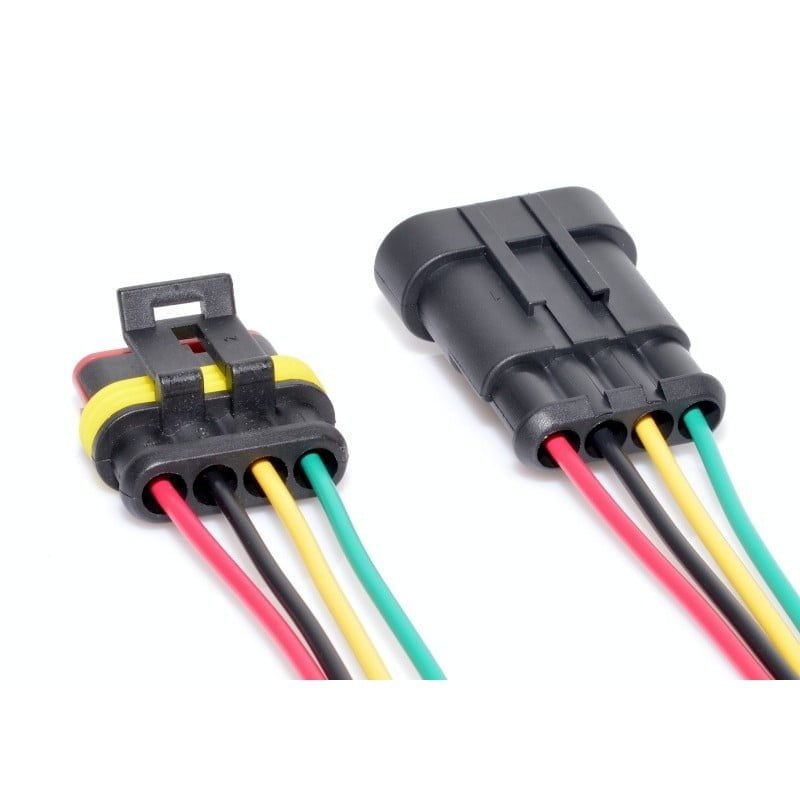

Waterproof 4-wire car connectors for safe installations
Complete set of waterproof male-female connectors, ideal for electrical connections in humid or weather-exposed environments. With 1mm² copper wires and a length of 13cm, it ensures a secure connection for car systems, solar panels, LED strips, or industrial installations. Quick assembly via a guide system and safety clip.
What you get with this product
- Complete waterproof protection — sealing gasket prevents water and dust infiltration into connections
- Error-free assembly — integrated guide system allows connection in only one correct position
- Maximum vibration safety — safety clip prevents accidental disconnection during operation
- Versatility of use — compatible with car systems, solar panels, LED strips, boats, and industrial machinery
- Pre-installed flexible wires — 13cm long with stranded copper conductor, ready for immediate connection
- Long-term durability — ABS housing resistant to shocks and mechanical wear
How it works and how to install it
Connection is made by aligning the guide slots that allow only one connection position, eliminating the risk of incorrect wiring. After connection, the safety clip automatically locks, ensuring mechanical fastening. The integrated gasket creates a waterproof barrier between the two parts. Installation does not require special tools — disconnection is done by pressing the safety clip and gently pulling out the connector.
Frequently asked questions
Can I use these connectors outdoors, exposed directly to rain?
Yes, the waterproof connection with a sealing gasket protects against moisture, dust, and water splashes.
What is the maximum current these connectors can carry?
The 1mm² copper wires support current according to standards for this section, recommended for applications up to 10A under normal conditions.
Can they be disconnected and reconnected multiple times?
Yes, the safety clip and metal pins are designed for repeated connections and disconnections without degrading the electrical contact.
Technical specifications
| Connector type | Male - Female |
| Number of pins | 4 |
| Number of wires | 4 |
| Wire length | 13 cm |
| Conductor cross-section | 1 mm² |
| Conductor material | Stranded copper |
| Housing material | ABS plastic |
| Connector material | ABS and metal |
| Total plug dimensions | 55 x 39 x 20 mm |
| Protection | Waterproof with sealing gasket |
| Product code | Q-1A031 |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. You have the right to return within 30 days of purchase. Fast delivery by courier nationwide.
