Waterproof 3-Wire Car Connectors
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 16,99 lei | — |
| 3–4 pcs | 16,14 lei | 5% (−0,85 lei/unit) |
| 5–10 pcs | 15,29 lei | 10% (−1,70 lei/unit) |
| 11+ pcs | 14,44 lei | 15% (−2,55 lei/unit) |

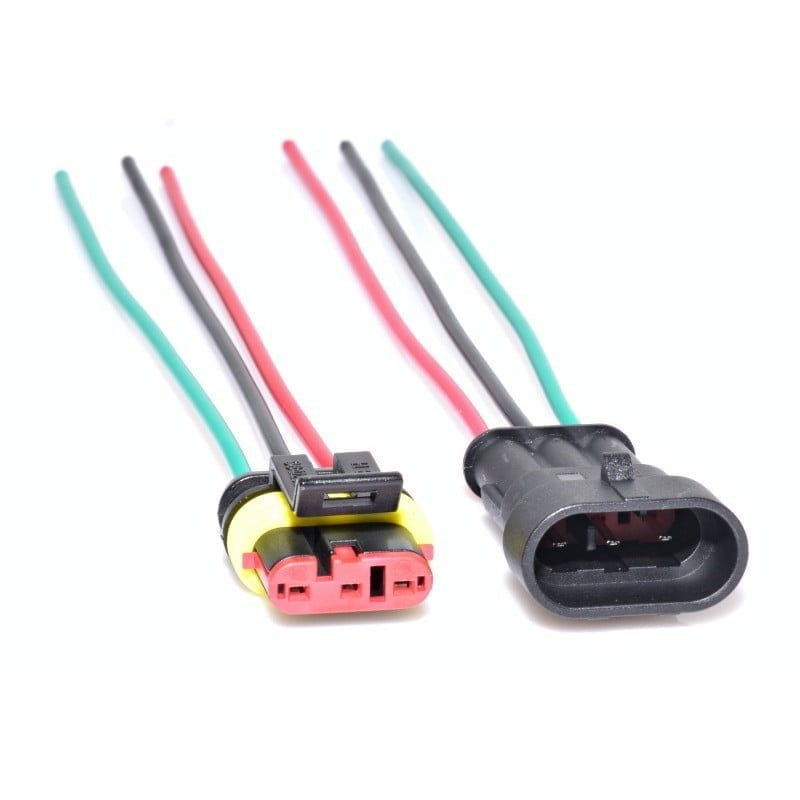

3-wire waterproof car connectors for secure installations
These 3-wire male-female connectors provide watertight and reliable electrical connections for automotive applications, solar panels, or outdoor installations. 1mm² stranded copper wires, 13cm long, with a locking system and a protective gasket against moisture. Ideal when you need a quick, secure, and long-lasting connection.
What you get with this product
- Complete protection against moisture and dust thanks to the waterproof system with integrated gasket
- Error-free connection through guide slots that allow mounting only in the correct position
- Maximum safety with a retaining clip that prevents accidental disconnection
- Versatility of use — suitable for cars, solar panels, boats, industrial machinery, and LED lighting installations
- Durability ensured by resistant ABS plastic connectors and high-quality metal pins
- Quick installation without special tools — 13cm extended wires allow easy handling
How it works and how to install it
Connection is simple: align the female plug with the male plug following the guide slots, then press until you hear the click of the retaining clip. The mechanical locking system eliminates the risk of polarity reversal. The sealing gasket automatically compresses upon connection, forming a barrier against water and dust. To disconnect, press the safety clip and pull the parts in opposite directions. The 1mm² stranded copper wires allow current to pass without overheating.
Frequently Asked Questions
Can I use these connectors in places where it rains or they are exposed to moisture?
Yes, the waterproof system with an integrated gasket provides complete protection against moisture and splashes of water, making them ideal for outdoor installations.
What maximum amperage do these connectors support?
The 1mm² copper wires safely support currents specific to automotive and LED lighting applications, recommended up to 10A for long-term use.
How do I know I've connected them correctly?
The guide slots allow connection in only one correct position, and the safety clip emits an audible click when the connection is complete.
Technical Specifications
| Connector type | Male - Female |
| Number of pins | 3 |
| Number of wires | 3 |
| Wire length | 13 cm |
| Conductor cross-section | 1 mm² |
| Conductor type | Stranded copper |
| Housing material | ABS Plastic |
| Pin material | Metal |
| Plug dimensions | 55 x 26 x 20 mm |
| Protection | Waterproof with gasket |
| Safety system | Locking clip |
Warranty and support
The product benefits from a 24-month warranty according to current Romanian legislation. You have the right to return it within 30 days of receipt. Delivery is carried out quickly by national courier throughout Romania.
