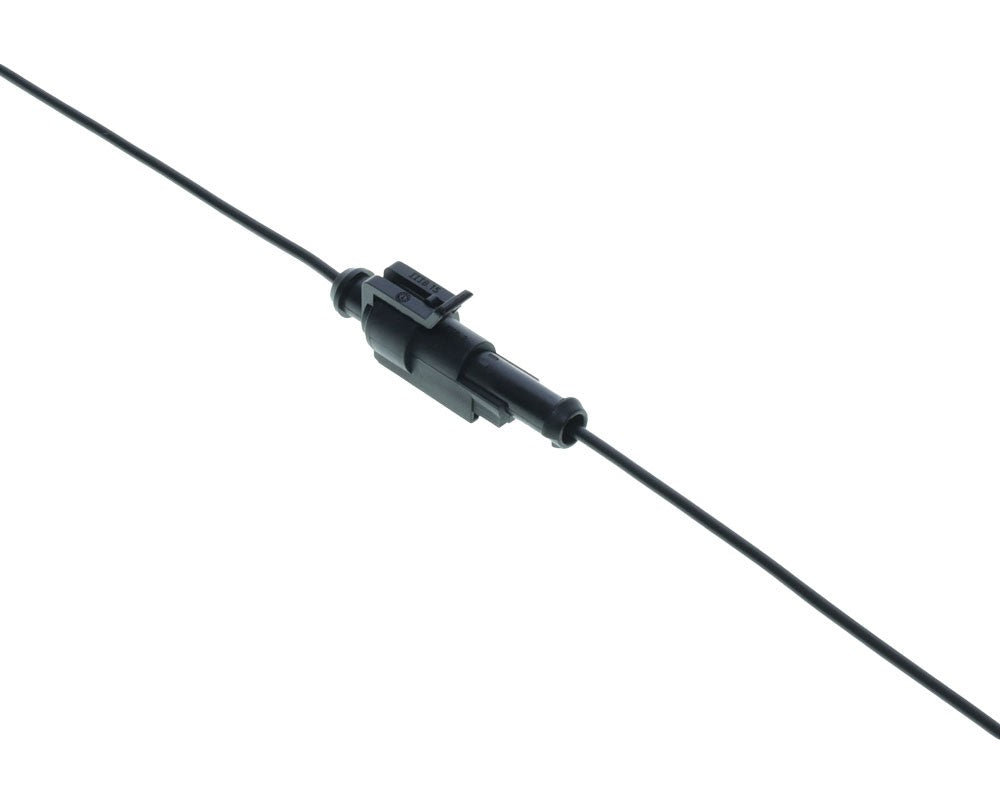

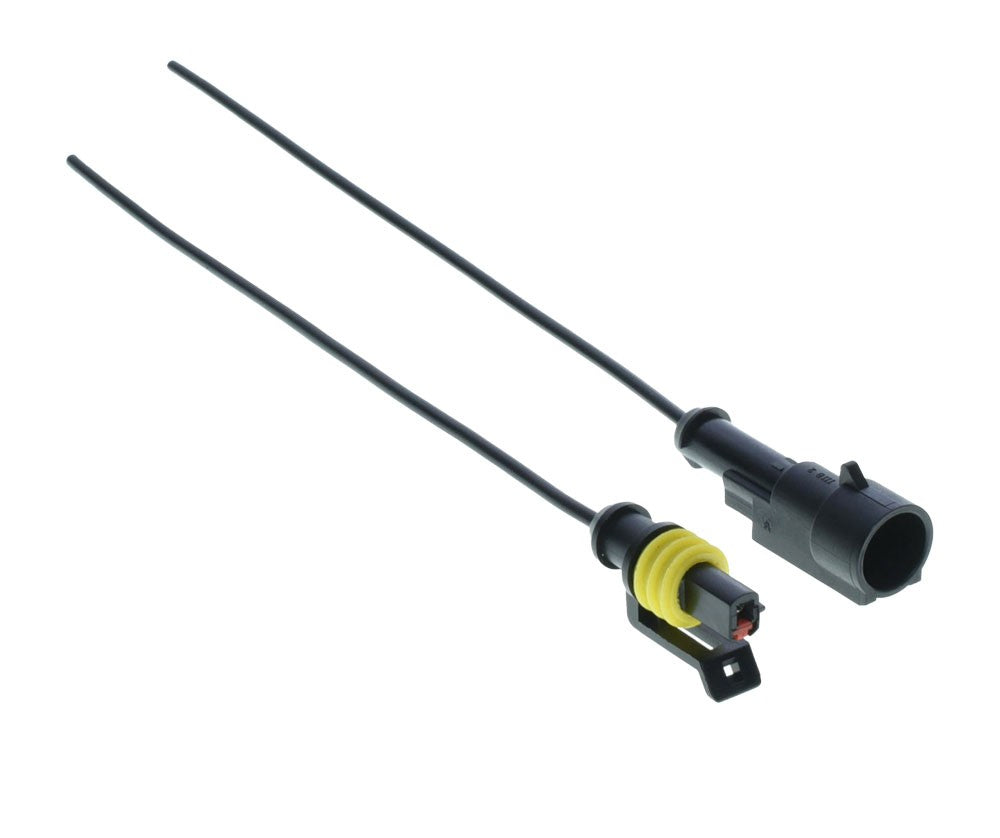

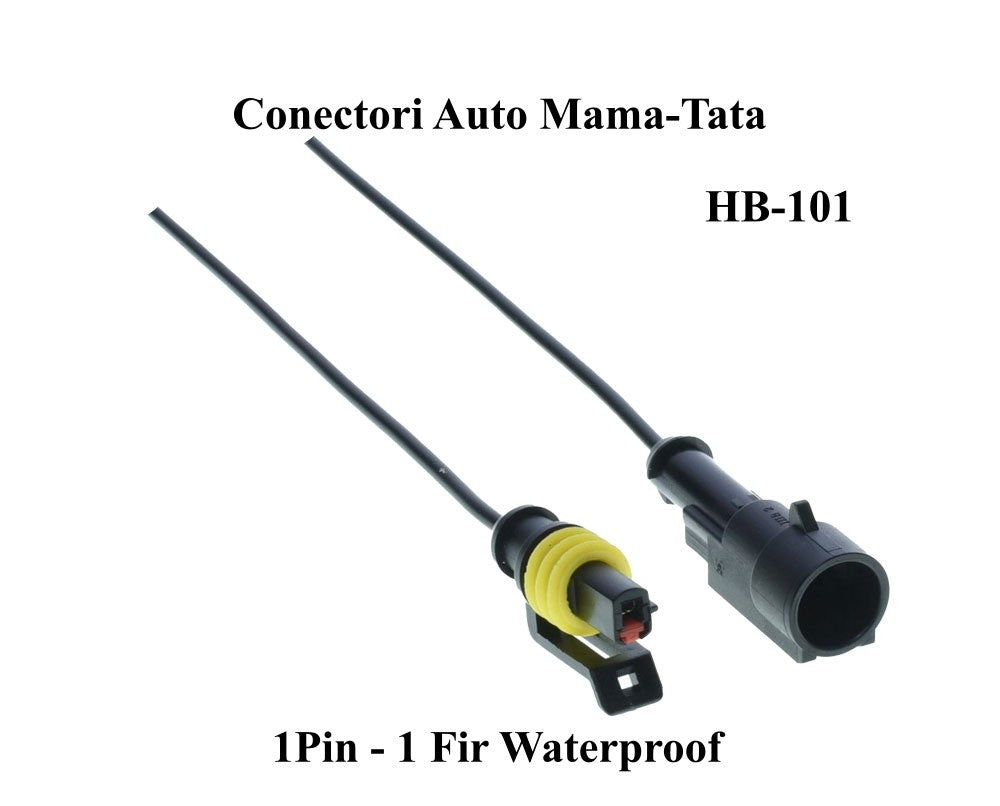

Automotive Connectors 1-Wire Waterproof, HB-101
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 10,99 lei | — |
| 3–4 pcs | 10,44 lei | 5% (−0,55 lei/unit) |
| 5–10 pcs | 9,89 lei | 10% (−1,10 lei/unit) |
| 11+ pcs | 9,34 lei | 15% (−1,65 lei/unit) |
Waterproof automotive connectors for safe electrical installations
HB-101 male-female automotive connectors with waterproof protection, ideal for electrical installations in cars, boats, solar panels, and LED lighting systems. They guarantee secure connections isolated against moisture, with solid copper conductors and a locking system that prevents accidental disconnections.
What you get with this product
- Quick and secure connection — the guiding system allows for correct assembly from the first try, with no risk of polarity reversal

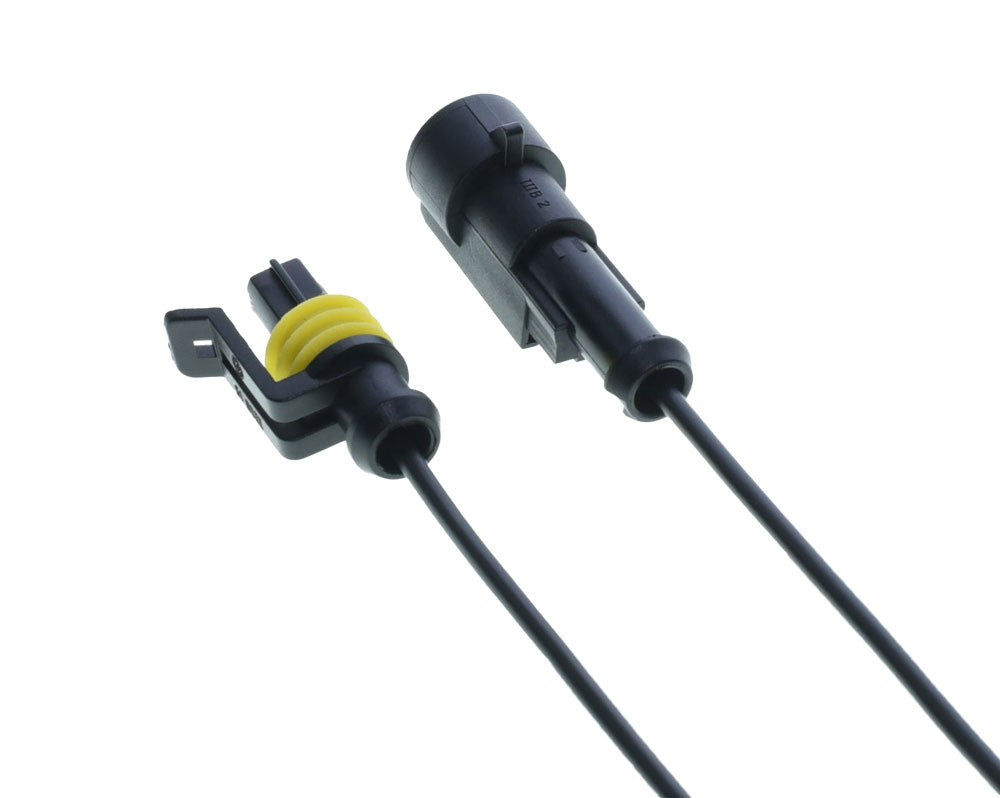

- Resistance to moisture and splashes — the sealing gasket protects the connection in rain, washing, or high humidity conditions
- Long-term durability — 1mm² stranded copper conductor and ABS housing resistant to shocks and vibrations

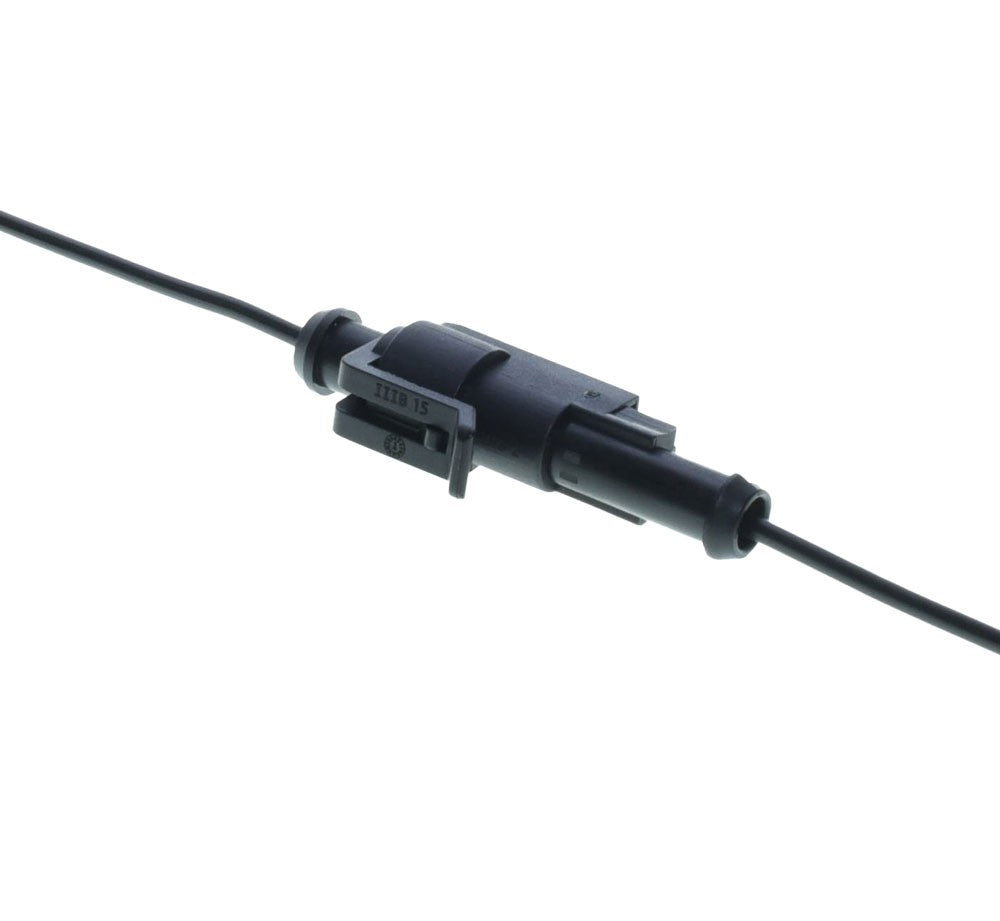

- Integrated safety clip — the mechanical locking system prevents accidental disconnection during operation

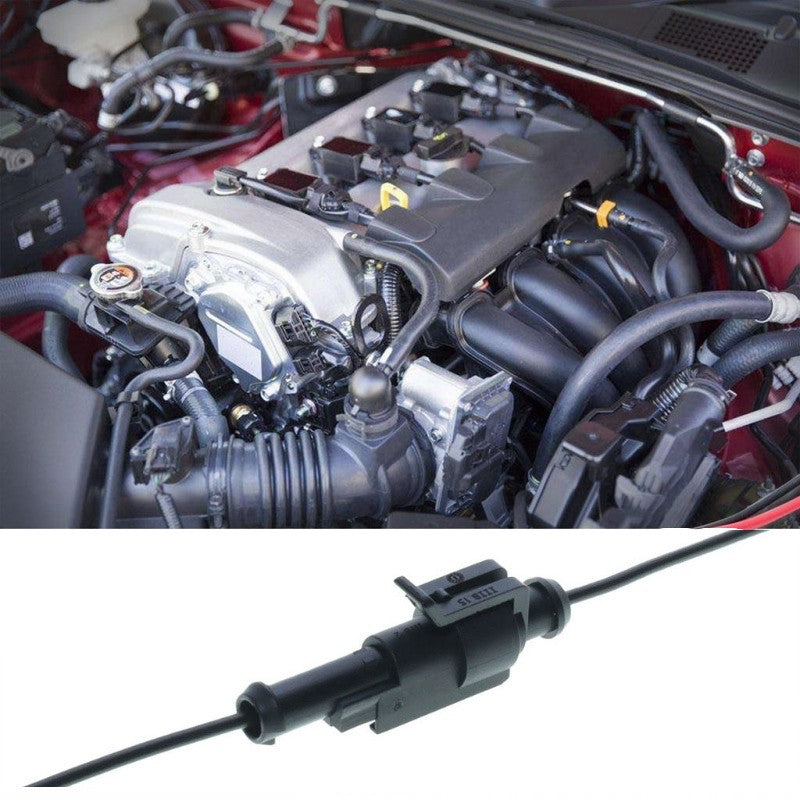

- Versatility of use — compatible with automotive installations, solar panels, boats, industrial machinery, and LED lighting systems
- Installation without special tools — 13 cm extended wires allow for convenient connections even in tight spaces
How it works and how to install it
Connection is made by simple alignment and pushing — the guiding slots ensure the correct position, and the clip automatically locks with a distinct click. The internal gasket completely seals the connection, preventing water or dust from entering. To disconnect, press the safety clip and pull the two parts in opposite directions. It is recommended to periodically check the condition of the gasket if the product is daily exposed to extreme humidity conditions.
Frequently asked questions
Can I use the connector for permanent outdoor installations?
Yes, the waterproof protection and ABS housing allow for outdoor use, including in areas exposed to rain or washing, but periodic checking of the seal is recommended.
Is it suitable for 12V LED strips?
Yes, the 1mm² conductor supports the necessary current for LED strips and bars, as well as other 12V automotive or solar applications.
How hard is it to disconnect the connector once locked?
Disconnection is simple — press the safety clip and pull the two parts. The system is designed to withstand vibrations, but still allow for intentional manual unfastening.
Technical specifications
| Connector type | Male-Female, 1 pin |
| Number of wires | 1 wire per connector |
| Wire length | 13 cm |
| Conductor | Stranded copper, 1 mm² |
| Housing material | ABS plastic |
| Contact material | Metal |
| Total plug dimensions | 59 x 20 x 20 mm |
| Protection | Waterproof with sealing gasket |
| Applications | Automotive, solar panels, boats, LED lighting, machinery |
| Package contents | 1 male-female set |
Warranty and support
The product benefits from a 2-year warranty in accordance with Romanian legislation. 30-day return policy from order receipt. Fast courier delivery throughout Romania.
