LT-33 Quick Connector for Secure Electrical Cable Splicing

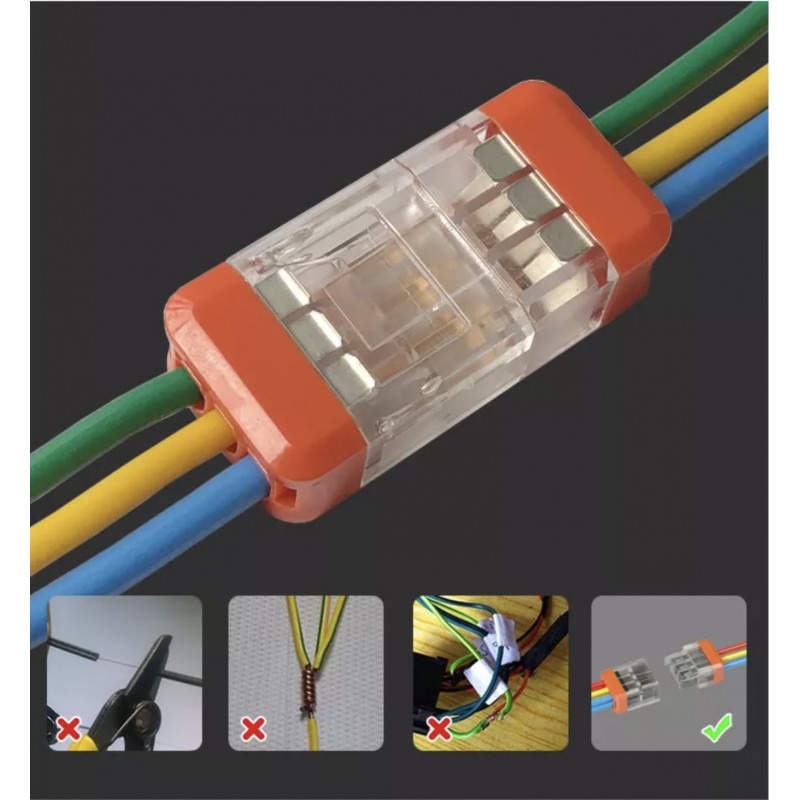

The LT-33 quick connector allows splicing of 3 electrical wires without special tools or advanced electrical knowledge. The push-lock system with a click ensures a stable connection for AWG 28-14 cables, ideal for installing LED lamps, sensors, or chandeliers in your home or workshop.
What you get with this product
- Quick installation without an electrician — insert the cables and the connection is ready, no soldering or special tools required

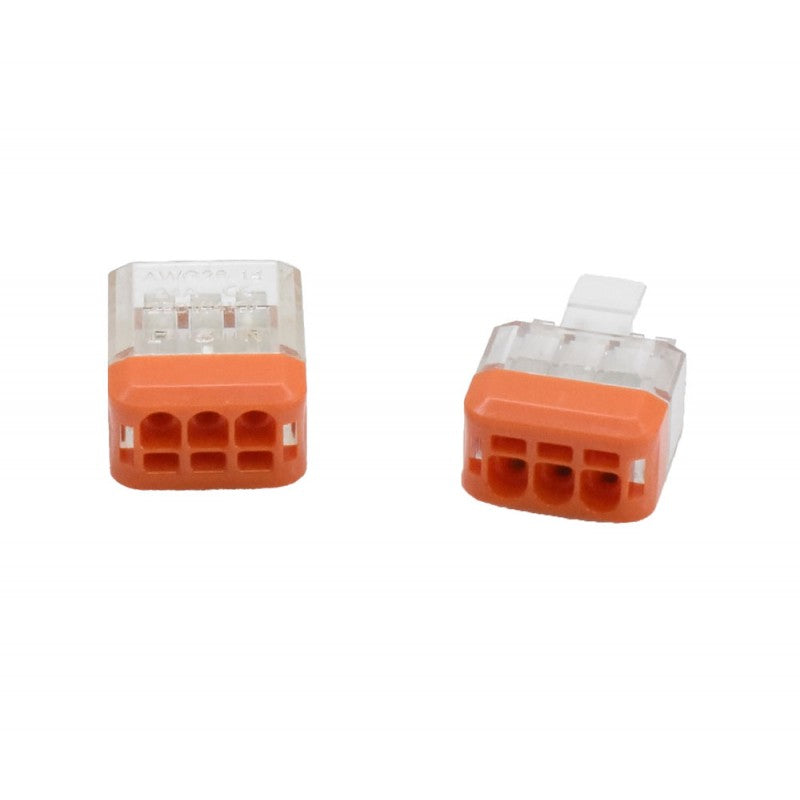

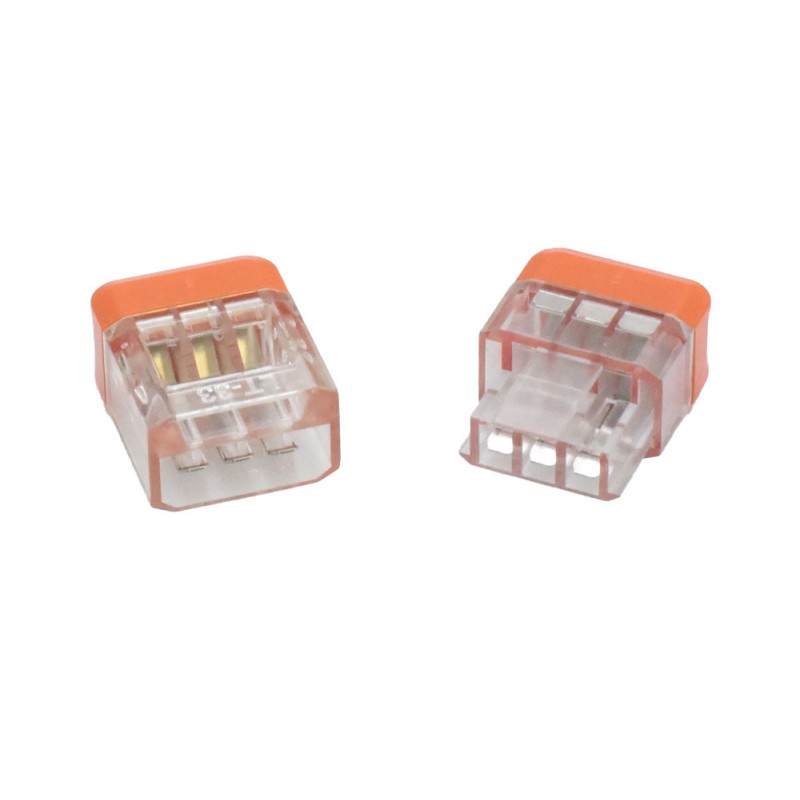

- Easy disassembly by pulling — the connector separates into two pieces for inspection or subsequent modifications
- Maximum safety with fire-retardant plastic — the material does not sustain fire, in accordance with safety standards
- Visual voltage check — transparent openings allow multimeter testing without disconnection
- Wide compatibility — works with cables between 0.08-2.5mm2 for lamps, LED strips, sensors or alarms
- Stable 24A connection — supports high nominal current for most household and industrial applications
How it works and how to install
The LT-33 connector uses a simple push-lock mechanism: strip the cables approximately 10-12mm, insert the wires into the corresponding holes until they click, then push the two halves of the connector until they lock. To disconnect, pull the two parts apart and remove the wires. It does not require screwing or special tools, and the connection remains stable even in conditions of vibration.
Frequently Asked Questions
How thick can the cable I connect be?
The connector accepts wires between 0.08mm2 and 2.5mm2, equivalent to AWG 28-14, covering most cables in household and commercial installations.
Can it be used outdoors or in wet rooms?
The connector does not have IP protection, being recommended for use in dry indoor areas or in sealed junction boxes.
Can I take it apart and reuse it?
Yes, the LT-33 connector is reusable — it can be easily disassembled by pulling and allows cables to be reconnected multiple times.
Technical Specifications
| Model | LT-33 |
| Number of wires | 3 conductors |
| Rated current | 24A |
| Rated voltage | 250V |
| Maximum voltage | 4KV |
| Cable range | 0.08-2.5mm² (AWG 28-14) |
| Material | Fire-retardant plastic |
| Color | Orange/Transparent |

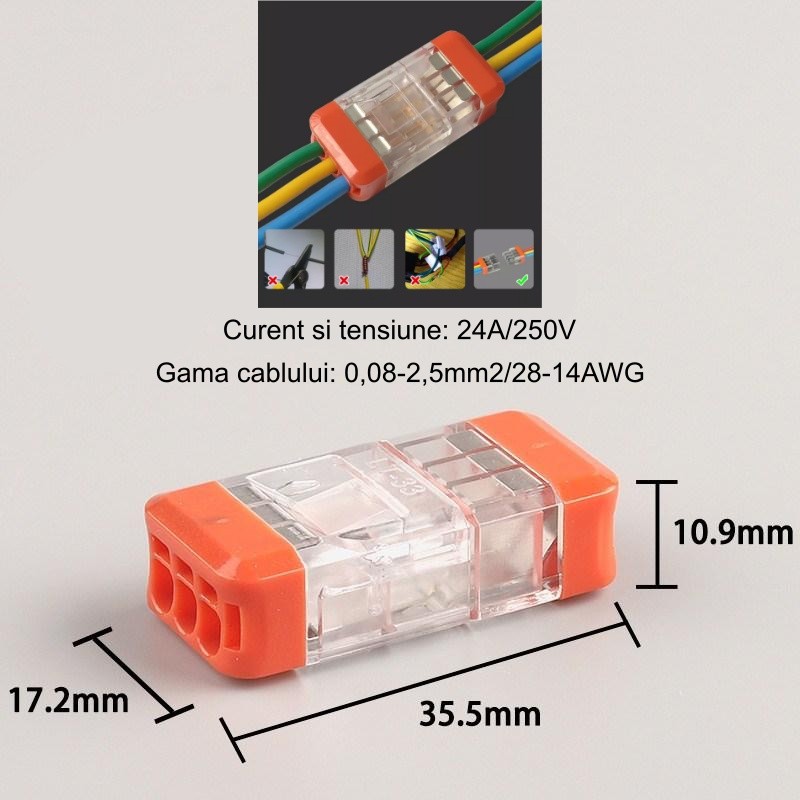

| Dimensions | 35.5 x 17.2 x 10.9mm |
| Packaging | 50 pieces/box |
Warranty and support
The product benefits from a 2-year warranty according to Romanian law and a 30-day return policy. Delivery is fast via national courier, and the CLASSLIGHTS team is available for any technical questions related to installation.
