LT-22 Quick Connector for Cable Splicing 250V-4KV
Available in stock
Minimum order quantity: 2 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 5,99 lei | — |
| 3–4 pcs | 5,69 lei | 5% (−0,30 lei/unit) |
| 5–10 pcs | 5,39 lei | 10% (−0,60 lei/unit) |
| 11+ pcs | 5,09 lei | 15% (−0,90 lei/unit) |
LT-22 quick connectors for secure electrical cable connections
The LT-22 quick connector simplifies the connection of electrical cables without soldering or special tools. Suitable for domestic and industrial electrical installations, it securely connects wires between 0.08-2.5mm2 using a push-in system. Ideal for mounting light fixtures, LED strips, wall lights, and spotlights.
What you get with this product
- Fast and secure electrical connections without tools — just insert the cable and it locks automatically
- Certified flame-retardant material — high-quality plastic that does not sustain fire

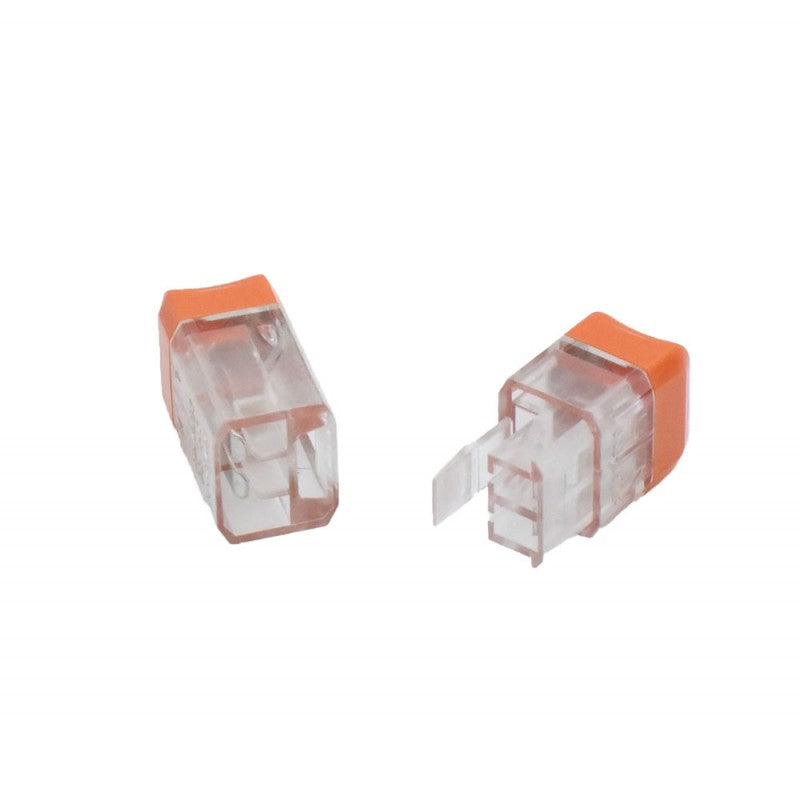

- Two-part removable system — you can disconnect and reconnect cables anytime without damage
- Full connection visibility — transparent housing allows for correct wire verification
- Dedicated test ports — check for voltage presence without disassembling the connector
- Compatible with a wide range of cables — from 0.08mm2 to 2.5mm2, including AWG 26-14
How it works and how to install it

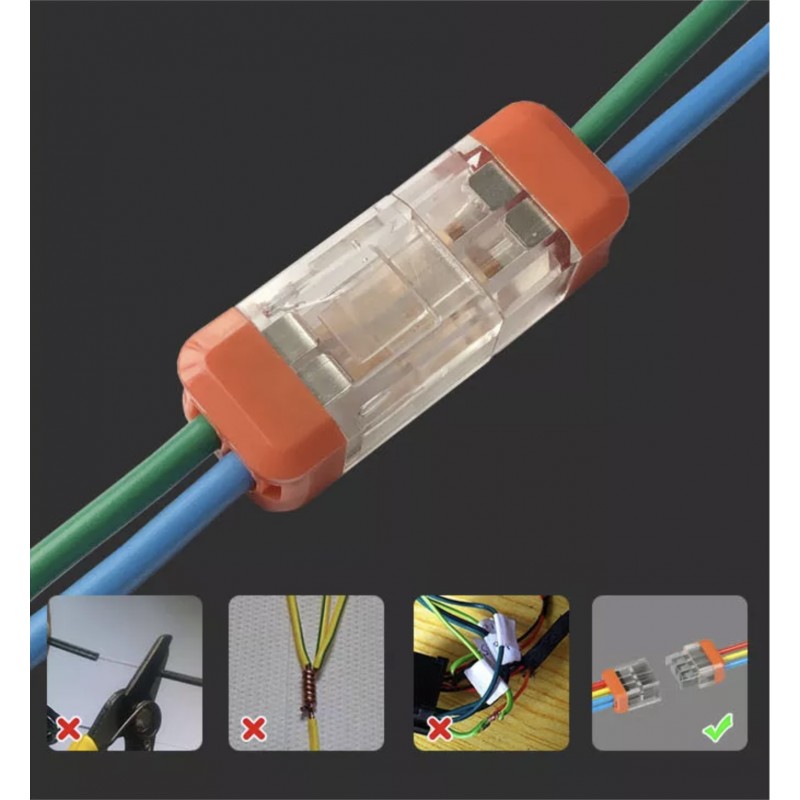

The LT-22 connector uses push-in technology: strip approximately 10mm from the end of the cable, insert the wire into the corresponding hole until it clicks, and the internal mechanism automatically locks the conductor. To disconnect, gently press the lever and extract the cable. The transparent body allows for visual verification of correct insertion. Test ports allow voltage measurement with a multimeter without disassembly.
Frequently asked questions
Can I use the connector for 12V or 24V LED strips?
Yes, the connector works excellently at low voltages of 12V-24V, and is also safe for the maximum voltage of 250V AC.
Can it be reused after being disconnected?
Yes, the connector is reusable. The mechanism allows cables to be disconnected and reconnected multiple times without loss of performance.
How much cable needs to be stripped for a correct connection?
Approximately 10mm of stripped conductor is sufficient for a secure grip in the connector's push-in mechanism.
Technical specifications
| Model | LT-22 |
| Number of wires | 2 |
| Rated voltage | 250V AC |
| Maximum voltage | 4KV |
| Rated current | 24A |
| Cable cross-section | 0.08-2.5mm² (AWG 28-14) |
| Material | Flame-retardant plastic |
| Color | Orange/Transparent |
| Dimensions | 13.1 x 25.5 x 10.9mm |
| Connection system | Push-in (fast click) |
| Package contents | 50 pieces/box |
Warranty and support
The product benefits from a 24-month warranty according to Romanian law. 30-day return right without justification. Fast delivery by national courier throughout Romania.
