Quick Connector 3-Way 16A-250V, ElectroAZ
Available in stock
Minimum order quantity: 50 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 0,49 lei | — |
| 10–15 pcs | 0,46 lei | 5% (−0,03 lei/unit) |
| 16–20 pcs | 0,44 lei | 10% (−0,05 lei/unit) |
| 21+ pcs | 0,41 lei | 15% (−0,08 lei/unit) |

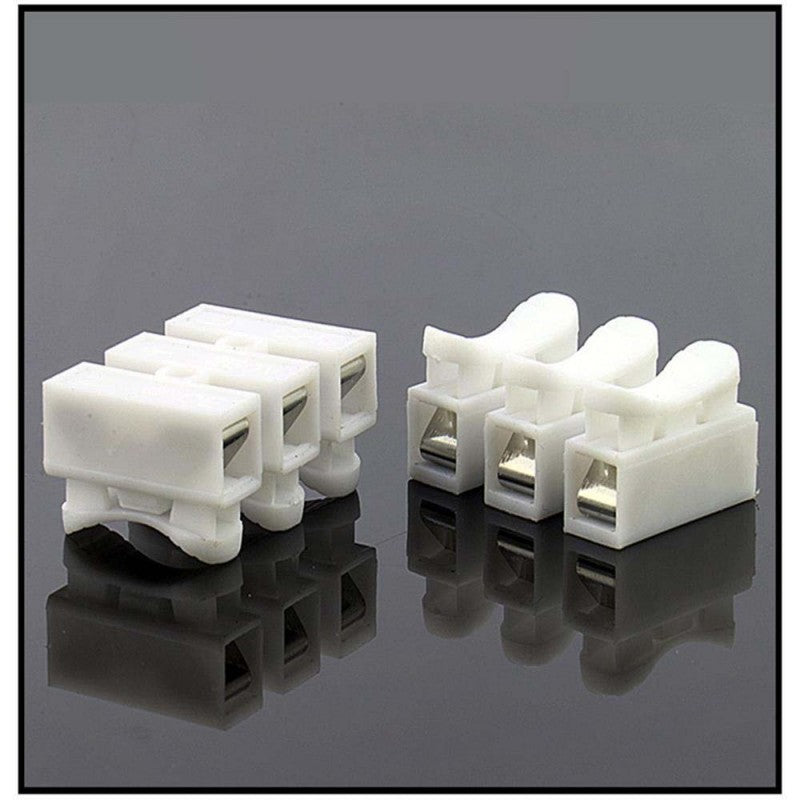

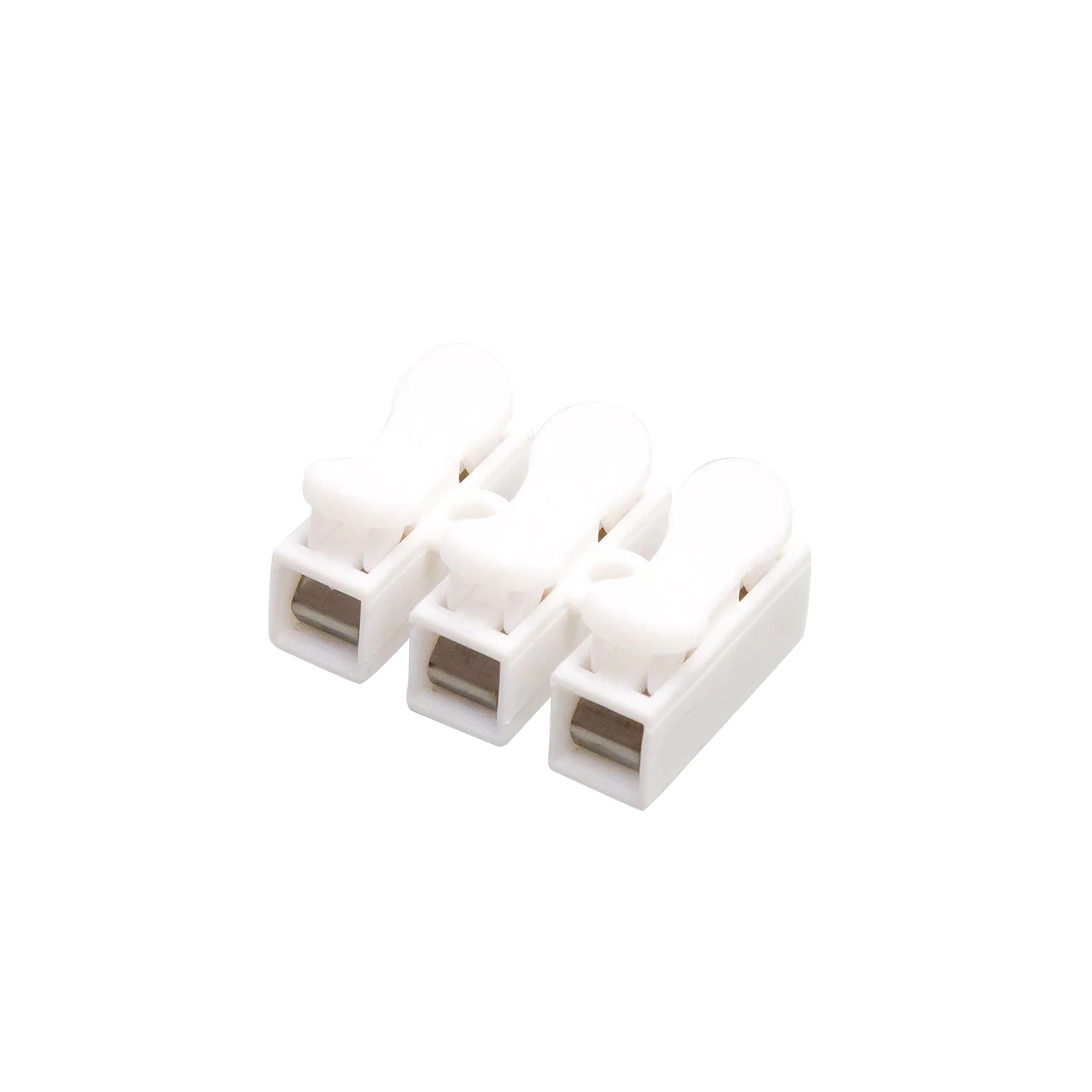

Quick Connector 3-way 16A for safe electrical installations
The 3-way 16A-250V quick connector simplifies electrical installations, eliminating the need for screws and special tools. Ideal for chandeliers, spotlights, automobiles, and numerous DIY projects, this connector ensures stable connections via a push-in clamping system. Fully insulated, compliant with safety standards, and ready for immediate use.
What you get with this product
- Tool-free installation — connect wires by simply pushing them into the holes, saving time and effort with each connection
- Maximum safety — flame-retardant ABS plastic housing and corrosion-resistant nickel-plated alloy contacts prevent overheating and short circuits
- Complete versatility — compatible with 0.5-1.5mm wires, suitable for chandeliers, LED spotlights, car installations, various electrical equipment
- Long-term stable connections — mechanical clamping system maintains constant electrical contact, without loosening over time

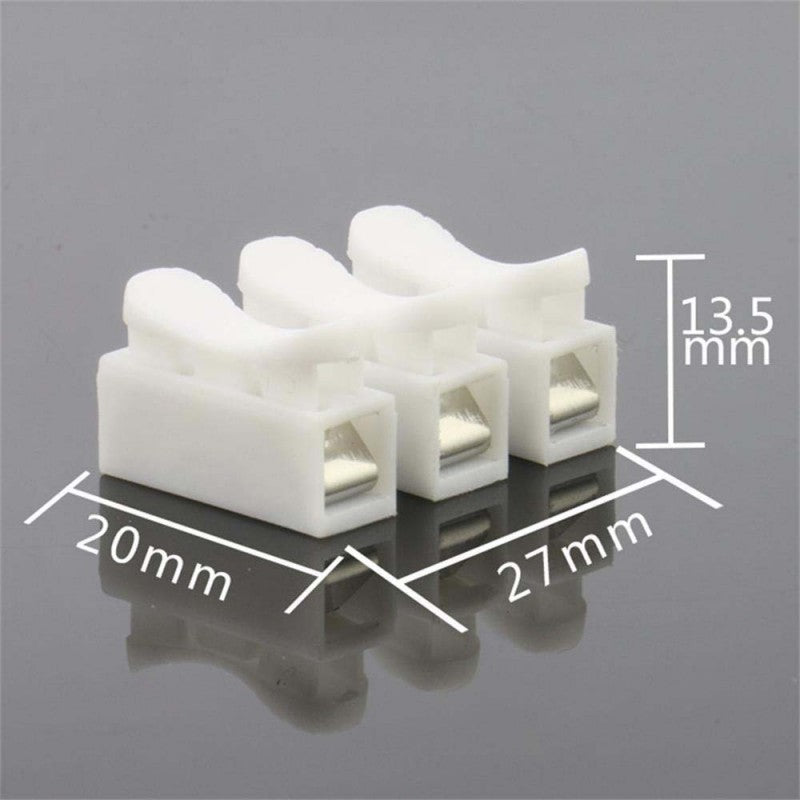

- Compact dimensions — only 27x20x13.5mm, easily integrates into junction boxes and tight spaces
- Professional capacity — supports up to 16A at 250V, sufficient for most residential and commercial applications
How it works and how to install it
The connector works via a quick clamping system: insert the clean, uninsulated wires for the last 8-10mm into the corresponding holes and push until secure. The nickel-plated metal contacts automatically grip the wire, creating a stable electrical connection. To remove, press the release button and pull the wire. No advanced electrical knowledge is required — installation takes less than a minute per connector.
Frequently Asked Questions
Can it be used outdoors or in wet environments?
It is not recommended for outdoor or very wet locations, as it is designed for indoor use. For outdoor applications, use sealed junction boxes.
Can I reconnect the wires if I make a mistake the first time?
Yes, the connector allows wires to be disconnected and reconnected multiple times without damage, by pressing the release button and pulling the wire.
What wire thickness does the connector accept?
The connector is compatible with wires between 0.5 and 1.5mm², meaning most wires used in residential installations for lighting and outlets.
Technical specifications
| Model | CH-303 |
| Number of connections | 3 female type (3+3 wires) |
| Maximum voltage | 250V |
| Maximum current | 16A |
| Accepted wire cross-section | 0.5-1.5mm² |
| Dimensions | 27 x 20 x 13.5mm |
| Housing material | Flame-retardant ABS plastic |
| Contact material | Nickel-plated alloy |
| Weight | Approximately 5g |
| Package contents | 1 x Quick Connector 3-way |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation, covering manufacturing defects and improper functioning. 30-day return right from receipt, without justification. Fast national courier delivery with telephone confirmation.
