Junction Box Connector Type Fast Press LT-736
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 8,99 lei | — |
| 3–4 pcs | 8,54 lei | 5% (−0,45 lei/unit) |
| 5–10 pcs | 8,09 lei | 10% (−0,90 lei/unit) |
| 11+ pcs | 7,64 lei | 15% (−1,35 lei/unit) |

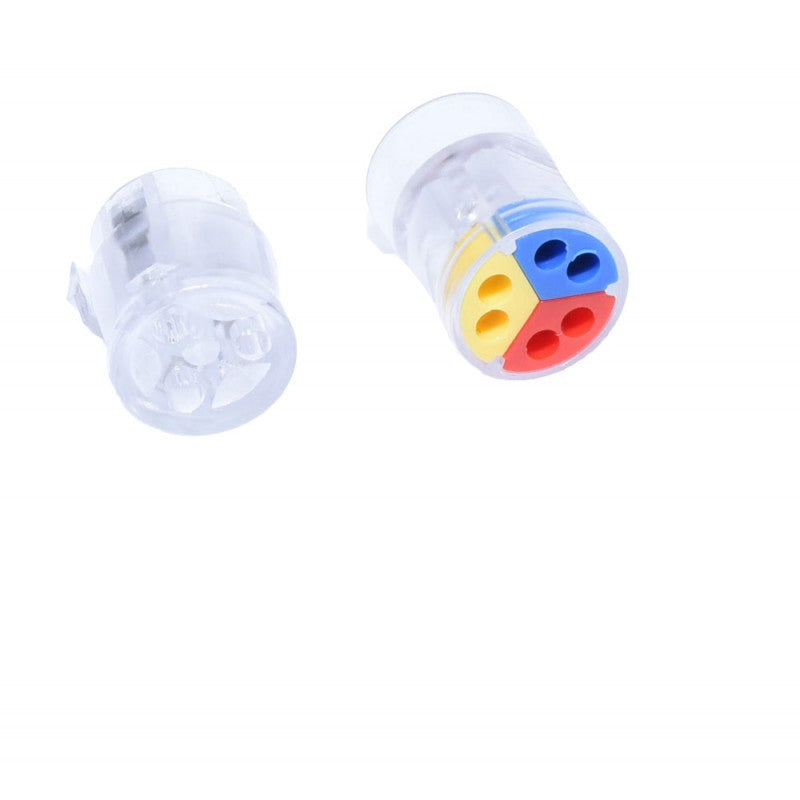

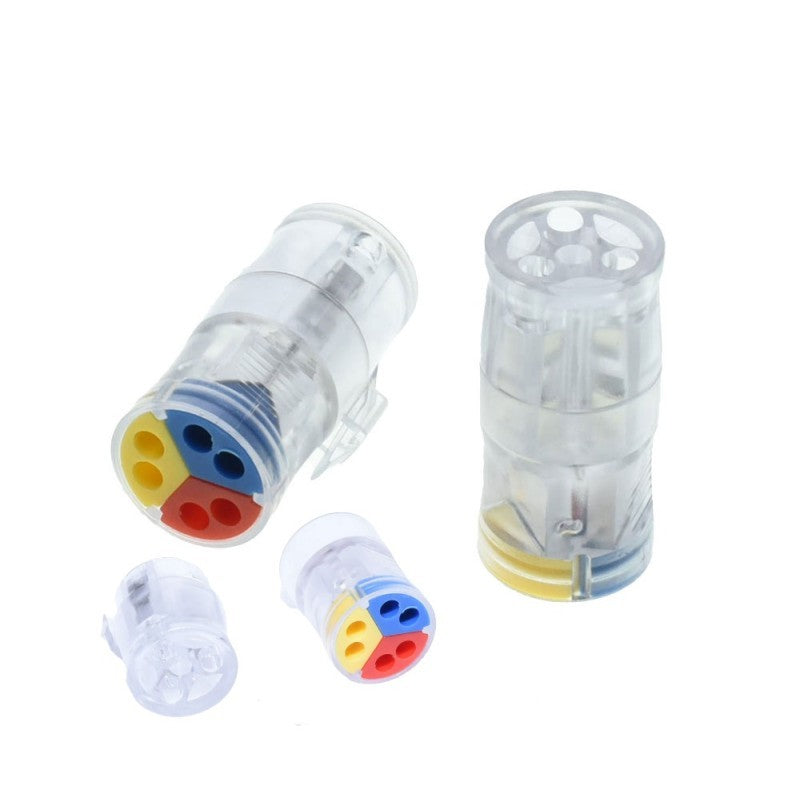

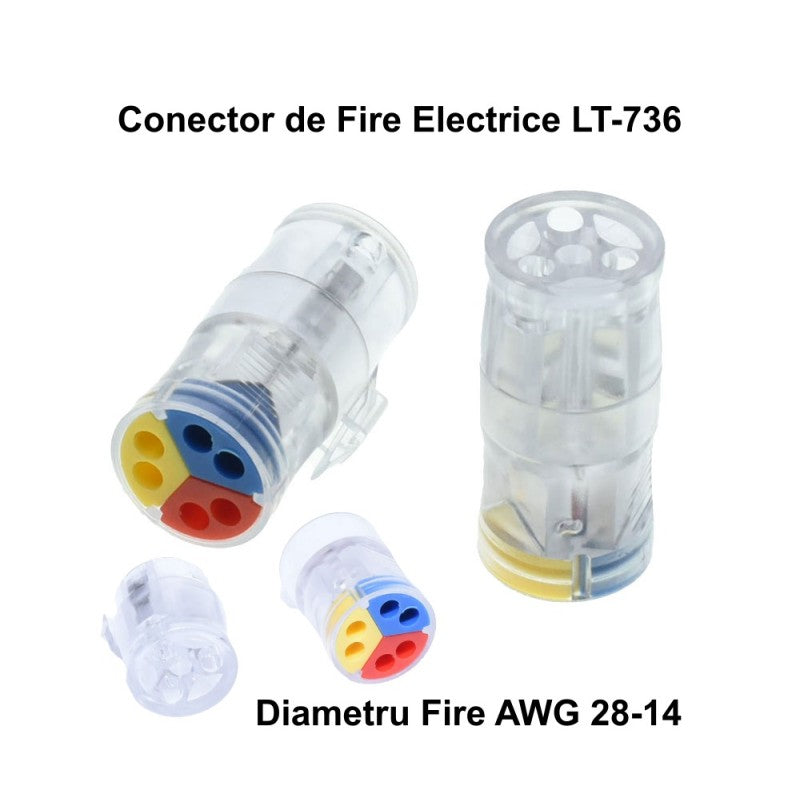

LT-736 Quick Wire Connector for 9 Solderless Wires
The Fast Press LT-736 junction box connector simplifies electrical wiring without special tools or soldering. Ideal for residential, commercial, or automotive electrical installations, it allows quick connection of up to 9 conductors using a push-in clamping system. Resistant to corrosion and dust, it ensures secure and durable connections in various environments.
What you get with this product
- Fast, tool-free installation — simply push in the wires and the clamping system automatically secures them in seconds
- Maximum versatility — compatible with solid or stranded wires between 0.5-2.5mm, for electrical, automotive, or industrial applications
- Secure and stable connection — the module with a metallic clamp prevents accidental disconnection even under vibration
- Protection against external factors — the resistant plastic housing prevents dust and moisture ingress and protects against minor mechanical shocks
- Time-saving for interventions — disassemble and reuse the connector without damage, reducing maintenance or modification time
- Transparent modular design — see the colored contacts for quick wire identification and visual connection verification
How it works and how to install

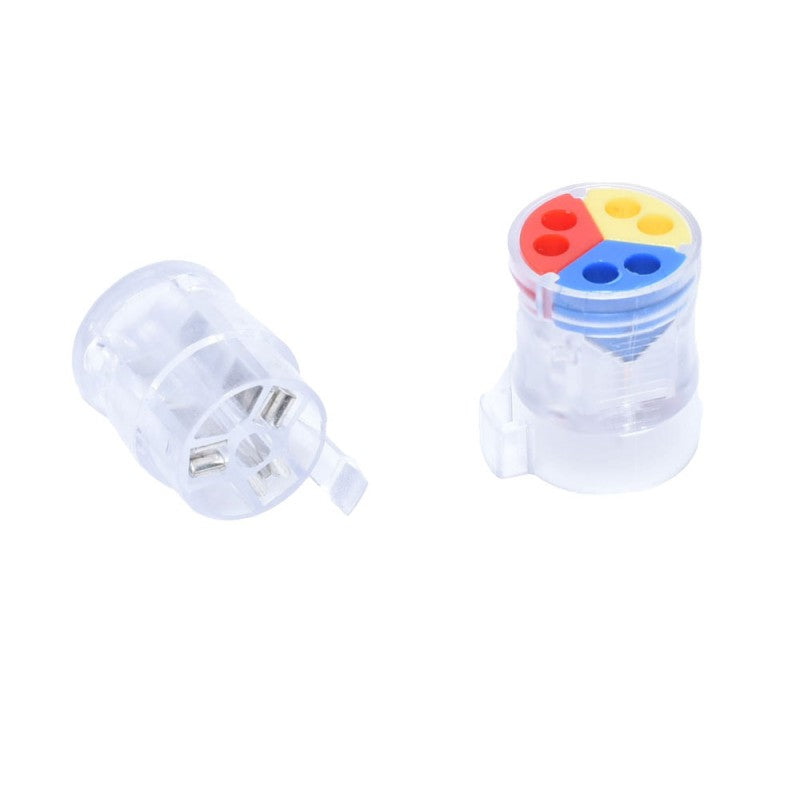

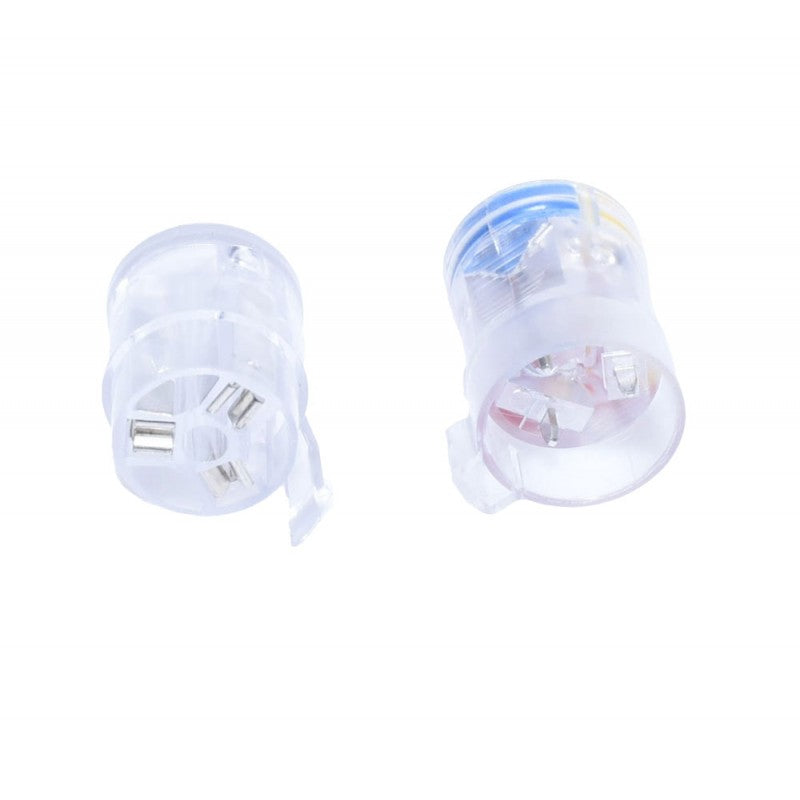

The LT-736 connector uses a pressure clamping system — strip about 10mm from the end of each wire, insert it into the corresponding hole until you feel resistance, and the internal clamp automatically locks the conductor. Each module has 3 poles, and the system allows connecting 3-6 conductors simultaneously. To disconnect, press the release button and pull out the wire. It does not require a screwdriver, pliers, or other special tools. It can be installed in a junction box or used independently for temporary or permanent connections.
Frequently Asked Questions
Can I use this connector for aluminum wires or only copper?
The connector is optimized for copper wires. Aluminum wires require special treatment and dedicated contacts to avoid oxidation and loss of connection over time.
Can it be used outdoors or in wet locations?
The connector provides basic protection against dust and low moisture, but for permanent outdoor installation, we recommend placing it in a waterproof junction box with an appropriate IP rating.
How many wires can I connect to a single connector?
An LT-736 set contains two modules with a total of 9 holes — you can connect up to 9 individual conductors, depending on your electrical circuit configuration.
Technical specifications
| Model | LT-736 |
| Number of poles | 3-6 poles |
| Accepted wire diameter | AWG 28-14 / 0.5-2.5 mm |
| Connector dimensions | 41 x 18 mm |
| Housing material | Transparent plastic |
| Contact material | Copper alloy |
| Compatible wire type | Solid or stranded |
| Clamping system | Automatic pressure clamp |
| Applications | Residential, commercial, automotive, industrial |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. You have the right to return within 30 days of receipt if the product does not meet expectations. Fast delivery by national courier with SMS and email confirmation.
