Quick Junction Box Connector 6-Pole
Available in stock
Minimum order quantity: 6 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 1,99 lei | — |
| 10–15 pcs | 1,89 lei | 5% (−0,10 lei/unit) |
| 16–20 pcs | 1,79 lei | 10% (−0,20 lei/unit) |
| 21+ pcs | 1,69 lei | 15% (−0,30 lei/unit) |
6-pole quick connector for safe electrical installations
The 6-pole quick junction box connector simplifies wiring in junction boxes, panels, and lighting installations, without soldering or special tools. Compatible with solid and stranded wires between 0.75-2.5 mm², it ensures reliable and long-lasting electrical contact. Ideal for electricians, installers, and advanced DIY enthusiasts.
What you get with this product
- Quick push-in connection — save time on every installation, no soldering or complex tools required
- Maximum safety with 400V insulation and 24A nominal current — withstands high loads in residential and commercial installations
- Universal compatibility with 0.75-2.5 mm² wires — works with most standard cables in Romania
- Transparent design that allows the connection to be visible — instantly check the quality of contact and wire position
- Secure grip without accidental loosening — internal mechanism keeps wires fixed even with vibrations
- Compact dimensions 19.5x18.8x13.1 mm — fits easily into standard junction boxes, even in tight spaces
How it works and how to install

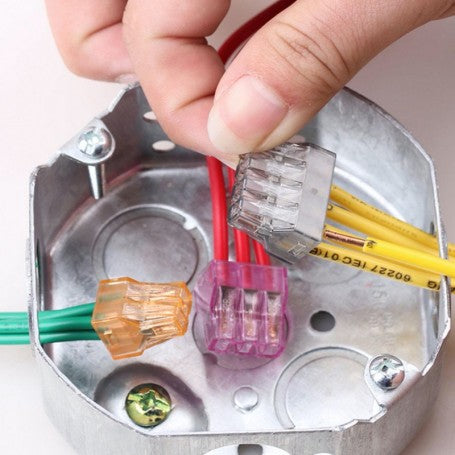

Strip the wire insulation for 12 mm, insert the end into the corresponding hole of the connector and push until you feel resistance — the internal lamella automatically grips the conductor. To disconnect, gently press the transparent lamella and pull the wire. The connector accepts both solid and stranded wires without terminal sleeves, and works in junction boxes, electrical panels, or lighting fixture boxes.
Frequently asked questions
Can I use the connector for copper and aluminum wires?
The connector is optimized for copper wires. For aluminum, special connectors are recommended, as aluminum has different oxidation properties.
Is it necessary to tighten screws or use special pliers?
No, the connector works with a push-in system — you insert the wire and it locks automatically, without tools or tightening.
How much insulation should I strip before connecting the wire?
Strip exactly 12 mm of insulation, according to the marking on the connector — if you leave less, the contact is weak; if you cut more, unprotected copper remains exposed.

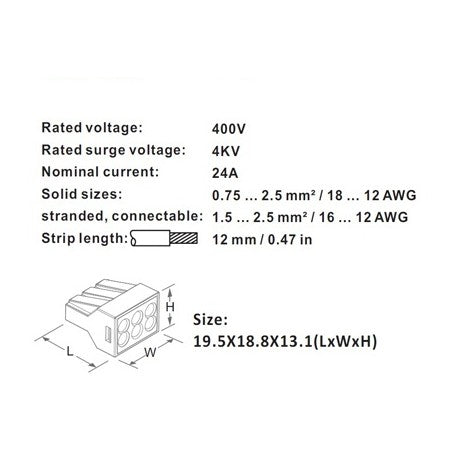

Technical specifications
| Model | WA-106 |
| Number of poles | 6 |
| Rated voltage | 400V |
| Surge voltage | 4KV |
| Rated current | 24A |
| Solid conductor cross-section | 0.75 - 2.5 mm² / 18 - 12 AWG |
| Stranded/flexible conductor cross-section | 1.5 - 2.5 mm² / 16 - 12 AWG |
| Stripping length | 12 mm |
| Dimensions (LxWxH) | 19.5 x 18.8 x 13.1 mm |
| Housing material | Transparent insulating plastic |
Warranty and support
The product benefits from a 2-year warranty according to Romanian legislation. You have the right to return within 30 days of receipt, without justification. Delivery is fast by courier throughout Romania.
