Quick Junction Box Connector 5 Pole - New
Available in stock
Minimum order quantity: 4 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 2,99 lei | — |
| 10–15 pcs | 2,84 lei | 5% (−0,15 lei/unit) |
| 16–20 pcs | 2,69 lei | 10% (−0,30 lei/unit) |
| 21+ pcs | 2,54 lei | 15% (−0,45 lei/unit) |
5-pole quick connector for safe electrical installations

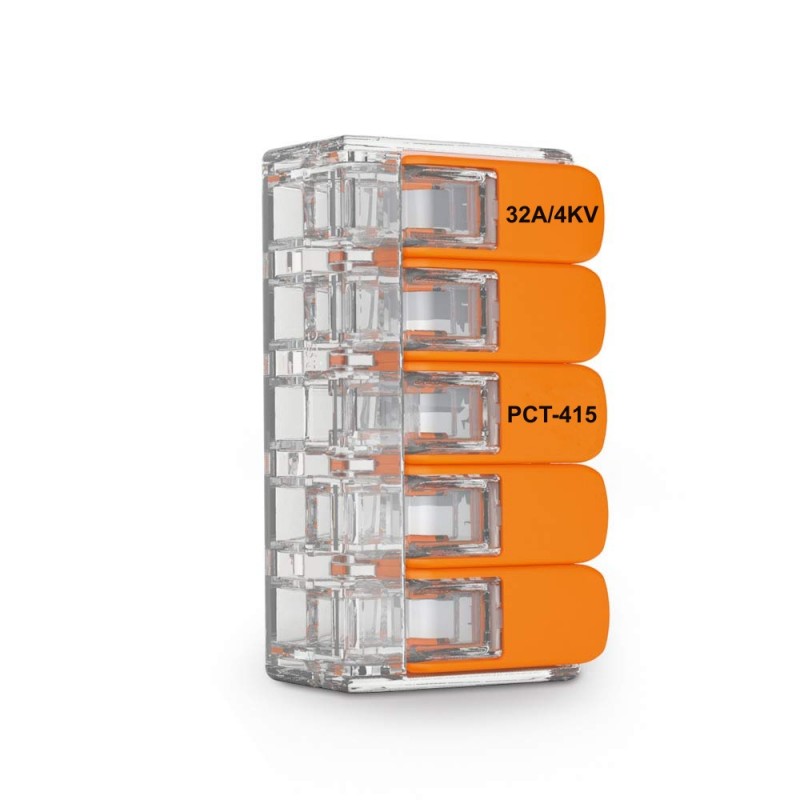

The PCT-415 5-pole quick connector simplifies electrical splices in junction boxes, being 40% more compact than classic models. Ideal for residential or commercial installations, it allows quick and secure connections for solid or flexible wires, without the need for special tools. With a transparent housing, you can visually check the quality of the connection before closing the box.
What you get with this product
- Quick installation without special tools — open the clamp, insert the wire, close the clamp, done in 5 seconds per connection
- Transparent housing for visual inspection — see if each wire is inserted correctly and at the right length
- Compact dimensions saving 40% space in the junction box — more freedom for additional connections
- Compatible with various wires — works with solid and flexible conductors between 0.14-4 mm² without adapters
- Reliable connection at high temperatures — withstands up to 85°C ambient, ideal for areas with thermal load
- Certified safety for 32A and 450V — exceeds the requirements of standard residential installations
How it works and how to install
The connector uses an automatic spring clamp system: lift the orange lever, insert the stripped wire 10-11mm, release the lever and the spring secures the conductor in metallic contact. No screwing or soldering is required. It works for 5 separate circuits simultaneously, with each pole individually insulated. Complete installation of a connector takes less than a minute, even for beginners.
Suitable for standard junction boxes, lighting cables, sockets, or electrical panel connections. The impact-resistant ABS material protects connections long-term.
Frequently Asked Questions
Does it work with aluminum wires or only copper?
The connector is designed and tested for copper wires. For aluminum, check compatibility with a licensed electrician according to local regulations.
How much wire should I strip from the insulation?
Strip the insulation 10-11mm according to the marking on the connector housing. Too little and it won't make contact, too much and exposed copper remains.
Can I reconnect the wires if I made a mistake the first time?
Yes, simply lift the orange lever again, remove the wire, check, and reinsert. The connector allows multiple openings without losing functionality.
Technical specifications
| Model | PCT-415 |
| Number of poles | 5 poles |
| Compatible wire cross-section | 0.14-4 mm² (24-12 AWG) |
| Rated voltage | 450V |
| Maximum current | 32A |
| Operating temperature | -40°C to +85°C |
| Maximum conductor temperature | 105°C |

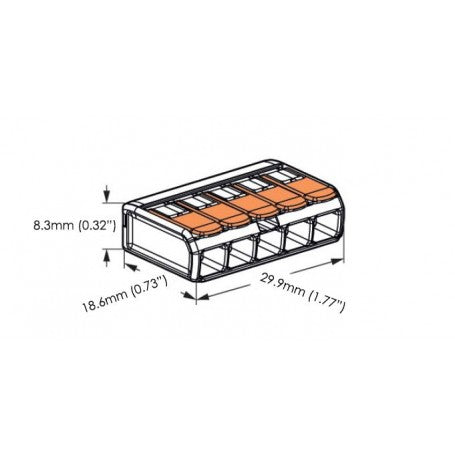

| Dimensions | 29.9 x 18.6 x 8.3 mm |
| Housing material | Transparent and orange ABS plastic |
| EAN | 0781499707112 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian legislation for manufacturing defects. 30-day return policy from order receipt. Fast delivery by national courier within 1-3 working days.
