Quick Junction Box Connector 4-Pole - New
Available in stock
Minimum order quantity: 4 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 2,99 lei | — |
| 10–15 pcs | 2,84 lei | 5% (−0,15 lei/unit) |
| 16–20 pcs | 2,69 lei | 10% (−0,30 lei/unit) |
| 21+ pcs | 2,54 lei | 15% (−0,45 lei/unit) |
4-pole quick connector for professional electrical installations

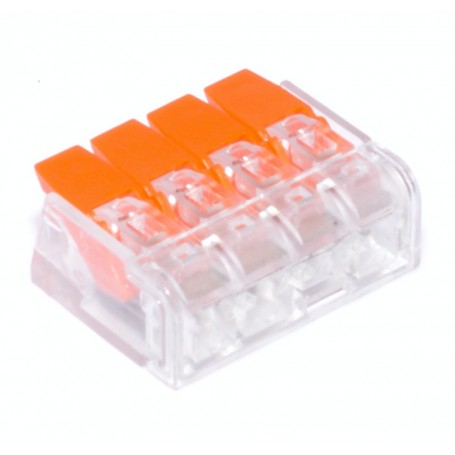

The WA-221-414 4-pole quick connector is the ideal solution for safe and fast electrical connections in distribution boxes. 40% more compact than classic models, it allows connecting wires from 0.14 to 4 mm² without special tools. The transparent housing ensures complete visibility of connections, eliminating the risk of incorrect assembly.
What you get with this product
- Quick installation without special tools — the push-clamp system connects wires in seconds

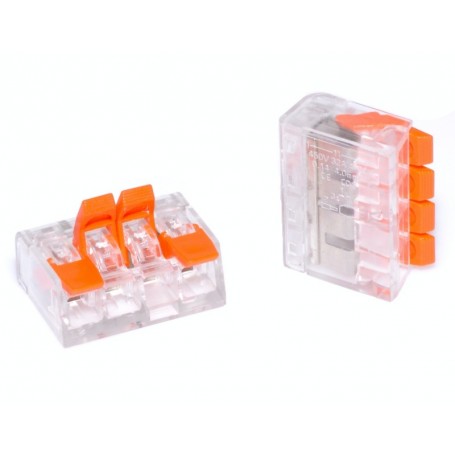

- Total visibility of connections through the transparent housing — you can immediately check if the wires are properly secured
- Space saving in the junction box — 40% smaller dimensions compared to traditional connectors
- Universal compatibility — works with solid, stranded, and fine wires between 0.14-4 mm²
- Increased safety at high temperatures — withstands up to 105°C and 32A current at 450V
- Reversible mounting — you can disconnect and reconnect wires without damage
How it works and how to install it
Strip the wires 10-11 mm, lift the orange clamps with your finger, insert the wires into the openings all the way, and release the clamps — the connection is complete. The transparent housing immediately shows you if the wire has entered the mechanism correctly. No screwdriver, pliers, or other tools are needed. To disconnect, lift the clamp again and pull the wire. Ideal for quick work in electrical panels or junction boxes.
Frequently asked questions
Can I use the connector for copper and aluminum wires at the same time?
Yes, the connector accepts both types of conductors, solid and stranded, in the 0.14-4 mm² range.
How much should I strip the wires before assembly?
Strip the wires 10-11 mm for the mechanism to properly grip the conductor in the contact area.
Can the connector be used in electrical panels at high temperatures?
Yes, it supports operating temperatures up to 105°C and is approved for T85 (85°C ambient temperature).
Technical specifications
| Model | WA-221-414 |
| Number of poles | 4 poles |
| Accepted wire cross-section | 0.14 - 4 mm² (24-12 AWG) |
| Conductor type | Solid, stranded, fine |
| Maximum voltage | 450V |
| Maximum current | 32A |
| Operating temperature | 105°C |
| Maximum ambient temperature | 85°C (T85) |
| Housing material | Transparent ABS plastic |
| EAN | 0781499707198 |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. 30-day return policy from receipt. Fast courier delivery nationwide.
