Junction Box Connector for Cable 4-4 LT-223/4, ElectroAZ
Available in stock
Minimum order quantity: 2 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 5,89 lei | — |
| 3–4 pcs | 5,59 lei | 5% (−0,30 lei/unit) |
| 5–10 pcs | 5,30 lei | 10% (−0,59 lei/unit) |
| 11+ pcs | 5,00 lei | 15% (−0,89 lei/unit) |

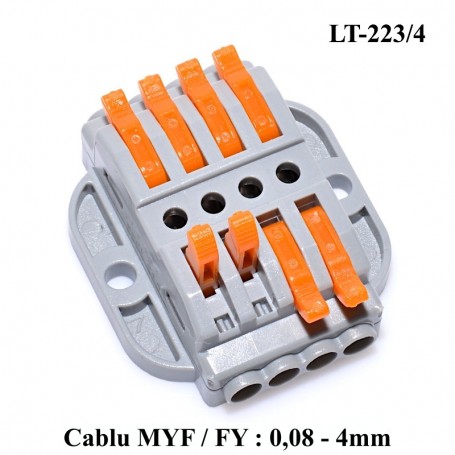

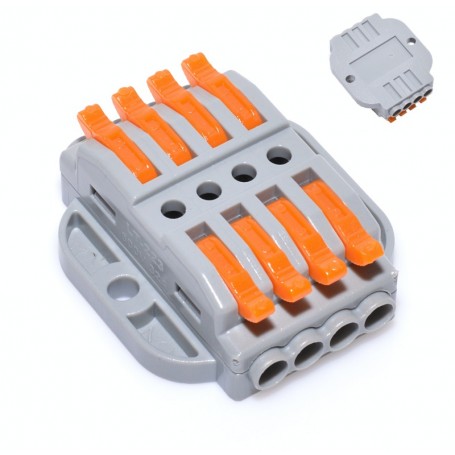

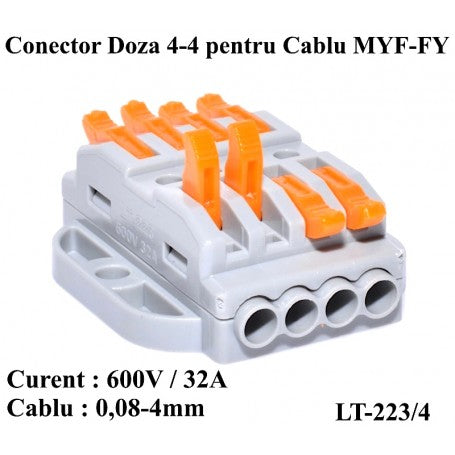

Quick Connector for Electrical Box 4+4 Wires, Screw-less
LT-223/4 quick connector for connecting electrical wires in device or junction boxes, without the need for screws. Compatible with MYF/FY cables between 0.08-4mm², ideal for residential and commercial electrical installations where space is limited. Make secure connections in less than 30 seconds by simply lifting the levers.
What you get with this product
- 10 times faster installation than traditional methods — lift the lever, insert the wire, lower the lever, and the connection is ready
- Disconnection without damaging cables — lift the lever and remove the intact wire, without cutting or pulling
- Perfect fit in standard boxes — compact dimensions of 42x24mm allow installation in crowded boxes alongside outlets and switches
- Universal compatibility with all types of cables — works with solid, stranded rigid, or flexible wires between 0.08-4mm²
- Resistance to industrial loads — supports 32A at 600V, suitable for residential and commercial installations
- Certified flame-retardant material — ABS casing with silver-plated brass contacts guarantees safety and durability according to ROHS and CE standards
How it works and how to install it
The connector works by mechanically gripping the wire between the internal clamps. For installation, strip approximately 10mm from the end of each wire, lift the corresponding orange lever, fully insert the wire into the rear opening until it stops, then lower the lever — the connection is automatically made by pressure. No special tools or excessive force are required.
For disconnection, lift the lever again and gently pull the wire — it comes out freely without damage, allowing subsequent reconnections. The system is designed for repeated use without loss of clamping ability. Installation in the box is done by positioning the connector between devices, making efficient use of available space.
Frequently Asked Questions
Can I use the connector with wires of different thicknesses at the same time?
Yes, each lever operates independently and automatically adapts to the cross-section of the inserted wire between 0.08-4mm². You can simultaneously connect 1.5mm² wires with 2.5mm² wires without problems.
Do I need to know which wires are solid and which are stranded?
No, the connector accepts all types: solid BV cables, stranded rigid BVR, and flexible RV within the same section range. Insertion and clamping work identically regardless of the wire type.
How secure is the connection to vibrations or movements of the box?
Very secure — the silver-plated brass clamp applies constant pressure to the conductor, maintaining stable electrical contact even under vibrating conditions. CE and ROHS certifications confirm mechanical and electrical resistance according to European standards.
Technical Specifications
| Model | LT-223/4 |
| Number of wires | 4+4 (8 contacts total) |
| Rated voltage | 600V |
| Rated current | 32A |
| Compatible cable cross-section | 0.08-4mm² |
| Accepted cable types | MYF/FY solid, BVR stranded rigid, RV flexible |
| Operating temperature | 85°C max |
| Dimensions | 42x24/36x15mm |
| Housing material | Flame-retardant ABS |
| Contact material | Silver-plated brass |
| Certifications | CE, ROHS, CQC |
| EAN | 0704384671695 |
Warranty and Support
The product benefits from a warranty
