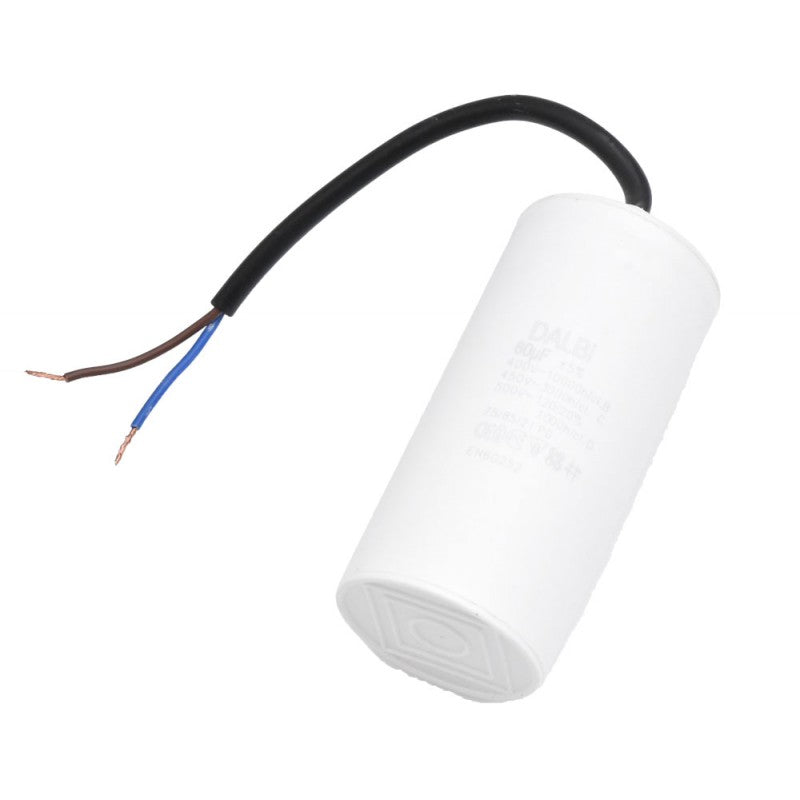

Motor Start Capacitor 450V - 60uF / With Wires
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 33,99 lei | — |
| 3–4 pcs | 32,29 lei | 5% (−1,70 lei/unit) |
| 5–10 pcs | 30,59 lei | 10% (−3,40 lei/unit) |
| 11+ pcs | 28,89 lei | 15% (−5,10 lei/unit) |
Motor start capacitor 450V 60uF with quick connection
This start capacitor ensures optimal operation of single-phase electric motors in air conditioners, compressors, pumps, and other industrial or domestic equipment. The 60uF capacity and 450V rated voltage guarantee high performance and a long service life under intensive use conditions.
What you get with this product
- Reliable electric motor starting — 60uF capacity for the required starting torque
- Universal compatibility with air conditioning motors, compressors, pumps, and industrial fans
- Pre-installed wires for quick connection — installation in less than 10 minutes, no special tools required
- Resistance to extreme temperatures between -40°C and +85°C for continuous use
- UL 94 V-2 certified plastic casing with flammability protection
- Self-healing polypropylene dielectric for maximum operational safety
How it works and how to install it
The capacitor connects in series with the start winding of the single-phase electric motor, providing the additional torque needed for starting. The connection is made via the two included wires, which are connected directly to the motor terminals according to its electrical diagram. No advanced electrical knowledge is required — simply observe polarity and correctly secure the conductors.
Frequently asked questions
How do I know if the capacitor is compatible with my motor?
Check the capacitance in microfarads and the rated voltage written on the old capacitor. If the values match 60uF and 450V, the product is compatible.
Can it be used with three-phase motors?
No, this capacitor is intended exclusively for single-phase motors with a start winding. Three-phase motors do not require start capacitors.
How often should the capacitor be replaced?
The lifespan depends on the operating regime. For class C (450V), it is guaranteed for 3000 hours of intensive use. Under normal conditions, it can operate for years without problems.
Technical specifications
| Capacitance | 60 µF |
| Rated Voltage | 450V AC |
| Maximum Voltage | 500V AC |
| Rated Frequency | 50-60 Hz |
| Capacitance Tolerance | ±5% |
| Connection Type | 2 wires |
| Shape | Cylindrical |
| Housing Material | Plastic |
| Dielectric | Self-healing polypropylene |
| Dissipation Factor | ≤0.002 (1KHz, 20°C) |
| Operating Temperature | -40°C ~ +85°C |
| Insulation Resistance | ≥3000 seconds |
| Flammability Class | UL 94 V-2 |
| Certifications | ISO 9001:2008, RoHS |
| EAN | 0781499719641 |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. 30-day return policy without justification. Fast delivery via national courier with telephone confirmation.
