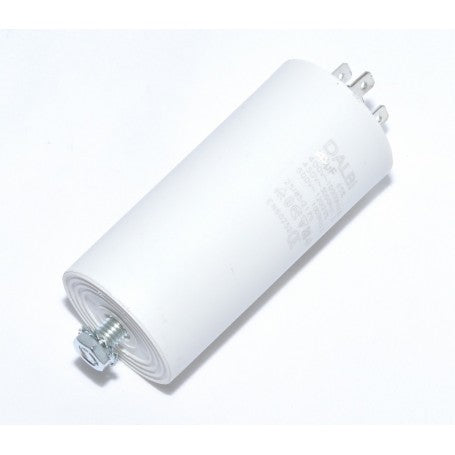

Motor Start Capacitor 16uF/450V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 16,99 lei | — |
| 3–4 pcs | 16,14 lei | 5% (−0,85 lei/unit) |
| 5–10 pcs | 15,29 lei | 10% (−1,70 lei/unit) |
| 11+ pcs | 14,44 lei | 15% (−2,55 lei/unit) |
16uF/450V Motor Start Capacitor for Home Appliances and Industrial Equipment
This start capacitor ensures the efficient startup of electric motors in air conditioners, compressors, water pumps, and various household or industrial appliances. Manufactured with self-healing polypropylene dielectric, it guarantees stable operation and a long service life, even under intensive use conditions.
What you get with this product
- Reliable starting of electric motors — eliminates starting problems for compressors, fans, and water pumps
- Universal compatibility with home and industrial appliances — suitable for air conditioners, refrigerators, fridge-freezers, brush cutters, and car compressors
- Simple installation via 4 male spade terminals and a fixing screw — quick mounting on any support, without special tools
- Extended temperature resistance from -40°C to +85°C — operates without issues in extreme temperature conditions
- UL 94 V-2 certified flame-retardant plastic casing — increased safety against overheating and fire risk
- Operating life up to 10,000 hours at 400V — a long-term investment for your equipment
How it works and how to install it
The capacitor connects in parallel with the electric motor's start winding, providing the necessary impulse for startup. The 4 male spade terminals allow for simple and secure connections to the appliance's electrical circuit, and the included screw and nut facilitate mounting on the support. The self-healing dielectric technology provides automatic protection in case of momentary overload, extending the component's lifespan.
Frequently Asked Questions
Can I use this capacitor for my home air conditioner?
Yes, it is compatible with most split or cassette-type air conditioning systems that require a 16uF capacitor. Check your motor's specifications before installation.
What is the difference between 400V, 450V, and 500V?
The capacitor operates at all three voltages, but the lifespan varies: 10,000 hours at 400V, 3,000 hours at 450V, and 1,000 hours at 500V. Choose the voltage recommended by the motor manufacturer.
Can it be mounted outdoors?
Yes, if protected from direct moisture and intense UV radiation. The casing is thermally resistant, but mounting in a protective box is recommended for long-term outdoor use.
Technical specifications
| Model | CBB60-P16 |
| Capacitance | 16uF |
| Tolerance | ±5% |
| Rated Voltage | 400V/450V/500V AC |
| Frequency | 50-60Hz |
| Contact Type | 4 male spade terminals |
| Operating Temperature | -40°C ~ +85°C |
| Dielectric | Self-healing polypropylene SH |
| Dissipation Factor | ≤0.002 (1KHz, 20°C) |
| Insulation Resistance | ≥3000S |
| Terminal-to-terminal Voltage Resistance | 2 x rated voltage |
| Terminal-to-case Voltage Resistance | Min 2000V AC for 1 min |
| Flammability Class | UL 94 V-2, 750°C (RTI) |
| Operating Life | 400V-10000h / 450V-3000h / 500V-1000h |
| Casing Material | Plastic |
| Shape | Cylindrical |
| Certification | ISO 9001:2008 |
| EAN |
