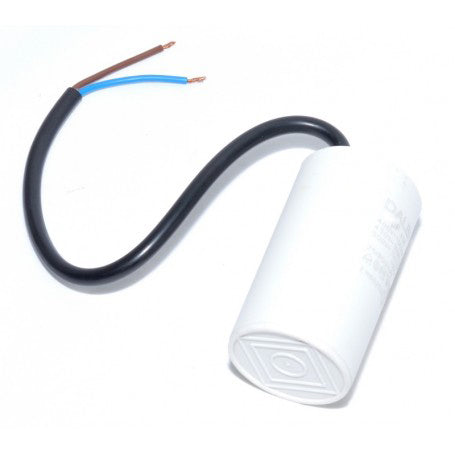

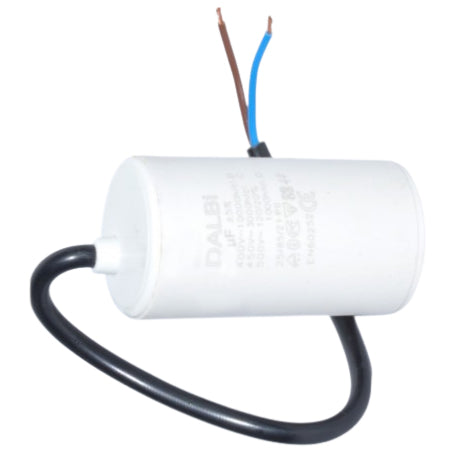

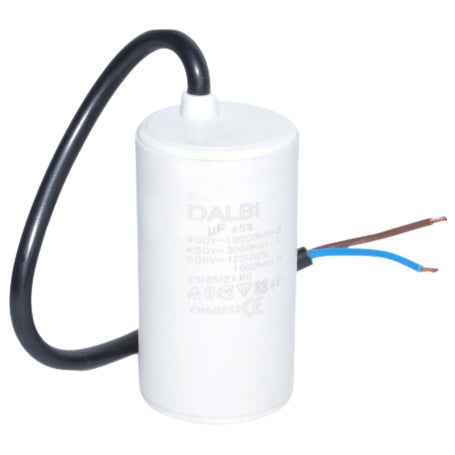

Starting Capacitor with Wires 35uF-450V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 23,99 lei | — |
| 3–4 pcs | 22,79 lei | 5% (−1,20 lei/unit) |
| 5–10 pcs | 21,59 lei | 10% (−2,40 lei/unit) |
| 11+ pcs | 20,39 lei | 15% (−3,60 lei/unit) |
35uF 450V Motor Start Capacitor for Home and Industrial Electronics
This start capacitor ensures the efficient starting of electric motors in appliances such as air conditioners, compressors, water pumps, or industrial fans. Its 35uF capacity and 450V nominal voltage make it compatible with a wide range of equipment, offering stable operation and a long lifespan. Simple 2-wire connection for quick installation without special tools.
What you get with this product
- Fast motor starting — 35uF capacity optimized for home and industrial appliances, reduces start-up time and energy consumption
- Extended compatibility — works with air conditioners, refrigerators, compressors, water pumps, lawnmowers, and other electric motor equipment
- Installation without an electrician — two clearly marked connection wires, direct mounting in a maximum of 15 minutes
- Superior thermal resistance — stable operation between -40°C and +85°C, ideal for industrial or outdoor environments
- Increased safety — self-healing dielectric, insulation resistance over 3000S, compliant with ISO 9001
- Extended lifespan — 10,000 hours at 400V, industrial-grade polypropylene construction
How it works and how to install it
The start capacitor stores electrical energy and releases it instantly to provide the initial torque required to start the motor. It connects between the phase and the common point of the motor using the two attached wires — respect the wire colors in your appliance's diagram. Mount the capacitor in an accessible position, away from excessive heat sources. It does not require special tools, just direct connection to the motor terminals according to the technical manual.
Frequently Asked Questions
Does it fit all types of air conditioners?
Yes, if your appliance requires a 35uF capacitor and 400-500V voltage. Check the technical label on the existing compressor motor.
How long does the installation take?
Between 10-15 minutes. Disconnect the power, remove the old capacitor, and connect the wires of the new capacitor to the same terminals.
Can it also operate in extreme temperatures?
Yes, the operating range is -40°C to +85°C, making it suitable for industrial or outdoor applications.
Technical Specifications
| Model | CBB60-35F |
| Capacity | 35uF |
| Rated Voltage | 450V AC |
| Tolerance | ±5% |
| Frequency | 50-60Hz |
| Contact Type | 2 wires |
| Operating Temperature | -40°C ~ +85°C |
| Dissipation Factor | ≤0.002 (1KHz, 20℃) |
| Insulation Resistance | ≥3000S |
| Lifespan (400V) | 10000h / Class B |
| Dielectric | Self-healing polypropylene |
| Casing Material | Plastic |
| Shape | Cylindrical |
| Flammability Class | UL 94 V-2 |
| Certification | ISO 9001 (2008) |
| EAN | 0781499719481 |
Warranty and Support
The product benefits from a 2-year warranty according to Romanian legislation. You have the right to return within 30 days of receipt. Delivery is carried out by express courier throughout the country.
