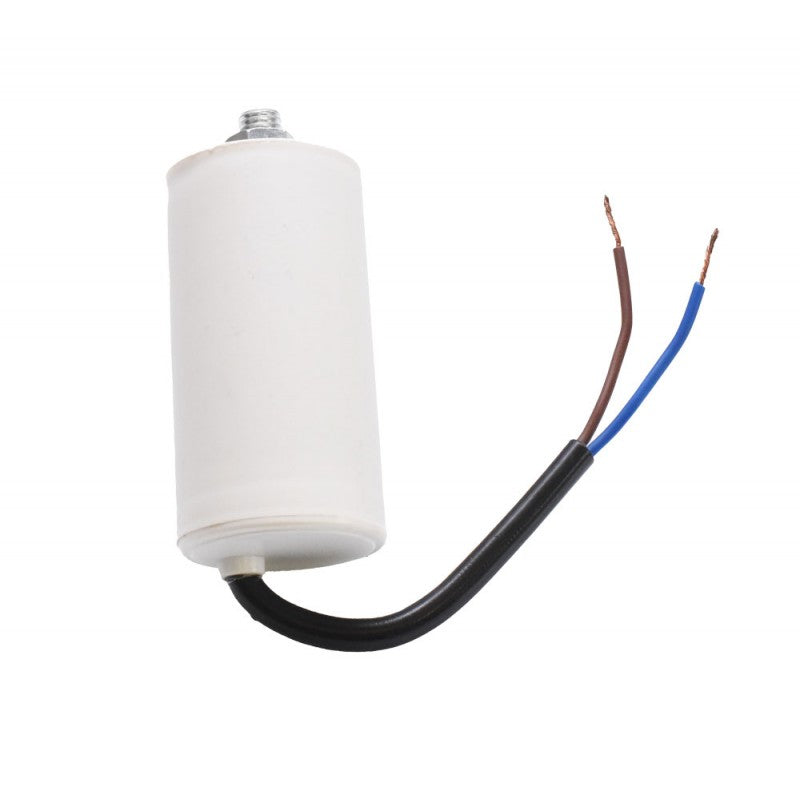

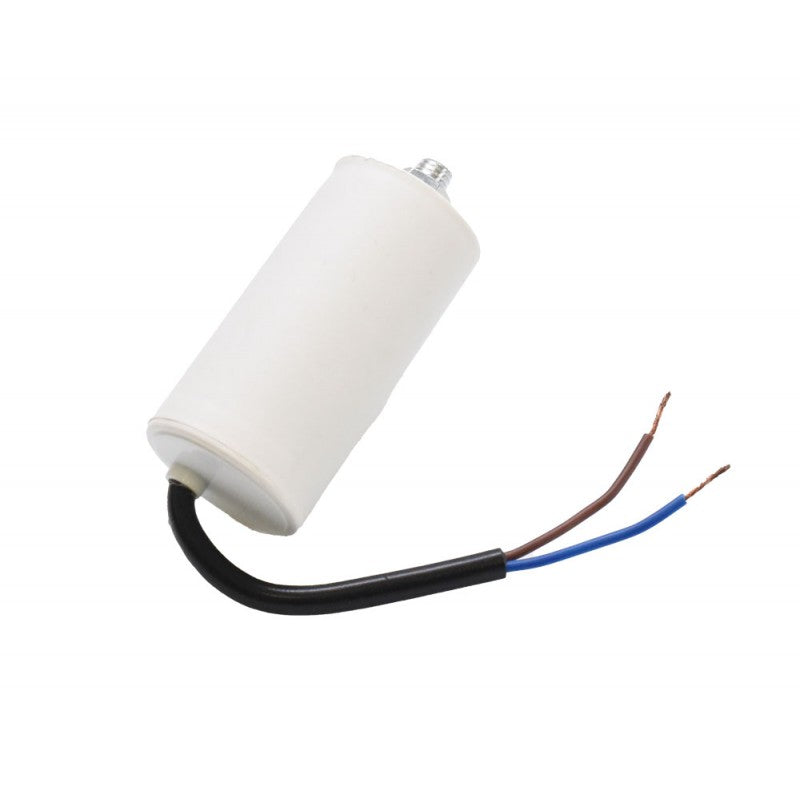

Motor Capacitor with Screw and Wires - 7.5uf/450V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 11,99 lei | — |
| 3–4 pcs | 11,39 lei | 5% (−0,60 lei/unit) |
| 5–10 pcs | 10,79 lei | 10% (−1,20 lei/unit) |
| 11+ pcs | 10,19 lei | 15% (−1,80 lei/unit) |
7.5uF/450V Motor Capacitor for Reliable Equipment Start-up
This screw-mount motor capacitor with pre-connected wires is the professional solution for the stable start-up and operation of electric motors in air conditioning units, pumps, compressors, and fans. With a capacitance of 7.5uF and a rated voltage of 450V AC, it ensures quick starting and consistent performance for your equipment.
What you get with this product
- Fast and trouble-free start-up of electric motors in air conditioners, water pumps, and compressors
- Simple installation with a mounting screw and pre-connected wires, without the need for additional adapters
- Durable plastic casing resistant to temperatures between -40°C and +85°C for use in all conditions
- Self-healing dielectric that extends lifespan and prevents premature failures
- Universal compatibility with motors from refrigerators, fridge-freezers, fans, and industrial equipment
- CE and RoHS certifications for safety and compliance with European standards
How it works and how to install it
The capacitor stores electrical energy and releases it at the moment the motor starts, providing the necessary torque for efficient start-up. Installation is done by securing it with the included mounting screw and connecting the two wires to the motor's electrical circuit. Before installation, verify that the voltage indicated on the product matches the equipment's supply voltage. Installation must be performed by a qualified electrician.
Frequently Asked Questions
How do I know if this capacitor is suitable for my motor?
Check the label on your current motor or old capacitor. The capacitance (7.5uF) and voltage (minimum 450V) values must match. If in doubt, consult the equipment manual.
Can I install this capacitor myself, or do I need an electrician?
For safety reasons and to comply with the warranty, installation must be performed by a certified electrician. Incorrect handling can cause damage to the equipment or accidents.
How long does this capacitor last in continuous operation?
At the nominal voltage of 450V, the capacitor offers 3000 hours of operation according to class C. The actual duration depends on operating conditions and ambient temperature.
Technical Specifications
| Capacitance | 7.5 uF |
| Rated Voltage | 450V AC |
| Capacitance Tolerance | ±5% |
| Rated Frequency | 50-60 Hz |
| Connection Type | 2 pre-connected wires |
| Mounting System | Metal screw |
| Housing Material | Plastic, flammability class UL 94 V-2 |
| Dielectric | Self-healing polypropylene |
| Operating Temperature | -40°C to +85°C |
| Insulation Resistance | ≥3000S |
| Dissipation Factor | ≤0.002 (1KHz, 20°C) |
| Certifications | CE, RoHS, ISO 9001:2008 |
| EAN | 0781499719627 |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. You have the right to return within 30 days of receipt. Delivery is carried out quickly by national courier with confirmation.
