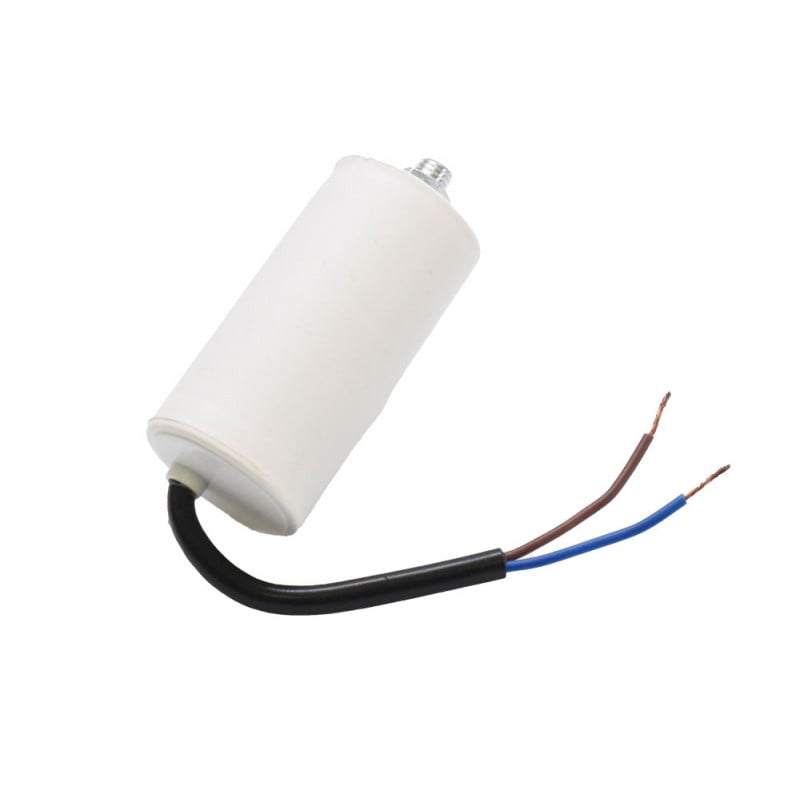

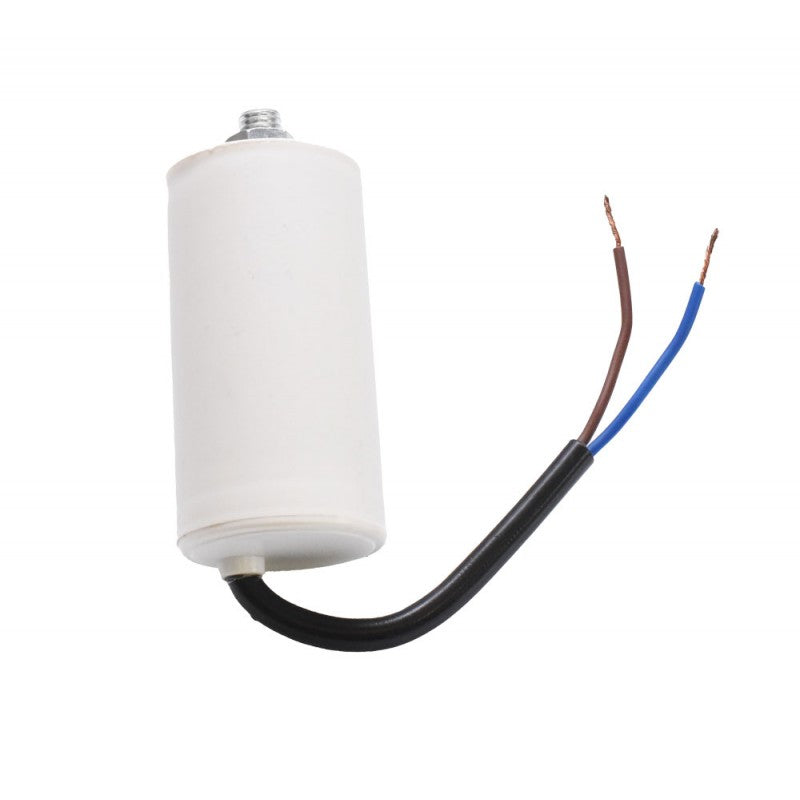

Motor Capacitor with Screw and Wires - 40uf/450V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 28,99 lei | — |
| 3–4 pcs | 27,54 lei | 5% (−1,45 lei/unit) |
| 5–10 pcs | 26,09 lei | 10% (−2,90 lei/unit) |
| 11+ pcs | 24,64 lei | 15% (−4,35 lei/unit) |
40uF/450V Motor Capacitor for Safe and Efficient Starting

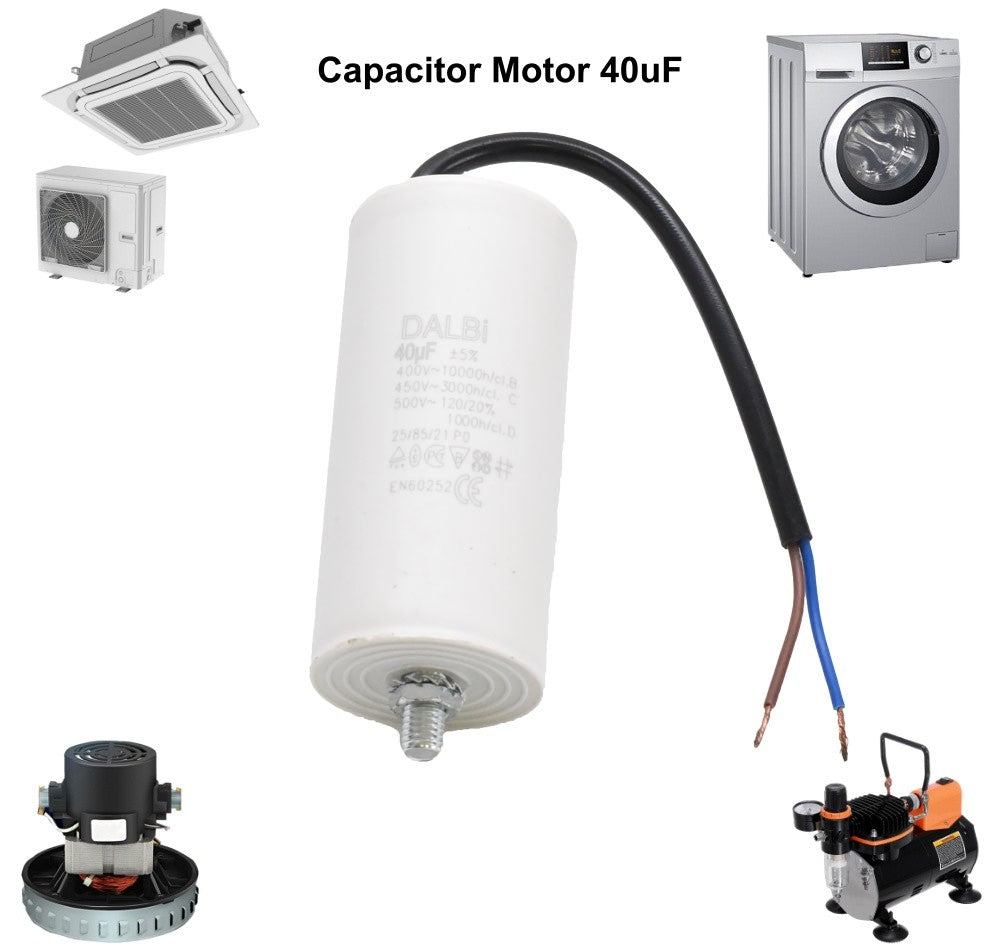

The 40uF/450V motor capacitor with screw and wires ensures the correct starting of electric motors in household and industrial appliances. Compatible with air conditioners, compressors, water pumps, and power motors, this cylindrical capacitor with wire connection offers durability and simple installation. Ideal for replacing worn parts or upgrading existing systems.
What you get with this product
- Stable motor start without electrical shock or overload, extending equipment lifespan
- Wide compatibility with air conditioners, refrigerators, compressors, water pumps, and brush cutters
- Quick installation with mounting screw and pre-wired connections, no soldering or special tools required
- Durable plastic housing, protected against moisture and temperature variations
- Dielectric self-healing in case of overvoltage, preventing complete component failure
- Small tolerance of +/-5% for stable values over time, without capacity loss
How it works and how to install it
The capacitor stores electrical energy and releases it at motor startup, providing the necessary torque for initial rotation. It is fixed to the motor or appliance chassis using the screw at the top, and the two wires are connected to the corresponding terminals in the electrical diagram. Installation requires electrical knowledge and must be performed by a certified electrician, observing the voltage values indicated on the casing.
Frequently Asked Questions
How do I know if the motor capacitor is faulty?
Signs of a worn capacitor include difficult starting or complete refusal of the motor to start, increased operating noise, or unexpected shutdown. Checking with a multimeter confirms the actual capacity.
Can I use a 40uF capacitor for any electric motor?
No, the capacity must match the motor's specifications. Check the appliance label or technical manual for the correct microfarad value and power supply voltage.
Why are there multiple voltage values on the capacitor?
The values 400V, 450V, and 500V indicate the estimated lifespan under different thermal stresses. For continuous use, choose 450V, which offers an optimal compromise between reliability and longevity.
Technical specifications
| Capacity | 40 uF |
| Rated Voltage | 400V AC, 450V AC, 500V AC |
| Tolerance | +/- 5% |
| Frequency | 50 - 60 Hz |
| Operating Temperature | -40°C ~ +85°C |
| Connection Type | 2 wires |
| Mounting | Metal screw |
| Shape | Cylinder |
| Housing Material | UL 94 V-2 Plastic |
| Dielectric | Self-healing polypropylene |
| Insulation Resistance | ≥3000S |
| Certifications | CE, RoHS, ISO 9001:2008 |
Warranty and support
The product benefits from a 2-year warranty according to Romanian legislation and a 30-day return policy. Delivery is carried out quickly via national courier. Attention: installation must be performed exclusively by a certified electrician, with verification of the voltage indicated on the product before installation.
