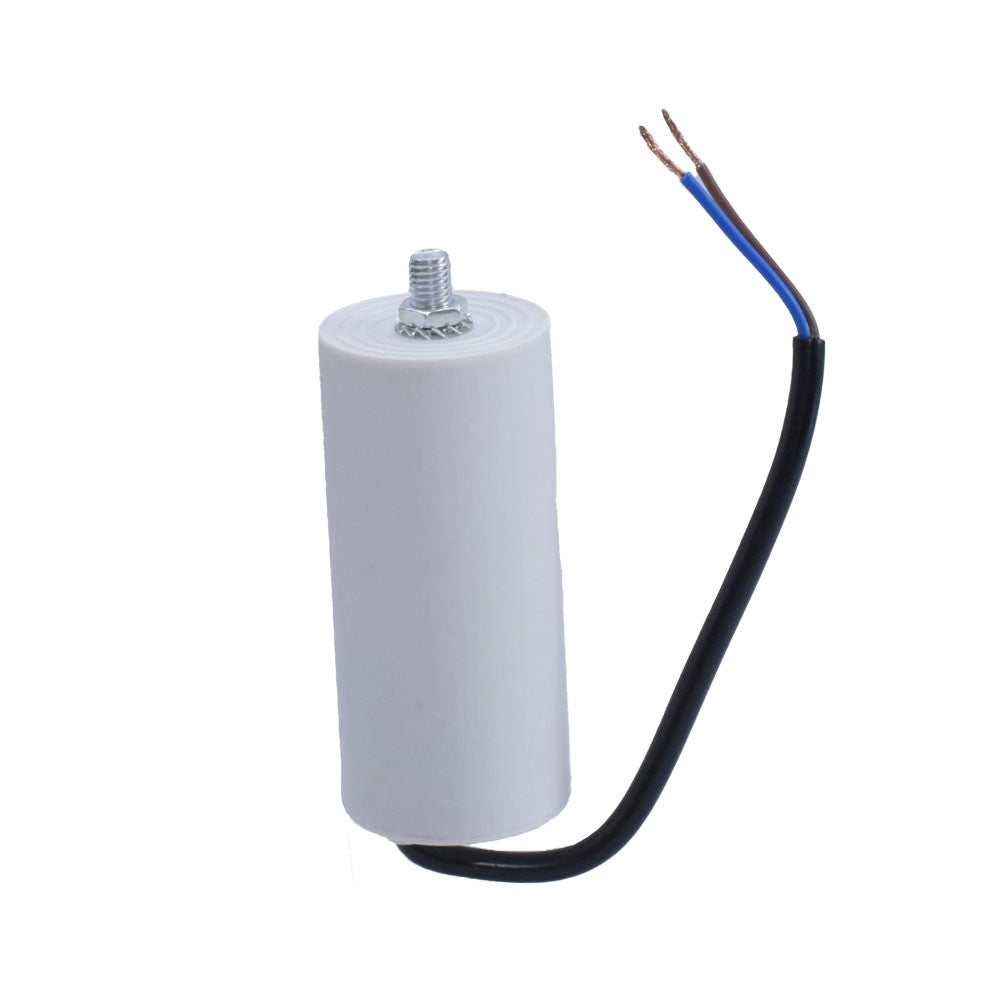

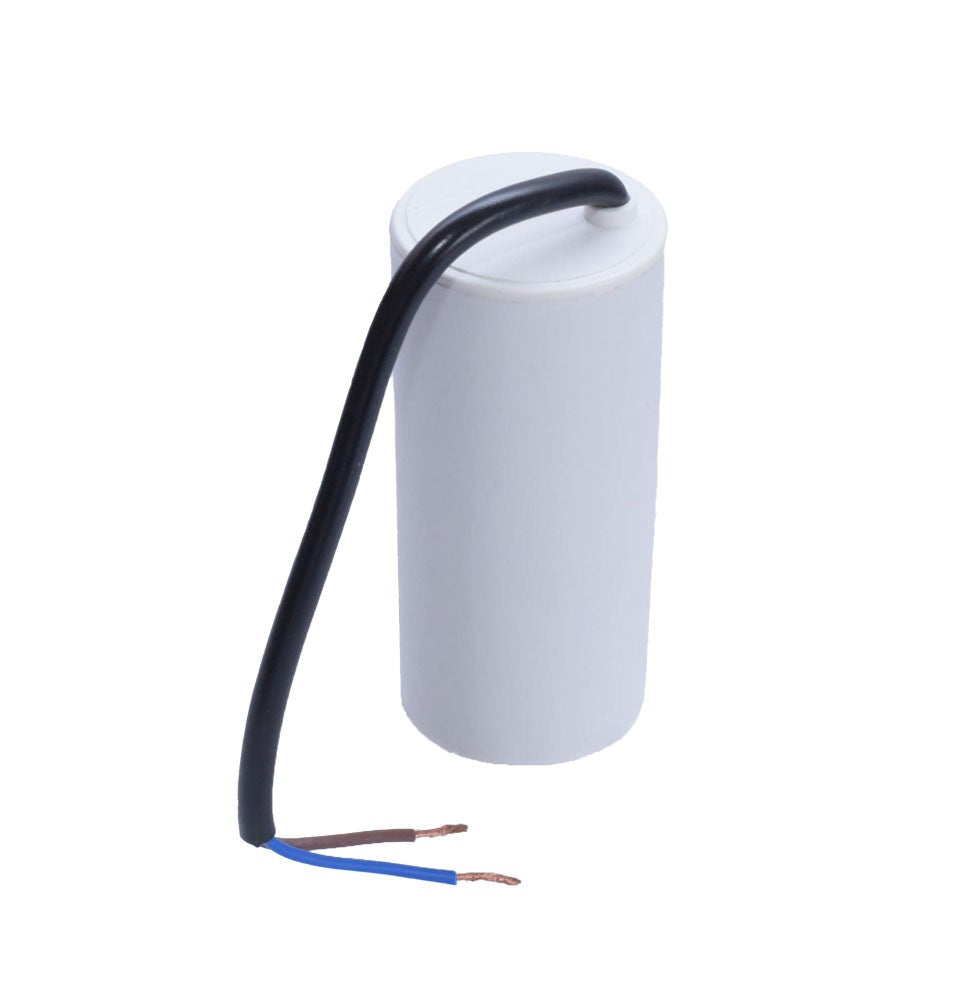

Motor Capacitor with Screw and Wires - 35uf / 450V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 25,99 lei | — |
| 3–4 pcs | 24,69 lei | 5% (−1,30 lei/unit) |
| 5–10 pcs | 23,39 lei | 10% (−2,60 lei/unit) |
| 11+ pcs | 22,09 lei | 15% (−3,90 lei/unit) |
35uF 450V Motor Capacitor for Reliable and Safe Starting

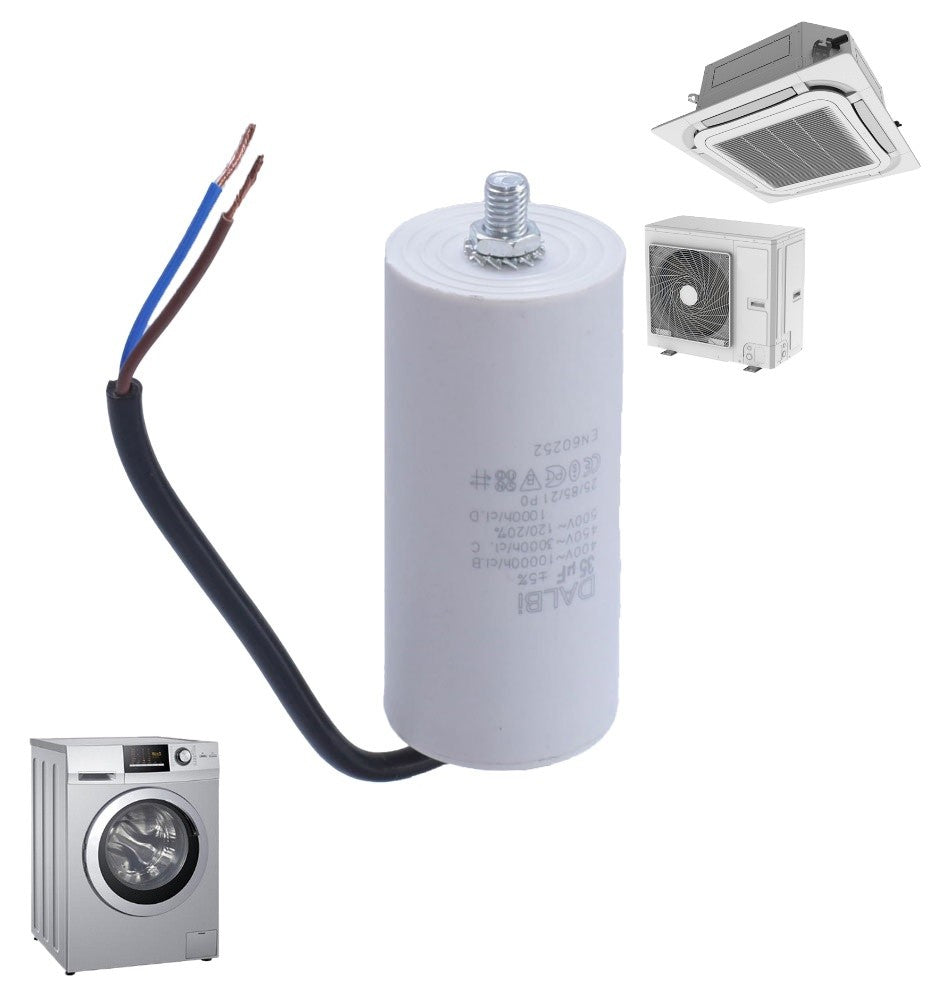

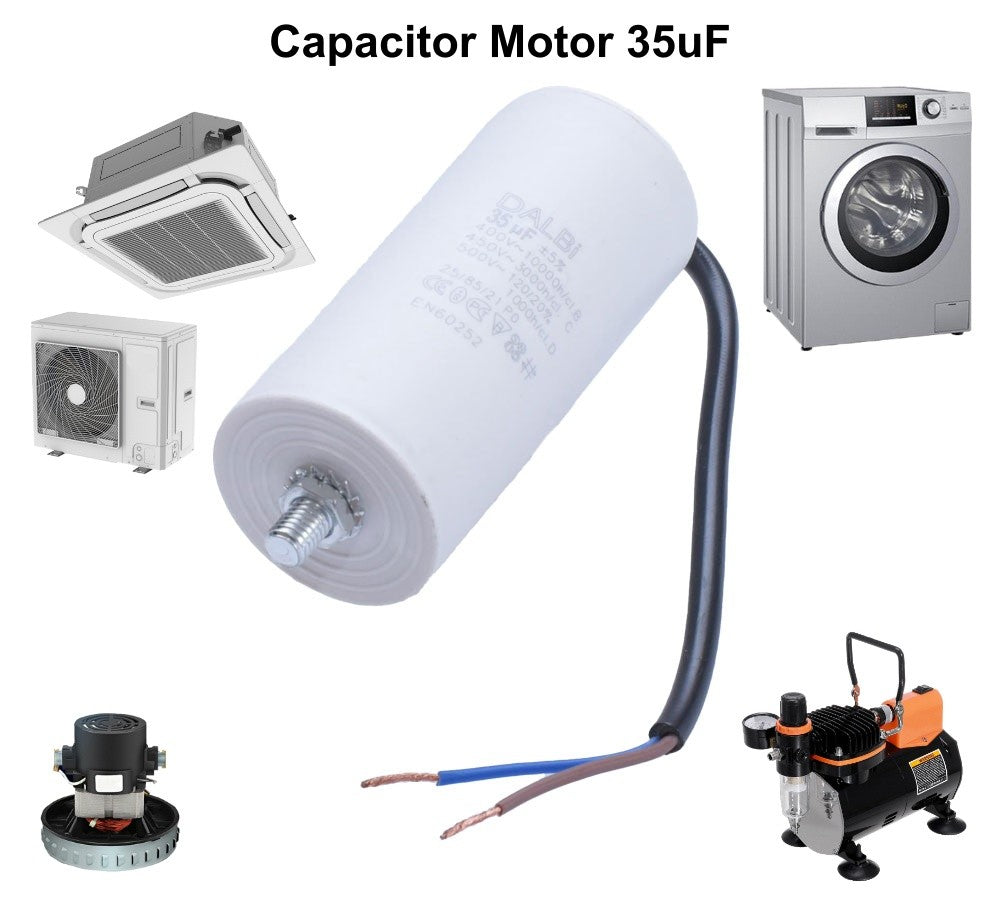

This motor capacitor with screw and wires is the ideal solution for electric motors in air conditioners, compressors, water pumps, and washing machines. With a capacity of 35uF and a rated voltage of 450V AC, it ensures fast motor starting and stable long-term operation. Encapsulated in plastic for increased protection and simple installation with a mounting screw.
What you get with this product
- Universal compatibility with most electric motors in household and industrial appliances — works with air conditioners, refrigerators, compressors, and water pumps
- Extended lifespan of up to 10,000 hours at 400V AC, in accordance with international quality standards CE and RoHS
- Simple installation with mounting screw and 2 connecting wires — no additional components required
- Advanced thermal protection with stable operation between -40°C and +85°C, ideal for extreme conditions
- Self-healing dielectric system that extends lifespan and prevents premature failures
- Compact cylindrical dimensions that fit into small spaces in almost any electrical appliance
How it works and how to install it
The capacitor stores electrical energy and releases it quickly to help the motor start, reducing inrush current and protecting the windings. Installation is done by fixing it with the included metal screw to the motor support and connecting the 2 wires to the corresponding terminals in the electrical circuit. Before installation, check that the voltage on the capacitor label matches that of your motor — installation must be performed exclusively by an authorized electrician, with the appliance disconnected from the mains.
Frequently asked questions
How do I know if this capacitor is compatible with my motor?
Check the capacity (35uF) and voltage (450V AC) written on your old capacitor. If the values match, the product is compatible.
Can I install the capacitor myself or do I need an electrician?
For safety reasons and to maintain the warranty, installation must only be performed by an authorized electrician, with the appliance completely disconnected from the mains.
How long does the capacitor last in high-temperature conditions?
The capacitor operates reliably up to +85°C and has a UL 94 V-2 flammability rating, making it suitable for compressors and motors that get hot.
Technical specifications
| Capacity | 35 uF |
| Rated voltage | 400V AC / 450V AC / 500V AC |
| Rated frequency | 50 - 60 Hz |
| Capacity tolerance | ±5% |
| Lifespan | 10000h at 400V / 3000h at 450V / 1000h at 500V |
| Operating temperature | -40°C ~ +85°C |
| Connection type | 2 wires |
| Mounting | Integrated metal screw |
| Housing material | Plastic |
| Shape | Cylindrical |
| Dielectric | Self-healing polypropylene SH |
| Dissipation factor | ≤0.002 (1KHz, 20°C) |
| Insulation resistance | ≥3000S |
| Terminal-case voltage resistance | Minimum 2000V AC for 1 min |
| Flammability class | UL 94 V-2, 75°C (RTI) |
| Certifications | CE, RoHS, ISO 9001:2008 |
| EAN | 0781499719603 |
