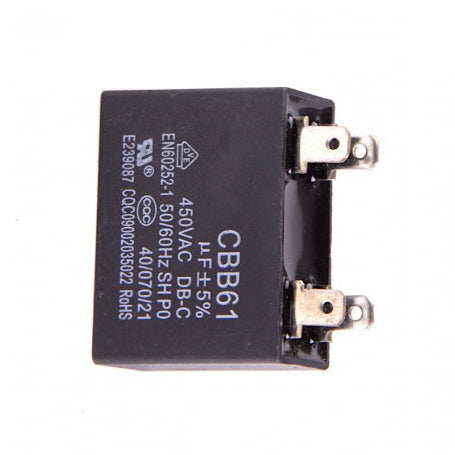

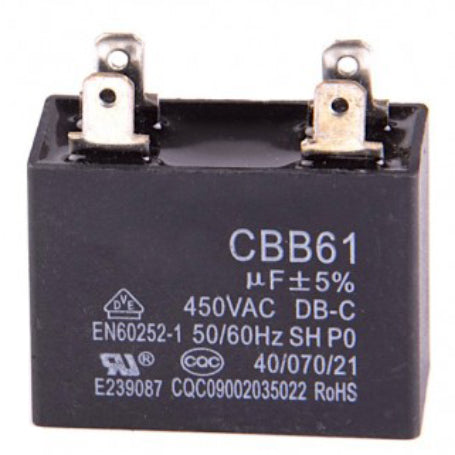

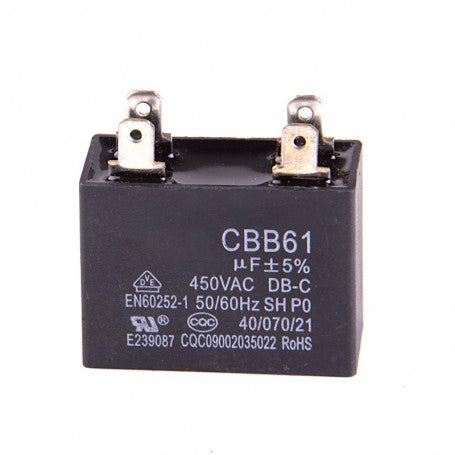

Rectangular Motor Start Capacitor 2uF/450V-4C
Available in stock
Minimum order quantity: 2 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 5,99 lei | — |
| 3–4 pcs | 5,69 lei | 5% (−0,30 lei/unit) |
| 5–10 pcs | 5,39 lei | 10% (−0,60 lei/unit) |
| 11+ pcs | 5,09 lei | 15% (−0,90 lei/unit) |
2uF 450V Motor Start Capacitor with 4 Connectors
This rectangular capacitor ensures efficient starting of electric motors in household and industrial appliances. Compatible with a wide range of equipment, from fans and compressors to water pumps and air conditioners. RoHS certified CBB61 model, with quick connection via 4 male spade terminals.
What you get with this product
- Stable starting of electric motors — eliminates starting problems in compressors, fans, and water pumps
- Universal compatibility — works with air conditioners, refrigerators, power tools, brushcutters, and many other appliances
- Simple connection via 4 terminals — quick installation without soldering; replace the faulty capacitor in minutes
- Robust construction from durable plastic — metallized polypropylene film ensures durability and operational safety
- RoHS certification and European standards — product compliant with EN60252-1 norms, safe for long-term use
How it works and how to install it
The capacitor stores electrical energy and releases it quickly to provide the motor with the necessary power at startup. Installation is done by connecting the 4 male spade terminals to the motor's or appliance's terminals, following the equipment's wiring diagram. Replacing a faulty capacitor only requires disconnecting the old one and connecting the new identical model, without special tools.
Frequently Asked Questions
How do I know if the motor capacitor is faulty?
Symptoms include: the motor does not start, starts with difficulty, or makes a buzzing noise. If the motor only runs after manual pushing, the capacitor is likely the cause.
Can I use this capacitor with any electric motor?
It is compatible with motors that require 2uF capacity and 450V voltage. Check the old capacitor's labels or the appliance's manual before replacement.
Does the capacitor work with standard 220V mains electricity?
Yes, 450V represents the maximum voltage the capacitor can withstand, working perfectly with 220-240V from the household mains.
Technical Specifications
| Model | CBB61-4C |
| Capacitance | 2uF |
| Tolerance | ±5% |
| Rated Voltage | 450V AC |
| Frequency | 50/60Hz |
| Connector type | 4 male spade terminals |
| Protection | P2 SH P0 |
| Housing material | Durable plastic |
| Dielectric material | Metallized polypropylene film |
| Shape | Rectangular |
| Standard | EN60252-1 |
| Certification | RoHS, CQC |
Warranty and Support
The product benefits from a 24-month warranty according to Romanian legislation for conformity defects. You have the right to return within 30 days of receipt. Fast courier delivery throughout Romania, with secure packaging for transport protection.
