Rotary Switch 4 Cams 1-0-2 / 20A - D404/4
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 67,99 lei | — |
| 3–4 pcs | 64,59 lei | 5% (−3,40 lei/unit) |
| 5–10 pcs | 61,19 lei | 10% (−6,80 lei/unit) |
| 11+ pcs | 57,79 lei | 15% (−10,20 lei/unit) |
20A Industrial Rotary Switch with Precise 3-Position Control
This 4-cam rotary switch with a 1-0-2 configuration ensures reliable control for industrial equipment with power up to 4kW. Designed for intensive use in workshops, production lines, and industrial installations, it offers 8 contact pairs and durability up to 1 million cycles. Quick panel mounting with a standard 51mm cutout.
What you get with this product
- Robust industrial control — supports 20A current and power up to 4kW for professional equipment
- Long-term reliability — tested for 1,000,000 switching cycles, resistant to intensive use
- 8 simultaneous contact pairs — allows complex control of electrical circuits in industrial configurations
- Safe 0 position — completely off in the central position, operates only in selected positions 1 and 2
- Universal mounting — standard 51mm cutout, compatible with most industrial panels
- IP42 protection after installation — resistant to dust and splashes in workshop environments
How it works and how to install it

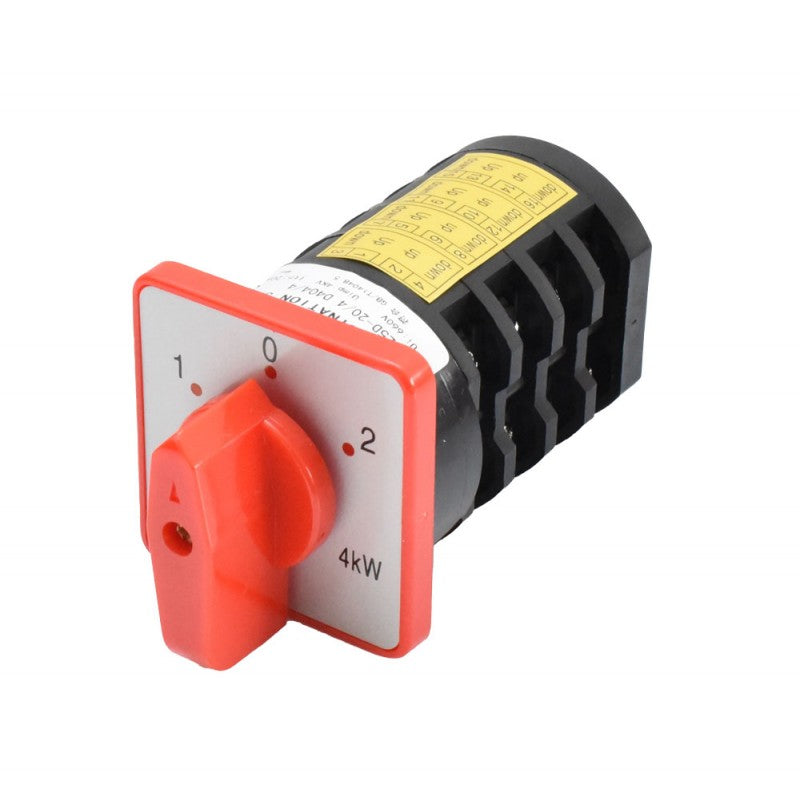

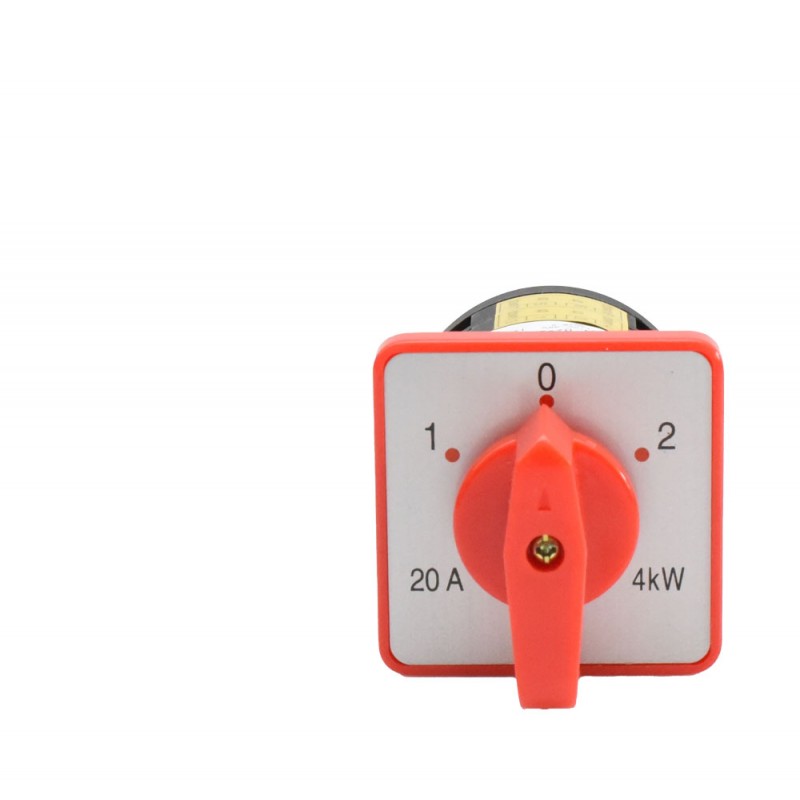

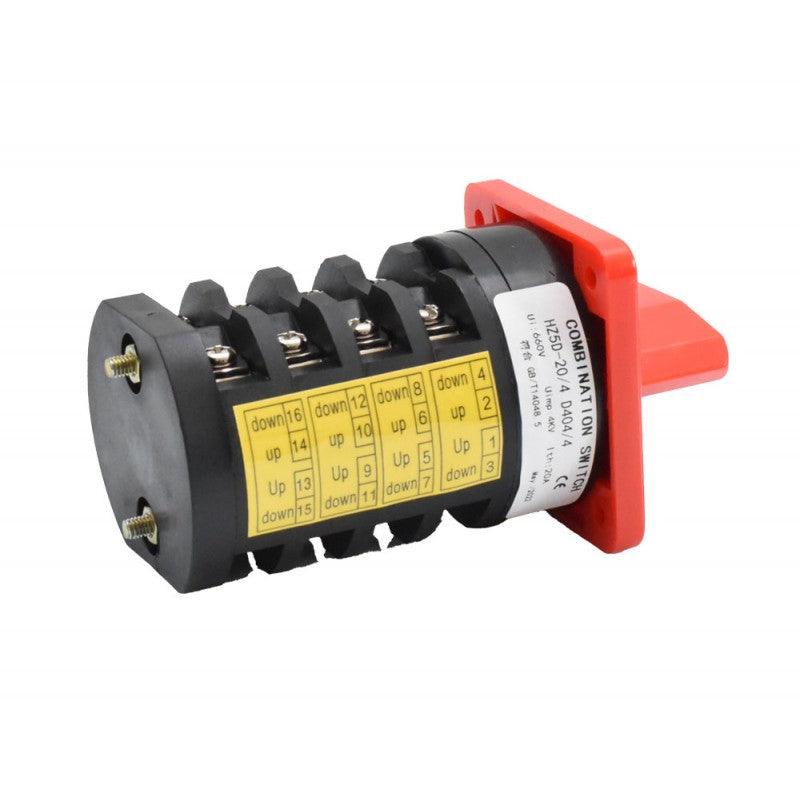

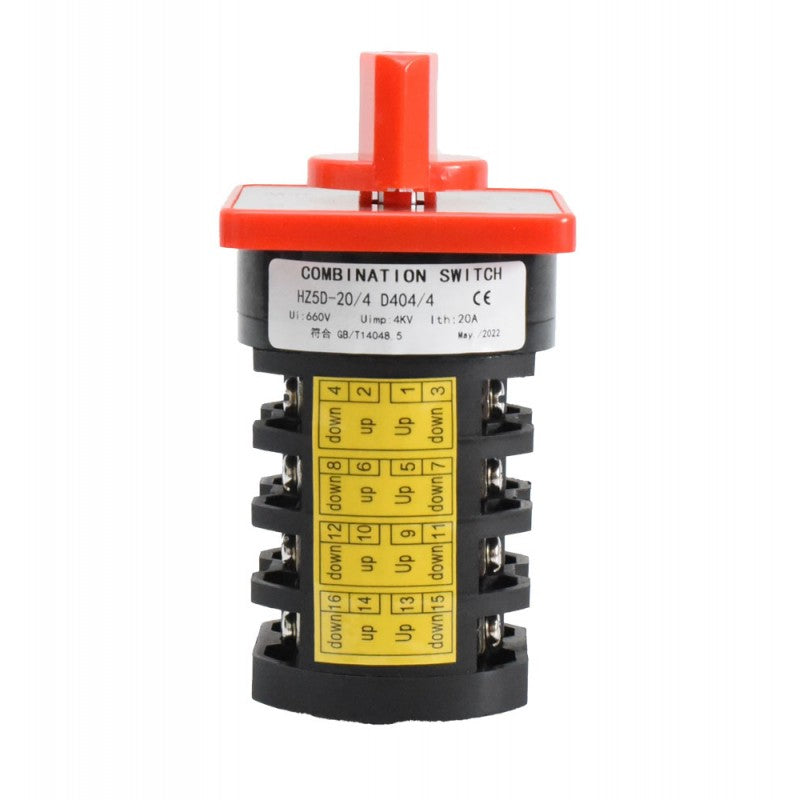

The switch operates by rotating the red handle to the marked positions: 1 activates the first circuit, 0 completely shuts off power, and 2 activates the second circuit. Installation is done by making a 51mm circular cutout in the control panel, securing with a rear nut, and connecting wires to the screw terminals. The wiring diagram on the yellow label precisely indicates the connections for each contact pair. Ideal for machinery, pumps, conveyor belts, and other equipment requiring switching between two operating modes.
Frequently asked questions
Can I use this switch for a three-phase motor?
Yes, the switch has 8 contact pairs and supports up to 660V nominal voltage, making it suitable for controlling three-phase motors up to 4kW.
What does the 1-0-2 configuration mean?
It means you have two active positions separated by a central off position. In position 0, all circuits are completely disconnected, providing maximum safety.
Is it difficult to mount in my existing panel?

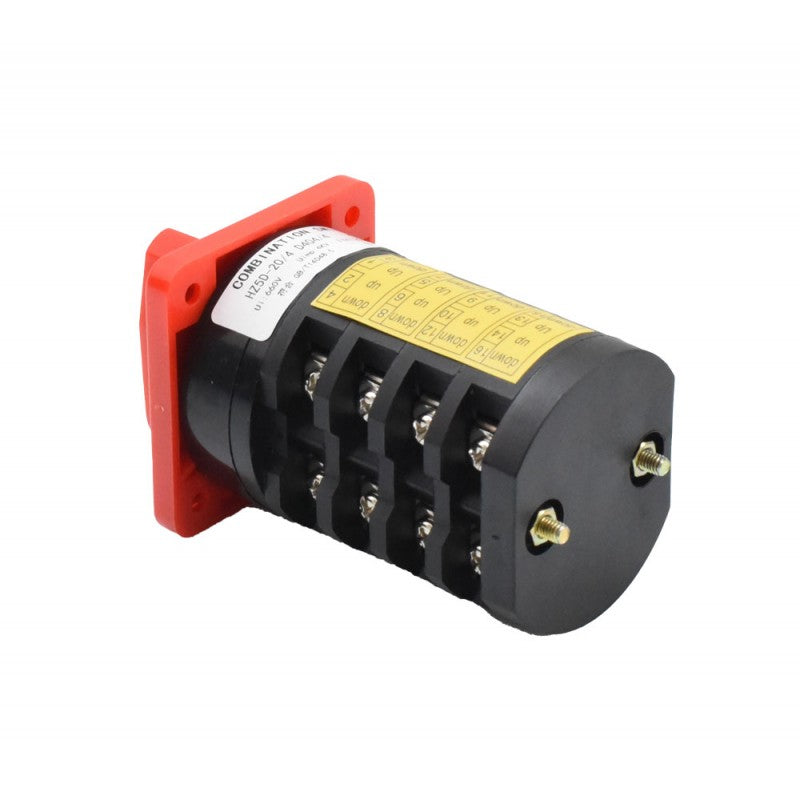

No, it only requires a 51mm diameter circular cutout and securing with the nut from the back. Connections are made with a screwdriver to the screw terminals.

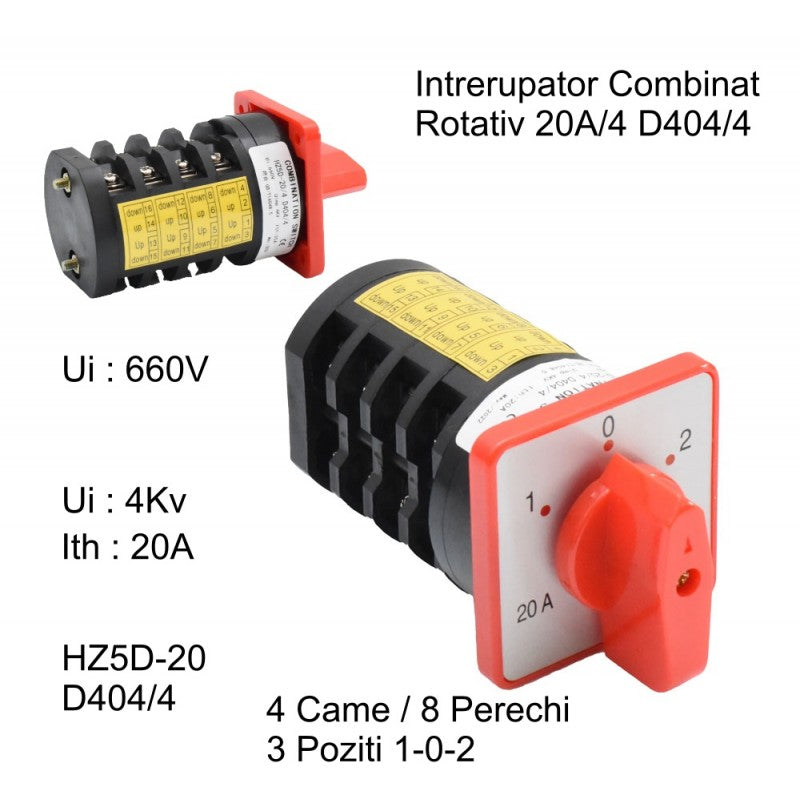

Technical specifications
| Model | HZ5D-20/4 D404/4 |
| Contact configuration | 1-0-2 (3 positions) |
| Number of cams | 4 cams |
| Number of contacts | 8 pairs |
| Rated current | 20A |
| Rated voltage | 660V |
| Max power | 4kW |
| AC-15 Current (380V) | 1.5A |
| DC-13 Current (220V) | 0.14A |
| Reliability | 1,000,000 cycles |
| Protection degree | IP42 after mounting |
| Cutout diameter | 51mm |
| Overall dimensions | 110/80 x 60 x 60mm |
| Operating temperature | -25°C to +70°C |
| Terminal type | Screw clamp |
| Housing material | Industrial plastic |
| Handle color | Red |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian law
