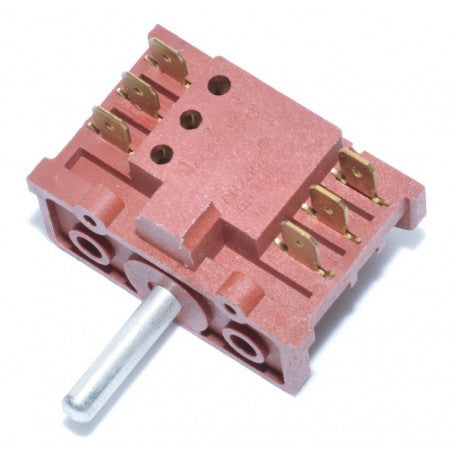

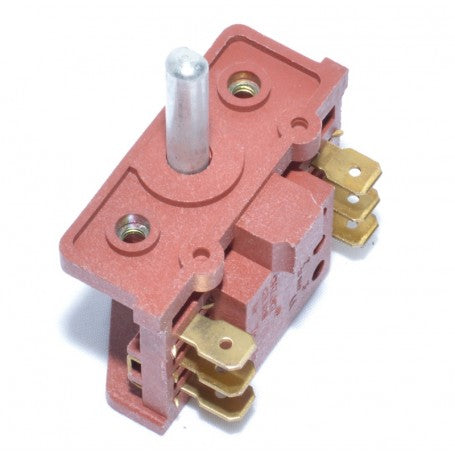

Rotary Switch 0-3 Positions 3 Cams E343
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 20,99 lei | — |
| 3–4 pcs | 19,94 lei | 5% (−1,05 lei/unit) |
| 5–10 pcs | 18,89 lei | 10% (−2,10 lei/unit) |
| 11+ pcs | 17,84 lei | 15% (−3,15 lei/unit) |
0-3 position rotary switch for controlling electrical equipment
The E343 3-position rotary switch with 6 contacts is the professional solution for controlling electrical circuits in industrial and domestic applications. Designed for voltages of 250-400V AC and currents up to 16A, this rotary switch ensures safe switching between positions for motors, machine tools, pumps, and other electrical equipment.
What you get with this product
- Precise control between 3 distinct rotational positions, ideal for adjusting speed or direction in electric motors
- Robust construction from heat-resistant plastic and metal contacts that withstand 16A rated current
- Quick screw-mount installation, compatible with standard control panels
- Maximum versatility for automobiles, boats, power tools, water pumps, and industrial machinery
- System with 3 cams and 6 contacts for complex electrical circuit configurations
- Reliability in continuous operation at voltages between 250V and 400V AC
How it works and how to install

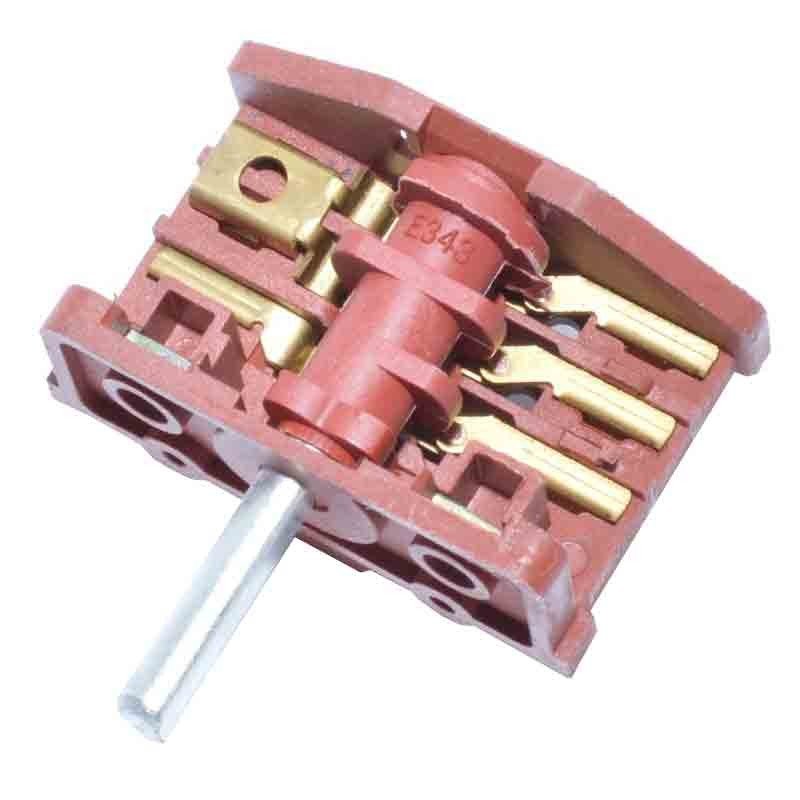

The switch operates by rotating the central shaft, which activates the 3 internal cams, simultaneously switching the 6 metal contacts between positions 0-1-2-3. Installation is done by securing the body in the control panel using the mounting holes, followed by connecting the cables to the contact terminals according to your application's electrical diagram. The device is ready for immediate use, with no calibration required.
Frequently asked questions
Can I use this switch for a multi-speed drilling machine?
Yes, the E343 switch is ideal for controlling speeds on drills, angle grinders, or polishers, supporting the current needed for medium-power motors.
What does 0-3 positions mean and how does it work?
It means you have a 0 (off) position and 3 active working positions, which you select by rotating the knob. Each position activates a different contact configuration.
Can it withstand intensive use in an industrial environment?
Yes, the heat-resistant materials and metal contacts are designed for repeated switching cycles in industrial conditions, at high temperatures generated by electric current.
Technical specifications
| Model | E343 |
| Contact type | Rotary 0-3 positions |
| Number of contacts | 6 contacts |
| Number of cams | 3 cams |
| Rated voltage | 250V-400V AC |
| Rated current | 16A (250V) / 10A (400V) |
| Body material | Heat-resistant plastic |
| Contact material | Metal |
| Actuation type | Central shaft rotation |
| EAN | 0781499723976 |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation, covering manufacturing defects. You have the right to return within 30 days of receiving the order. Delivery is carried out quickly by national courier throughout Romania.
