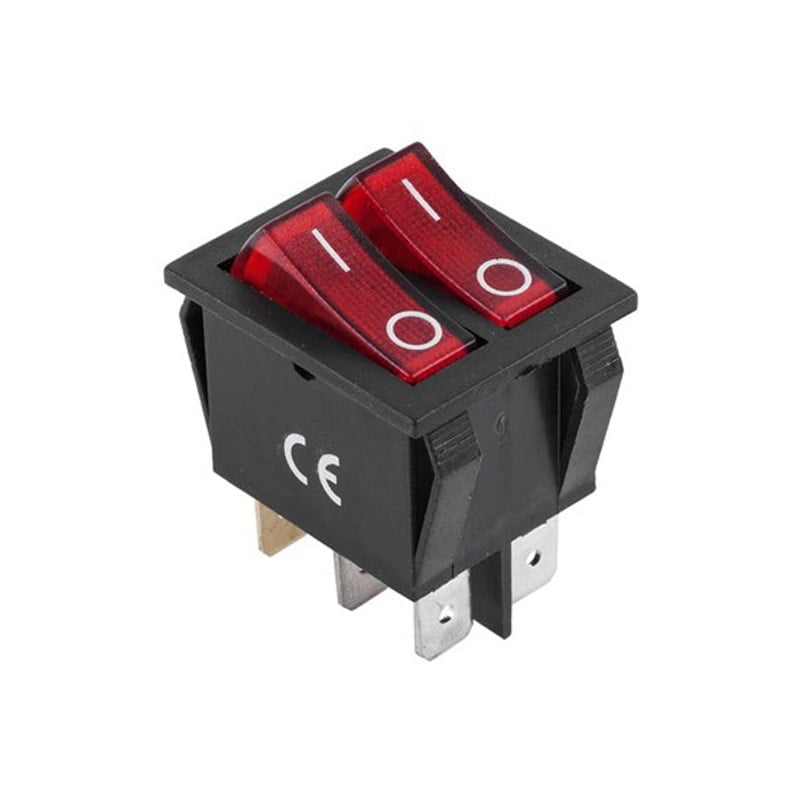

Double ON-OFF IRS Switch 250V KCD6
Available in stock
Minimum order quantity: 3 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 3,99 lei | — |
| 10–15 pcs | 3,79 lei | 5% (−0,20 lei/unit) |
| 16–20 pcs | 3,59 lei | 10% (−0,40 lei/unit) |
| 21+ pcs | 3,39 lei | 15% (−0,60 lei/unit) |
Double ON-OFF 250V switch for independent control of two circuits
This double IRS KCD6 type switch provides separate control for two electrical circuits, with red LED indicators for operational status. Ideal for projectors, machine tools, household appliances, and automotive installations, it withstands loads of up to 15A at 250V. The professional solution for industrial and DIY applications requiring dual switching.
What you get with this product
- Independent control of two circuits from the same button — saves space and electrical cable
- Integrated red LEDs show when each circuit is active — no more uncertainties
- Supports industrial loads up to 15A at 250V — compatible with powerful motors, pumps, and power tools
- Quick mounting with side clamps — panel mount without screws, easy removal when needed
- CE certification and robust plastic-metal construction — reliable operation in intensive working conditions
- Compact dimensions 31x25x32mm — integrates discreetly into any control panel
How it works and how to install it
The switch has 6 contacts that allow independent connection of two electrical circuits. Each rocker button operates a separate circuit, and the corresponding red LED lights up when switched to the ON position. Mounting is done by inserting the switch into the panel cutout and securing it with the included side clamps — no screws or special tools are required. Electrical connection is made to the screw terminal for each circuit, following the typical wiring diagram for your application.
Frequently asked questions
Can I use this switch for 100W LED projectors?
Yes, switching at 250V with 15A supports loads over 3500W, sufficient for any household or professional LED projector.
Do the red LEDs consume additional current?
The power consumption of the indicator LEDs is negligible, under 20mA per circuit, with no impact on the bill or the operation of the main circuit.
Can it be mounted in an outdoor metal enclosure?
Yes, but it must be protected from direct moisture — the switch does not have an IP protection rating, being designed for mounting inside dry panels.
Technical specifications
| Model | KCD6 Double ON-OFF |
| Number of contacts | 6 (2 independent circuits) |
| Rated voltage | 250V AC |
| Maximum amperage | 15A at 250V, 20A at 125V |
| Contact type | ON-OFF (I-0) rocker |
| Signaling | Red LED for each circuit |
| Mounting method | Side clamps |
| Dimensions | 31 x 25 x 32 mm |
| Material | Plastic and metal |
| Certification | CE |
| EAN | 0781499723525 |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian consumer protection legislation. You have the right to return within 30 days of receipt. Delivery is carried out quickly by national courier, with telephonically confirmed orders.
