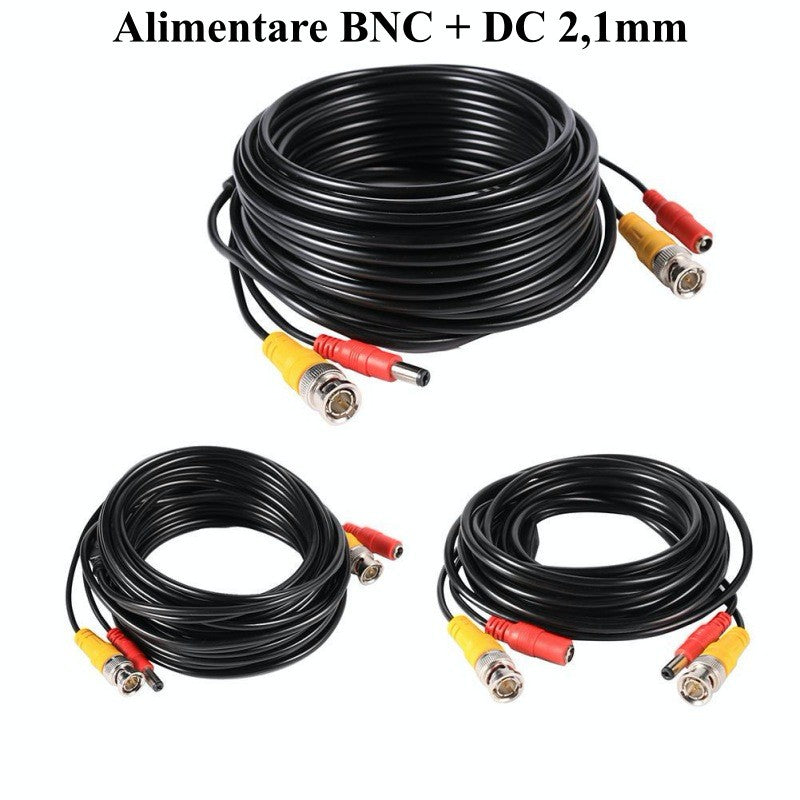

BNC Camera Cable + DC Power 2.1mm/5m
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 25,99 lei | — |
| 3–4 pcs | 24,69 lei | 5% (−1,30 lei/unit) |
| 5–10 pcs | 23,39 lei | 10% (−2,60 lei/unit) |
| 11+ pcs | 22,09 lei | 15% (−3,90 lei/unit) |
BNC Cable with DC Power for Surveillance Cameras
The BNC cable with 2.1mm DC power simplifies the installation of analog and AHD surveillance cameras by combining video signal transmission and 12V power supply into a single cable. With a length of 5 meters, it is suitable for close-range installations in homes, offices, or commercial spaces. A single cable replaces two, reducing clutter and installation time.
What you get with this product
- Stable video signal from camera to DVR or NVR — quality BNC connectors with firm metallic contact, no signal loss
- Power and signal in one cable — no more need for two separate wires for each camera
- Compatible with standard analog and AHD cameras — connects directly without additional adapters in most installations

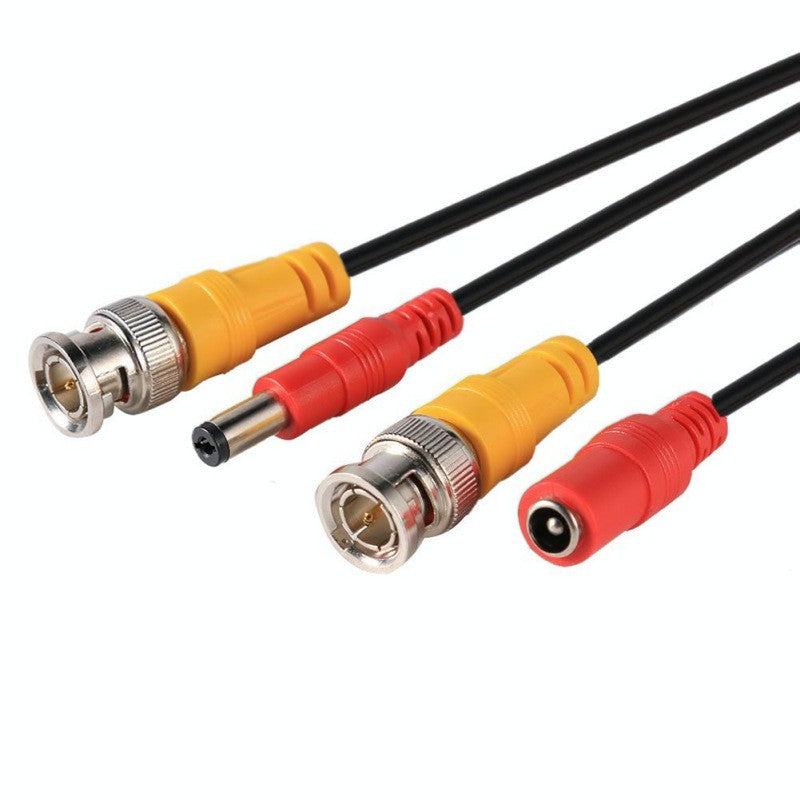

- Color-coded connectors — red DC plug and yellow BNC, quick identification at the cable end without risk of confusion
- 5m length ready to use — suitable for short distances between camera and DVR, no cutting or extension needed
- Installation without special tools — pre-mounted connectors, just plug in and the system works immediately

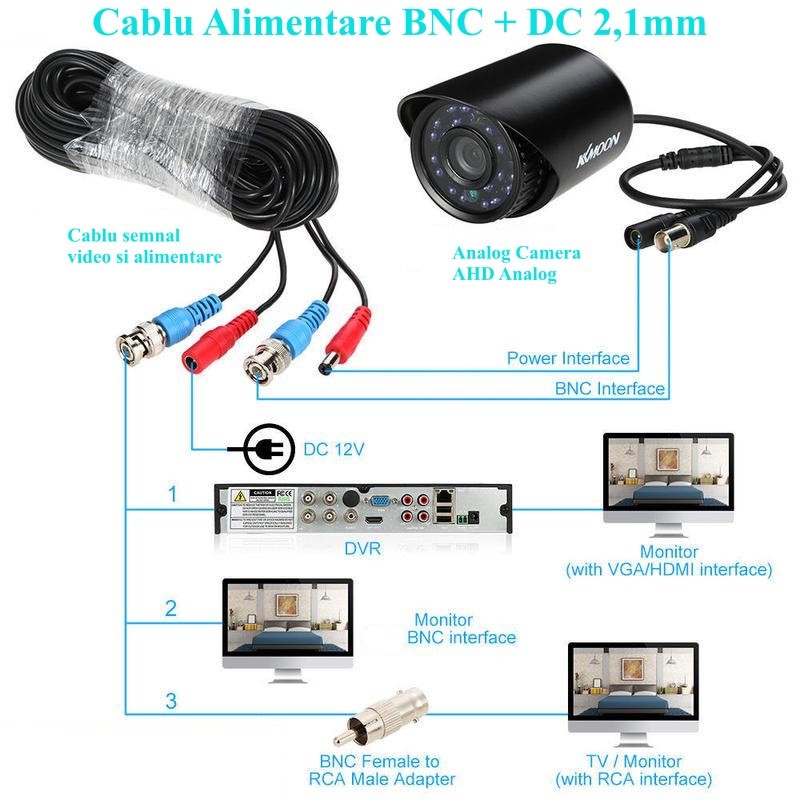

How it works and how to install it
The cable combines two distinct circuits: a coaxial conductor with male BNC terminations for the video signal and a pair of power wires with a male 2.1mm DC plug and a female for the 12V DC voltage. You connect the end with the male BNC and male DC to the camera, and the end with the male BNC and female DC to the DVR port and the power source, respectively. No tools, soldering, or advanced technical knowledge are required — installation takes less than 5 minutes per camera.
Frequently Asked Questions
Does this cable work with AHD, TVI, or CVI cameras?
Yes, the cable is compatible with all analog and HD analog cameras (AHD, TVI, CVI) that use a BNC connector for video signal and a 2.1mm DC plug for 12V power.
Can I connect this cable directly to a monitor with a BNC input, without a DVR?
Yes, the BNC connector allows direct connection to any monitor with a BNC input or, via a female BNC - male RCA adapter, to monitors and televisions with an RCA input.
What power supply do I need to use the cable?
You need a power supply with a 12V DC output and a 2.1mm male DC connector or compatible, standard for CCTV systems. The power supply is not included in the package.
Technical Specifications
| Video signal connector type | BNC male (x2) |
| Power connector type | DC 2.1mm male (x1) and DC 2.1mm female (x1) |
| Cable length | 5 m |
| Compatible power voltage | DC 12V |
| Camera compatibility | Analog, AHD, TVI, CVI |
| Recorder compatibility | DVR, NVR with BNC input |
| Cable color | Black |
| SKU | Q-11G006 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with Romanian law. Free returns within 30 days of receiving the order, with no additional explanation. Fast courier delivery across Romania, with confirmation via SMS or email.
