RGB LED Power Cable, 3-Wire, 50m/Roll
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 127,99 lei | — |
| 3–4 pcs | 121,59 lei | 5% (−6,40 lei/unit) |
| 5–10 pcs | 115,19 lei | 10% (−12,80 lei/unit) |
| 11+ pcs | 108,79 lei | 15% (−19,20 lei/unit) |

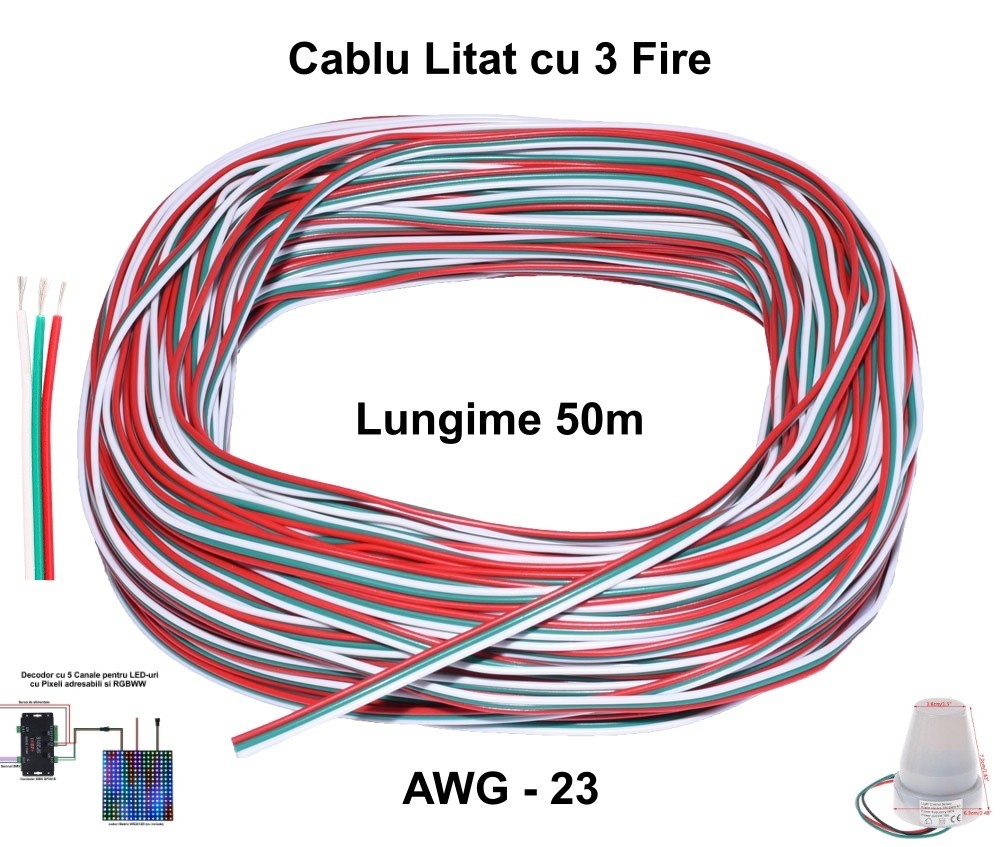

RGB 3-wire LED power cable for strips and sensors
The 3-wire RGB LED power cable is the practical solution for extending connections to 3528, 5050 RGB LED strips or DMX protocol digital strips. The three individually colored conductors—white, green, red—allow for quick identification of wires and elimination of connection errors. With a length of 50 meters per reel, it covers large installations without additional splicing.
What you get with this product

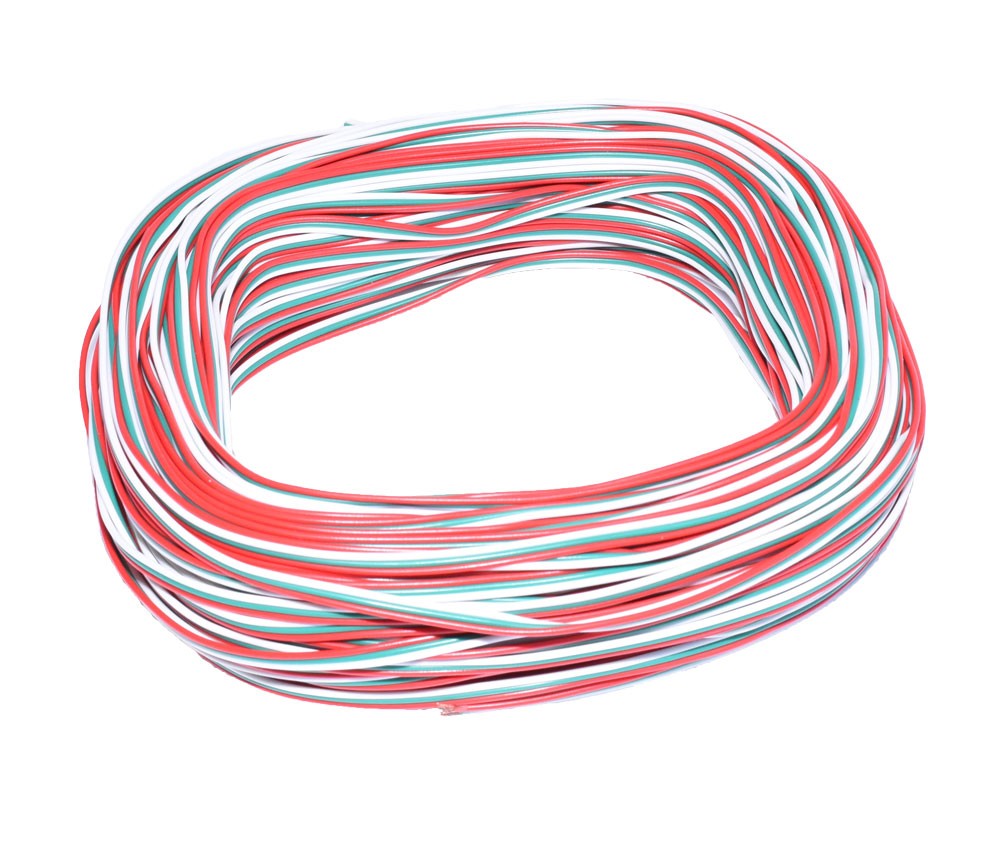

- 50 meters in a single reel — enough for extensive installations without needing to splice multiple pieces

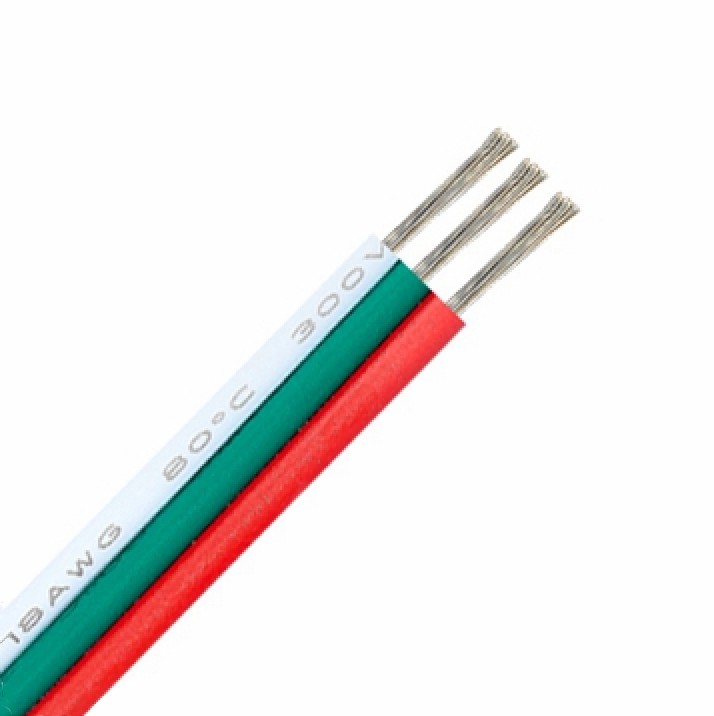

- Three distinct insulation colors (white, green, red) — instantly identify each wire and avoid connection mistakes
- Compatible with RGB 3528 and 5050 LED strips, DMX digital strips, presence sensors, and low-voltage modules
- Flame-retardant plastic sheath — thermal resistance up to 80 degrees Celsius for continuous safe operation
- Stranded AWG 23 conductor — high flexibility, easy to route through profiles, conduits, or cable trays
- Permitted voltage 300V — generous safety margin compared to standard 12V or 24V DC applications
How it works and how to install it
The cable is cut to the required length, the ends are stripped with ordinary pliers, and then connected directly to the terminals of the LED strip, controller, or sensor, observing the color code. No special tools are required — anyone with minimal knowledge of low-voltage electrical work can make the connection in a few minutes. The stranded conductor is flexible enough to be laid in tight spaces or on curved surfaces without the risk of internal wire breakage.
Frequently asked questions
Does this cable also work for addressable digital LED strips, not just classic RGB?
Yes, the 3-wire cable is also compatible with digital strips that use DMX signals or other 3-pin data protocols, such as WS2811 with separate power supply.
Can it be used at voltages higher than 12V or 24V DC?
The insulation is rated for 300V, so it is safe for 12V and 24V DC applications specific to LED strips, with a considerable safety margin.
How thick is each wire and does it fit through LED strip profiles?
The outer diameter of each wire is 1.8 mm, a compact size that allows easy passage through standard aluminum profiles and protective tubes.
Technical specifications
| Number of wires | 3 |
| Insulation colors | White, Green, Red |
| Conductor cross-section | AWG 23 — 0.258 mm² |
| Outer diameter per wire | 1.8 mm |
| Conductor type | Stranded |
| Sheath material | Flame-retardant plastic |
| Maximum temperature | 80 °C |
| Rated voltage | 300 V |
| Reel length | 50 m |
| Compatibility | RGB 3528/5050 LED strips, DMX digital strips, low-voltage sensors |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with Romanian legislation. We accept returns within 30 days from the delivery date, with no obligation to justify the decision. Delivery is made by express courier, with shipping confirmation and package tracking available.
