Red Momentary Push Button 14X24mm
Low stock
Minimum order quantity: 3 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 3,99 lei | — |
| 10–15 pcs | 3,79 lei | 5% (−0,20 lei/unit) |
| 16–20 pcs | 3,59 lei | 10% (−0,40 lei/unit) |
| 21+ pcs | 3,39 lei | 15% (−0,60 lei/unit) |

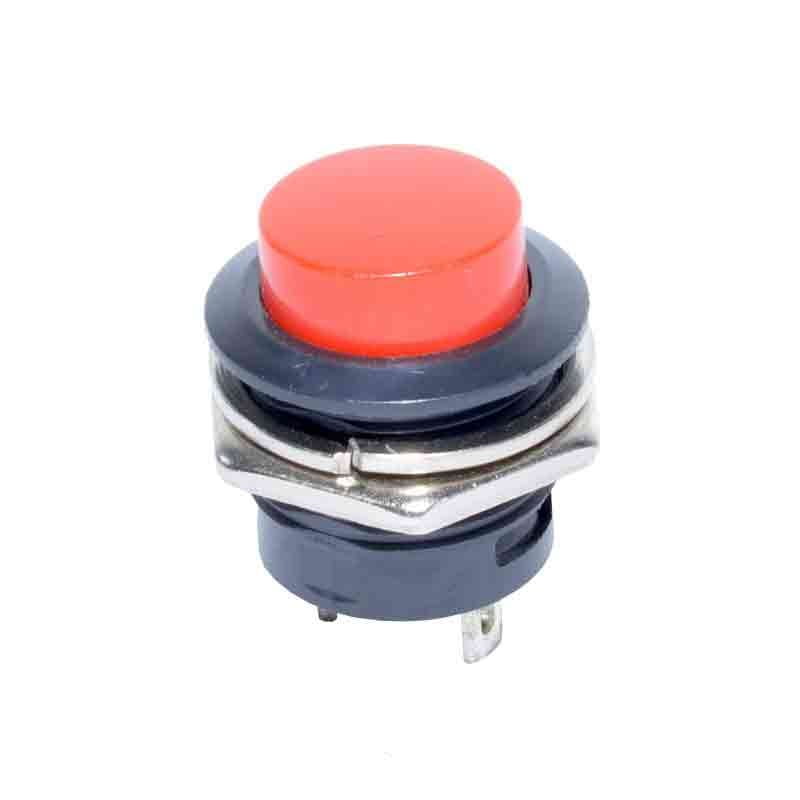

Red momentary push button for panels and equipment
The 14x24mm red momentary push button is a simple and reliable solution for manual control in electrical panels, industrial equipment, or DIY projects. With a compact plastic and metal construction, it offers a clear momentary contact and a firm action with every press. Suitable wherever you need a visible and easy-to-identify pulse button.
What you get with this product
- Precise momentary contact — the button automatically returns to its initial position after release, ideal for signaling or single-point triggering
- Visible red color — easy to identify on any control panel, reduces the risk of operational confusion
- Compatible with voltages up to 250V AC / 3A — integrates directly into general-purpose circuits without additional components
- Compact dimensions 14x24mm — mounts into standard panel holes, without additional case modifications
- Construction with metal fixing ring — ensures stable and durable mounting in plastic or metal panels
- Quick connection via lug terminals — wiring is simple, without special tools
How it works and how to install it
The momentary push button works on the principle of momentary contact: the circuit is closed only while the button is pressed, automatically returning to the normally open state upon release. Installation is done by cutting a 14mm hole in the desired panel, inserting the button, and tightening the metal fixing ring on the back. Electrical connections are made to the two lug terminals, by soldering or quick clamps.
Frequently asked questions
Does the button stay locked after pressing or does it return on its own?
It returns on its own — it is momentary type, the circuit is active only while it is held down.
What diameter hole do I need to cut in the panel for mounting?
A 14mm diameter hole is required; the total depth of the button is 24mm.
Can it be used with 12V DC or only 220V AC?
Yes, it can also be used with low DC voltages (12V, 24V DC), within the specified 3A current limit.
Technical specifications
| SKU | Q-6D020 |
| Type | Momentary push button |
| Cap color | Red |
| Dimensions | 14 x 24 mm |
| Maximum voltage | 250V AC |
| Maximum current | 3A |
| Contact type | Normally Open (NO), momentary |
| Body material | ABS Plastic + metal ring |
| Connection | Lug terminals |
| Package contents | 1 x red momentary push button |
Warranty and support
The product benefits from a 2-year warranty according to current Romanian legislation. We accept returns within 30 days from the delivery date, without the need for justification. Delivery is carried out quickly by courier, with shipping confirmation by e-mail.
