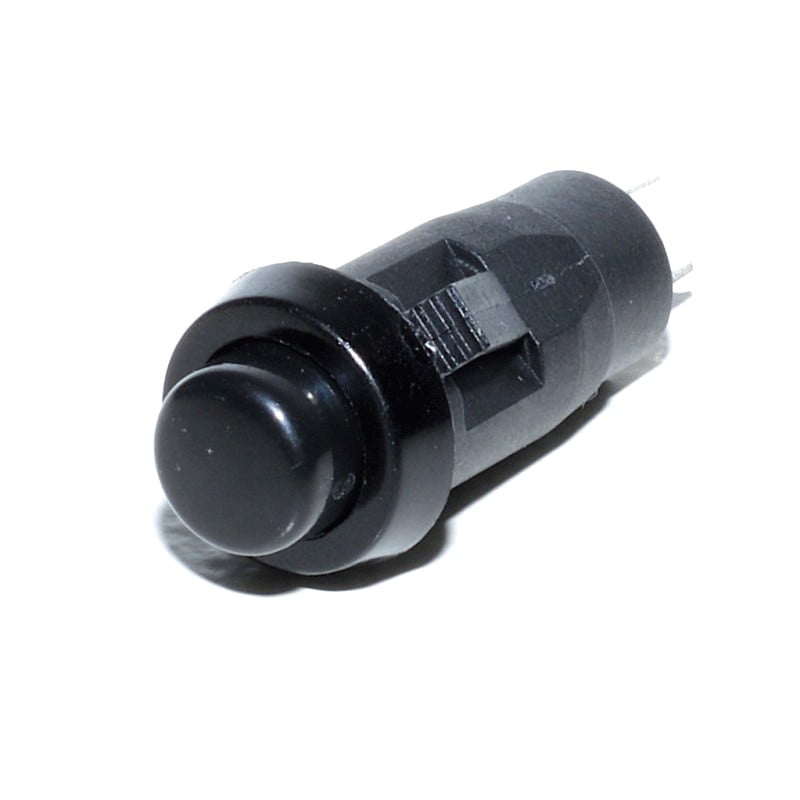

Black Push Button Return 12X32 MM
Available in stock
Minimum order quantity: 3 pcs
| Quantity | Price per unit | You save |
|---|---|---|
| 1–9 pcs | 3,99 lei | — |
| 10–15 pcs | 3,79 lei | 5% (−0,20 lei/unit) |
| 16–20 pcs | 3,59 lei | 10% (−0,40 lei/unit) |
| 21+ pcs | 3,39 lei | 15% (−0,60 lei/unit) |
Momentary Push Button for Industrial Circuits
The 12x32 mm black momentary push button is a reliable switching component designed for electrical panels, industrial equipment, and automation applications. The non-latching contact ensures momentary action, automatically returning to its original position after release. The compact black plastic body integrates discreetly into any panel or equipment housing.
What you get with this product
- Automatic return to initial position — the contact opens immediately when the button is released, without mechanical locking
- Compact size 12x32 mm — mounts in small spaces, ideal for dense panels or narrow enclosures
- Compatible with 220V AC at 1.5A — operates directly in control circuits at standard mains voltage
- Quick threaded mounting — secures in a 12 mm hole without special tools, in a few seconds
- Discreet matte black finish — professional appearance, matches most standard industrial equipment
How it works and how to install
The button is installed by inserting it into a 12 mm hole and securing it with the included nut on the front panel. The two terminals at the back are connected to the control circuit by soldering or clamping, depending on the application. When pressed, the circuit momentarily closes; when released, the internal spring returns the button to its initial position and the circuit automatically opens.
Frequently Asked Questions
Does the button stay pressed or does it return on its own after you release it?
It returns on its own — it is momentary without latching, the circuit is active only while you keep it pressed.
What diameter hole do I need in the panel to mount this button?
A 12 mm diameter hole is required; it is secured with a nut on the back of the panel.
Can this button be used at lower voltages, for example 12V or 24V DC?
Yes, a button rated for 220V AC can also be used at lower DC voltages, provided the current in the circuit does not exceed 1.5A.
Technical Specifications
| SKU | Q-6D038 |
| Supply voltage | 220V AC |
| Maximum current | 1.5A |
| Action type | Momentary push |
| Contact type | Non-latching (return) |
| Dimensions | 12 x 32 mm |
| Color | Black |
| Package contents | 1 x black momentary push button |
| Brand | OEM |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the package. Delivery is carried out quickly by courier throughout Romania.
