Black 19mm Latching Push Button with Green LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 24,99 lei | — |
| 3–4 pcs | 23,74 lei | 5% (−1,25 lei/unit) |
| 5–10 pcs | 22,49 lei | 10% (−2,50 lei/unit) |
| 11+ pcs | 21,24 lei | 15% (−3,75 lei/unit) |

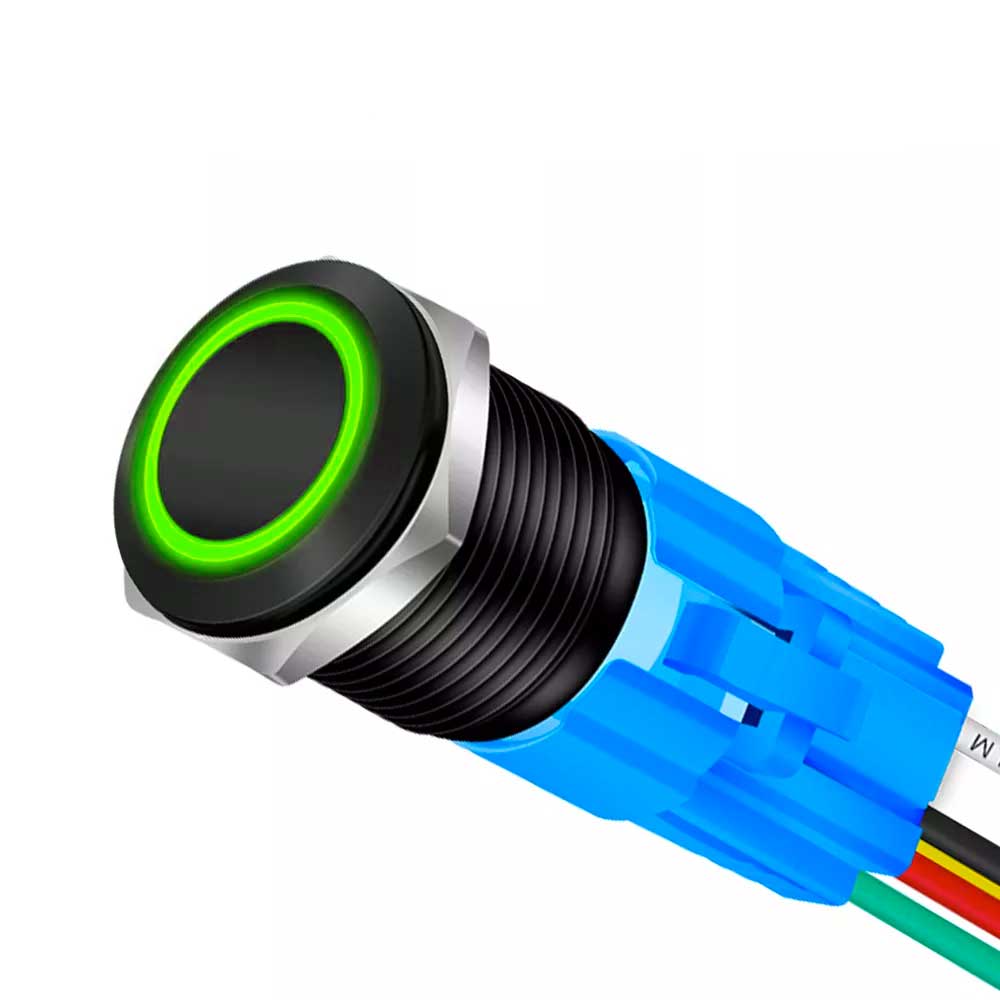

19mm Black Push Button with Green LED and Momentary Action
The 19mm black push button with green LED is a compact and durable solution for industrial, automotive, or DIY applications requiring a visible and robust control point. Its electrostatically painted aluminum housing and IP65 protection rating make it suitable for both indoor and outdoor environments. The green illuminated ring provides immediate visual confirmation with each press.
What you get with this product
- Clear circuit status control — the green LED ring illuminates when powered, visibly indicating whether the button is active, unequivocally

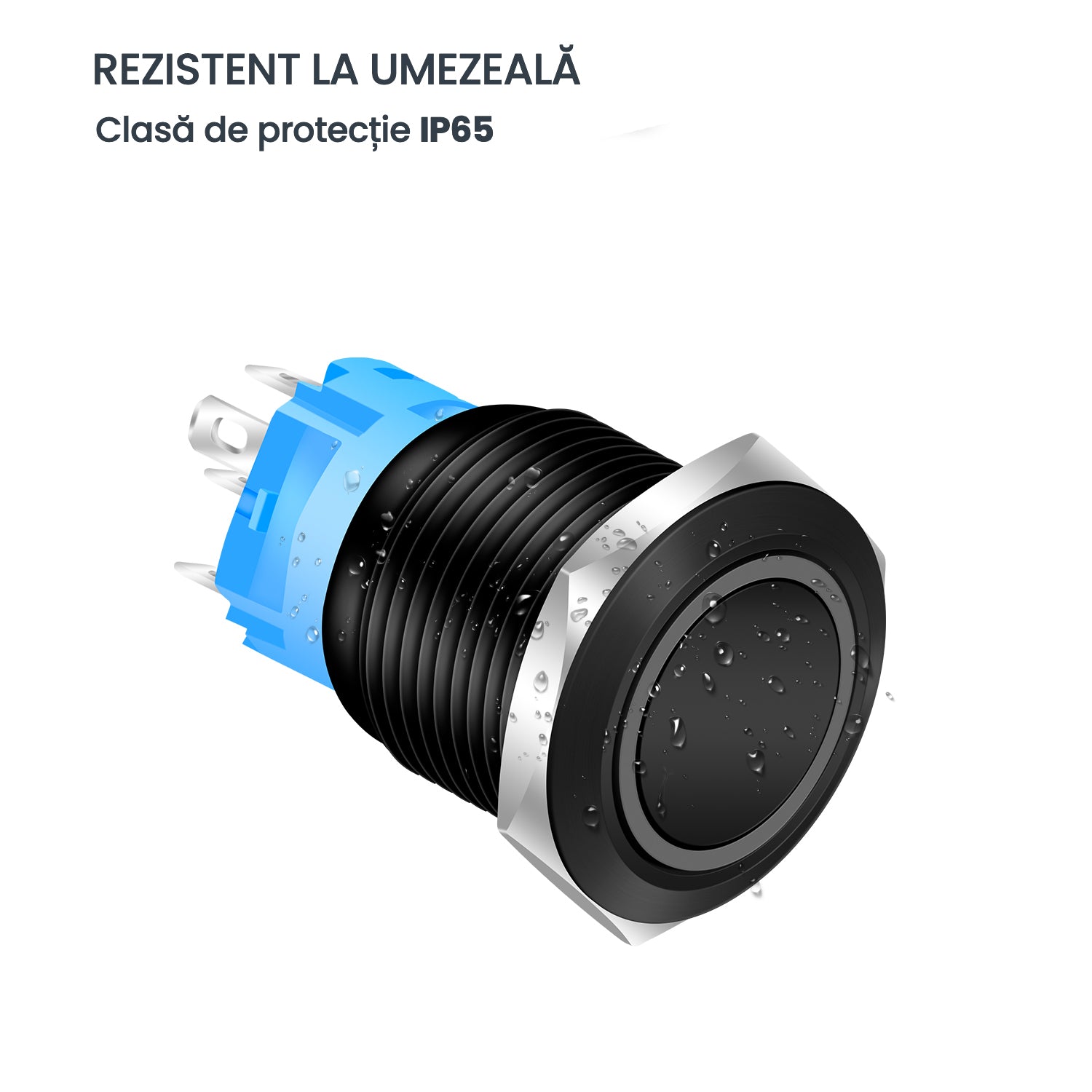

- IP65 certified resistance to moisture and dust — operates flawlessly in electrical panels, boats, cars, or installations exposed to water splashes
- Black electrostatically painted aluminum body — resistant to scratches, corrosion, and mechanical wear during intensive use
- Two contact types available (NO and NC) — maximum versatility for different wiring diagrams, without additional parts
- Quick mounting in a 19mm hole — M19 thread, secure fastening without special tools, compatible with panels up to 16mm thick
- Clearly organized 5-pin connector — 2 pins for LED, 3 pins for contact, wiring diagram included, intuitive wiring
How it works and how to install it

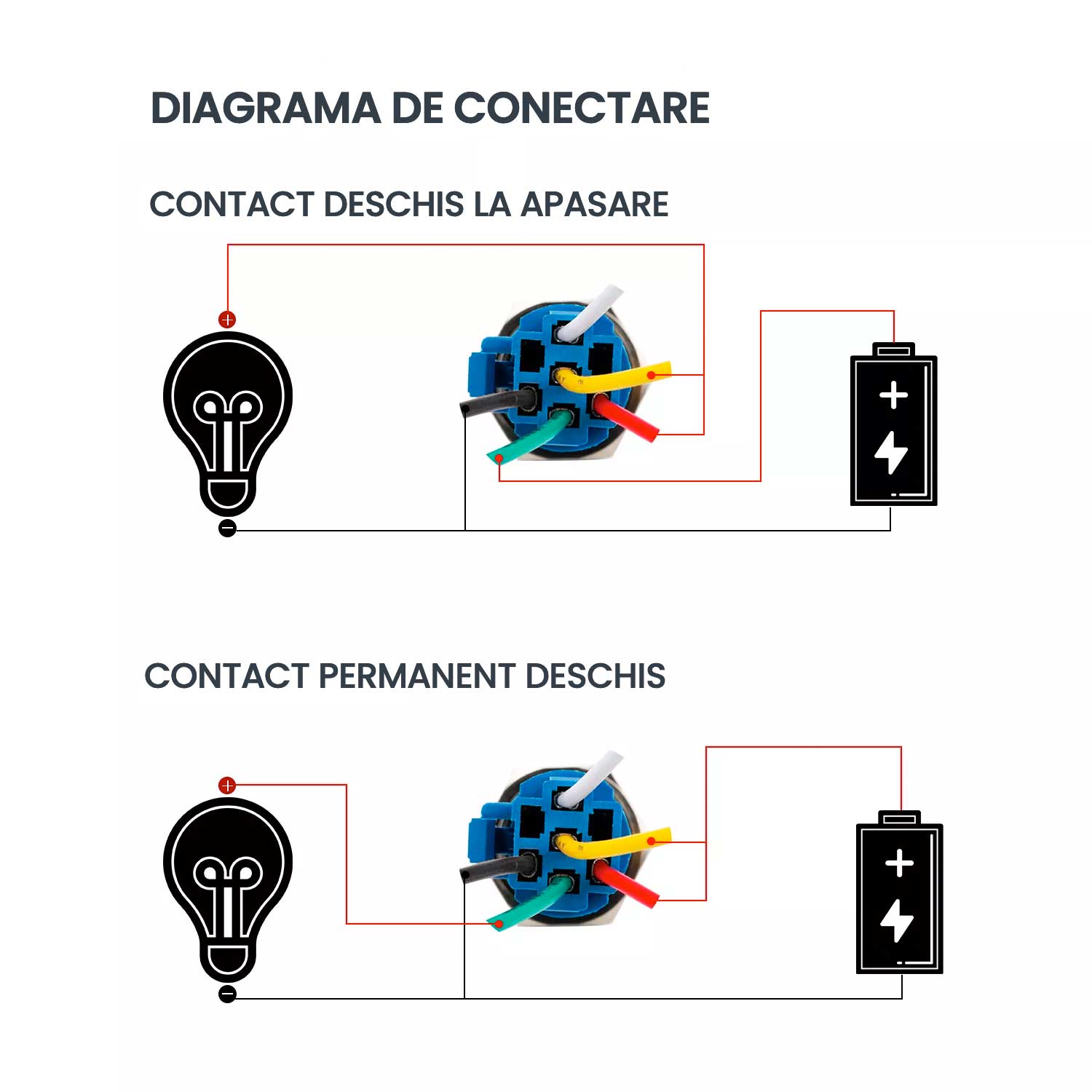

The momentary push button automatically returns to its initial position after each press — it does not remain locked in the pressed position, making it ideal for momentary commands (motor start, signal, reset). Installation requires a 19mm hole in the support panel, after which the button is screwed in with the included fixing nut. Connection is made via the 5 pins at the back: 2 for powering the 12V LED and 3 for the electrical contact (COM, NO, NC), according to the provided diagram.
Frequently Asked Questions

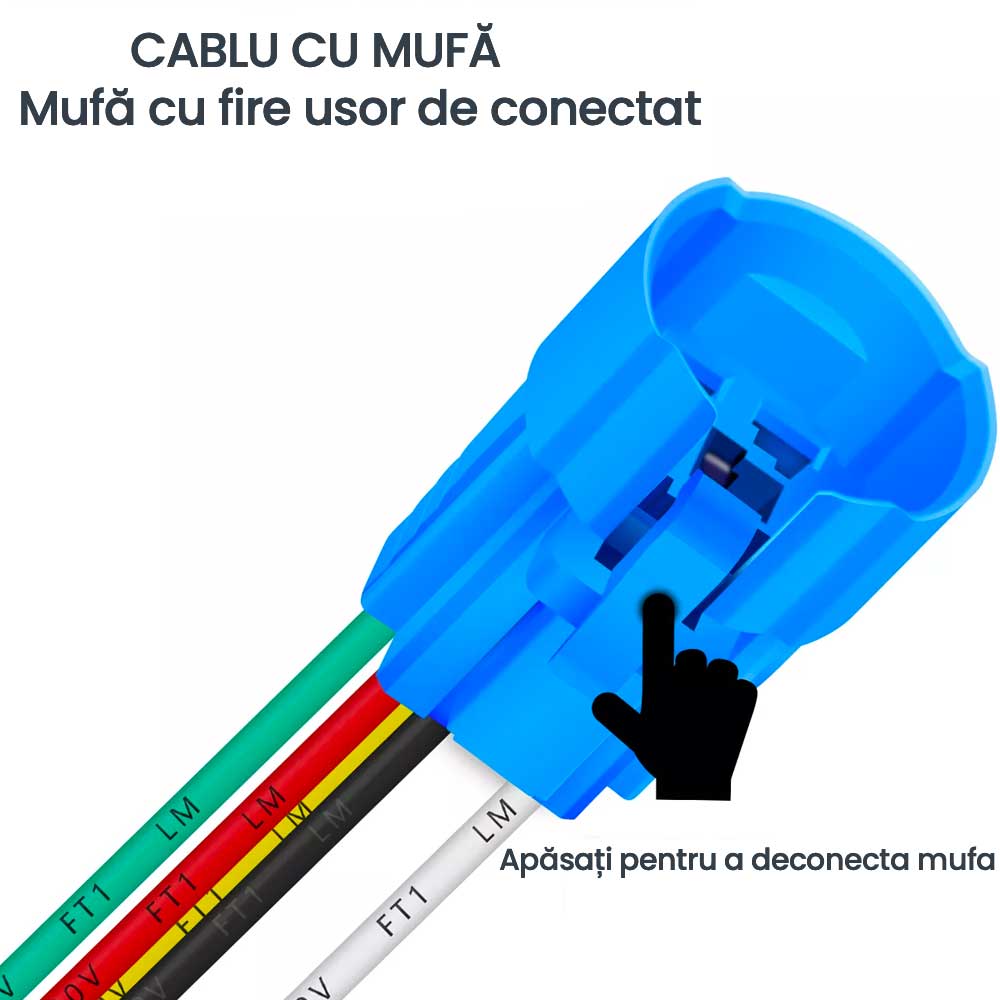

Is the wire connector included in the package?
No, the wire connector is not included and must be purchased separately if you want a quick connection via connector.
Does it work at 24V or only at 12V?
The LED is calibrated for 12V power supply. Using it at a different voltage without a limiting resistor may damage the LED component.
What is the maximum panel thickness it can be mounted in?
According to the mounting dimensions, the thread length is 14mm, which allows mounting in panels with a thickness of up to approximately 12-14mm.

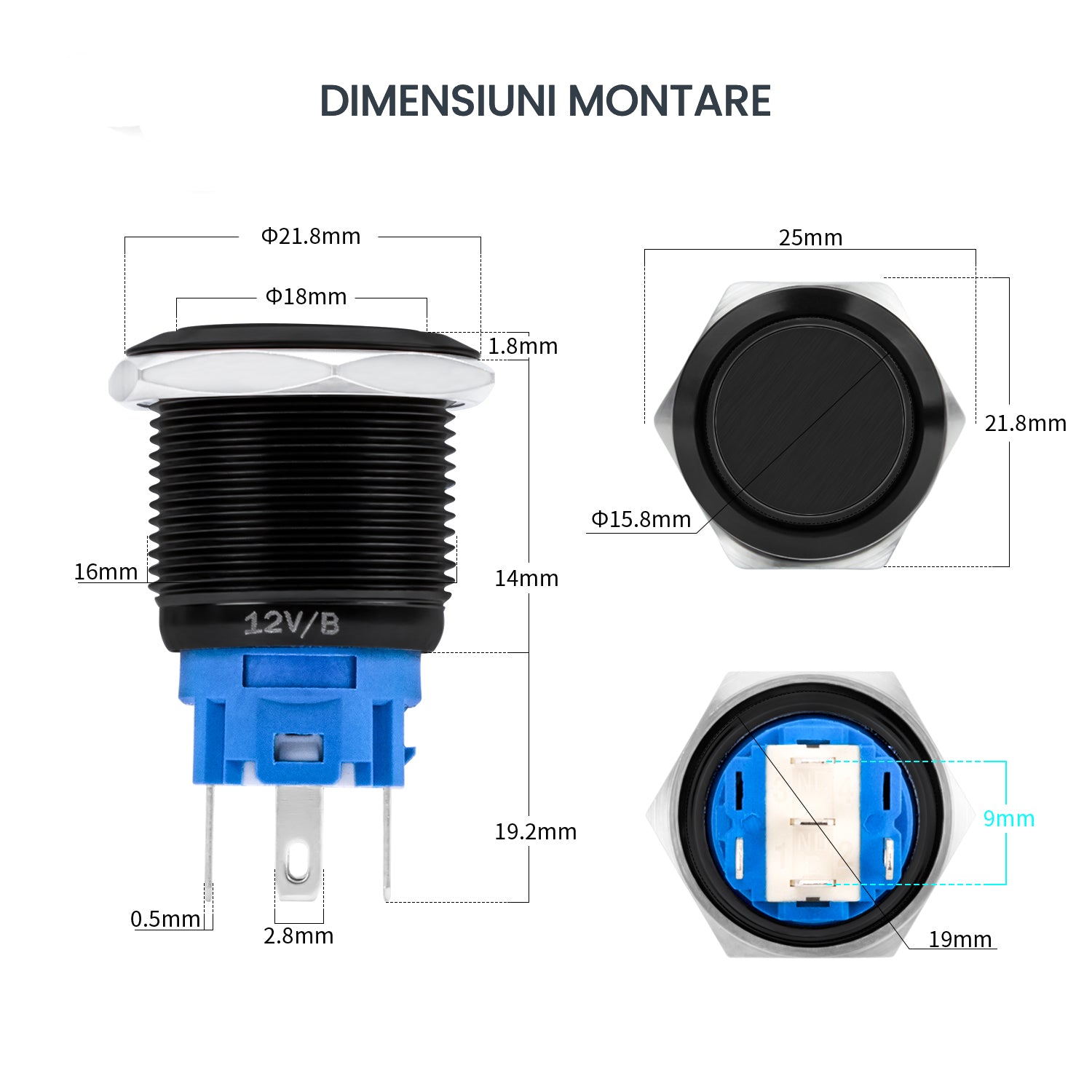

Technical specifications
| SKU | EAZ-BP008 |
| Brand | ElectroAZ |
| Type | Momentary push button |
| Mounting diameter | 19mm |
| Thread | M19 |
| Button head diameter | 21.8mm |
| Overall diameter (with flange) | 25mm |
| Thread length | 14mm |
| Overall height (without pins) | 16mm |
| LED color | Green |
| LED supply voltage | 12V DC |
| Number of connection pins | 5 (2 LED + 3 contact) |
| Contact type | NO (normally open) / NC (normally closed) |
| Housing material | Electrostatically painted aluminum |
| Housing color | Black |
| Protection class | IP65 |
| Button face type | Flat |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. You can return the product within 30 days of receipt if it does not meet your expectations. Delivery is carried out quickly by courier, with shipping confirmation via e-mail.
