30mm Push Button with Return 24V Green LED
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 76,99 lei | — |
| 3–4 pcs | 73,14 lei | 5% (−3,85 lei/unit) |
| 5–10 pcs | 69,29 lei | 10% (−7,70 lei/unit) |
| 11+ pcs | 65,44 lei | 15% (−11,55 lei/unit) |

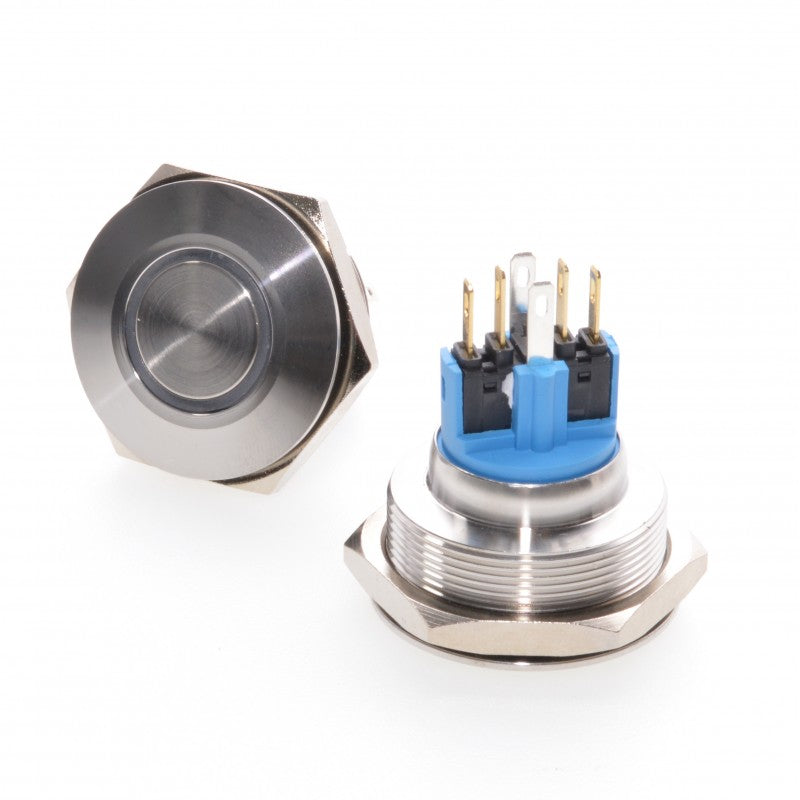

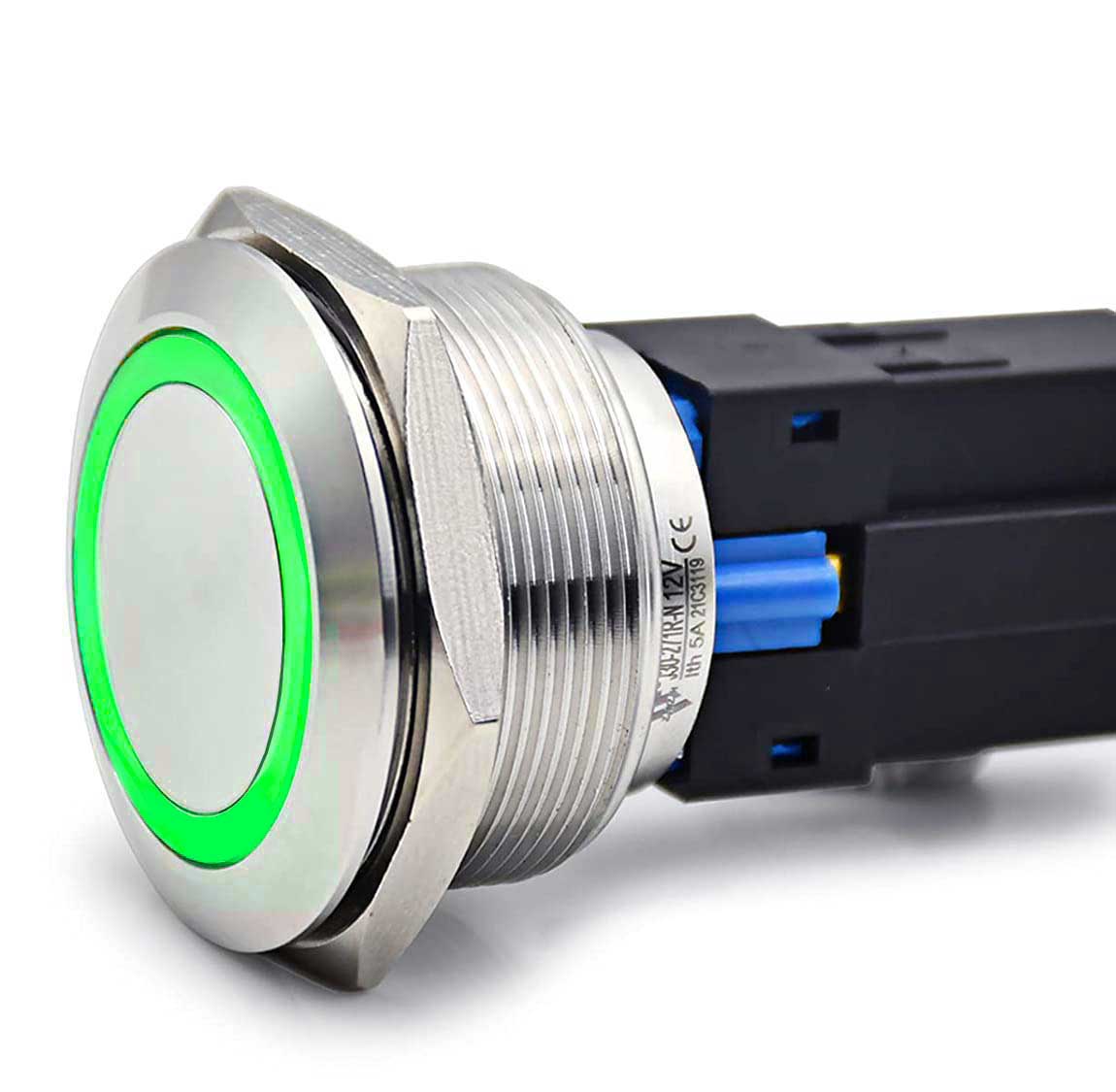

30mm Metal Push Button with Green 24V LED
The 30mm momentary push button with a green 24V LED is designed for use in automation panels, industrial equipment, and installations requiring a robust switch resistant to harsh environments. Its stainless steel housing, IP67 protection rating, and IK09 certification make it suitable for both indoor and outdoor applications, including those exposed to water or at risk of vandalism.
What you get with this product
- IP67 certified water and dust resistance — can be mounted in panels exposed to humidity without worrying about infiltration
- IK09 vandal-resistant construction — stainless steel housing withstands mechanical impact in public or semi-public applications
- Visible green 24V LED indicator — visually confirms circuit's active status without additional components
- Dual NO and NC contacts on the same button — maximum connection flexibility without additional parts
- Connection via detachable 6-pin connector — wiring and replacement are quick, without soldering or special tools
- Standard 30mm mounting diameter with M30 thread — compatible with existing industrial panels, direct replacement
How it works and how to install

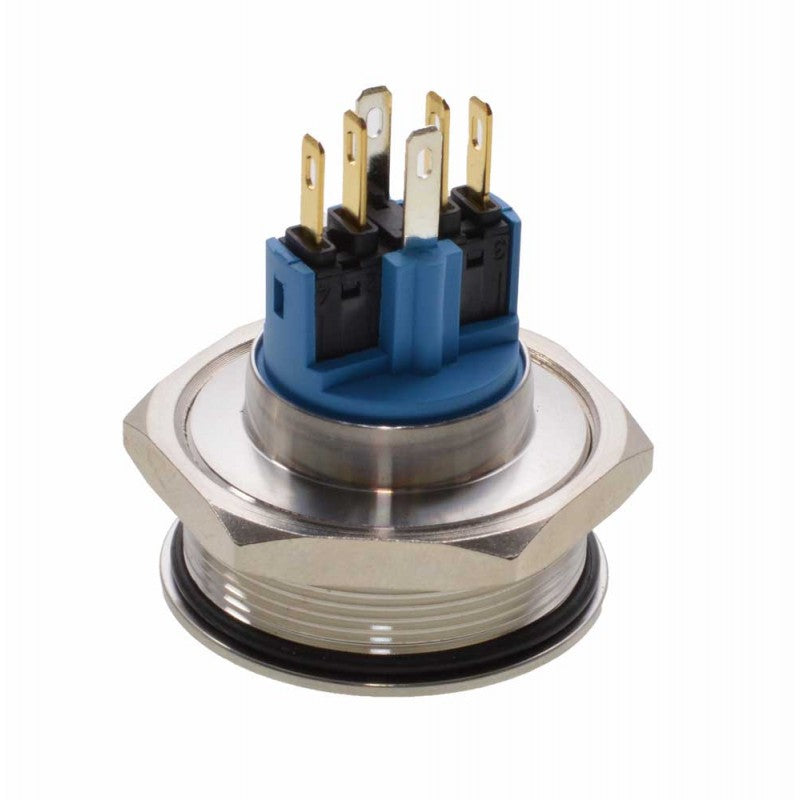

The button operates with a momentary mechanical action — when pressed, it closes or opens the circuit (depending on the NO or NC pins used), and when released, it returns to its initial position. Installation is done by drilling a 30mm hole in the panel, inserting the button, and securing it with the M30 threaded nut from the back — an operation that can be completed in a few minutes with a wrench. The blue 6-pin connector (2 for LED, 4 for contacts) attaches directly to the terminals on the back of the button, without soldering.
Frequently Asked Questions
Can I use this button at 12V instead of 24V?
The LED is rated for 24V, so at 12V, the illumination will be significantly weaker or non-existent. For 12V, the specific 12V model is recommended.
What diameter should I mill in the panel for mounting?
A 30mm hole is required. The button body's thread is M30, and the mounting depth is 40mm.
Does the button stay pressed or does it return on its own after actuation?
This model has momentary action — after each press, the button releases automatically, without locking its position.

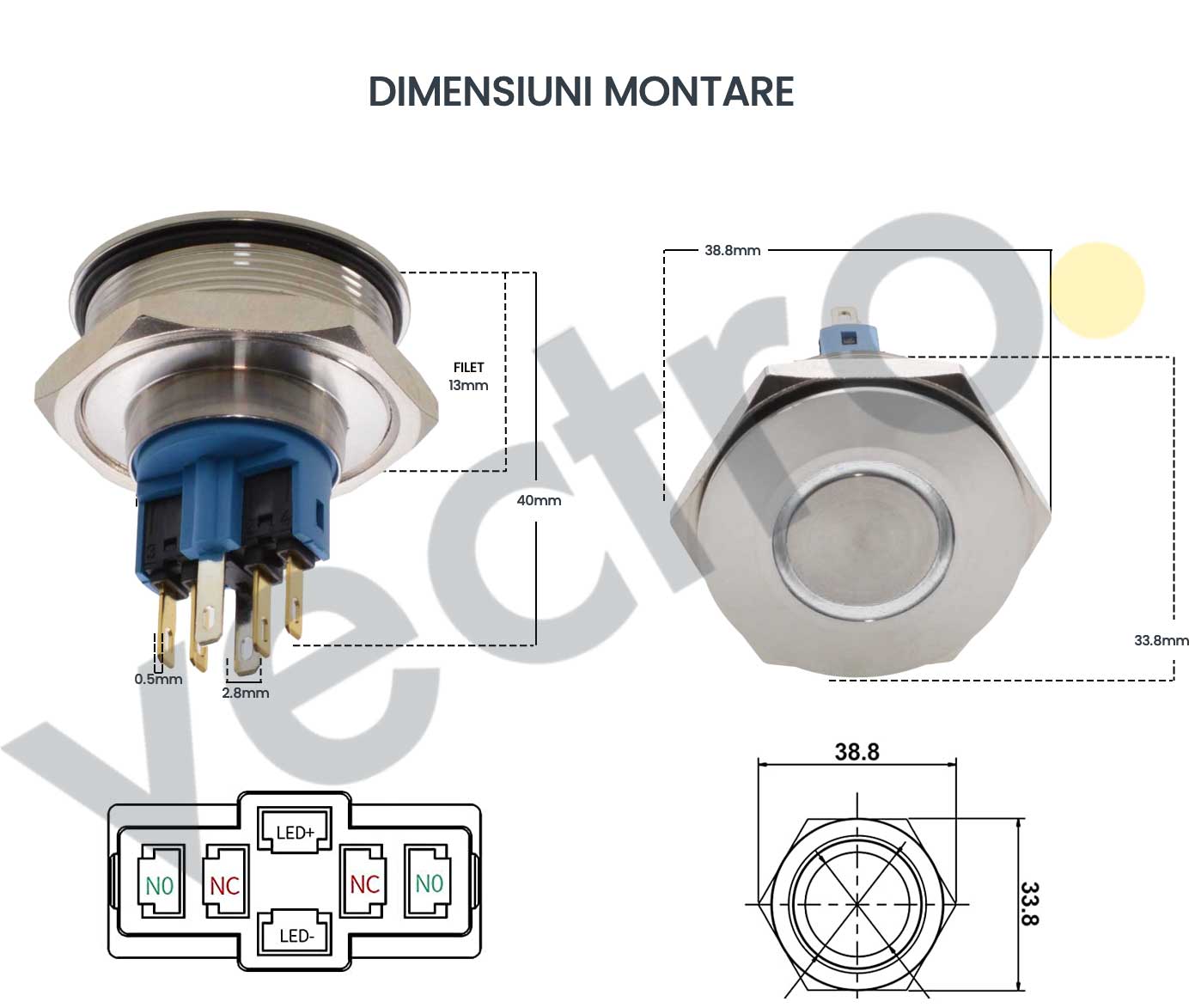

Technical Specifications
| SKU | Q-6D049 |
| Mounting diameter | 30 mm |
| Thread | M30, length 13 mm |
| Total body length | 40 mm |
| Button head diameter | 38.8 mm |
| LED voltage | 24V DC |
| LED color | Green, illuminated ring |
| Action type | Momentary |
| Contact type | NO (normally open) and NC (normally closed) |
| Number of pins | 6 (2 LED+ / LED-, 4 contact NO/NC) |
| Maximum current | 5A |
| Housing material | Stainless steel 304/316 |
| Protection class | IP67 |
| Impact resistance | IK09 |
| Certifications | CE |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. You can return the product within 30 days of receipt if it does not meet your needs. Delivery is fast via courier, with shipping confirmation.
