25mm Latching Push Button 12-24V Green LED
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 39,99 lei | — |
| 3–4 pcs | 37,99 lei | 5% (−2,00 lei/unit) |
| 5–10 pcs | 35,99 lei | 10% (−4,00 lei/unit) |
| 11+ pcs | 33,99 lei | 15% (−6,00 lei/unit) |

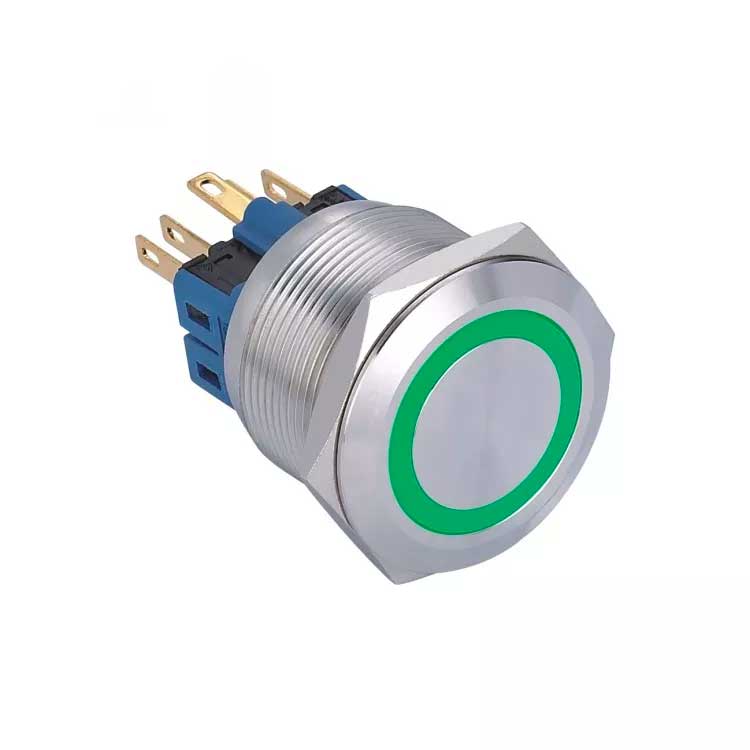

25mm Metal Push Button with Green LED for 12-24V Applications
The 25mm push button with green LED is a robust solution for industrial control panels, machinery, elevators, and electrical installations operating between 9 and 30V. The vandal-proof metal housing, rubber gasket, and gold-plated contacts ensure long-term reliability even in demanding environments. The pre-attached 150mm wired connector significantly simplifies wiring.
What you get with this product
- Compatible with voltages between 9V and 30V — works without modifications at 12V and 24V, the most common voltages in industrial and automotive installations
- Pre-attached 150mm colored wire connector — quickly identify pins (NC, NO, C, LED+ and LED-) and perform wiring without confusion
- Aluminum body with IP67 and IK09 rating — resistant to water, dust, and vandalism, suitable for outdoor mounting or in high-traffic areas
- Double contact 1NO + 1NC — maximum flexibility in the electrical schematic, choose the contact type based on the application without changing the button
- Visible green LED ring — visually confirms circuit status, useful in panels with multiple controls where quick orientation matters
- Quick mounting in a 25mm hole — removable nut and rubber gasket ring ensure a sealed fixation without special tools
How it works and how to install it

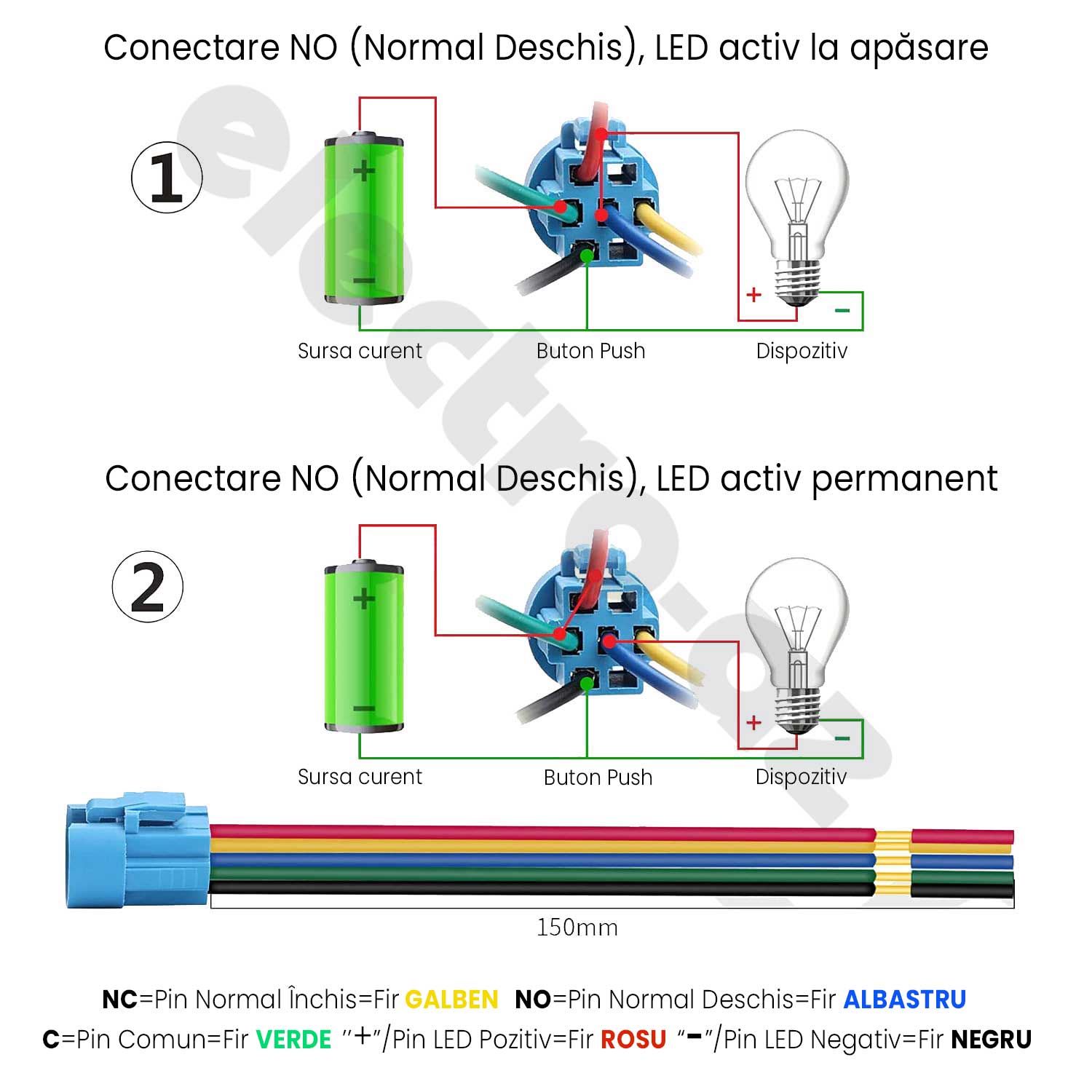

The 25mm momentary push button activates the circuit only while pressed, then returns to its initial position. It is mounted in a 25mm hole by screwing in the back nut, and the rubber gasket ensures the panel's sealing. Wiring is done on the 6 pins: 2 for powering the LED (red wire positive, black wire negative) and 4 for contact (green wire — common, blue wire — NO, yellow wire — NC); the connection diagram is clearly illustrated in the included documentation and supports both configurations with the LED active when pressed and with the LED permanently on.
Frequently Asked Questions
Does the button work directly at 12V or do I need an additional resistor?
The button works directly at 12V and 24V without external components, the nominal operating voltage covering the 9-30V range.
What is the difference between NO and NC connection for this push button?
In the NO (Normally Open) configuration, the circuit closes only when pressed, and in the NC (Normally Closed) configuration, the circuit is closed at rest and opens when pressed — the choice depends on the logic of your electrical schematic.
Is the button waterproof if I mount it outdoors?
Yes, the IP67 protection rating means the button can withstand temporary immersion in water, and the rubber gasket ensures sealing at the mounting panel level.

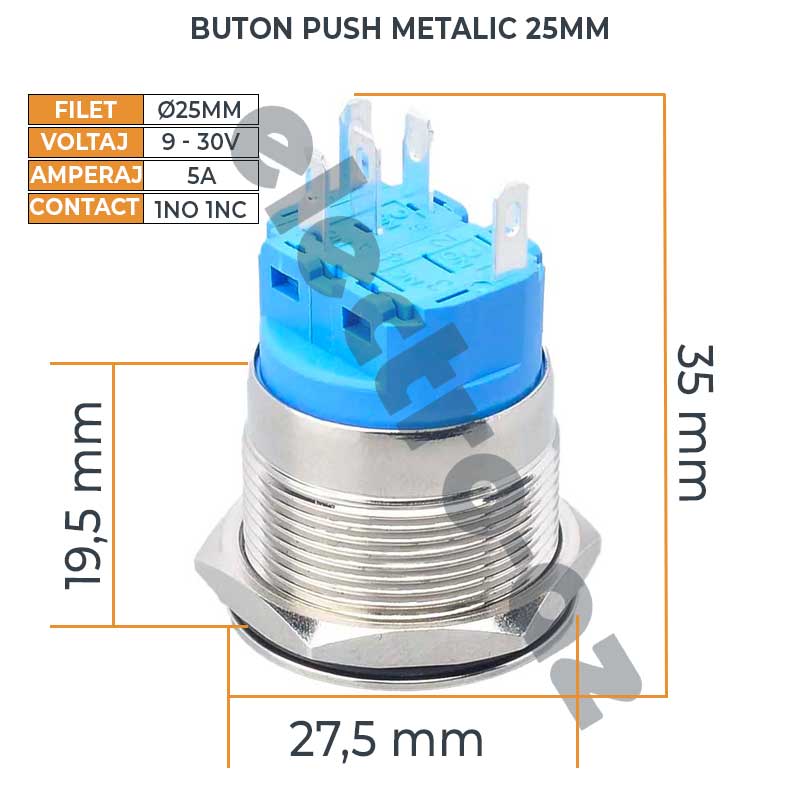

Technical Specifications
| Thread diameter | M25 mm |
| Flange outer diameter | 27.5 mm |
| Mounting depth (thread) | 19.5 mm |
| Total length | 35 mm |
| Operating voltage | 9 - 30V DC |
| Maximum current | 5A |
| Contact type | 1NO + 1NC |
| Number of pins | 6 (4 contact + 2 LED) |
| Connector wire length | 150 mm |
| LED color | Green |
| Actuation type | Momentary |
| Body material | Aluminum 304 / 316 |
| Protection class | IP67 |
| Anti-vandal rating | IK09 |
| Contact material | Gold-plated silver alloy |
| SKU | EAZ-BP067 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the package, without requiring additional justifications. Delivery is carried out quickly by courier, with shipping confirmation and the possibility to track the package.
