25mm Push Button with Return, 12-24V Red LED
Low stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 39,99 lei | — |
| 3–4 pcs | 37,99 lei | 5% (−2,00 lei/unit) |
| 5–10 pcs | 35,99 lei | 10% (−4,00 lei/unit) |
| 11+ pcs | 33,99 lei | 15% (−6,00 lei/unit) |

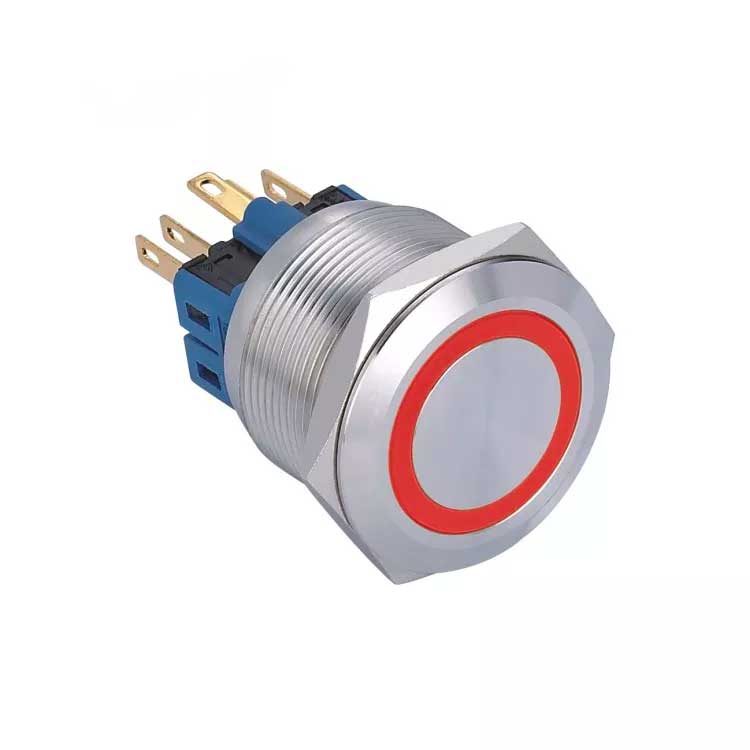

25mm Metal Push Button with Red LED for 12-24V Applications
The 25mm momentary push button with red LED is a robust solution for industrial control panels, machinery, and electrical installations operating at 9-30V DC. Its stainless steel housing, included connector, and clear wiring diagram make it suitable for both experienced installers and users assembling their first control panel.
What you get with this product
- Pre-attached 150mm connector with wires included in the package — connect directly, without additional clamps or improvisations
- Visible red LED in a circular ring — visually confirms the active state of the circuit, useful in low-light environments
- Compatible with 9-30V DC voltages — operates stably at 12V and 24V, the most common voltages in industrial and automotive applications
- Stainless steel body with IP67 and IK09 rating — resistant to water, dust, and vandalism, suitable for outdoor or industrial mounting
- Simultaneous 1NO + 1NC contacts — maximum wiring flexibility, choose the switching type without changing the button
- Quick installation in a 25mm hole — detachable nut and rubber sealing ring included, secure mounting in sheet metal or plastic panels
How it works and how to install

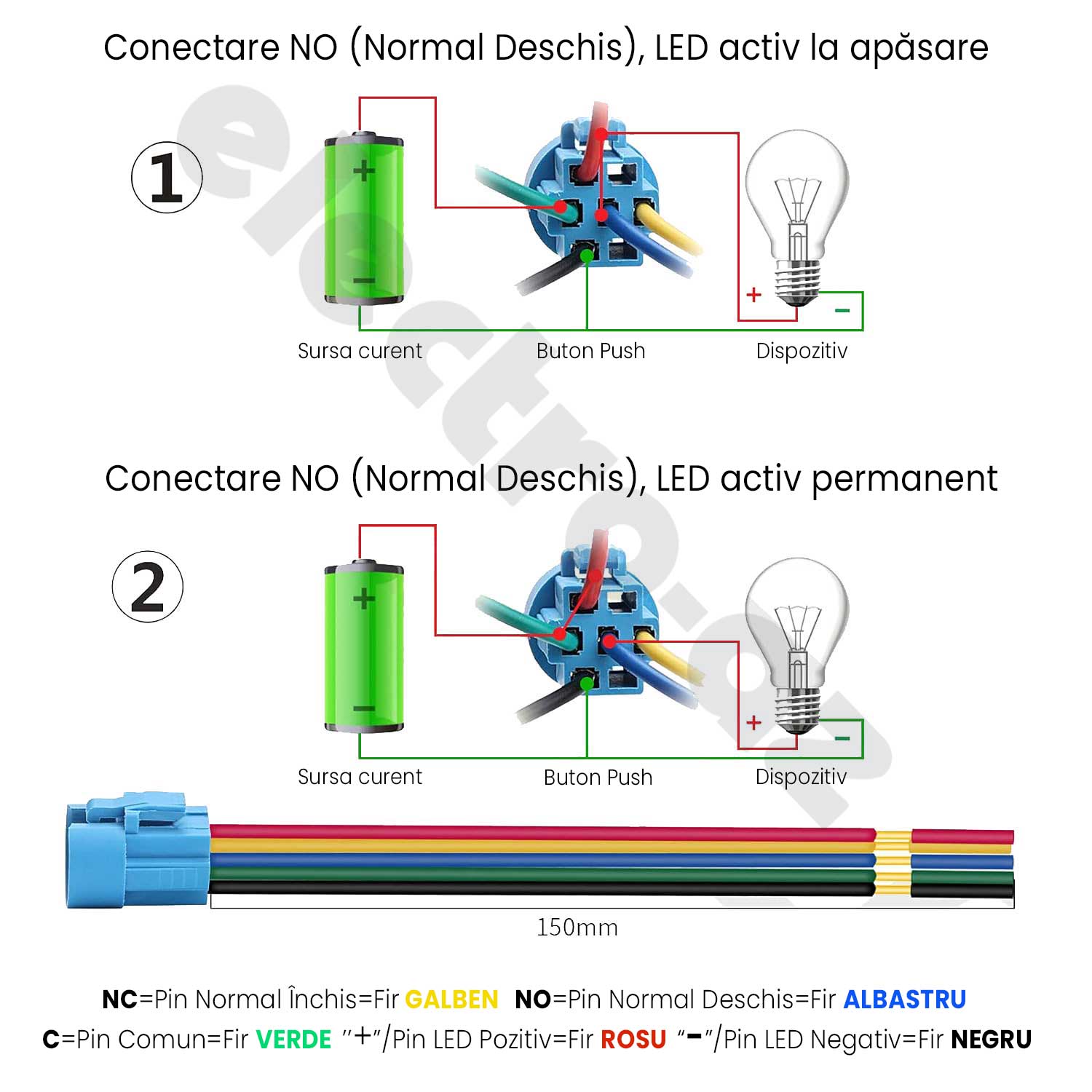

The 25mm momentary push button automatically returns to its initial position after each press, activating the circuit only while held down. Installation involves cutting a 25mm hole in the control panel, inserting the button, securing it with the included nut, and connecting the wires according to the diagram: red wire to the LED positive pin, black to the LED negative, green to the common pin, blue to NO, and yellow to NC. The connection diagram is provided visually and allows for two modes: LED active only when pressed, or LED permanently active, regardless of contact status.
Frequently Asked Questions
Does this push button work at 12V and 24V?
Yes, the operating range is 9-30V DC, so both 12V and 24V are within normal operating parameters.
How do I connect the button if I want the LED to be permanently on, not just when pressed?
Power the LED pins (red and black) directly from the source, independent of the contact circuit. The corresponding diagram is illustrated in the included package.
Is it waterproof? Can I install the button outdoors?
Yes, the button has an IP67 protection rating, which means complete protection against dust and resistance to temporary immersion in water, suitable for outdoor mounting or in humid environments.

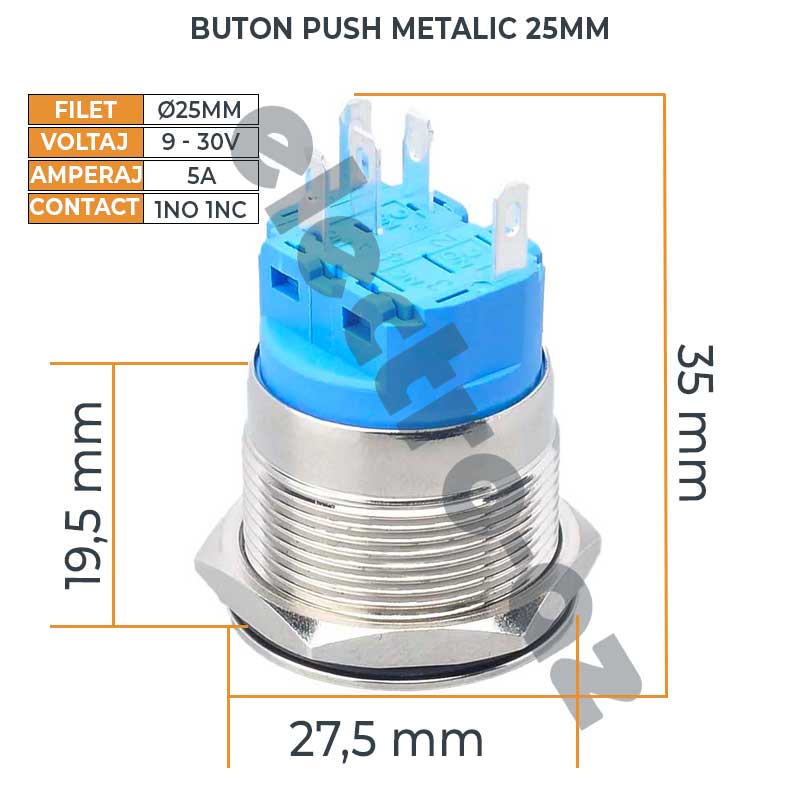

Technical Specifications
| Mounting thread diameter | M25 mm |
| Button head diameter | 27.5 mm |
| Mounting depth (thread) | 19.5 mm |
| Total length | 35 mm |
| Supply voltage | 9 - 30V DC |
| Maximum contact current | 5A |
| Contact type | 1NO + 1NC |
| Number of connection pins | 6 pins (4 contact + 2 LED) |
| Connector cable length | 150 mm |
| LED color | Red |
| Action type | Momentary |
| Body material | Stainless steel 304/316 |
| Protection class | IP67 |
| Impact resistance | IK09 |
| Connector included | Yes |
| SKU | EAZ-BP068 |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, with no justification required. Delivery is made by express courier, with shipping confirmation and a tracking code.
