Push Button 22mm with Return, 12-24V, Blue Led, Plug included, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

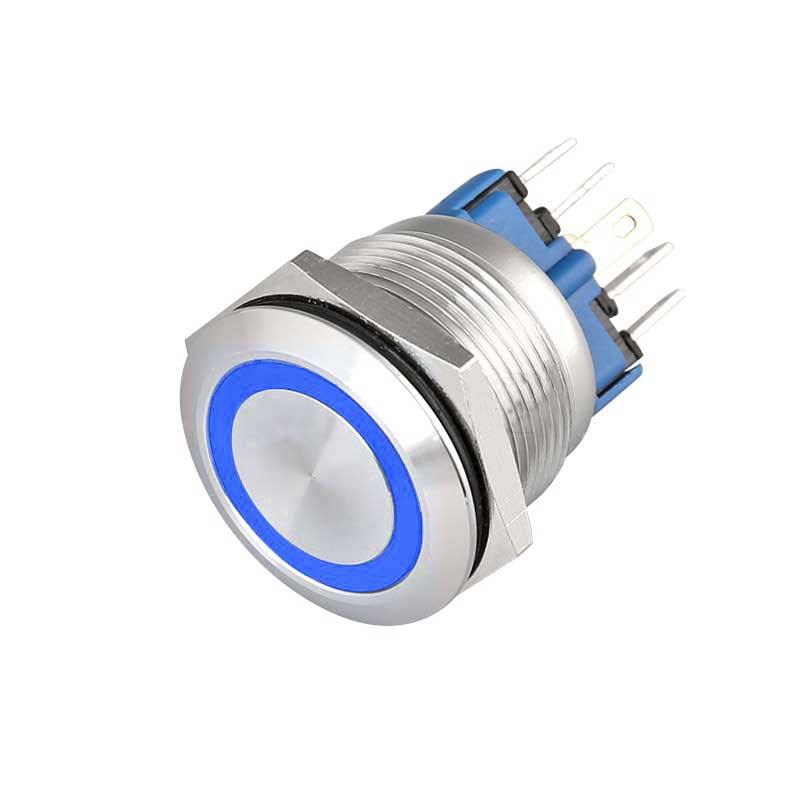

16mm Metallic Push Button with Blue LED and Momentary Action
The 16mm metallic push button with a blue illuminated ring is designed for industrial installations, control panels, machinery, and automotive applications where a robust and visible momentary control is required. Its stainless steel construction, IP65 protection rating, and wide voltage range of 9-30V make it suitable for both humid environments and applications subject to vibrations or mechanical stress. The pre-mounted 150mm cable connector significantly simplifies wiring in any installation.
What you get with this product
- Fast, solder-free wiring — 5-colored wire connector (150mm) included in the package, each wire identified by color for correct connection on the first try
- Compatible with 9V to 30V systems — works stably at 12V and 24V, the standard voltages for industrial panels and automotive installations
- Resistance to moisture and vandalism — stainless steel casing with rubber gasket, IP65 water jet resistance, IK09 mechanical impact resistance
- Connection flexibility — dual contacts 1NO + 1NC allow configuring the button as normally open or normally closed depending on the application, with or without permanent LED
- Blue ring LED visible in all light conditions — indicates active circuit status and facilitates button localization on panels with multiple controls
- Direct mounting in a 16mm hole — detachable fastening nut included, no special tools required
How it works and how to install it

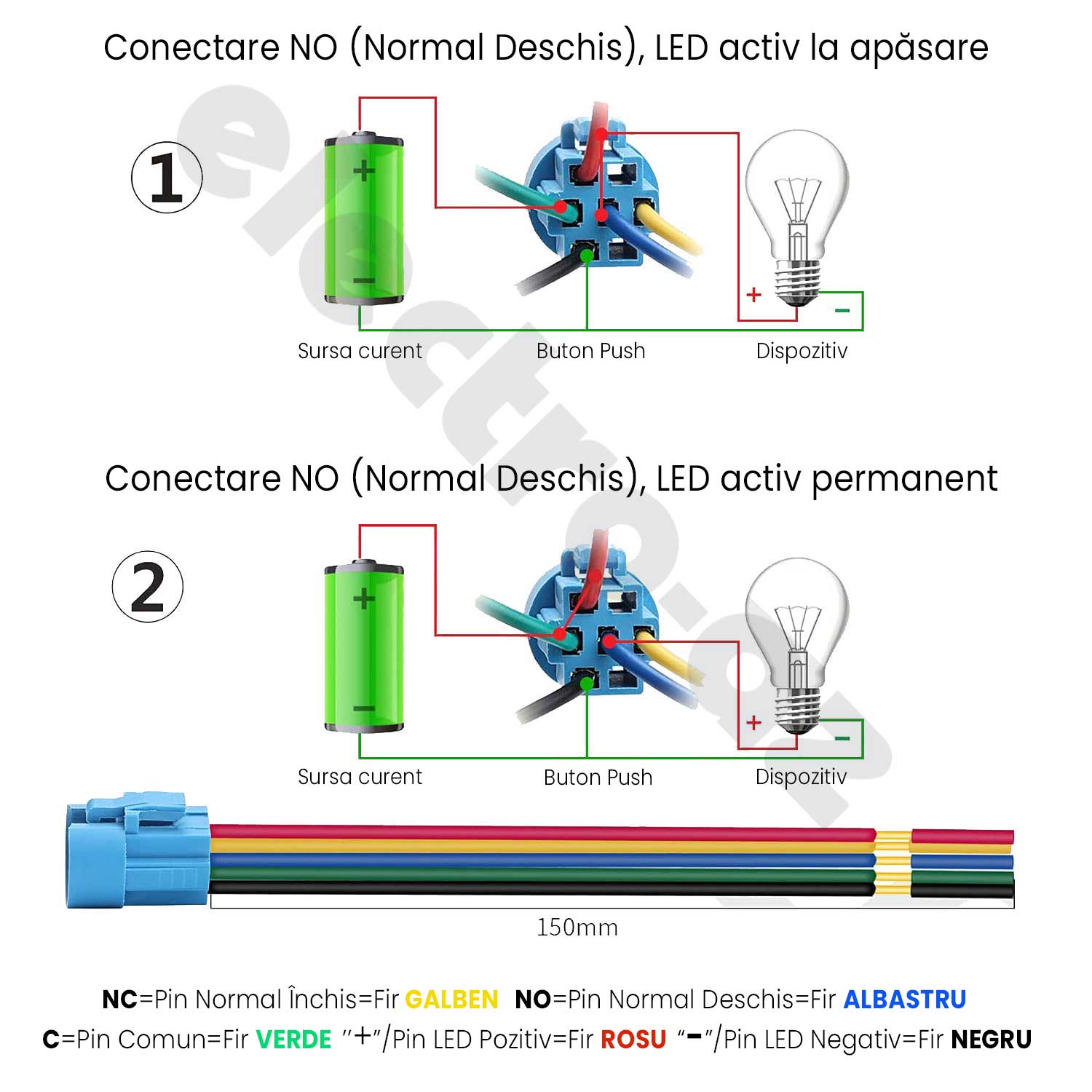

The momentary push button closes the circuit only while pressed, automatically returning to its original position upon release. It is mounted in a panel with a 16mm hole, secured with the included nut, and the prewired connector is connected to a terminal block or directly to wires: red (+LED), black (-LED), green (C-common), blue (NO-normally open), yellow (NC-normally closed). The LED can be configured to light up only when pressed or to remain permanently on, depending on the chosen connection scheme, illustrated in the diagram included in the package.
Frequently Asked Questions
Does the button work at 12V in a car installation?
Yes, the voltage range is 9-30V, so 12V and 24V are nominal operating voltages for this button.
Can I use the button outdoors or in wet environments?
Yes, the rubber gasket and stainless steel construction provide IP65 protection, meaning resistance to water jets from any direction.
What is the difference between NO and NC connections on this button?
In the NO (normally open) configuration, the circuit is open at rest and closes when pressed; in the NC (normally closed) configuration, the circuit is closed at rest and opens when pressed. Select the appropriate pins from the included connector according to the wiring diagram.

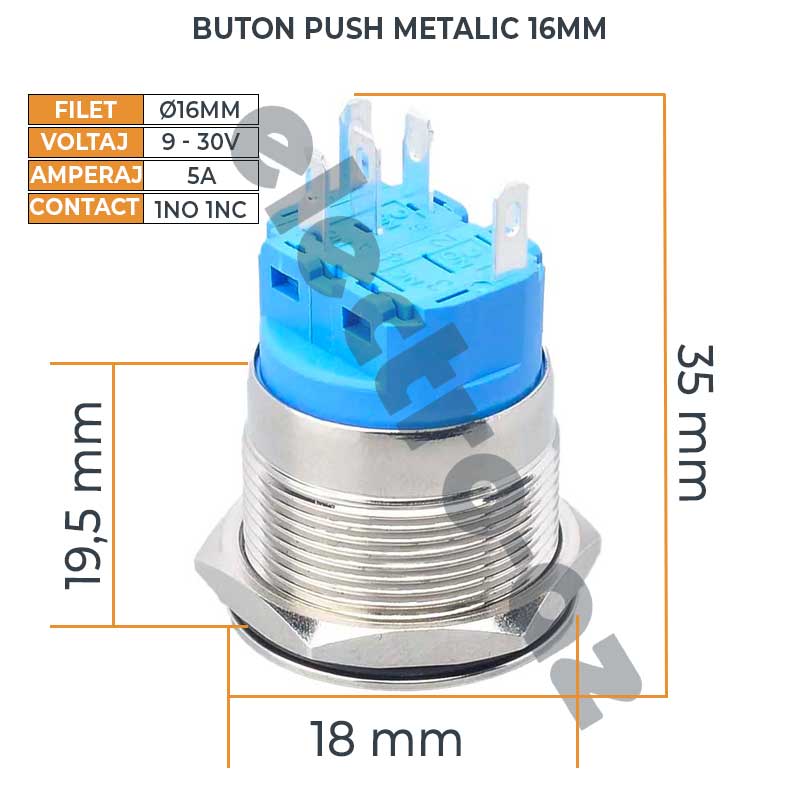

Technical specifications
| Mounting diameter (thread) | 16 mm (M16) |
| Button head diameter | 18 mm |
| Total length | 35 mm |
| Thread depth | 19.5 mm |
| Operating voltage | 9 - 30V DC |
| Maximum current | 5A |
| Contact type | 1NO + 1NC |
| Actuation type | Push with momentary action |
| Ring LED color | Blue |
| Number of pins | 5 (2 LED + 3 contact) |
| Pre-mounted cable length | 150 mm |
| Housing material | Stainless steel |
| Protection class | IP65 |
| Impact resistance | IK09 |
| SKU | EAZ-BP009 |
Warranty and support
The product benefits from a 2-year legal warranty according to current Romanian legislation. Returns accepted within 30 days of delivery, without justification, in accordance with GEO 34/2014. Fast courier delivery throughout Romania.
