22mm Latching Push Button, 12-24V, Red LED, Socket Included, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

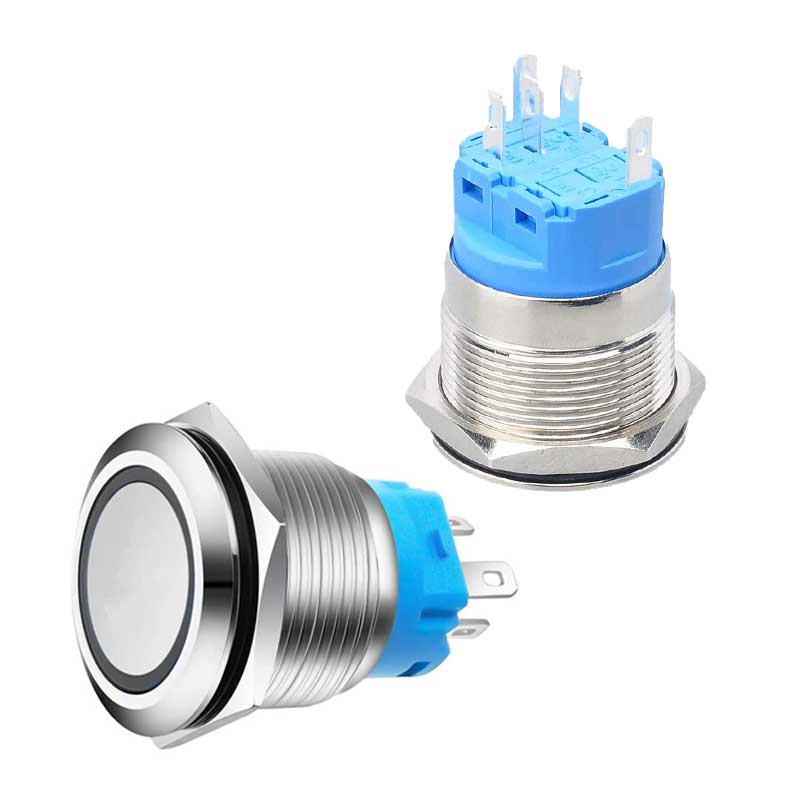

22mm Metal Push Button with Red LED and Included Socket
The 22mm latching push button is a robust solution for industrial control panels, machinery, elevators, and automotive applications requiring a durable and visible switch. Its stainless steel housing, red illuminated ring, and pre-attached connector make it a practical choice for any installation operating at 9-30V DC. The dual NO and NC contacts offer maximum flexibility in the wiring scheme.
What you get with this product
- Socket with 150mm pre-attached cables included in the package — connect directly without crimping pliers or additional accessories
- Compatible with 9-30V DC — works without modifications at both 12V and 24V, the standard voltages in industrial and automotive installations
- Vandal-proof metal body with IP67 protection — resistant to dust, moisture, and mechanical impacts, also suitable for harsh environments
- NO and NC contacts available simultaneously — adapt the wiring scheme to your installation's needs without buying another type of button

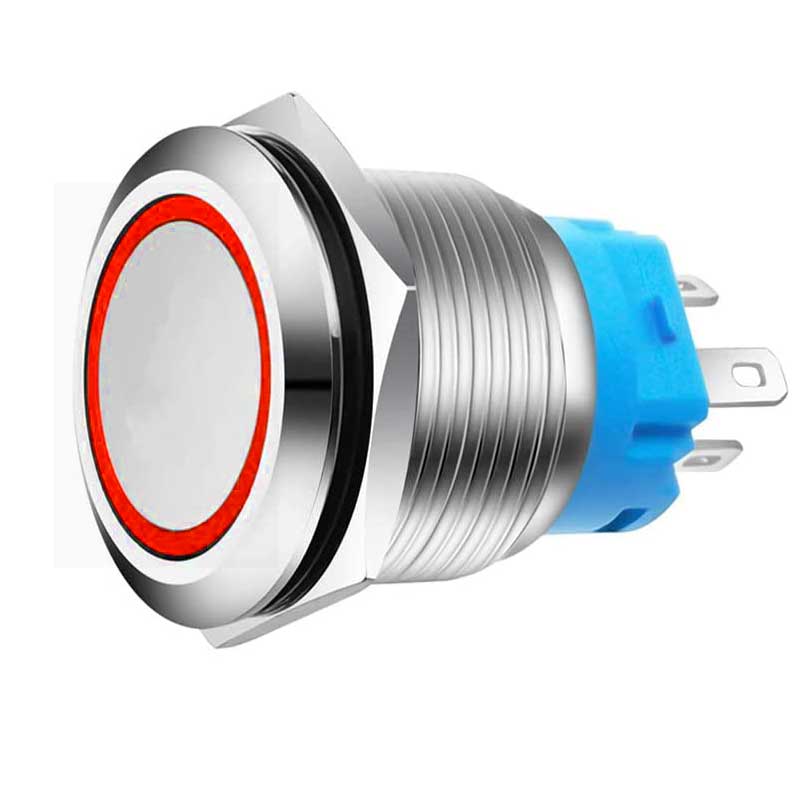

- Red LED ring visible even in strong lighting conditions — visually confirms the active state of the circuit
- Quick installation in a 22mm hole — removable nut and rubber gasket included, secure fastening in panels up to 15mm thick
How it works and how to install it

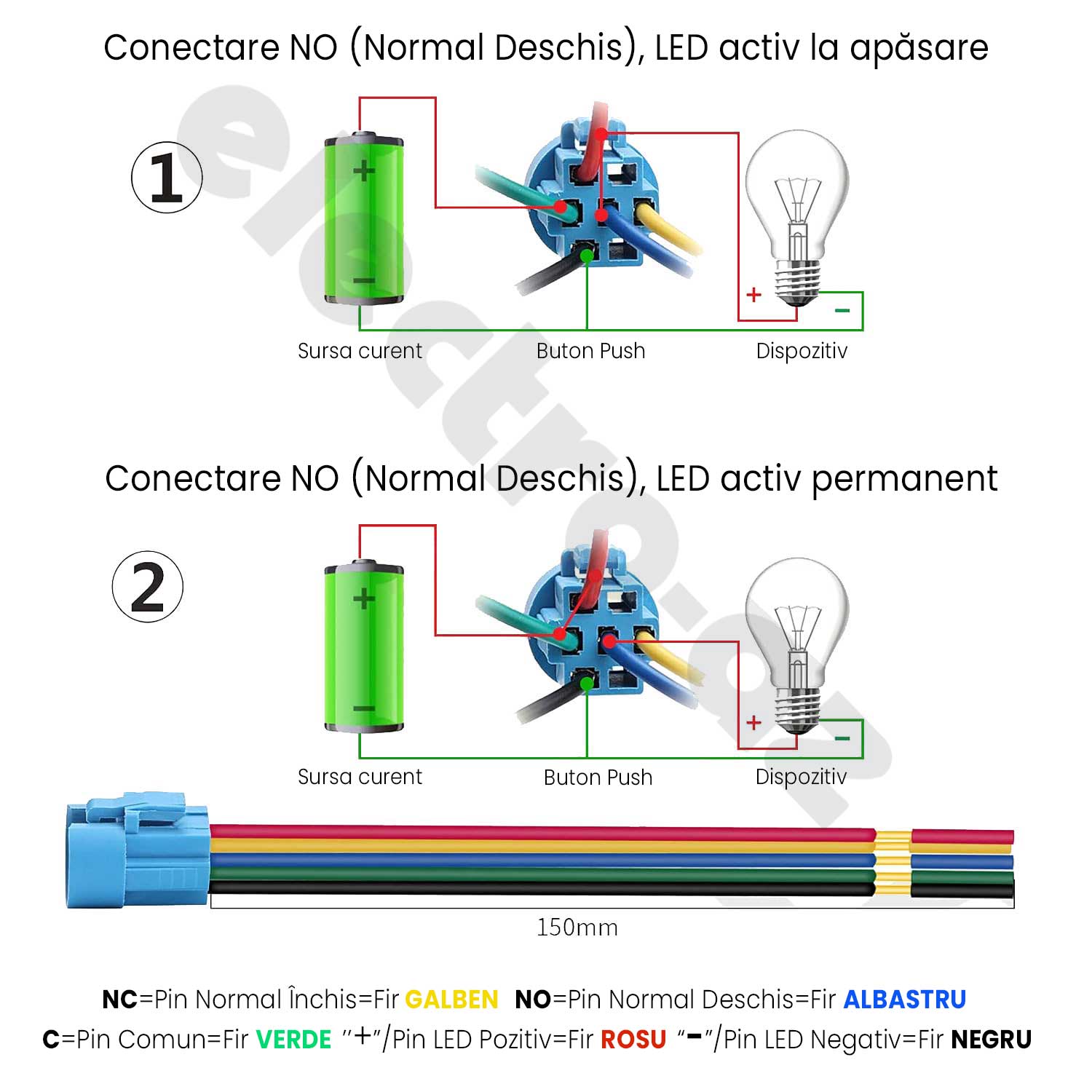

The 22mm push button is mounted in a 22mm hole (M22 thread) by front insertion and secured with the nut from the back — an operation achievable in a few minutes with a spanner. Connection is made via the included 5-wire socket: red wire for positive LED, black wire for negative LED, green wire for common pin (C), blue wire for NO (normally open), and yellow wire for NC (normally closed). The LED can be configured to light up only when pressed or to remain permanently lit, depending on the scheme chosen according to the diagram in the package.
Frequently Asked Questions
Does the button work at 12V or do I need additional resistance for the LED?
The button works natively in the 9-30V DC range, including 12V and 24V, without external resistance — the LED protection circuit is internally integrated.
What does a latching button mean and how does it differ from a momentary button?
A latching button keeps the circuit closed after pressing until a new press (ON/OFF function), unlike a momentary button which closes the circuit only while it is pressed.
Is it waterproof? Can I mount it outdoors or on equipment exposed to water?
Yes, the button has IP67 protection, which means it resists short immersion in water and is completely dust-tight — suitable for outdoor mounting or on equipment exposed to moisture.
Technical Specifications

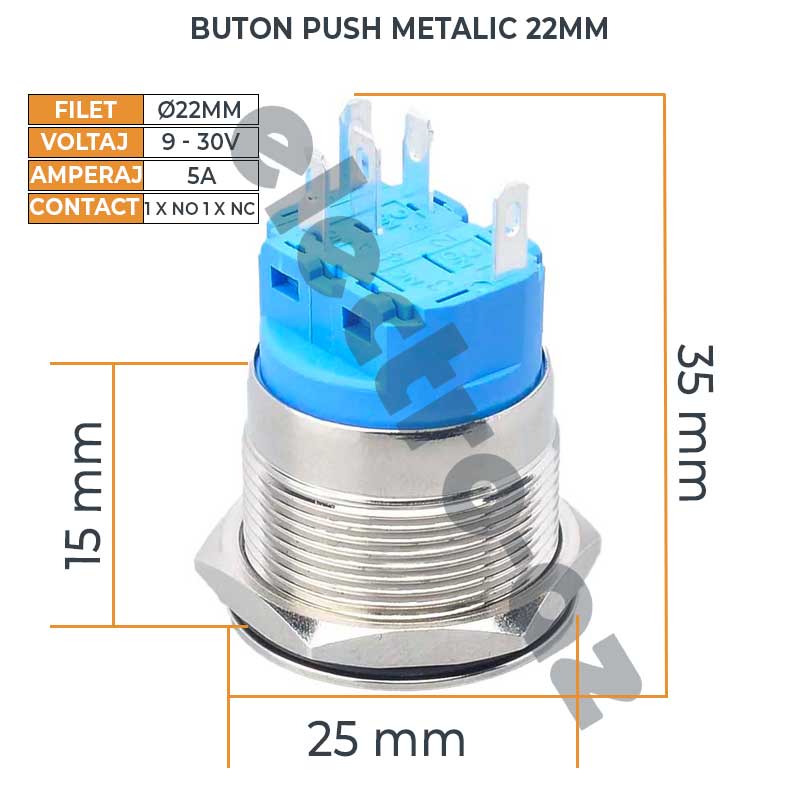

| Mounting diameter (thread) | M22 mm |
| Button head diameter | 25 mm |
| Overall length | 35 mm |
| Mounting depth (panel thickness) | max. 15 mm |
| Supply voltage | 9 - 30V DC |
| Maximum contact current | 5A |

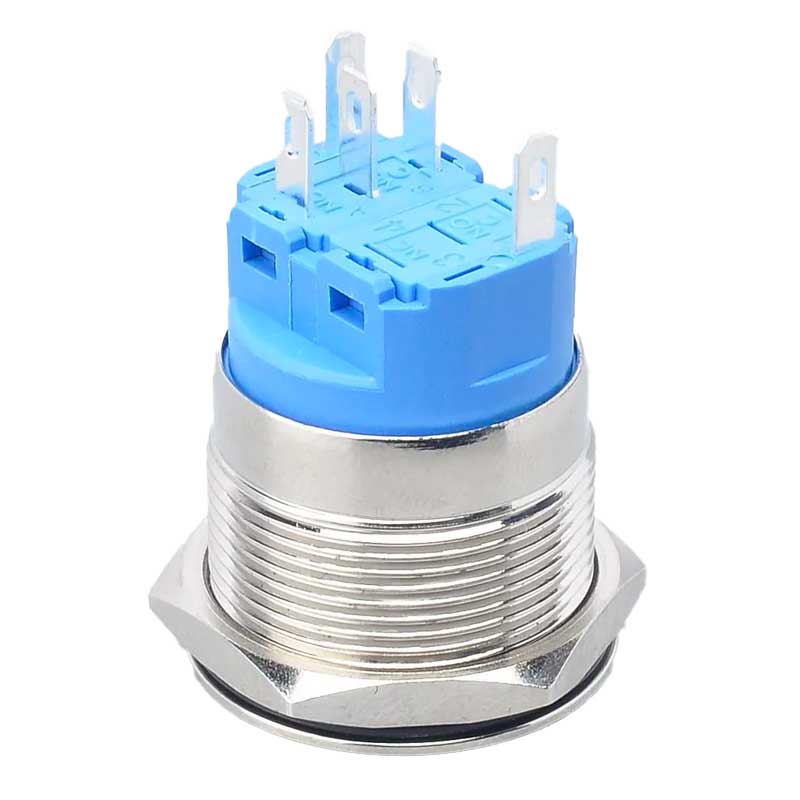

| Contact type | 1 x NO (Normally Open) + 1 x NC (Normally Closed) |
| Number of pins | 5 (2 LED + 3 contact) |
| Socket cable length | 150 mm |
| LED color | Red |
| Button type | Latching (ON/OFF) |
| Body material | Stainless steel 304/316 |
| Protection class | IP67 |
| Mechanical resistance | IK09 |
| SKU | EAZ-BP015 |
Warranty and support
The product benefits from a 2-year legal warranty according to Romanian legislation. Returns accepted within 30 days of receiving the order, no additional justification required. Fast delivery by courier throughout Romania, with email confirmation and tracking number.
