22mm Latching Push Button, 12-24V, White LED, Socket Included, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

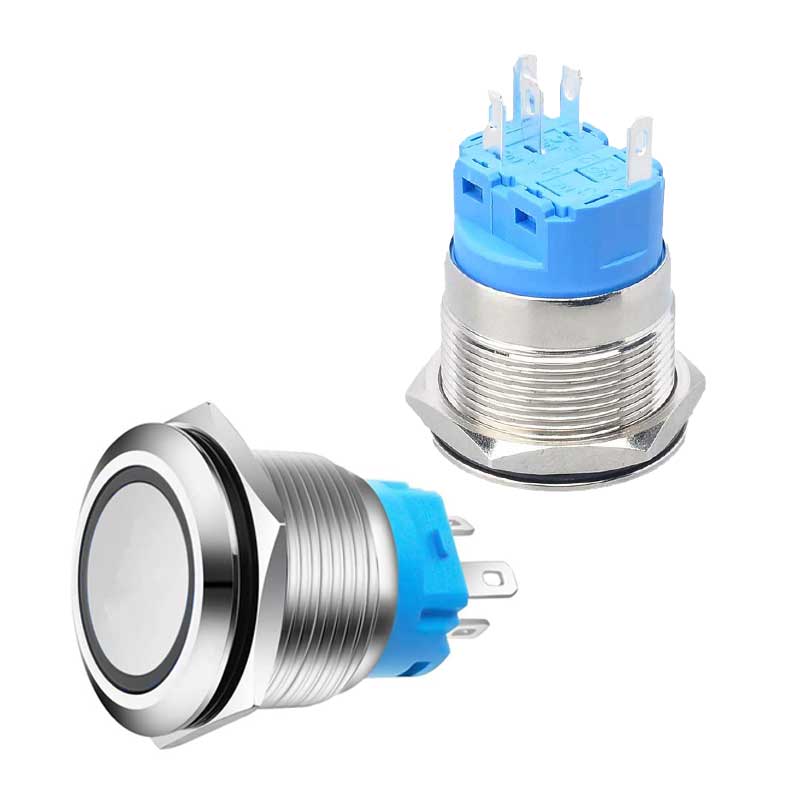

22mm Metal Push Button with White LED and Included Connector
The 22mm push button with white LED is the robust solution for industrial control panels, machinery, elevators, and automotive applications that require a reliable and durable switch. Its stainless steel housing, IP65 protection rating, and dual NO/NC contacts make it suitable for both wet environments and installations exposed to mechanical stress. The connector with pre-wired 150mm cables is included, eliminating any additional wiring effort.
What you get with this product
- Fast installation without manual wiring — the 5-wire color-coded connector (150mm) is included in the package, ready to connect
- Compatible with 9V to 30V systems — works without modifications at 12V and 24V, the most common voltages in industrial and automotive applications
- Water and vandalism resistant — 304/316 stainless steel body, IP65 and IK09, suitable for outdoor mounting or in harsh environments
- Maximum connection flexibility — NO and NC contacts allow adapting the button to almost any electrical scheme, with the LED active when pressed or permanently on
- Simple mounting on standard panel — M22 thread, removable nut, and rubber gasket included, fixed in any 22mm hole without special tools

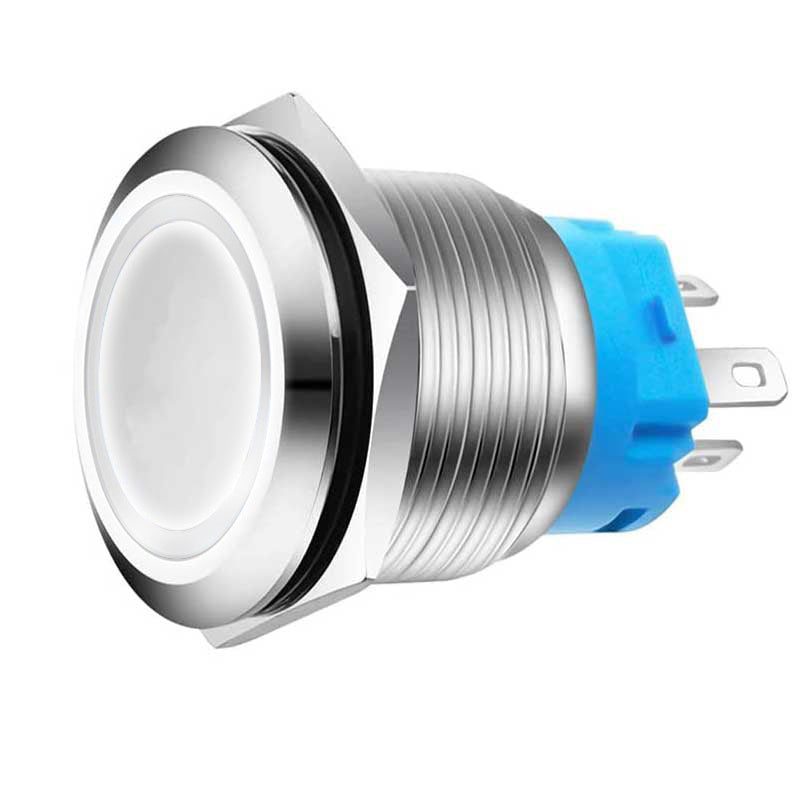

- Clear visibility in all conditions — the white LED ring indicates the active status of the button even in dimly lit spaces or on operating machinery
How it works and how to install it

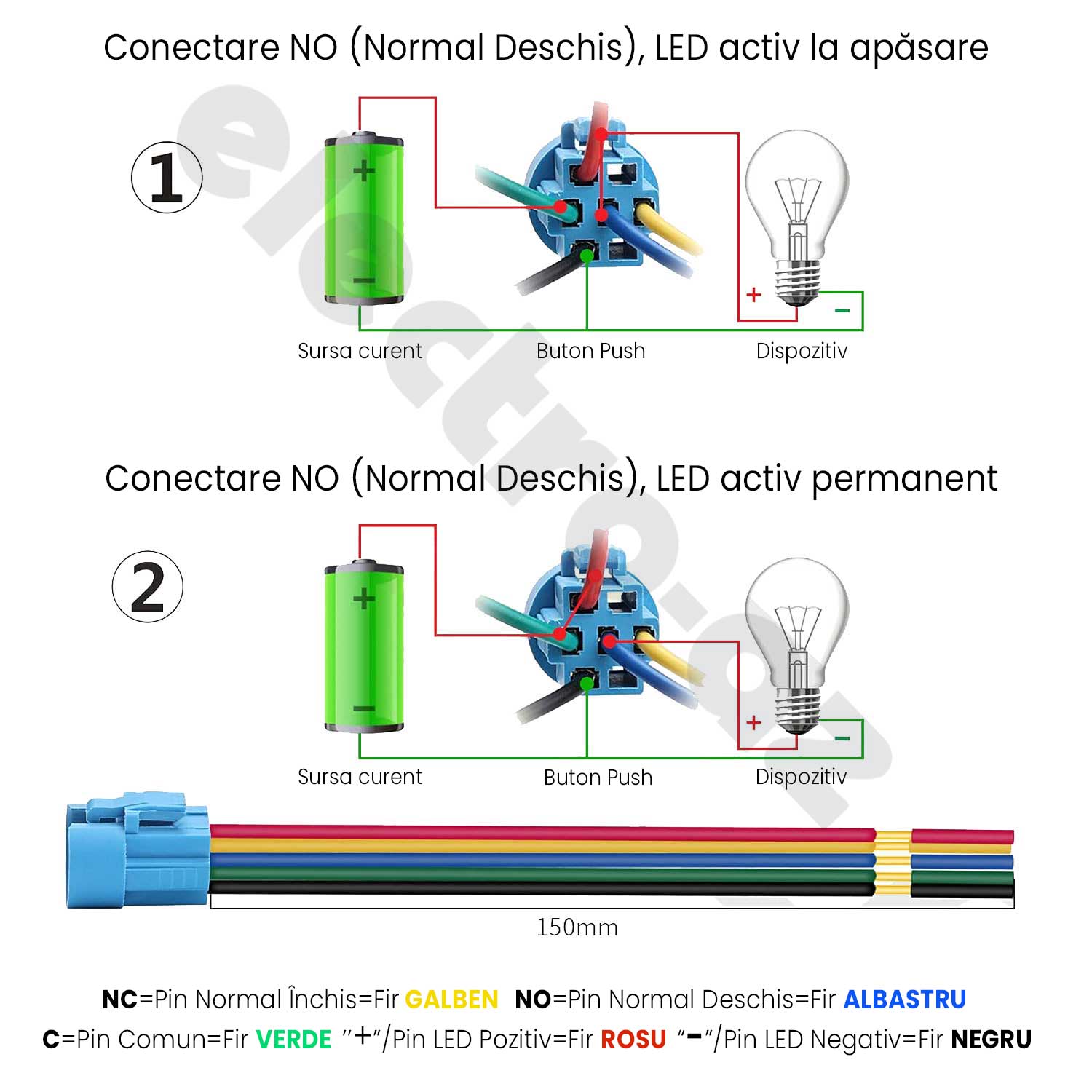

The 22mm push button is installed by inserting it into the 22mm hole in the control panel and securing it with the included removable nut — the operation takes less than 10 minutes without an electrician. The 5 wires of the connector are color-coded: green (Common), blue (NO), yellow (NC), red (LED +), and black (LED -), allowing direct connection according to the provided diagram. You can choose between two LED operating modes: active only when pressed or permanently active, depending on how you connect the NO pins and the LED power supply.
Frequently Asked Questions
Does this push button work at 12V and 24V simultaneously?
Yes, the operating range is 9-30V, so the button is natively compatible with both 12V and 24V systems without any modification.
Does the button retain its position after pressing or does it return on its own?
The button has a latching (maintained) function, remaining in the pressed position until another press releases it.
Can it be mounted outdoors or in wet environments?
Yes, the stainless steel housing and rubber gasket provide IP65 protection, meaning resistance to water jets and high humidity.
Technical Specifications

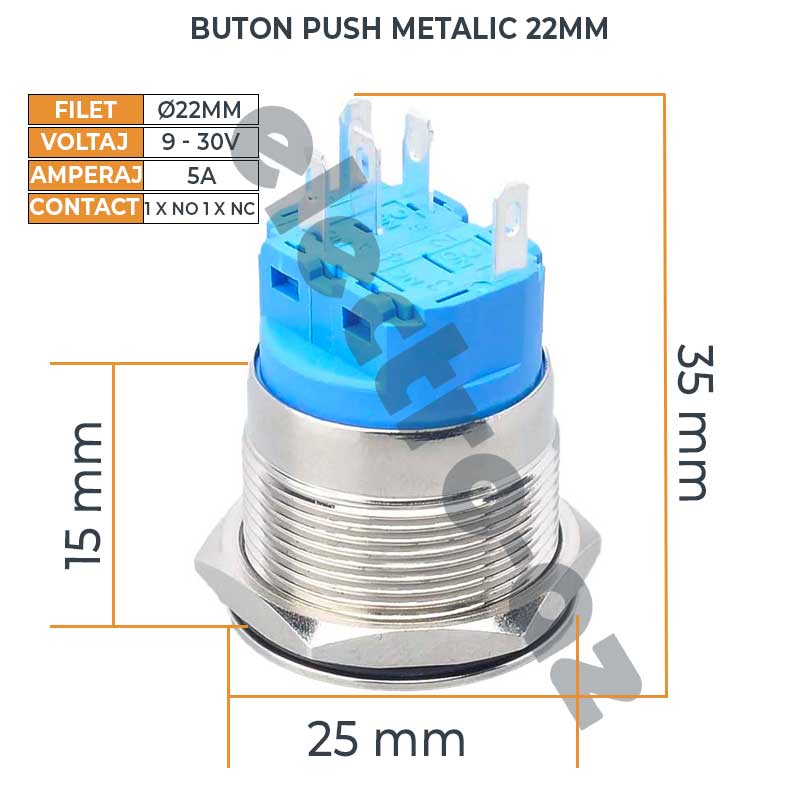

| Mounting diameter (thread) | M22 mm |
| Button head diameter | 25 mm |
| Total length | 35 mm |
| Thread depth | 15 mm |
| Supply voltage | 9 - 30V DC |
| Maximum current | 5A |

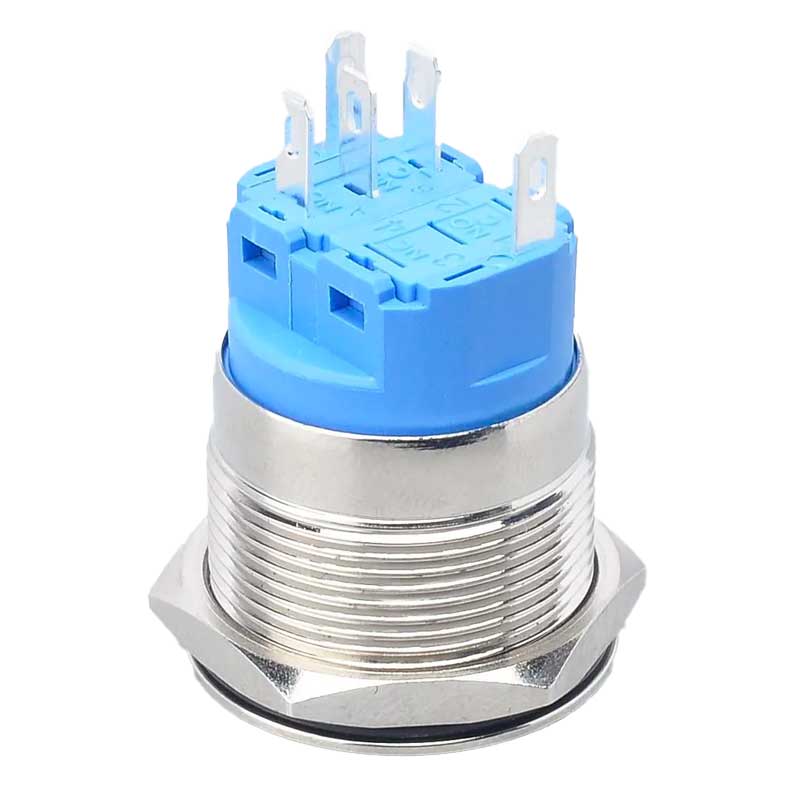

| Contact type | 1 x NO, 1 x NC |
| Number of connection pins | 5 pins (2 LED + 3 contact) |
| Connector wire length | 150 mm |
| LED color | White |
| Action type | Latching (maintained) |
| Body material | 304/316 Stainless steel |
| Protection class | IP65 |
| Impact resistance | IK09 |
| SKU | EAZ-BP013 |
Warranty and support
The product benefits from a 2-year warranty according to current Romanian legislation. You can return the product within 30 days of receipt if it does not meet expectations. Delivery is fast by courier, with shipping confirmation and tracking included.
