16mm Push Button with Return, 12-24V, Green LED, Plug included, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 19,99 lei | — |
| 3–4 pcs | 18,99 lei | 5% (−1,00 lei/unit) |
| 5–10 pcs | 17,99 lei | 10% (−2,00 lei/unit) |
| 11+ pcs | 16,99 lei | 15% (−3,00 lei/unit) |

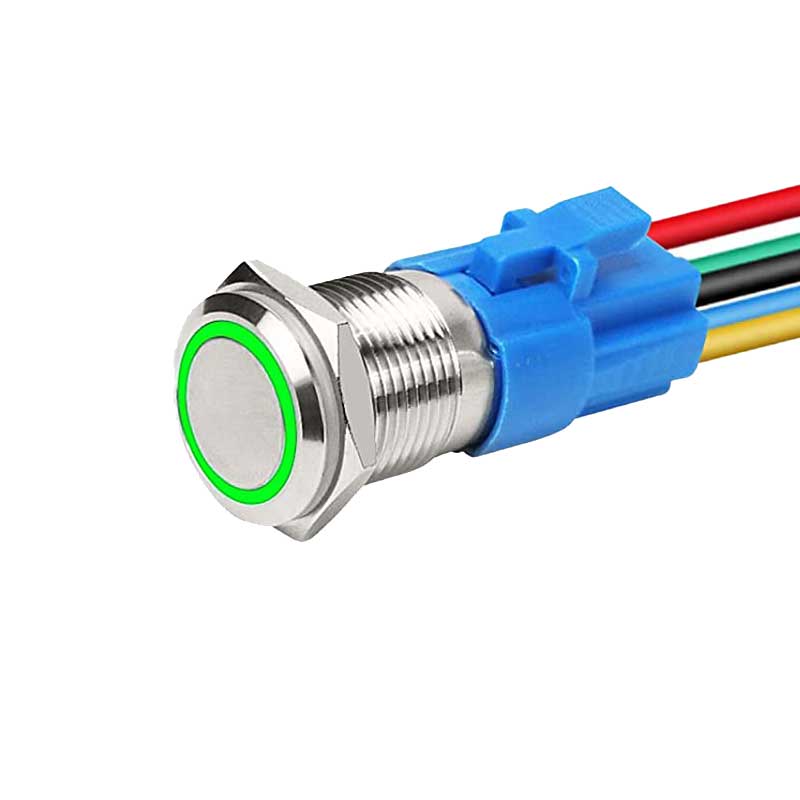

16mm Metal Push Button with Green LED and Included Connector
The 16mm push button with green LED is a robust solution for industrial control panels, machinery, elevators, and automotive or residential applications requiring a reliable momentary switch. The stainless steel housing and vandal-proof construction ensure long-lasting operation even in demanding environments. Connection is simplified by the included pre-assembled cable connector, with color-coded wires for each pin.
What you get with this product
- Included connection connector with color-coded wires — instantly identify each pin and save time during wiring
- Compatible with 9-30V DC systems — works without modifications at both 12V and 24V, the most common industrial voltages
- Double contact 1NO + 1NC — choose the normally open or normally closed circuit type directly from the connection method, without additional parts
- Vandal-proof stainless steel body with rubber gasket — resistant to moisture, vibrations, and repeated mechanical stress
- Visible green LED with illuminated ring — visually confirms the active circuit status, useful in low light conditions
- Quick mounting with M16 thread and detachable nut — secures into any panel with a 16mm hole without special tools
How it works and how to install it

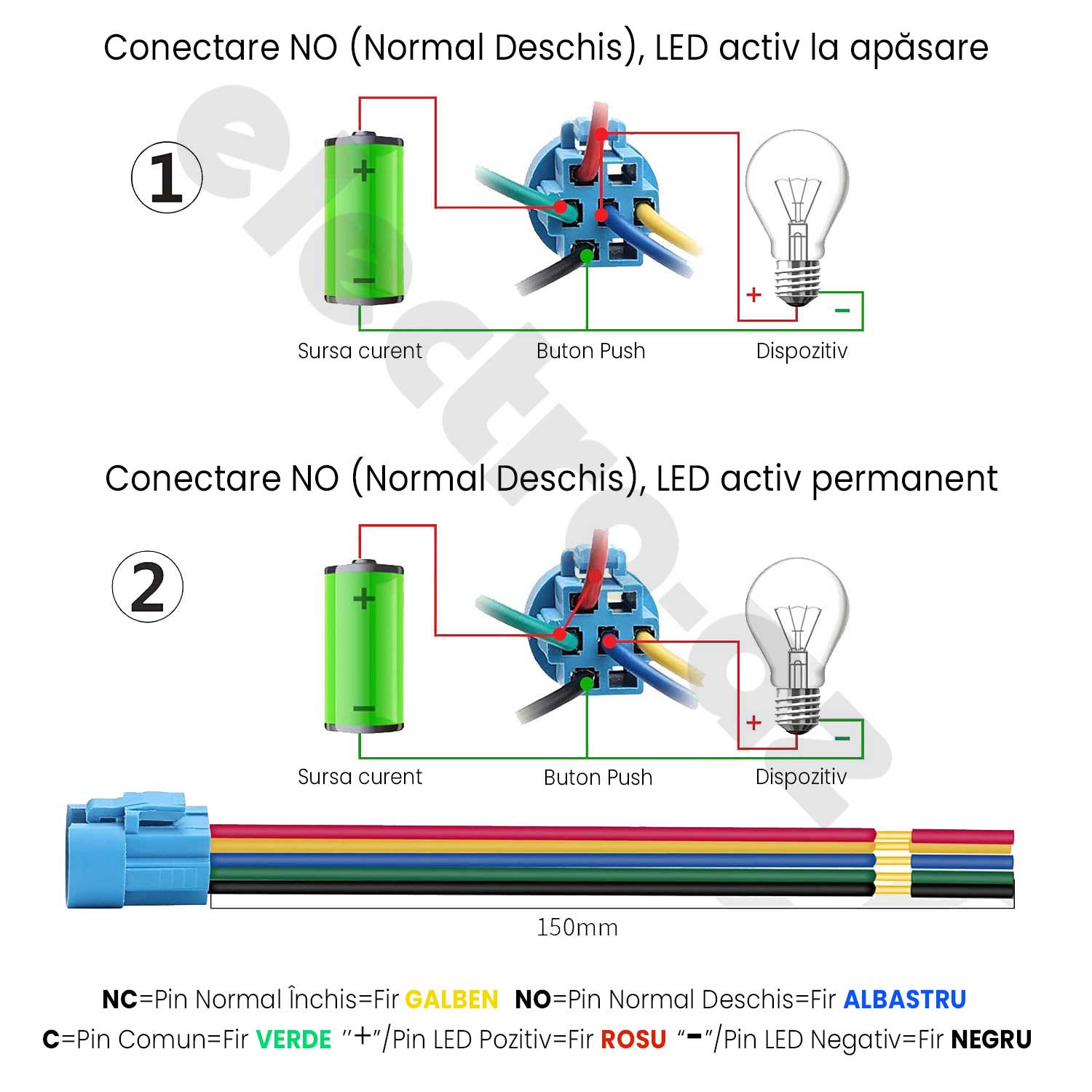

The momentary push button closes the circuit only while pressed, automatically returning to its initial position upon release. Installation involves drilling a 16mm hole in the panel, inserting the button through the hole, and tightening the nut on the back — an operation that can be completed in a few minutes without an electrician. Wiring is done based on the color-coded wires: red for positive LED, black for negative LED, green for common pin (C), blue for NO, and yellow for NC, according to the included diagram.
Frequently Asked Questions
Does the button work directly at 12V or do I need an additional resistor?
Yes, the button works directly at 12V and 24V without additional components — the LED is sized for the entire 9-30V DC range.
What does 1NO 1NC contact mean and which one should I use?
1NO means the circuit closes when pressed (Normally Open), and 1NC means the circuit opens when pressed (Normally Closed). You choose the desired type by connecting the wires to the corresponding pins according to the wiring diagram.

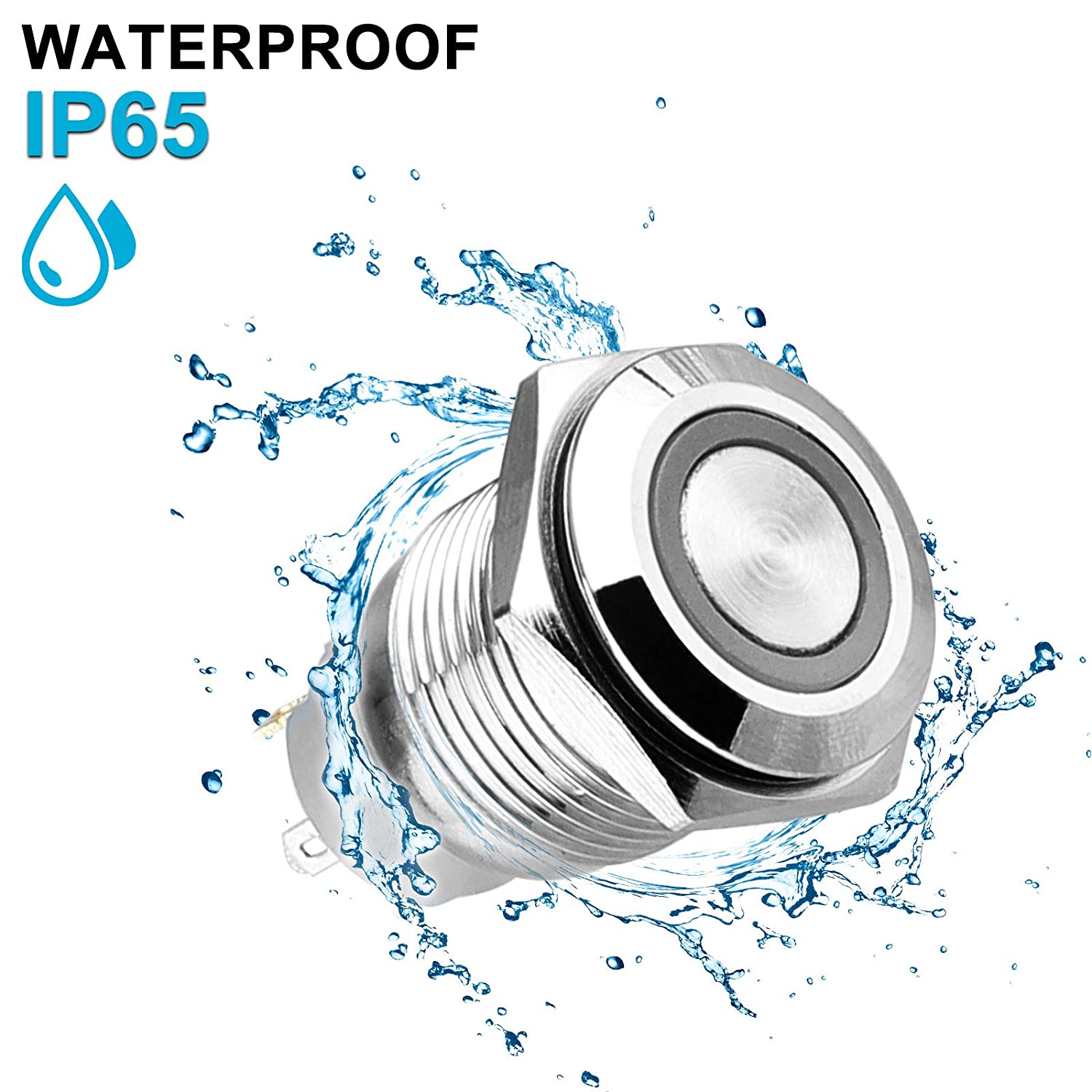

Is the button resistant to water or moisture?
Yes, the construction includes a rubber gasket at the base and a stainless steel metal body, providing protection against moisture ingress — suitable for panels exposed to high humidity environments.
Technical Specifications

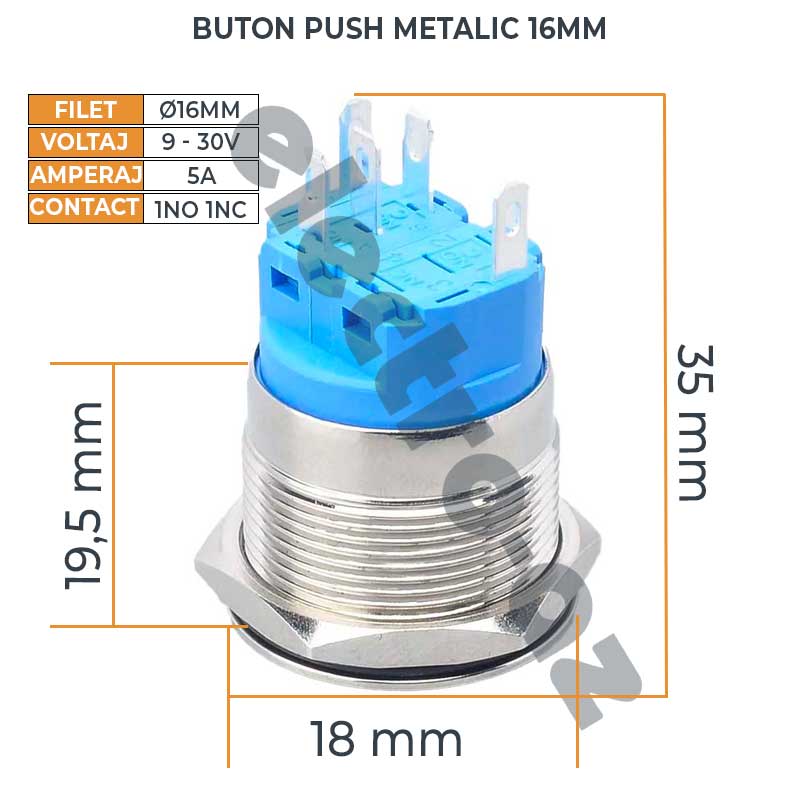

| Thread diameter | M16 mm |
| Mounting diameter | 16 mm |
| Supply voltage | 9 - 30V DC |
| Maximum contact current | 5A |
| Contact type | 1NO + 1NC (momentary) |
| LED color | Green, illuminated ring |

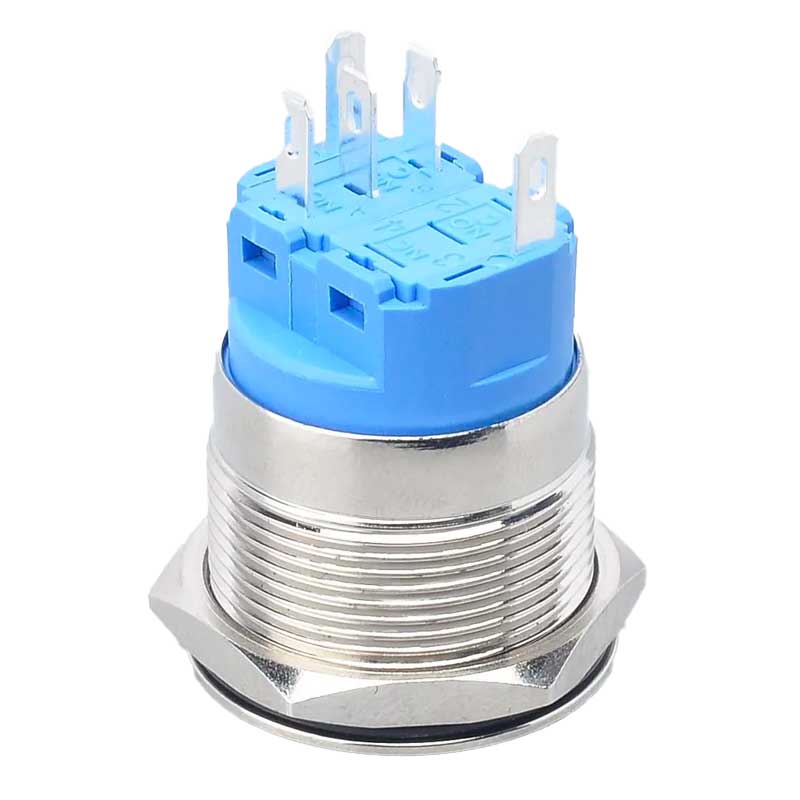

| Number of pins | 5 (2 LED + 3 contact) |
| Connector wire length | 150 mm |
| Button head diameter | 18 mm |
| Thread length | 19.5 mm |
| Total length | 35 mm |
| Body material | Vandal-proof stainless steel |
| Gasket | Rubber, included |
| Connection connector | Included, color-coded wires |

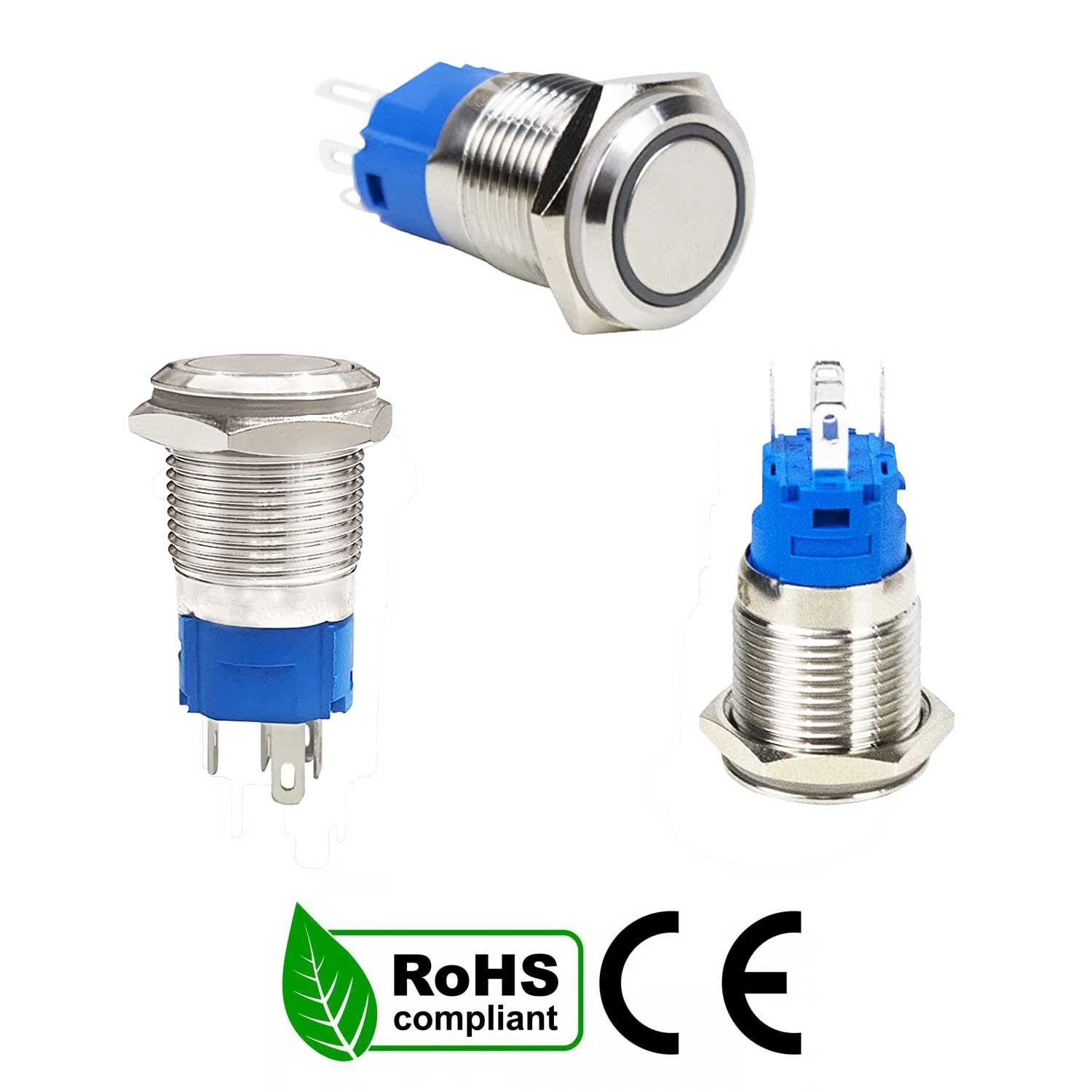

| Certifications | CE, RoHS |
| SKU | EAZ-BP065 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, with no obligation to provide a reason. Delivery is fast by courier throughout Romania.
