16mm Latching Push Button, 12-24V, Red LED, Socket included, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 19,99 lei | — |
| 3–4 pcs | 18,99 lei | 5% (−1,00 lei/unit) |
| 5–10 pcs | 17,99 lei | 10% (−2,00 lei/unit) |
| 11+ pcs | 16,99 lei | 15% (−3,00 lei/unit) |

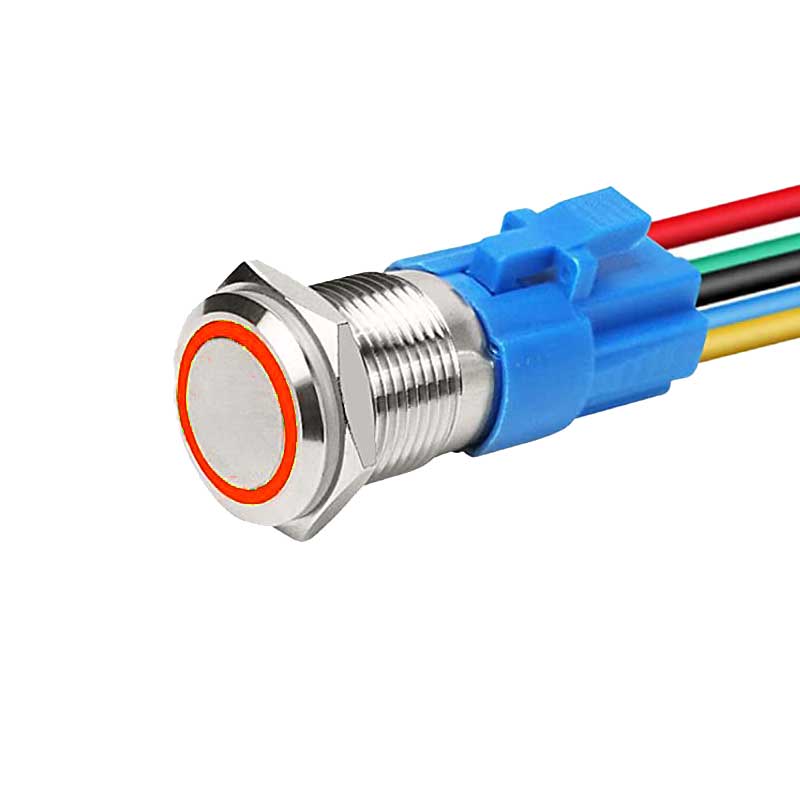

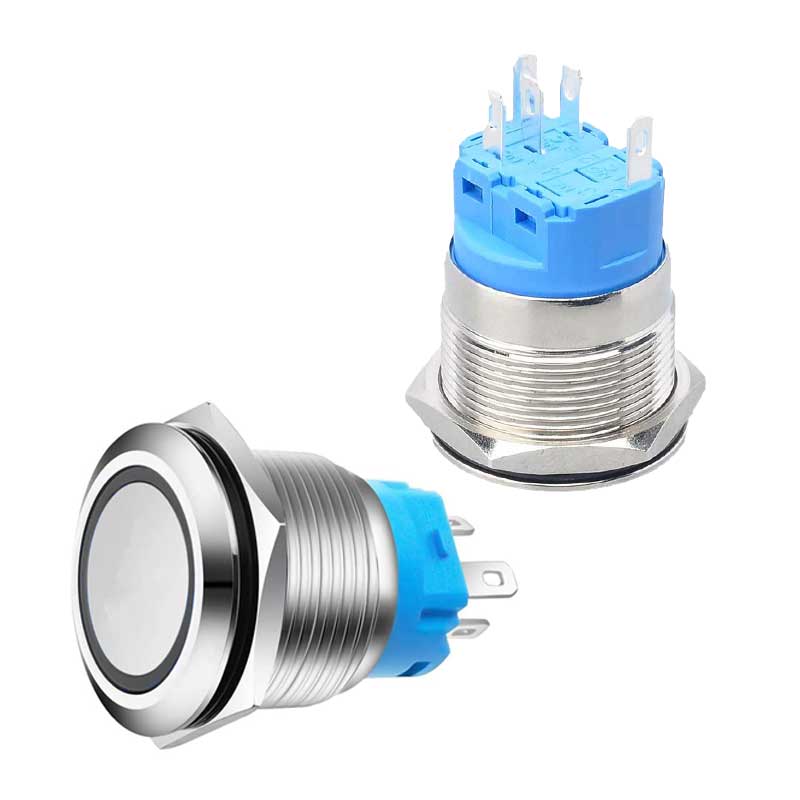

16mm Metal Push Button with Red LED and Included Connector
The 16mm momentary push button is a robust solution for industrial control panels, technical equipment, and automotive or residential applications that require a reliable momentary contact. Its stainless steel housing, red ring LED, and pre-mounted connector make it suitable where durability and quick installation are important. It operates at voltages between 9V and 30V, covering both 12V and 24V systems.
What you get with this product
- Connection plug included in the package — no need for additional accessories to start wiring
- Visible red ring LED — visually confirms circuit status without additional instruments
- Anti-vandal stainless steel metal body — withstands intensive use, accidental impacts, and wet conditions
- Compatible with 9–30V DC — integrates directly into 12V or 24V systems without an adapter
- Dual contact NO and NC on the same button — choose the desired circuit type from the connection method, without buying different variants
- Rubber gasket and removable nut included — watertight mounting directly into the control panel, with no missing parts
How it works and how to install it

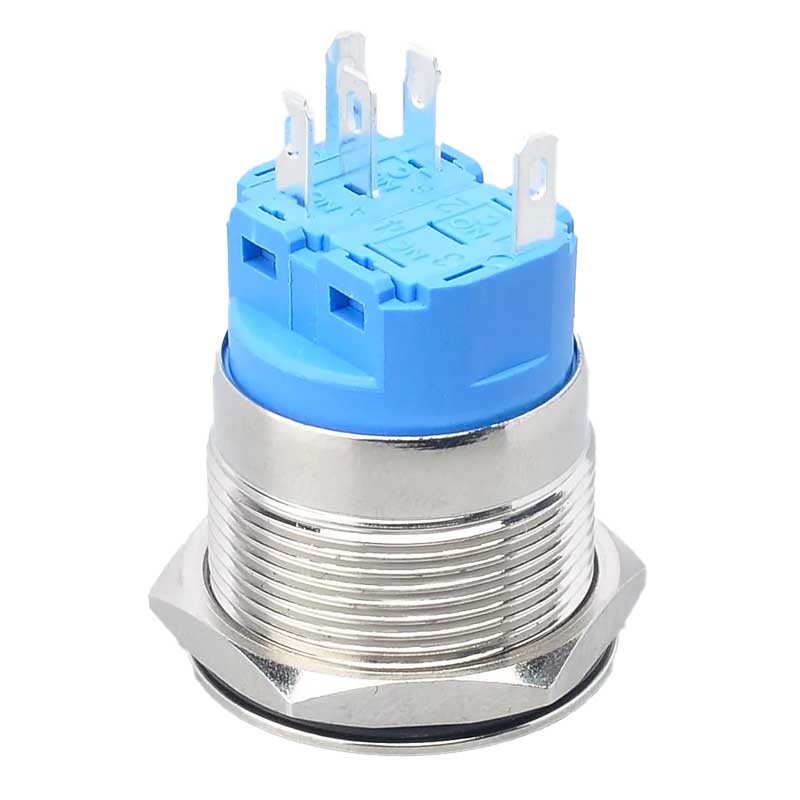

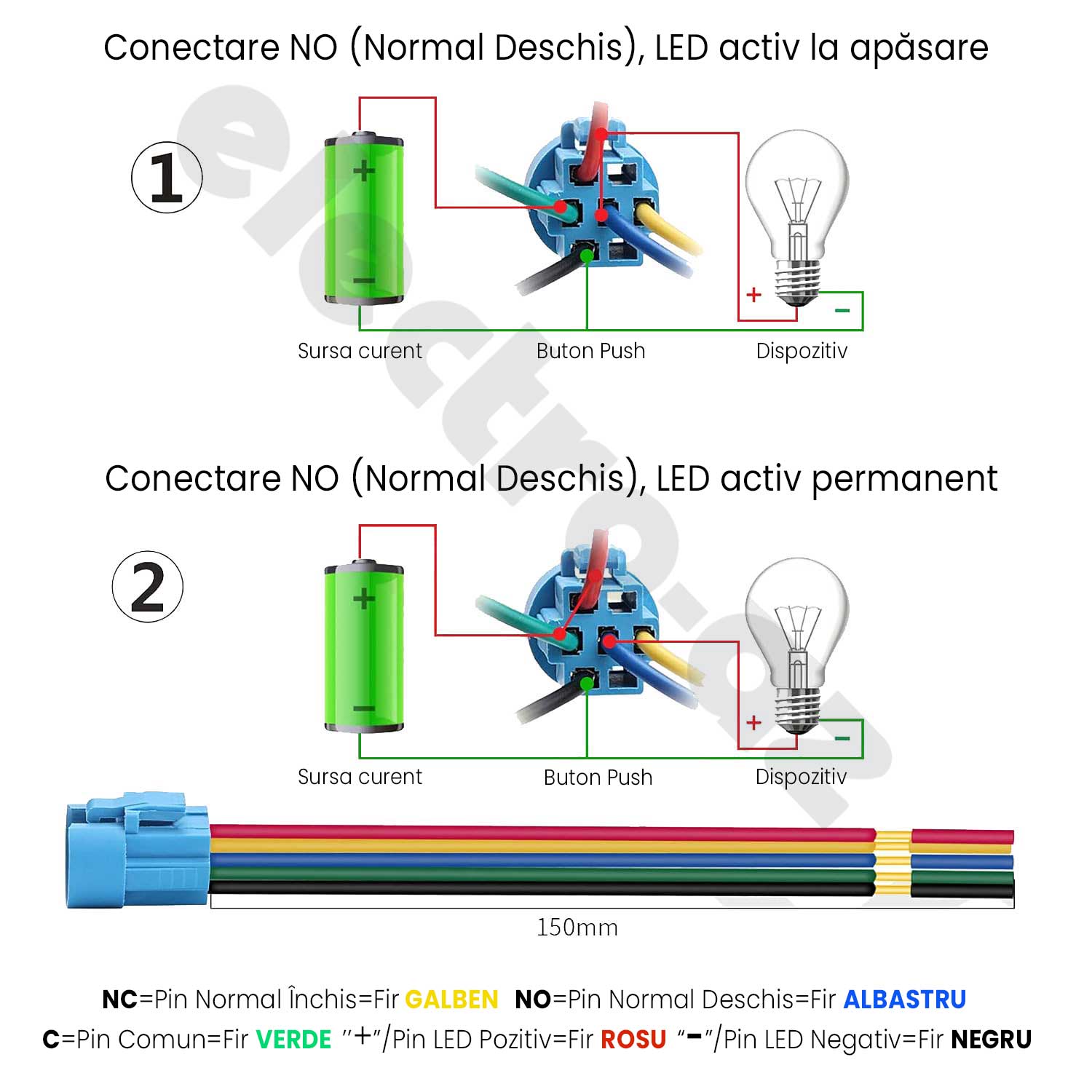

The 16mm momentary push button is mounted in a 16mm diameter hole using the M16 thread and included nut. The connection is made via the 5-wire plug: red (LED+), black (LED-), green (common pin C), blue (NO pin — normally open), and yellow (NC pin — normally closed). Depending on the desired circuit type, connect the load to either the blue wire (NO) or the yellow wire (NC). The LED can be powered permanently or only when pressed, as shown in the connection diagrams supplied with the product.
Frequently Asked Questions
Does the button stay pressed or does it return on its own after being pressed?
It returns on its own — it's a momentary button; the circuit closes only while you hold it down, then it returns to its initial state.
Does it work with 12V and 24V simultaneously?
Yes, the button accepts any voltage between 9V and 30V DC, so it is compatible with both 12V and 24V systems.

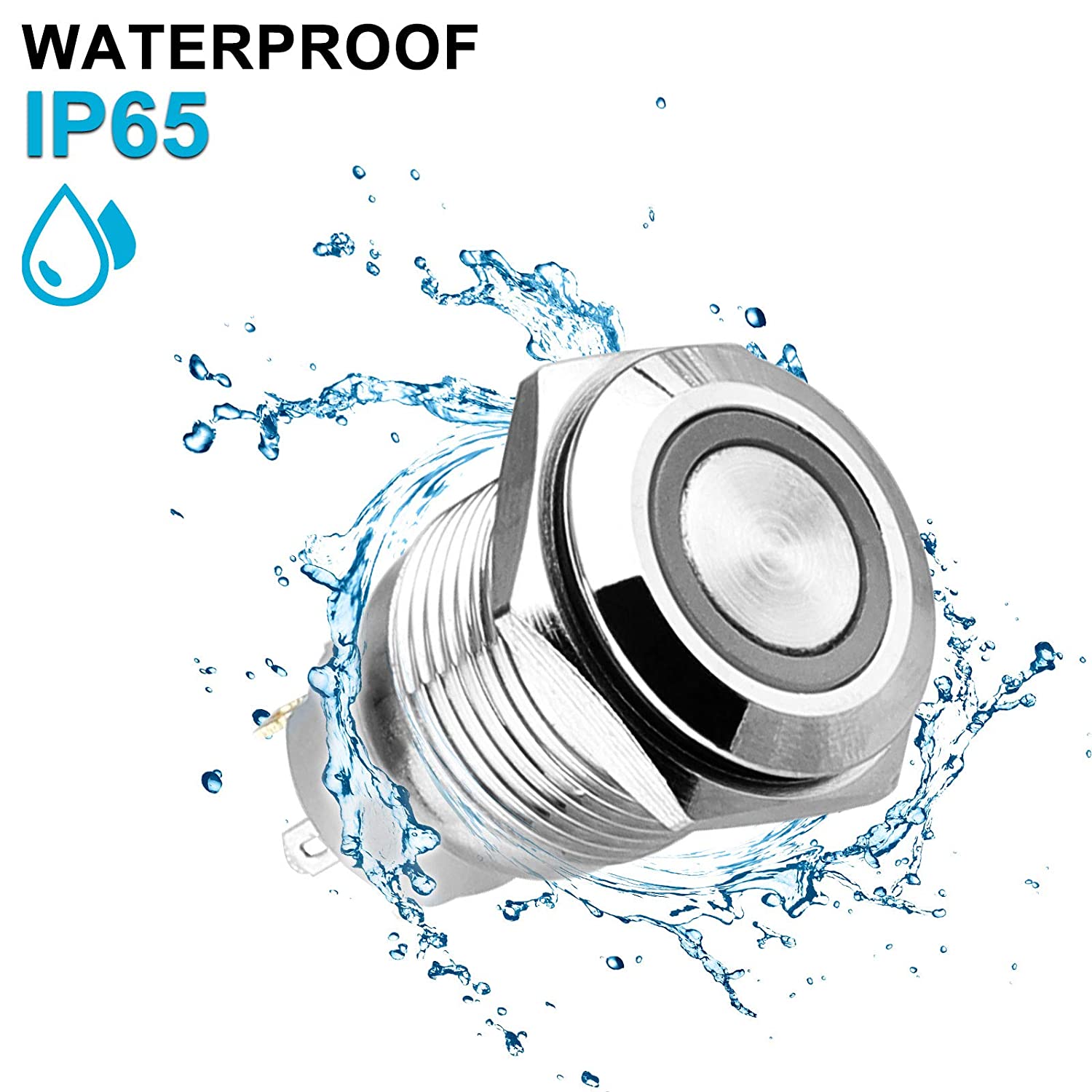

Is it waterproof, can I mount it outdoors or on equipment exposed to moisture?
The metal housing and rubber gasket provide protection against splashes, making it suitable for mounting in panels exposed to moisture; for full immersion, it is recommended to check the specific conditions of the application.

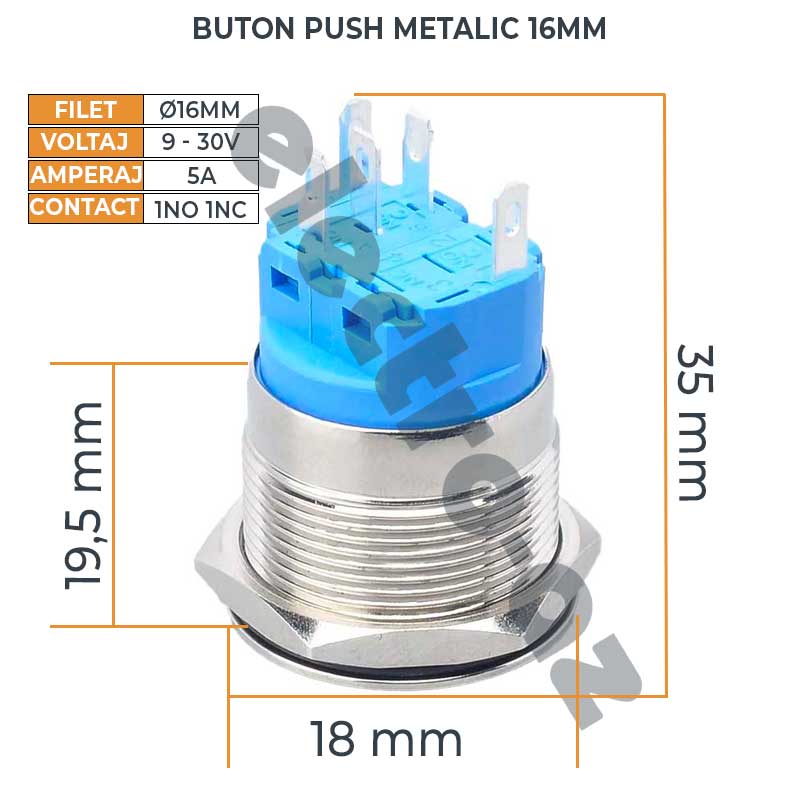

Technical Specifications
| Thread diameter | M16 mm |
| Mounting diameter | 16 mm |
| Supply voltage | 9 – 30V DC |
| Maximum current | 5A |
| Contact type | 1NO + 1NC |
| Actuation type | Momentary |
| LED color | Red |
| Number of connection pins | 5 (2 LED, 3 contact) |
| Cable length of connector | 150 mm |
| Flange width | 18 mm |
| Thread length | 19.5 mm |
| Total length | 35 mm |
| Body material | Stainless steel |
| Connection plug | Included |

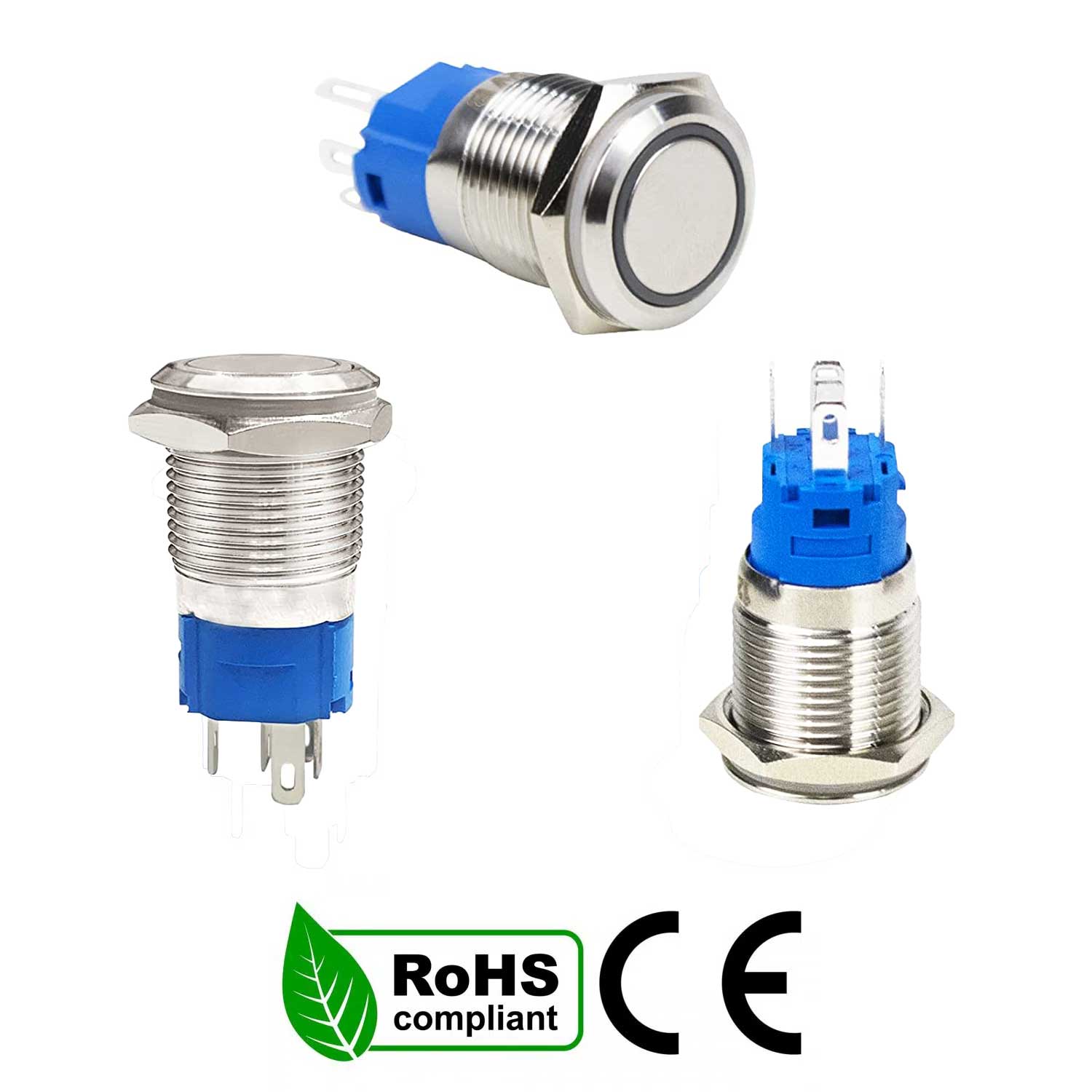

| Certifications | CE, RoHS |
| SKU | EAZ-BP062 |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the package, with no obligation to provide a reason. Delivery is fast by courier, with shipping confirmation and tracking capability.
