16mm Latching Push Button, 12-24V, Green LED, Plug included, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 19,99 lei | — |
| 3–4 pcs | 18,99 lei | 5% (−1,00 lei/unit) |
| 5–10 pcs | 17,99 lei | 10% (−2,00 lei/unit) |
| 11+ pcs | 16,99 lei | 15% (−3,00 lei/unit) |

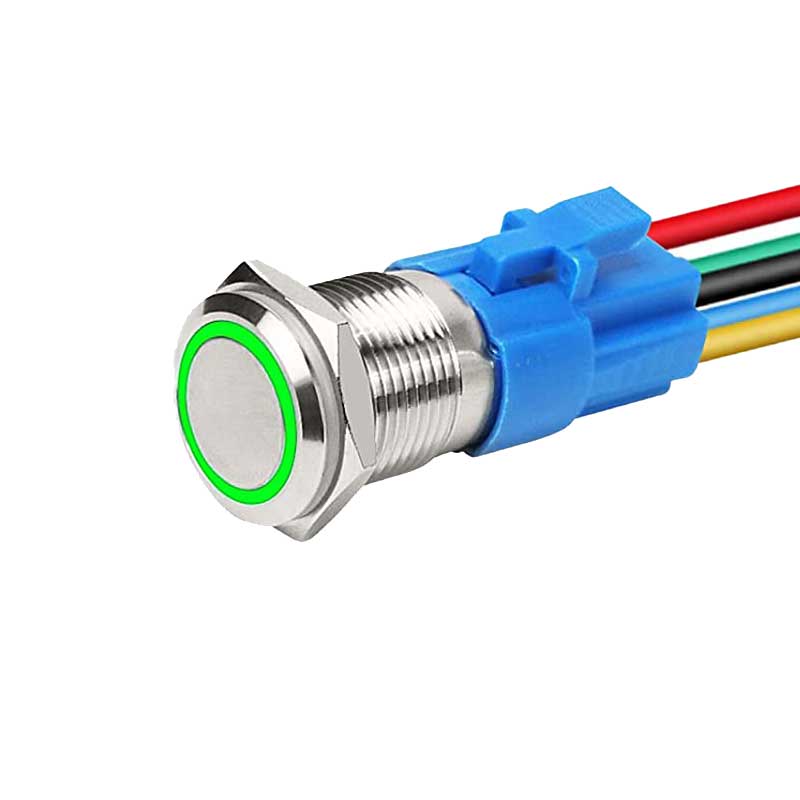

16mm Metallic Push Button with Green LED and Included Socket
The 16mm push button with green LED is a robust solution for industrial control panels, machinery, elevators, and automotive applications where safe and visible switching is required. The stainless steel housing, anti-vandal construction, and wide 9-30V power supply range make it compatible with most 12V and 24V electrical systems. The 5-wire color-coded connection socket is included in the package, eliminating the need for additional connectors.
What you get with this product
- Connection socket included with pre-coded wires — quick connection without extra parts and without risk of confusing pins
- Green LED with ring-type illumination — active status is clearly visible even in strong ambient light conditions

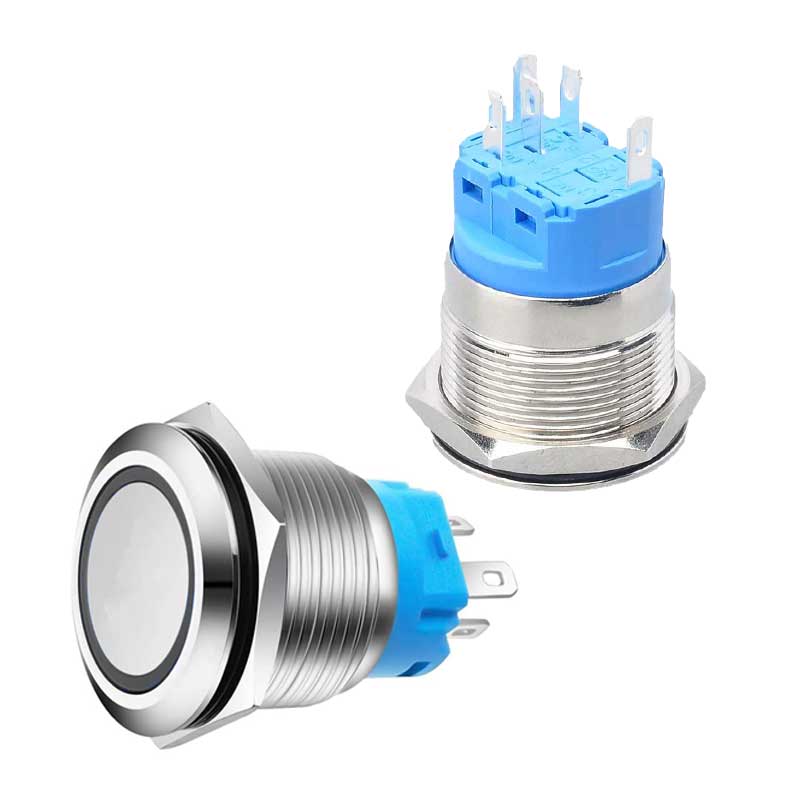

- Double contact 1NO + 1NC on the same button — choose normally open or normally closed configuration depending on your electrical scheme

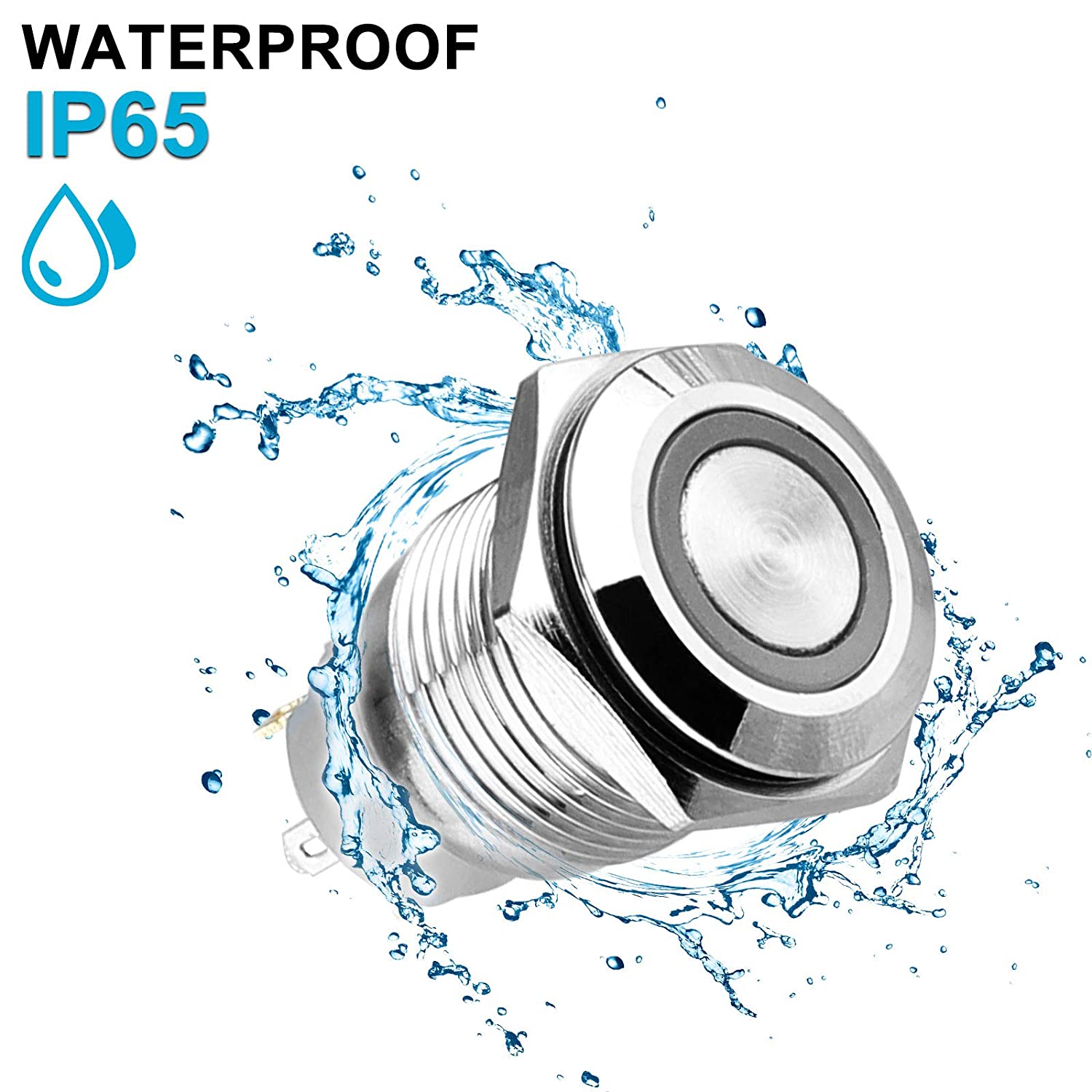

- Anti-vandal metallic body made of stainless steel — resists impacts, vibrations, and harsh environmental conditions specific to industrial environments
- Rubber gasket and detachable nut included — sealed mounting in panels with variable thickness, without special tools
- Compatible with voltages between 9V and 30V DC — operates stably at 12V and 24V, the most common voltages in industrial and automotive installations
How it works and how to install it

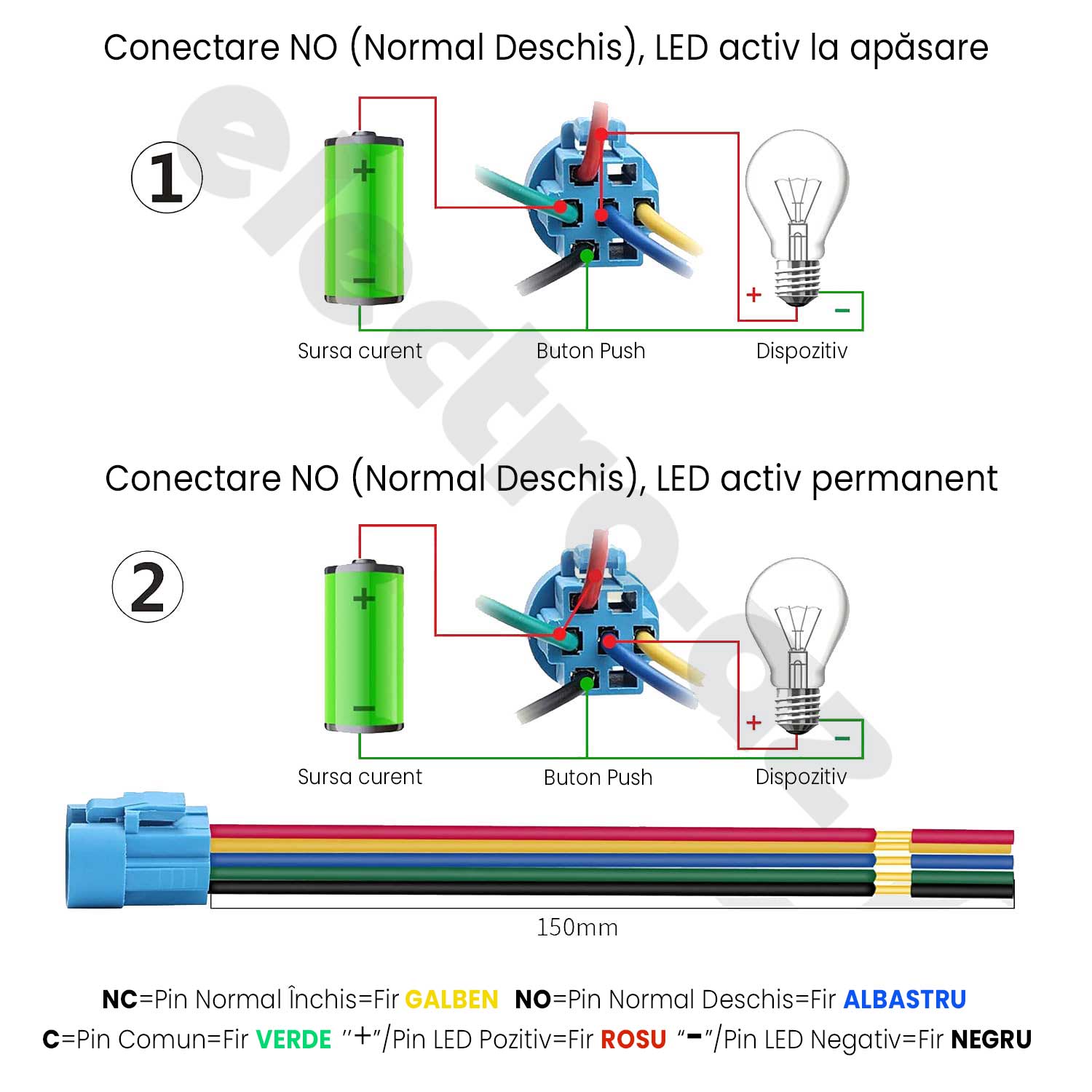

The button is mounted in a 16mm diameter hole, secured with the M16 threaded nut, and sealed with the included rubber ring — the operation takes a few minutes and does not require specialized tools. Connection is made via the 5-wire socket: red (LED+), black (LED-), green (C-common), blue (NO-normally open), and yellow (NC-normally closed). The green LED can be configured to light up only when pressed or to remain lit permanently, depending on the chosen wiring method.
Frequently Asked Questions
Does the button work at 12V and 24V simultaneously or must one be chosen?
The button operates within the 9-30V DC range, so it is natively compatible with both 12V and 24V systems without any modification.
Is the wired socket already mounted on the button or does it need to be assembled separately?
The connection socket comes attached to the button with a 150mm cable, ready for use — no additional assembly required.
Is the button latching or momentary?
This model is latching — it remains in the pressed position after activation and returns to the initial position on the next press.

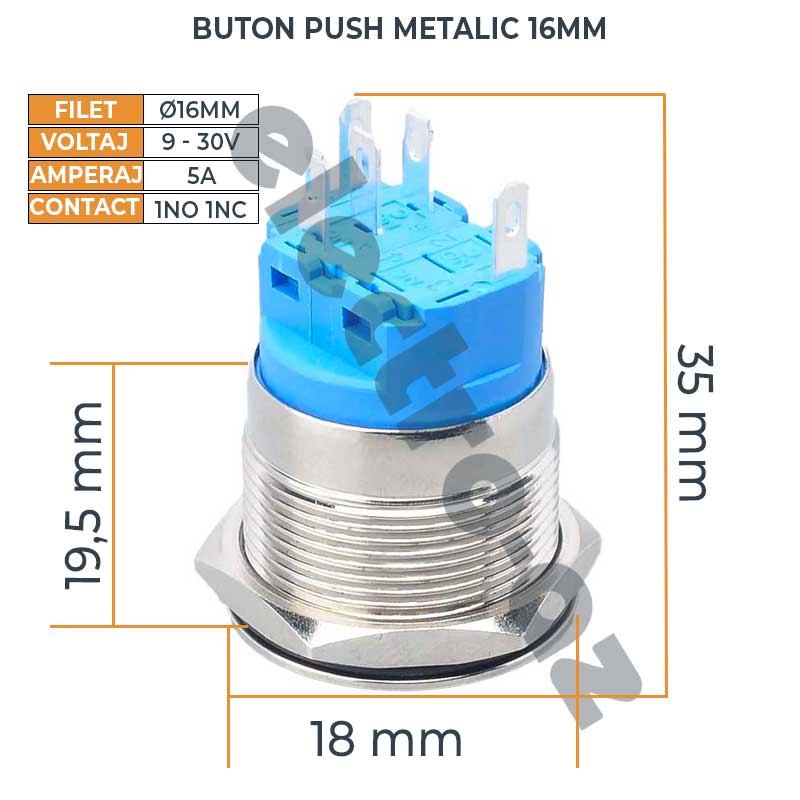

Technical Specifications
| Thread Diameter | M16 mm |
| Mounting Diameter | 16 mm |
| Flange Diameter | 18 mm |
| Thread Length | 19.5 mm |
| Total Length | 35 mm |
| Supply Voltage | 9 - 30V DC |
| Maximum Current | 5A |
| Contact Type | 1NO + 1NC |

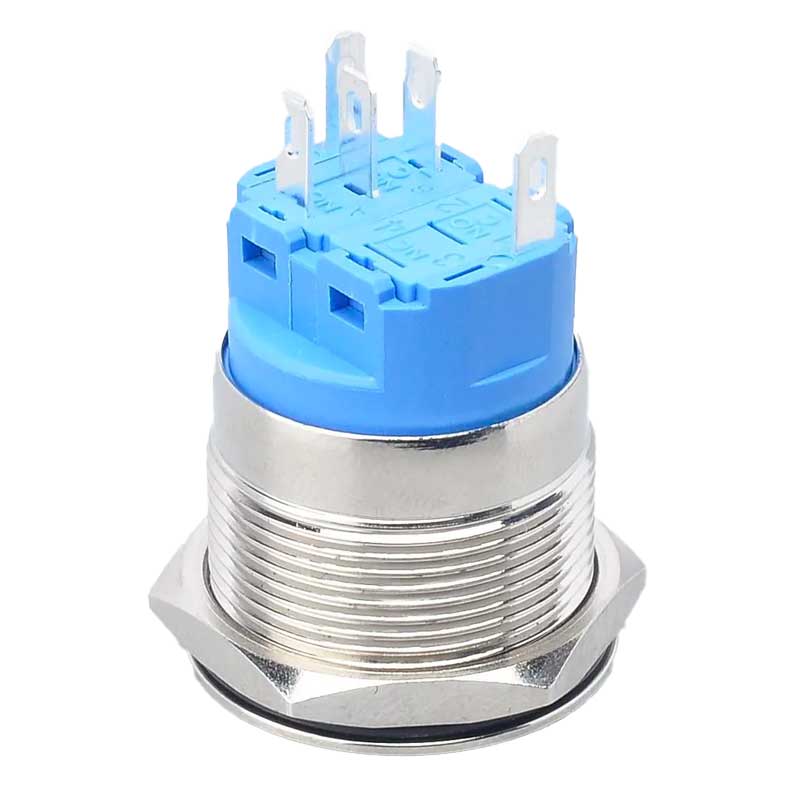

| Number of Pins | 5 (2 LED + 3 contact) |
| Cable Length (socket) | 150 mm |
| LED Color | Green |
| Illumination Type | LED Ring |
| Body Material | Stainless Steel |
| Actuation Type | Latching |

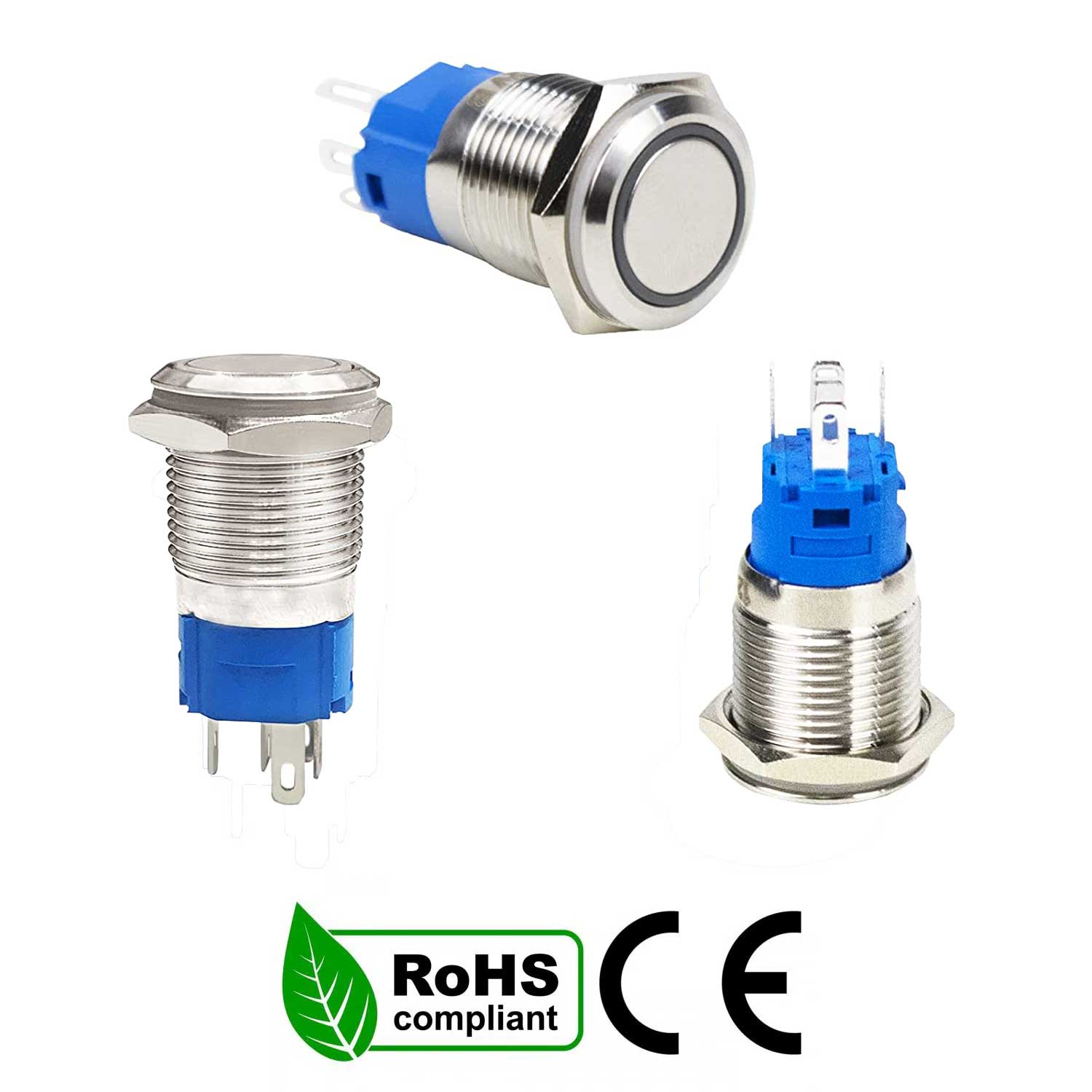

| Certifications | CE, RoHS |
| SKU | EAZ-BP061 |
Warranty and Support
The product benefits from a 2-year warranty according to current Romanian legislation. Returns accepted within 30 days of receipt, no further explanations needed. Fast courier delivery throughout Romania.
