ON/OFF Push Button with Return LA4-2H
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 11,99 lei | — |
| 3–4 pcs | 11,39 lei | 5% (−0,60 lei/unit) |
| 5–10 pcs | 10,79 lei | 10% (−1,20 lei/unit) |
| 11+ pcs | 10,19 lei | 15% (−1,80 lei/unit) |
Momentary ON/OFF Button for Industrial Motors and Machinery

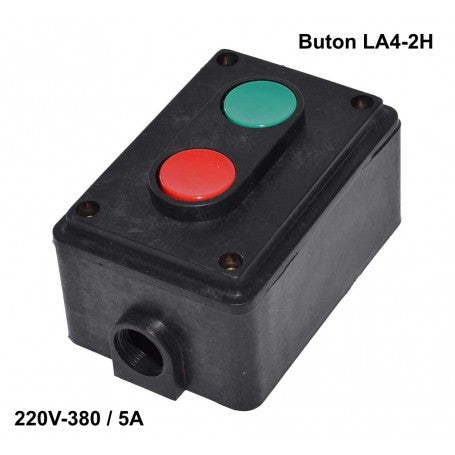

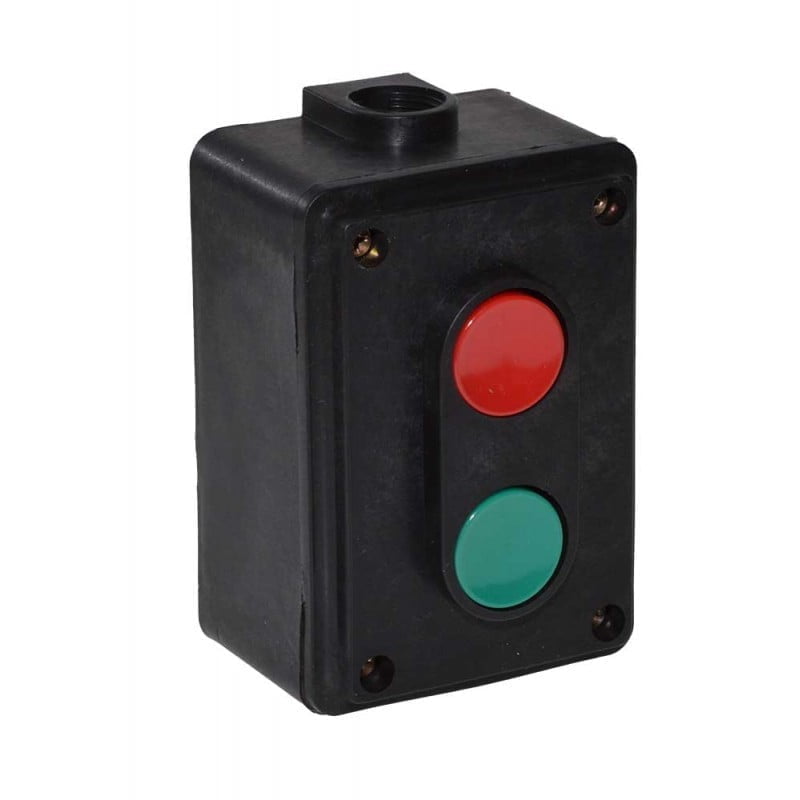

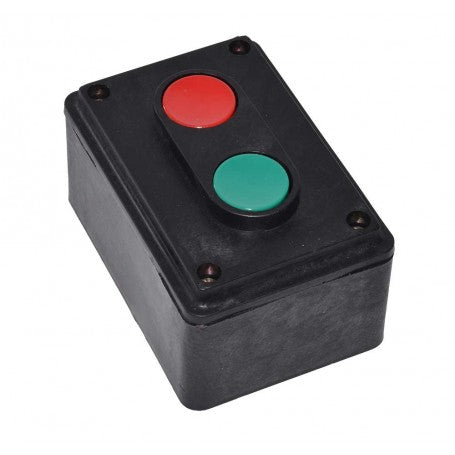

The LA4-2H control box is a reliable solution for starting and stopping electric motors, water pumps, hydrophores, concrete mixers, and production machines. Featuring two momentary buttons—green for start, red for stop—it offers direct and secure control in both domestic and industrial applications. Its durable ABS plastic casing, with a cable gland entry, ensures tidy installation and added protection for connections.
What you get with this product
- Instant start/stop control — momentary buttons respond to a simple press, without locking or additional adjustments
- Compatible with a wide range of equipment — electric motors, pumps, hydrophores, concrete mixers, cutting machines
- 220V-380V AC operating voltage — integrates directly into single-phase and three-phase installations

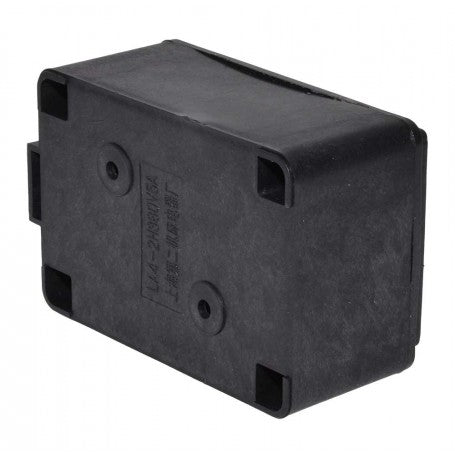

- Robust casing with cable gland hole — cables are protected and secured, reducing the risk of mechanical damage

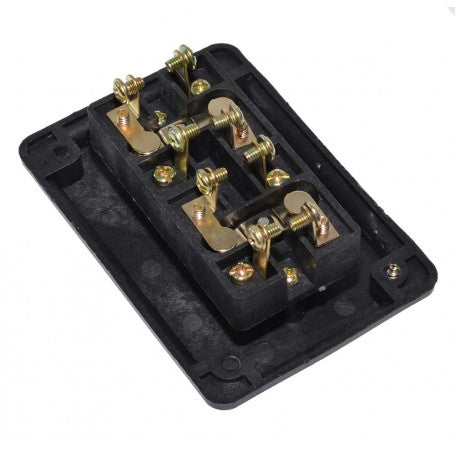

- Brass terminals with screws — stable electrical connections, resistant to vibrations common in industrial environments
- Simple to use without advanced technical knowledge — direct mounting on panel or wall, accessible wiring
How it works and how to install it
The LA4-2H button operates via direct manual action: pressing the green button closes the circuit and starts the connected equipment, while pressing the red button opens the circuit and stops the motor — both returning automatically to their initial position upon release. Installation involves feeding cables through the gland hole at the top of the casing, connecting wires to the screw terminals inside, and securing the box to the desired surface using the four existing mounting points. It requires no special tools and can be installed by anyone with basic electrical knowledge.
Frequently asked questions
Does this button work with a 380V three-phase motor?
Yes, the LA4-2H button supports AC voltages between 220V and 380V, making it compatible with both single-phase and three-phase circuits, within the 5A current limit.
What does a momentary button mean and why does it matter?
A momentary button automatically returns to its initial position after you release it, unlike a switch that remains locked. This feature prevents accidental equipment startup and is a standard requirement in industrial applications.
Can this button be mounted outdoors or in wet environments?
The casing is made of ABS plastic with a cable gland entry, however, the product does not have a specified certified IP rating, so it is recommended for use in covered areas or protected from direct moisture and splashing.
Technical specifications
| Model | LA4-2H380 |
| Actuation type | Push buttons |
| Contact type | Momentary ON/OFF |
| AC Voltage | 220V - 380V |
| Maximum current | 5A |
| Casing dimensions | 115 x 75 x 60 mm |
| Casing material | ABS Plastic |
| Terminal material | Brass |
| Number of buttons | 2 (green - start, red - stop) |
| Cable entry | Hole with cable gland, positioned on the top side |
| Package contents | 1 x Momentary ON/OFF Button LA4-2H |
| SKU | Q-6E054 |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, no justification required. Delivery is carried out quickly by courier, with shipment confirmation and tracking included.
