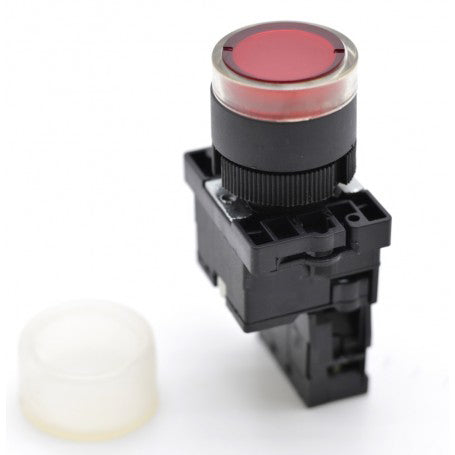

Push Button Motor EB2, 22mm, Red Rubber
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 16,99 lei | — |
| 3–4 pcs | 16,14 lei | 5% (−0,85 lei/unit) |
| 5–10 pcs | 15,29 lei | 10% (−1,70 lei/unit) |
| 11+ pcs | 14,44 lei | 15% (−2,55 lei/unit) |
22mm Industrial Push Button with Return for Electrical Panels
The EB2 22mm push motor button with a red rubber cap is designed for controlling electromagnetic starters, contactors, and relays in industrial installations. Its momentary action with automatic return ensures precise and safe control of electrical circuits. The flame-retardant material construction and silver alloy contacts guarantee reliability in intensive use.
What you get with this product
- Precise circuit control — momentary action with automatic return, active command only while the button is pressed
- Compatible with a wide range of equipment — works with electromagnetic starters, contactors, relays, and other electrical control circuits
- Quick panel mounting — standard 22mm hole, adjustable panel thickness up to 5mm, no additional adapters
- Increased durability — silver alloy contacts and flame-retardant housing for safety in industrial environments
- Immediate visual identification — red rubber cap for clear signaling of stop or command function
- Easy and quick operation — ergonomic design reduces operator fatigue in repeated use
How it works and how to install it
The EB2 button is mounted in a 22mm hole drilled in the electrical panel, without special tools — it is secured by tightening the front nut, and the accepted panel thickness is adjustable up to 5mm. The 1NC (normally closed) contact connects to the control circuit of the contactor or relay, according to the electrical diagram of the installation. When pressed, the circuit switches, and upon releasing the button, it automatically returns to its initial position.
Frequently asked questions
Does this button stay locked after pressing or does it return on its own?
It returns automatically — the action type is momentary (push with return), the circuit is active only while the button is held down.
What is the maximum panel thickness allowed for mounting?
The accepted panel thickness is adjustable and can be up to a maximum of 5mm.
Is the white rubber cap shown in the image included in the package?
Yes, the package includes the complete button with the contact block and protective cap, as shown in the image.
Technical specifications
| Model | EB2 |
| Mounting hole size | 22 mm |
| Contact type | 1 NC (normally closed) |
| Action type | Momentary, push with automatic return |
| Product dimensions (L x W x H) | 39 x 29 x 55 mm |
| Accepted panel thickness | Max 5 mm (adjustable) |
| Contact material | Silver alloy |
| Housing material | Flame retardant, rubber |
| Cap color | Red |
| Net weight | 43 g |
| SKU | Q-6E013 |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, without requiring justification. Delivery is carried out quickly by courier, with shipping confirmation.
