Push Engine Button 5A Voltage 220V Green
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 16,99 lei | — |
| 3–4 pcs | 16,14 lei | 5% (−0,85 lei/unit) |
| 5–10 pcs | 15,29 lei | 10% (−1,70 lei/unit) |
| 11+ pcs | 14,44 lei | 15% (−2,55 lei/unit) |

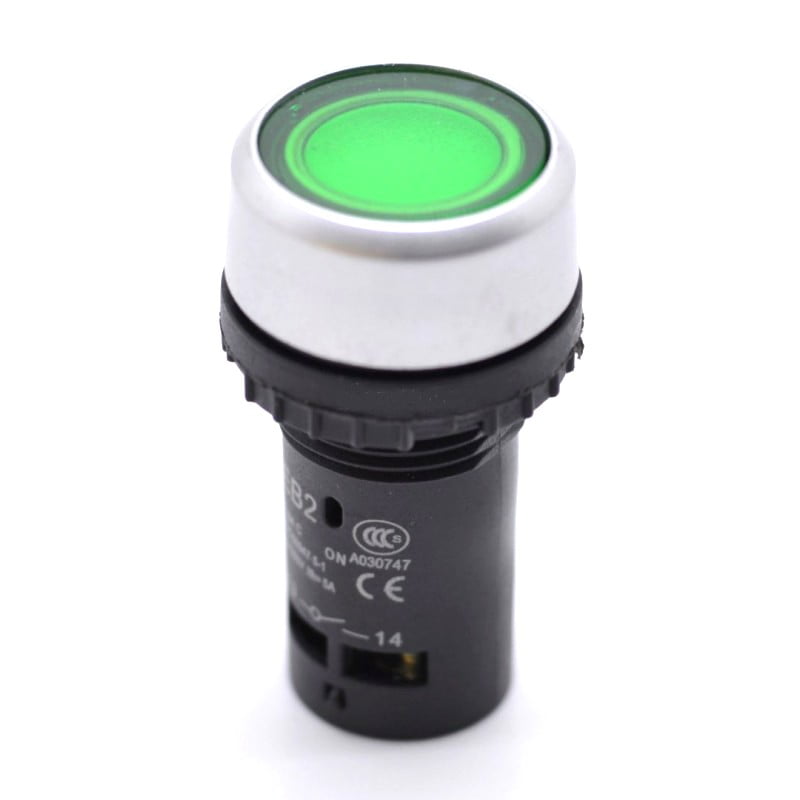

Green 220V push button for industrial equipment control
The EB2-01D push button is an essential component for the safe control of electromagnetic starters, contactors, and relays in industrial installations and automation systems. Featuring quick mounting in a 22mm hole and momentary contact with return, this green button provides instant command at 220V AC and up to 5A current, ideal for equipment start-stop applications or signaling in electrical panels.
What you get with this product
- Instant and safe control of electrical equipment — momentary contact active only while the button is pressed
- Quick mounting in electrical panels — installs in a standard 22mm hole, without complicated modifications
- Long-term reliability — flame-retardant material and wear-resistant silver alloy contacts
- Maximum versatility — 1NO + 1NC configuration for integration into any type of control circuit
- Clear visibility in panels — distinctive green color for quick function identification
- International certification — CCC and CE markings for compliance with safety standards
How it works and how to install it
The button functions as a momentary switch with automatic return: the circuit closes only while the button is held down, returning to its initial position upon release. For installation, create a 22mm hole in the electrical panel, insert the button, and secure it with the nut on the back. Connect the wires to the 1NO (normally open) terminals for command upon pressing or to the 1NC (normally closed) terminals for interruption upon pressing, depending on your control circuit's logic.
Frequently asked questions
Can I use this button to start a three-phase motor?
Yes, the button is designed precisely for this application — you use it in the control circuit of the electromagnetic starter that controls the motor, not directly on the motor's power line.
Does the button stay locked after pressing or does it return automatically?
The button automatically returns to its initial position immediately after you release it — it is a momentary push type with internal spring return.
What do 1NO and 1NC contacts mean and how do I connect them?
1NO (normally open) closes when pressed, 1NC (normally closed) opens when pressed. You choose the contact type based on the circuit's logic — for motor starting, you typically use NO; for emergency stop, you use NC.
Technical specifications
| Model | EB2-01D |
| Rated Voltage | 220V AC |
| Max Current | 5A |
| Contact Type | 1NO (normally open) + 1NC (normally closed) |
| Action Type | Momentary with return (push) |
| Mounting Diameter | 22mm |
| Indicator Color | Green |
| Housing Material | Flame-retardant plastic |
| Contact Material | Silver alloy |
| Certifications | CCC, CE |
| EAN | 0781499725116 |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation, covering manufacturing defects. You have the right to return the product within 30 days of receipt if it does not meet expectations. Delivery is carried out quickly by national courier, with SMS confirmation and a tracking AWB.
