Motor Push Button, 5A, Voltage 220V, Red
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 16,99 lei | — |
| 3–4 pcs | 16,14 lei | 5% (−0,85 lei/unit) |
| 5–10 pcs | 15,29 lei | 10% (−1,70 lei/unit) |
| 11+ pcs | 14,44 lei | 15% (−2,55 lei/unit) |

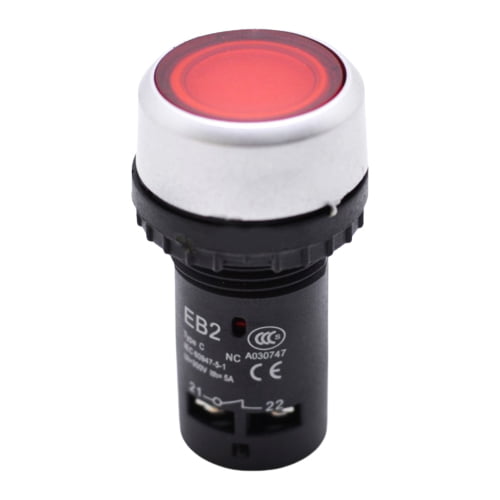

22mm Red Illuminated Push Button for Industrial Panels

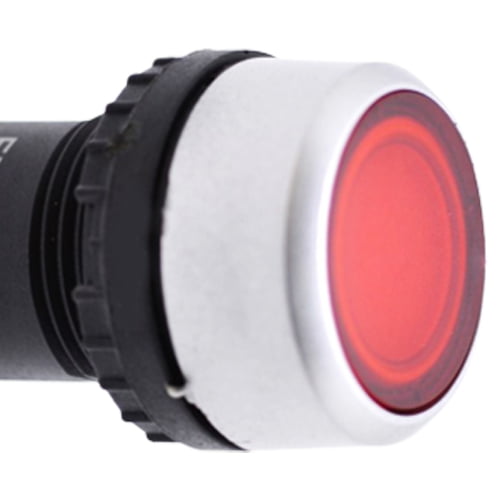

The red illuminated push button EB2-01D is designed for direct control of contactors, electromagnetic starters, and relays in industrial installations. With momentary action and automatic return, it provides a clear activation signal and visual confirmation through the integrated LED illumination. The fire-retardant material construction and silver alloy contacts ensure long-term reliability in environments with repeated electrical demands.
What you get with this product
- Immediate visual confirmation of actuation — the red illuminated button indicates active status without additional equipment
- Compatible with standard panels — 22 mm mounting diameter fits most existing industrial electrical panels
- Automatic return after pressing — momentary action eliminates the risk of accidental circuit locking
- Silver alloy contacts — low electrical resistance and minimal wear even with frequent switching
- Certified fire-retardant body — the housing material reduces the risk of flame propagation in case of an electrical incident

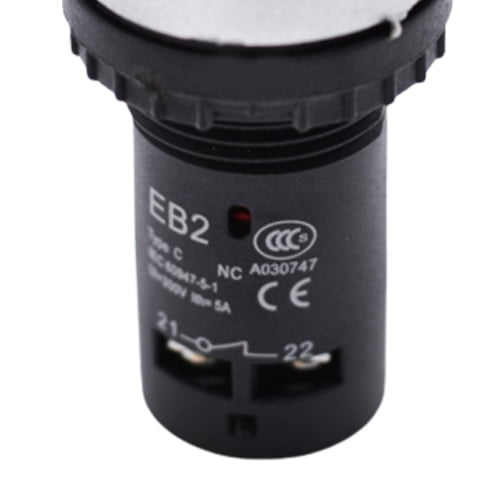

- CE and CCC certification — compliant with IEC 60947-5-1 standard, usable in installations compliant with European norms
How it works and how to install it

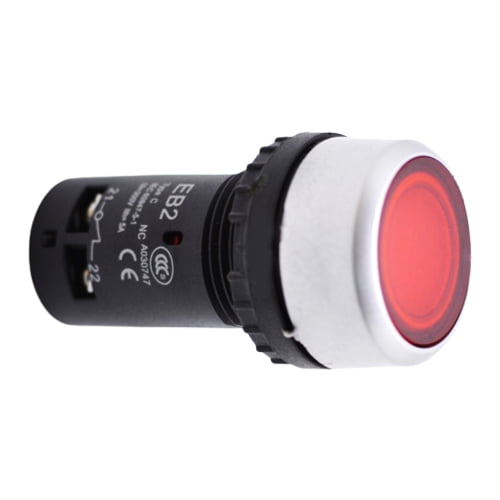

The button is mounted in an electrical panel by drilling a 22 mm hole, after which the body is secured with the threaded nut from the back — an operation accessible to any authorized electrician in a few minutes. When pressed, the NC (normally closed) contact opens and the NO (normally open) contact closes, transmitting the command to the contactor or relay; upon release, the button automatically returns to its initial position. Power for the integrated illumination is supplied at 220V AC directly from the control circuit.
Frequently Asked Questions
Does the button stay pressed or does it return on its own after actuation?
It automatically returns to its initial position immediately after release — the action type is momentary, not latching.
Does the button light up all the time or only when pressed?
The illumination works when the 220V AC power supply circuit is connected to the integrated LED terminals — the exact configuration depends on the adopted wiring diagram.
Can it be mounted in panels with a thickness of 2-3 mm?
Yes, the threaded nut fastening system is compatible with panels of different thicknesses, within the gripping depth of the 22 mm body.
Technical specifications
| Model | EB2-01D |
| SKU | Q-6E011 |
| Contact type | 1NO + 1NC (normally open + normally closed) |
| Action type | Momentary, with automatic return (push) |
| Rated voltage | 220V AC |
| Rated current | 5A |
| Mounting diameter | 22 mm |
| Contact material | Silver alloy |
| Housing material | Fire-retardant plastic |
| Button color | Red |
| Standard | IEC 60947-5-1 |
| Certifications | CE, CCC |
| Package contents | 1 x red illuminated push button |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the package, without the need for justification. Delivery is carried out quickly by courier throughout Romania.
